74LVCH2240APW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74LVCH2240APW

74LVCH2240APW: DescriptionIC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver; Categorylogic logic; File Size125KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

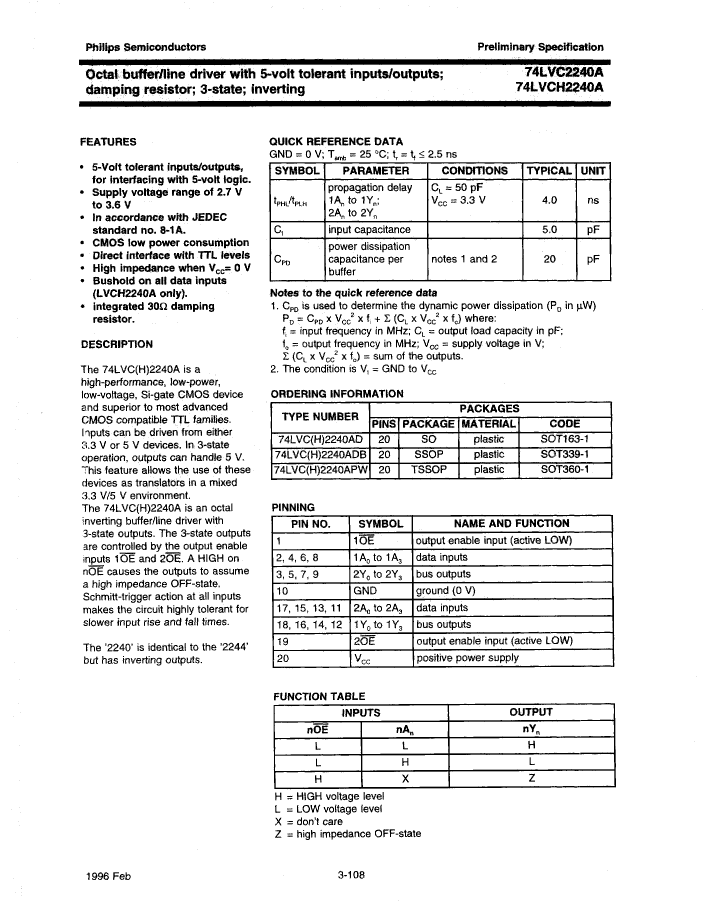

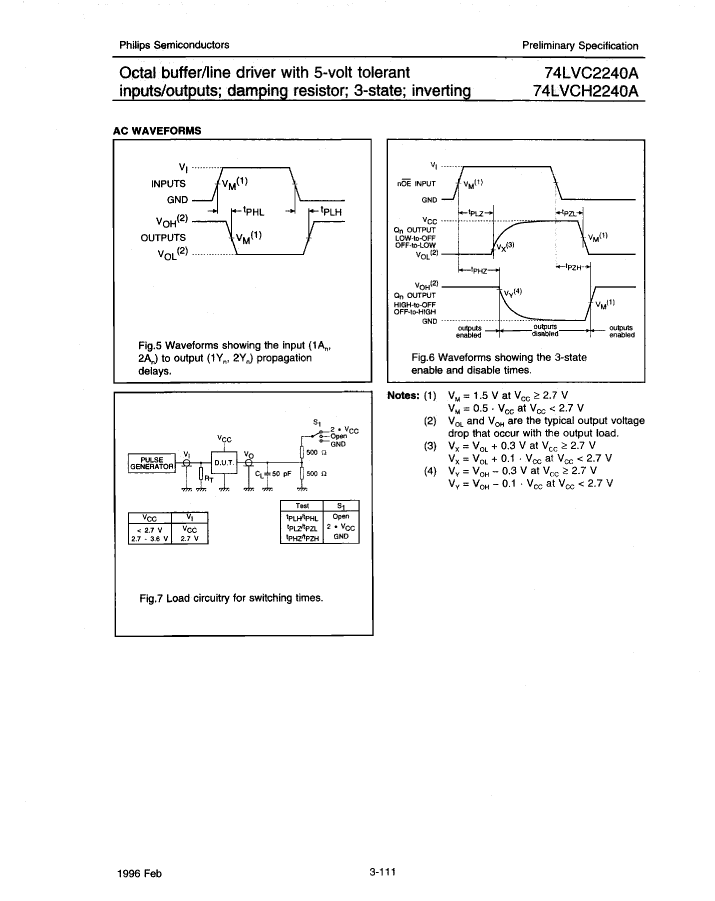

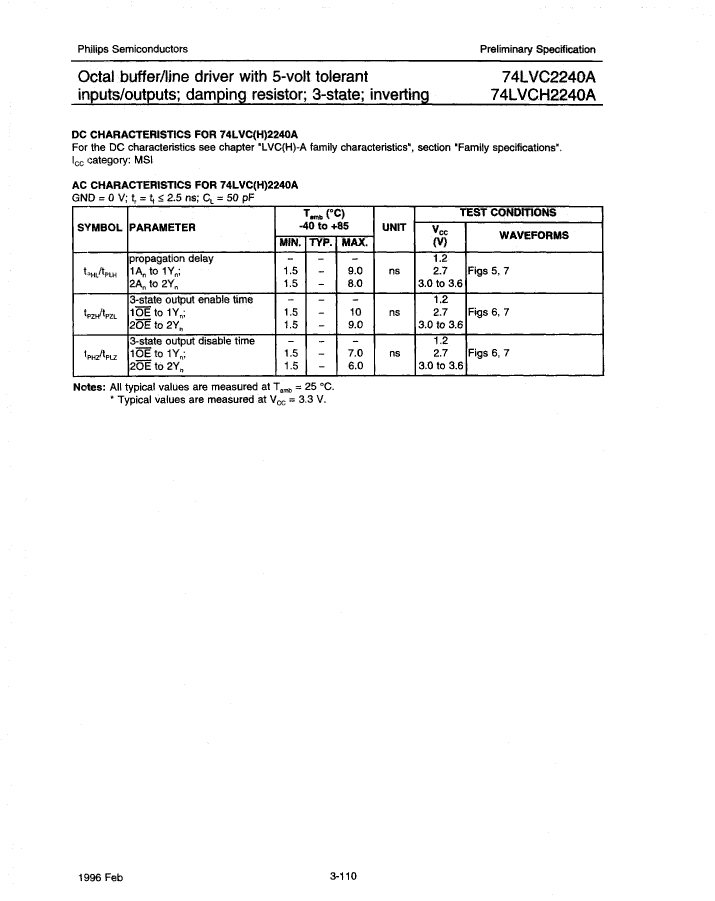

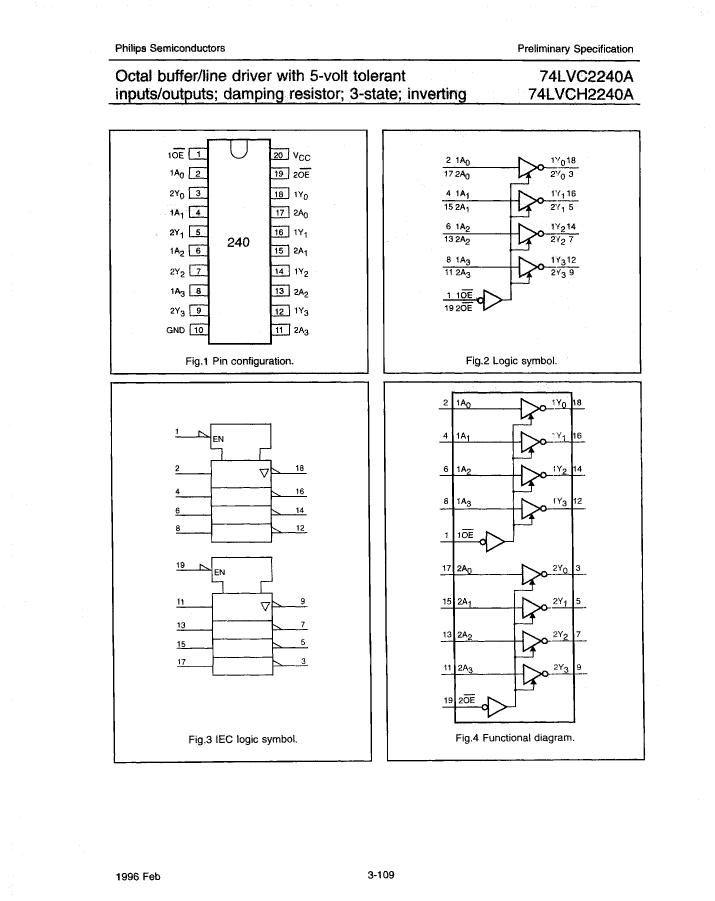

74LVCH2240APW Overview

IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver

74LVCH2240APW Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	TSSOP,
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G20
length	6.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74LVCH2240APW Related Products

	74LVCH2240APW	74LVCH2240ADB	74LVCH2240AD	74LVC2240AD	74LVC2240ADB	74LVC2240APW
Description	IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver
package instruction	TSSOP,	SSOP,	SOP,	SOP,	SSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	6.5 mm	7.2 mm	12.8 mm	12.8 mm	7.2 mm	6.5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SOP	SOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	2 mm	2.65 mm	2.65 mm	2 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	5.3 mm	7.5 mm	7.5 mm	5.3 mm	4.4 mm
Maker	NXP	NXP	NXP	-	-	NXP
Base Number Matches	1	1	1	1	1	-
