3212-40003

Description
RF Connectors / Coaxial Connectors SMPM M PCB Thru-Hole Conn, R/A, SB
CategoryThe connector
File Size216KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

3212-40003 Online Shopping

Suppliers Part Number Price MOQ In stock
3212-40003 - - View Buy Now

3212-40003 Overview

RF Connectors / Coaxial Connectors SMPM M PCB Thru-Hole Conn, R/A, SB

3212-40003 Parametric

Parameter NameAttribute value
Product CategoryRF Connectors / Coaxial Connectors
ManufacturerAmphenol
ProductPCB Connectors
RF SeriesSMPM
GenderMale
Impedance50 Ohms
Maximum FrequencyDC to 26.5 GHz
Termination StyleSolder
OrientationRight Angle
Contact MaterialBeryllium Copper
Contact PlatingGold
Insulation Resistance5000 MOhms
Factory Pack Quantity100
ROHS COMPLIANT
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED

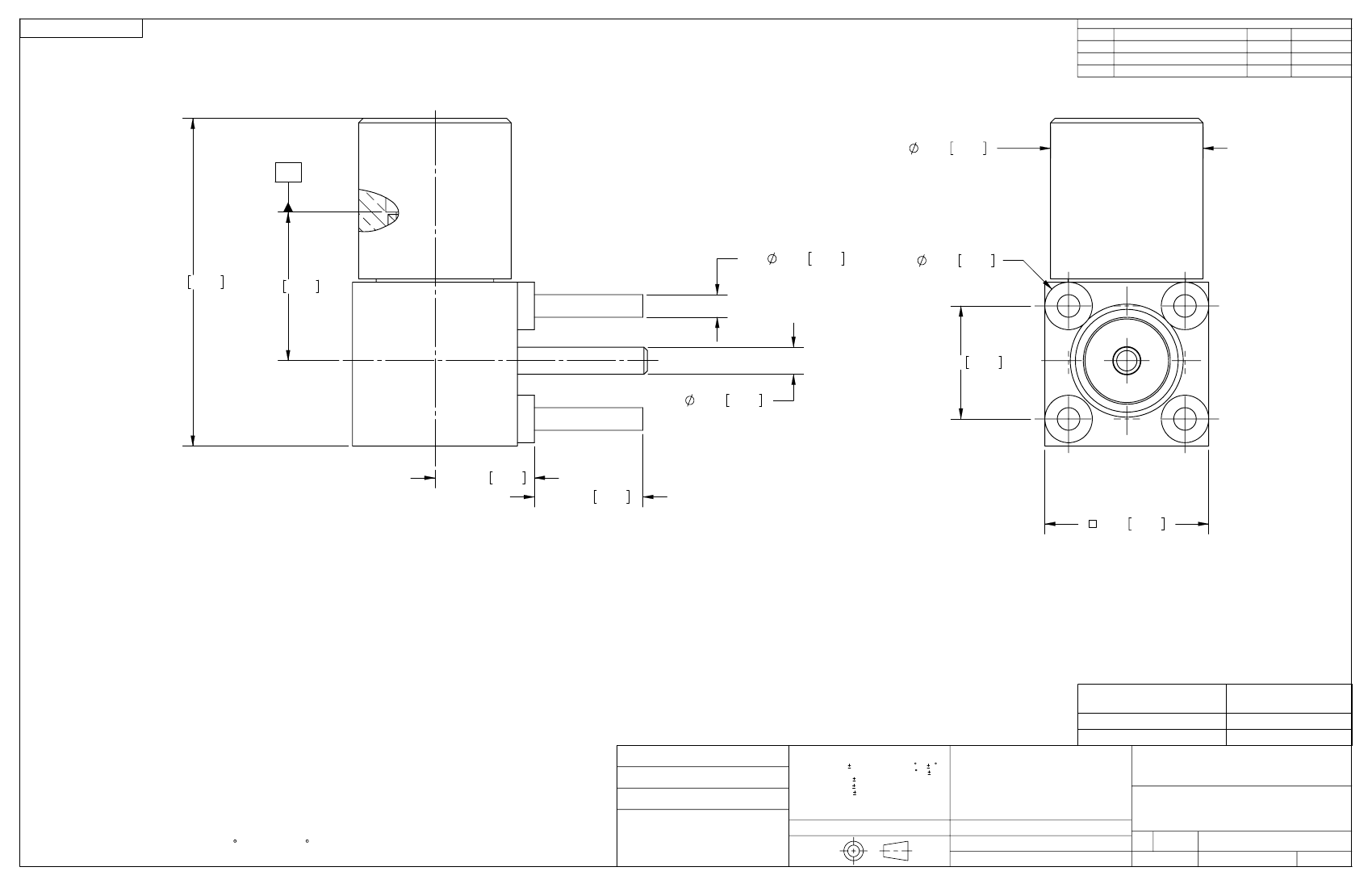

PRODUCT DATA DRAWING
-
DCN 35971
07/08
STW
.135 3.43
RP
4X
.290 7.37
.132 3.34
.020 0.51
4X
.042 1.07
2X .100 2.54
.024 0.61
4X .088 2.24
MATERIAL:
BODY &
CONTACT:
SLEEVE:
INSULATOR:
BERYLLIUM COPPER PER ASTM-B-196,
ALLOY No. UNS C17300, TD04
STAINLESS STEEL PER AMS-5640,
ALLOY NO. UNS S30300, TYPE 1
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
5X .096 2.44
.145 3.68
FINISH:
SLEEVE:
BODY, SLEEVE &
CONTACT:
PASSIVATED PER AMS-2700, TYPE 2
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27; OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
NOTES:
1. FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC PCB,
CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800).
MATERIAL:
FINISH:
SV PART NUMBER
3212-40002
3212-40003
INTERFACE
FD
SB
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
DWV:
OPERATING TEMP.:
50 OHMS
DC TO 26.5 GHz
1.401:1 DC TO 26.5 GHz
325 VRMS
-55 C TO +125 C
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
PJS 07/24/08
STW 07/24/08
STW 07/24/08
SMPM RA. MALE SMOOTH
BORE TO PCB MOUNT
95077
SIZE CAGE CODE DWG. NO.
B
3212-4000X
SHEET 1 OF 1
SCALE: 14:1
