TECHNICAL DATA SHEET
1/3

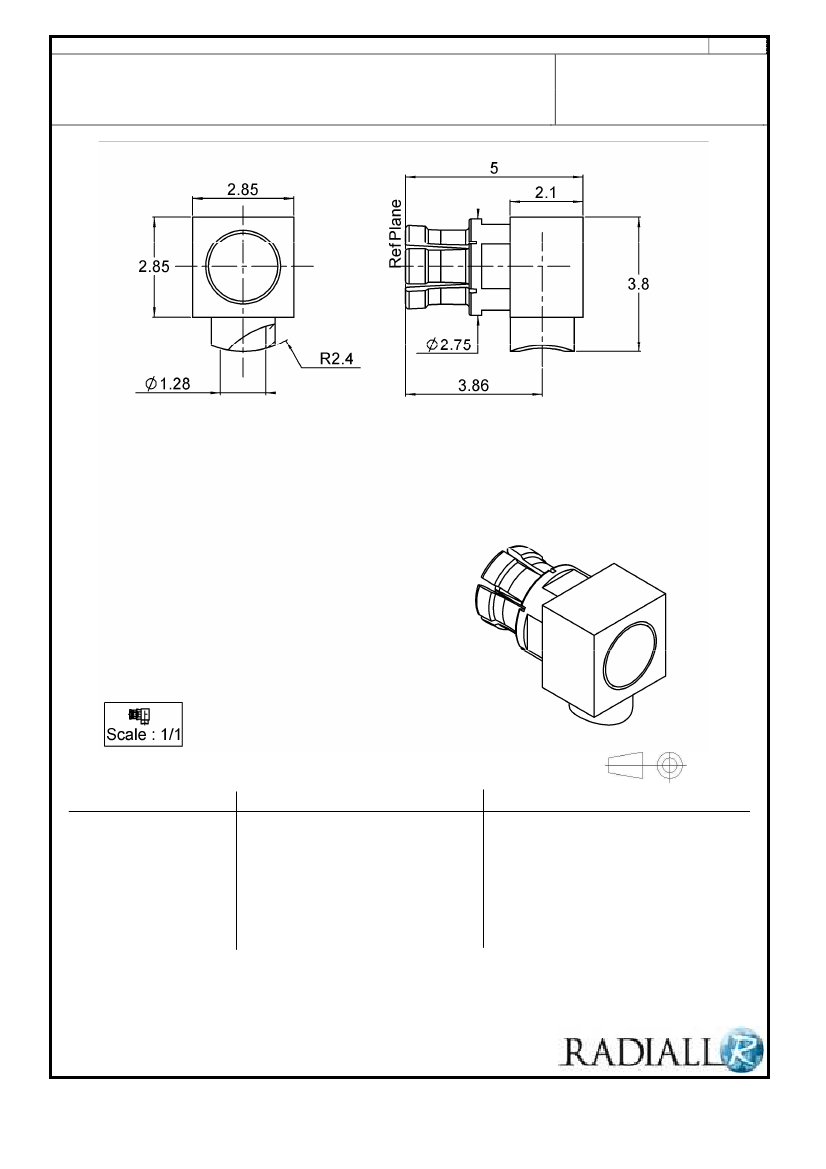

RIGHT ANGLE FEMALE CONNECTOR
SOLDER CABLE .047
R201.151.000
Series :
SMPM
All dimensions are in mm.
.
po
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BERYLLIUM COPPER
BERYLLIUM COPPER
-
PEEK
-
BRASS
-
-
PLATING
(µm)
GOLD 1.3 OVER NICKEL2
GOLD 1.3 OVER NICKEL2
-
GOLD 1.3 OVER NICKEL2
-
-
Issue : 1036
A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
2/3
RIGHT ANGLE FEMALE CONNECTOR
SOLDER CABLE .047
R201.151.000
Series :
SMPM
PACKAGING
SPECIFICATION
Standard
100
Unit
‘W’ option
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-18
GHz
VSWR
*1.3 + 0,0000
x F(GHz) Maxi
Insertion loss
0.12
√F(GHz)
dB Maxi
RF leakage
-(
NA
- F(GHz)) dB Maxi
Voltage rating
335
Veff Maxi
Dielectric withstanding voltage
500
Veff mini
Insulation resistance
5000
MΩ mini
Stripping
CABLE ASSEMBLY
a
1,60
b
0,00
c
0,00
d
0,00
e
0,00
f
0,00
mm
Assembly instruction
:
Recommended cable(s)
UT47 M17/151-00001
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
6.7
N mini
6.7
N mini
NA
N.cm mini
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
Cable retention
- pull off
- torque
45
N mini
NA
N.cm
TOOLING
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
NA
0,0000
N.cm
N.cm
N.cm
mm
Part Number Description
.
.
R282.740.020 SOLDERING
MOUNTING
Hexagon
.
500
Cycles mini
0,1700
g
OTHER CHARACTERISTICS
*VSWR 1.25 TO 12 GHz
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-40/+100
° C
NA
Atm.cm3/s
NA
Issue : 1036
A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
3/3
RIGHT ANGLE FEMALE CONNECTOR
SOLDER CABLE .047
COMPONENT
BODY
CAP
R201.151.000
Series :
SMPM
a

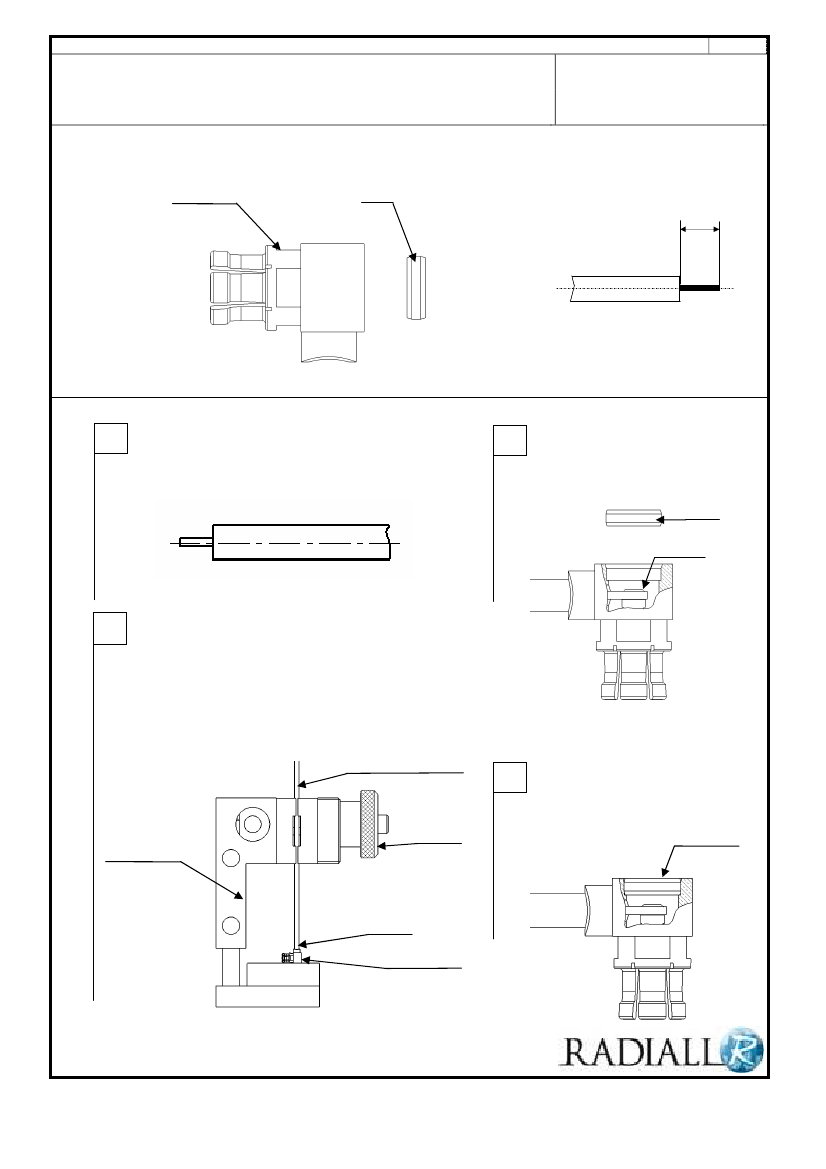

We recommend a cable thermal preconditioning before assembly
1
-Strip the cable.
-Clean the cable
3
-Solder cable inner conductor into
the centre contact.
-Clean soldering area
Cap
Solder
2
-
Introduce the cable into the connector body until it
stops.
-Place the sub assembly into the assembly and
thighten it .
-Solder the body onto the cable.
-After cooling remove cable assembly from the jig.
Cable in position
4
Tighten
Soldering jig
-Put the cap in its place.
-Press cap flush or slightly below
surface of body assembly.
Press on
Solder
Connector
Issue : 1036
A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
