JVS Bronze Series
Basic series
Shell style:
00:
Square flange receptacle
07:
Jam nut receptacle
16:
Plug with RFI shielding
Material:
A:
Bronze housing material.
JVS Bronze Series
JVS
16
A
11
35
P
N
**
Connector part numbers
Shell size
09 - 11 - 13 - 15 - 17 - 19 - 21 - 23 - 25
Contact layout:
See page 136 to 138
Contact type:
P:
Pin
A:
Connector supplied less pin contact or with specific contacts (Connector marking: A+ orientation)
S:
Socket
B:
Connector supplied less socket contact or with specific contacts (Connector marking: B+ orientation)
Orientations:
N, A, B, C, D & E (See page 186)
Specification:
251:
Connector provides with power contacts (layouts with contacts #8)

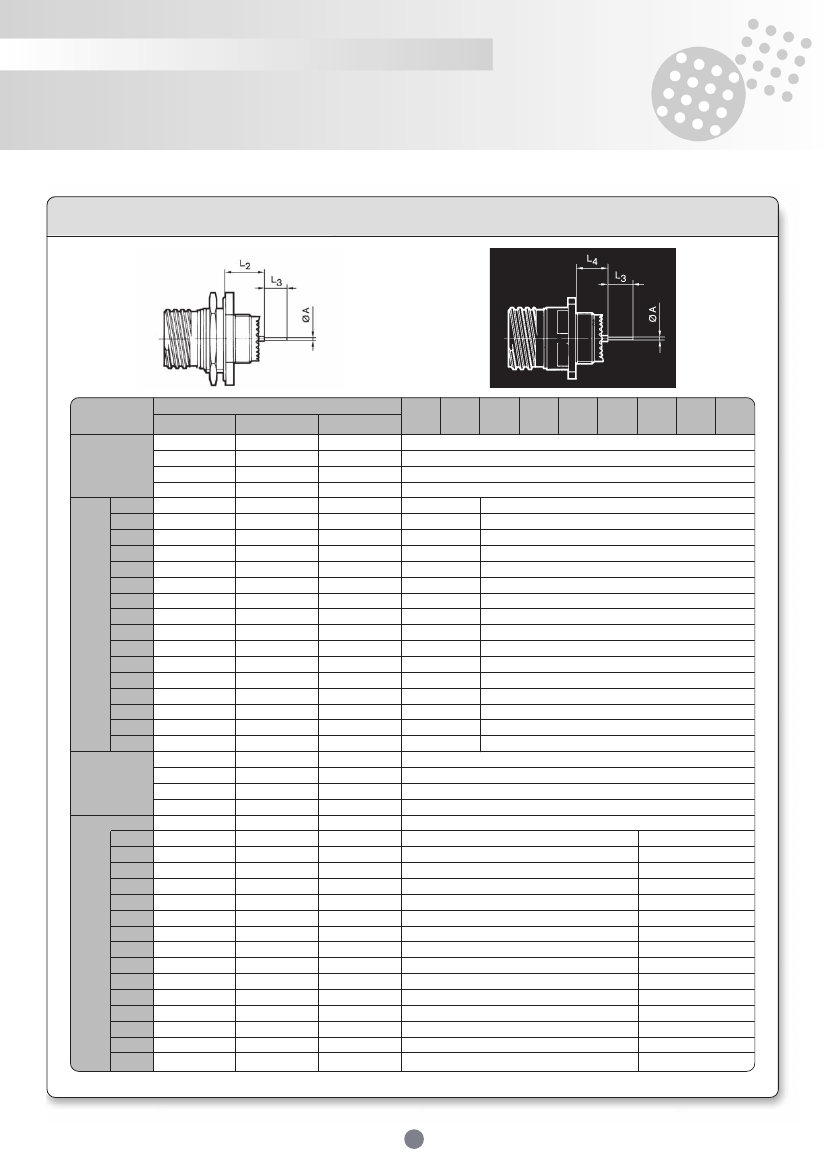

CI:
Printed board mounting contacts.
LI:
Receptacle with long spill (pin or socket #22D)
MW:
Wire wrap contacts
022:
Fuel tank
L:
For P or S contact type only, connectors delivered without contacts, connectors marking P or S plus orientation.
CECC part numbers
Basic series
Shell style:
A:
Plug
B:
Square flange receptacle.
C:
Jam nut receptacle.
Shell size & layout:
A=09, B=11, C=13, D=15, E=17, F=19, G=21, H=23, J=25
(B=Shell size 11) (Layouts: see page 136 to 138)
Contact type:
M:
Pin
F:
Socket
Type of contact termination:
C:
Crimp contact
Orientations
N, A, B, C, D & E (See page 186)
Shell material:
A:
Aluminium bronze
Supply code:
0=
Connectors supplied with contacts
1=
Connectors supplied without contacts
Assessment level:
1:
Level 1
Performance level:
G:
Level G
Example :
Abbreviated version :
CECC 75 201-002
B
B98
M
C
N
A
0
1
G
C 752 002
B
B98
M
C
N
A
0
1
G
176
8D JVS Bronze 175-184:Mise en page 1
25/08/08
11:30
Page 178
JVS Bronze Series
JVS Bronze Series
Plug type 1
6
Shell
size
09 (A)
11 (B)
13 (C)
15 (D)
17 (E)
19 (F)
21 (G)
23 (H)
25 (J)
A
Max.
31.00
31.00
31.00
31.00
31.00
31.00
31.00
31.00
31.00
B
thread
M12 x 1-6g
M15 x 1-6g
M18 x 1-6g
M22 x 1-6g
M25 x 1-6g
M28 x 1-6g
M31 x 1-6g
M34 x 1-6g
M37 x 1-6g
C
Max.
21.10
23.80
28.20
31.40
36.50
39.30
42.50
45.30
48.40
Maximum coupling torque on panel for jam nut receptacle (type 7)
Shell
Coupling
torque
(N.m)
09
(A)
6
11
(B)
8
13
(C)
10
15
(D)
13
17
(E)
20
19
(F)
23
21
(G)
25
23
(H)
26
25
(J)
28

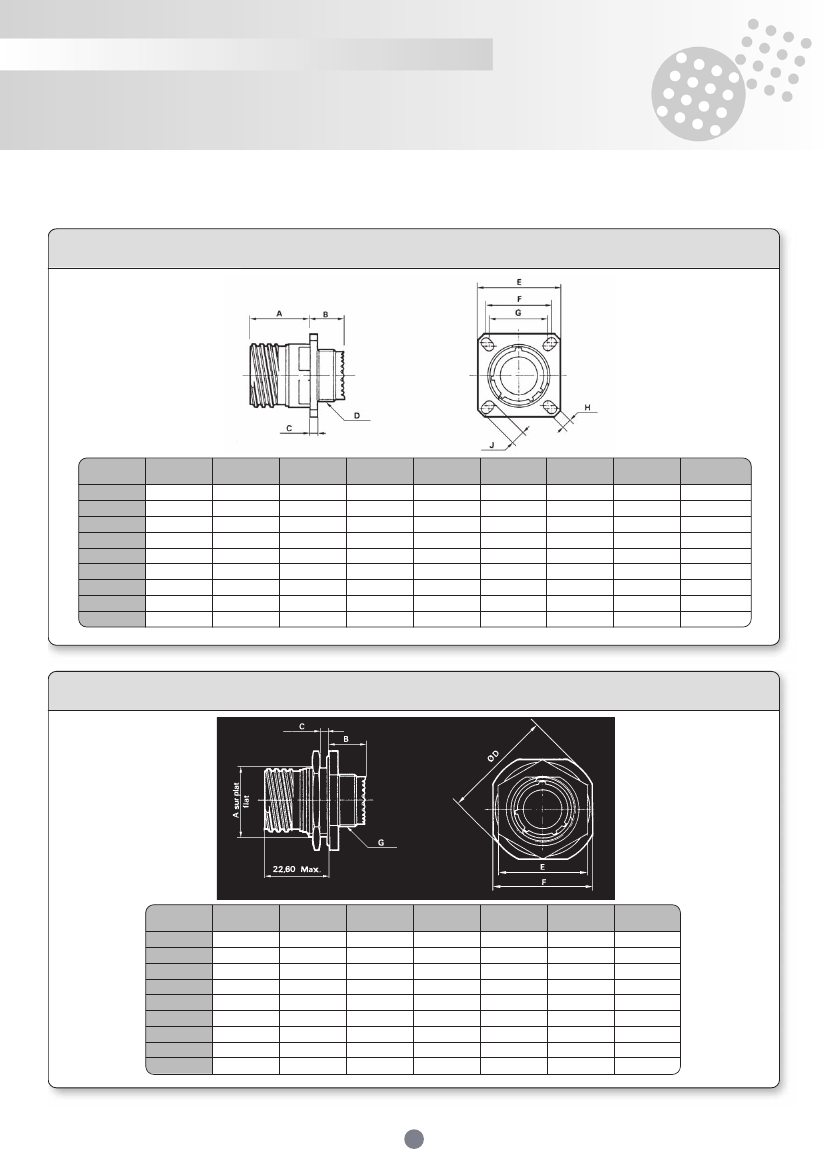

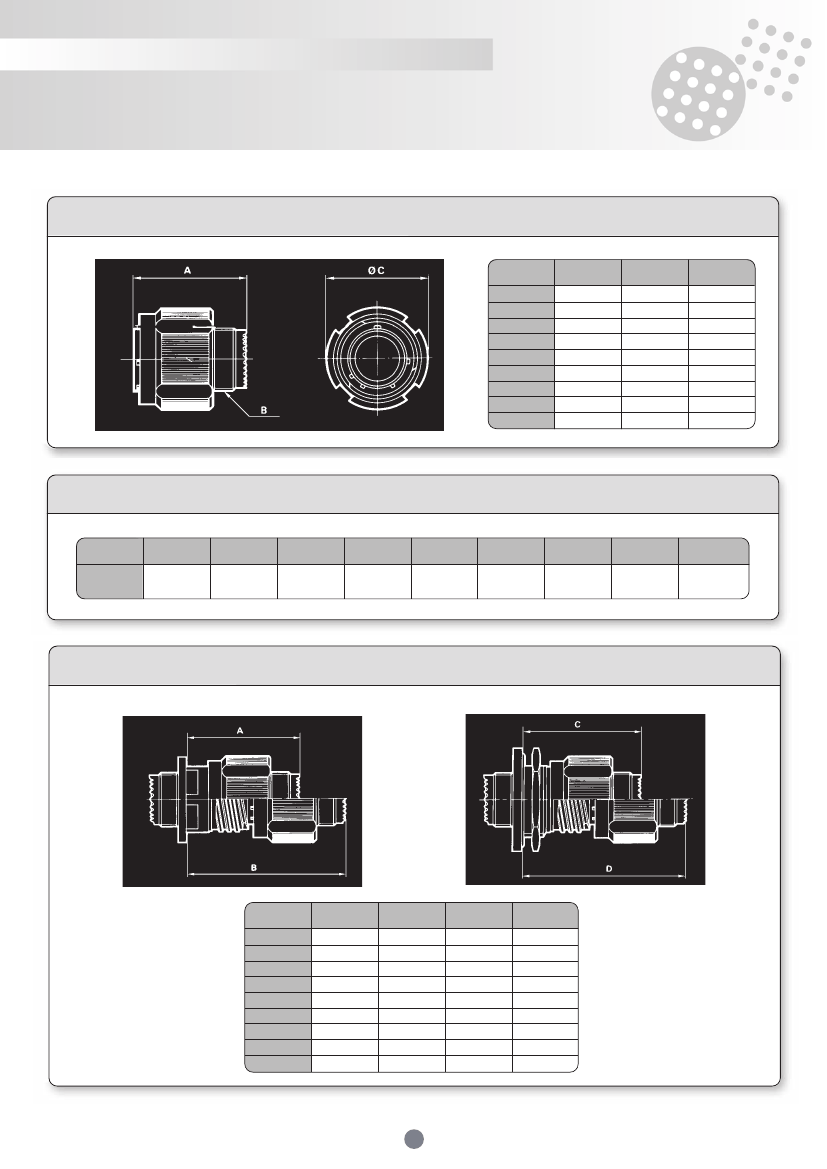

Mated connectors dimensions
Type 00 with plug
Type 7 with plug
Shell
size
09 (A)
11 (B)
13 (C)
15 (D)
17 (E)
19 (F)
21 (G)
23 (H)
25 (J)
Dimensions in millimeters
178
A
Max.
37.00
37.00
37.00
37.00
37.00
37.00
36.00
36.00
36.00
B
Max.
52.30
52.30
52.30
52.30
52.30
52.30
51.30
51.30
51.30
C
Max.
38.30
38.30
38.30
38.30
38.30
38.30
38.30
38.30
38.30
D
Max.
53.60
53.60
53.60
53.60
53.60
53.60
53.60
53.60
53.60
