380-009
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type D - Rotatable Coupling - Standard Profile
38
CONNECTOR
DESIGNATORS
380 F J 009 M 16 05 F
Product Series
Connector
Designator
Angle and Profile
H = 45°
J = 90°
See page 38-50 for straight
Strain Relief Style (F, G)
Cable Entry (Table IV, V)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
TYPE D INDIVIDUAL
OR OVERALL
SHIELD TERMINATION
A Thread
(Table I)
E
(Table III)
G
(Table III)
F (Table III)
C Typ.
(Table I)
H
(Table III)

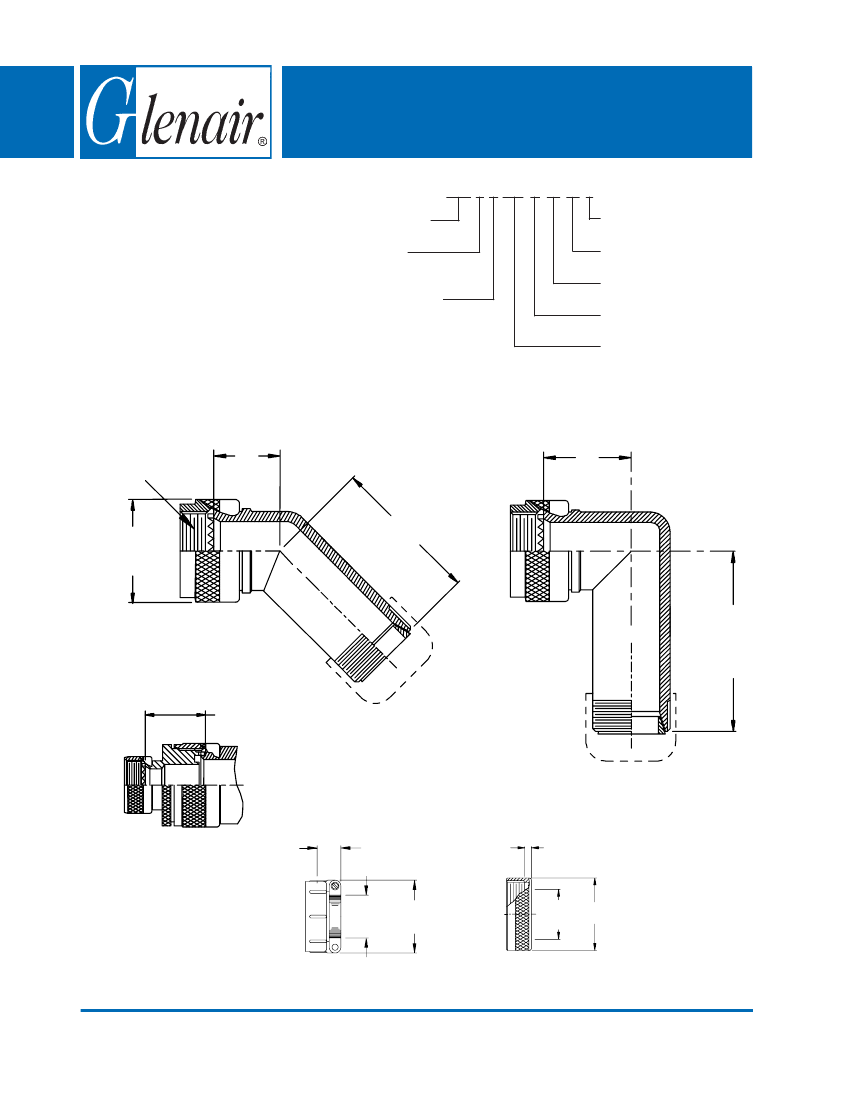

.88 (22.4) Max
STYLE F
Light Duty
(Table IV)
STYLE 2
(See Note 1)
.416 (10.5)
Max
Cable
Range
STYLE G
Light Duty
(Table V)
.072 (1.8)
Max
J
Cable
Entry
K
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 54
with Strain Relief
Type D - Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
F
E
Conn. Desig.
Max
Max
H
A-F-L-S
09 .639 (16.2) .760 (19.3)
08
11 .664 (16.9) .790 (20.1)
10
13 .688 (17.5) .810 (20.6)
12
15 .705 (17.9) .840 (21.3)
14
17 .732 (18.6) .860 (21.8)
16
19 .748 (19.0) .870 (22.1)
18
21 .773 (19.6) .890 (22.6)
20
23 .800 (20.3) .930 (23.6)
22
25 .823 (20.9) .960 (24.4)
24
1.041 (26.4) 1.130 (28.7)
28
1.092 (27.7) 1.170 (29.7)
32
1.138 (28.9) 1.220 (31.0)
36
G
Max
.750 (19.1)
.810 (20.6)
.870 (22.1)
.920 (23.4)
.980 (24.9)
1.020 (25.9)
1.080 (27.4)
1.140 (29.0)
1.200 (30.5)
1.480 (37.6)
1.610 (40.9)
1.720 (43.7)
H
Max
.860 (21.8)
.930 (23.6)
.990 (25.1)
1.050 (26.7)
1.110 (28.2)
1.160 (29.5)
1.230 (31.2)
1.280 (32.5)
1.350 (34.3)
1.590 (40.4)
1.680 (42.7)
1.790 (45.5)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
02
03
04
05
06
07
08
10
TABLE IV: CABLE ENTRY
Cable Range
J
Max
Min
Max
.968 (24.6)
.125 (3.2)
.250 (6.4)
1.046 (26.6)
.250 (6.4)
.375 (9.5)
1.156 (29.4)
.312 (7.9)
.500 (12.7)
1.218 (30.9)
.437 (11.1)
.625 (15.9)
1.343 (34.1)
.562 (14.3)
.750 (19.1)
1.468 (37.3)
.687 (17.4)
.875 (22.2)
1.593 (40.5)
.812 (20.6)
1.000 (25.4)
1.843 (46.8)
1.062 (27.0)
1.250 (31.8)
TABLE V: CABLE ENTRY
K
Cable Entry
Dash
Max
Max
No.
.656 (16.7)
.125 (3.2)
01
.250 (6.4)
.781 (19.8)
02
.906 (23.0)
.375 (9.5)
03
1.031 (26.2)
.500 (12.7)
04
.625 (15.9)
1.156 (29.4)
05
1.281 (32.5)
.750 (19.1)
06
1.406 (35.7)
.875 (22.2)
07
1.531 (38.9)
1.000 (25.4)
08
1.656 (42.1)
1.125 (28.6)
09
1.781 (45.2)
1.250 (31.8)
10
1. Metric dimensions (mm) are indicated in parentheses.
2. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
3. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
4. -445 "NESTOR" modification not available for MIL-DTL-38999 Series II.
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
