57282 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 57282

57282: DescriptionDIN Rail Terminal Blocks Interface Module, FBK60 Ribbon Cable, 60p, screw term.; CategoryThe connector; File Size182KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

57282 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	57282	-	-	View	Buy Now

57282 Overview

DIN Rail Terminal Blocks Interface Module, FBK60 Ribbon Cable, 60p, screw term.

57282 Parametric

Parameter Name	Attribute value
Product Category	DIN Rail Terminal Blocks
Manufacturer	Altech
Type	Interface Modules
Current Rating	3 A
Voltage Rating	250 VAC
Wire Gauge Range	22 AWG to 12 AWG
Length	180 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

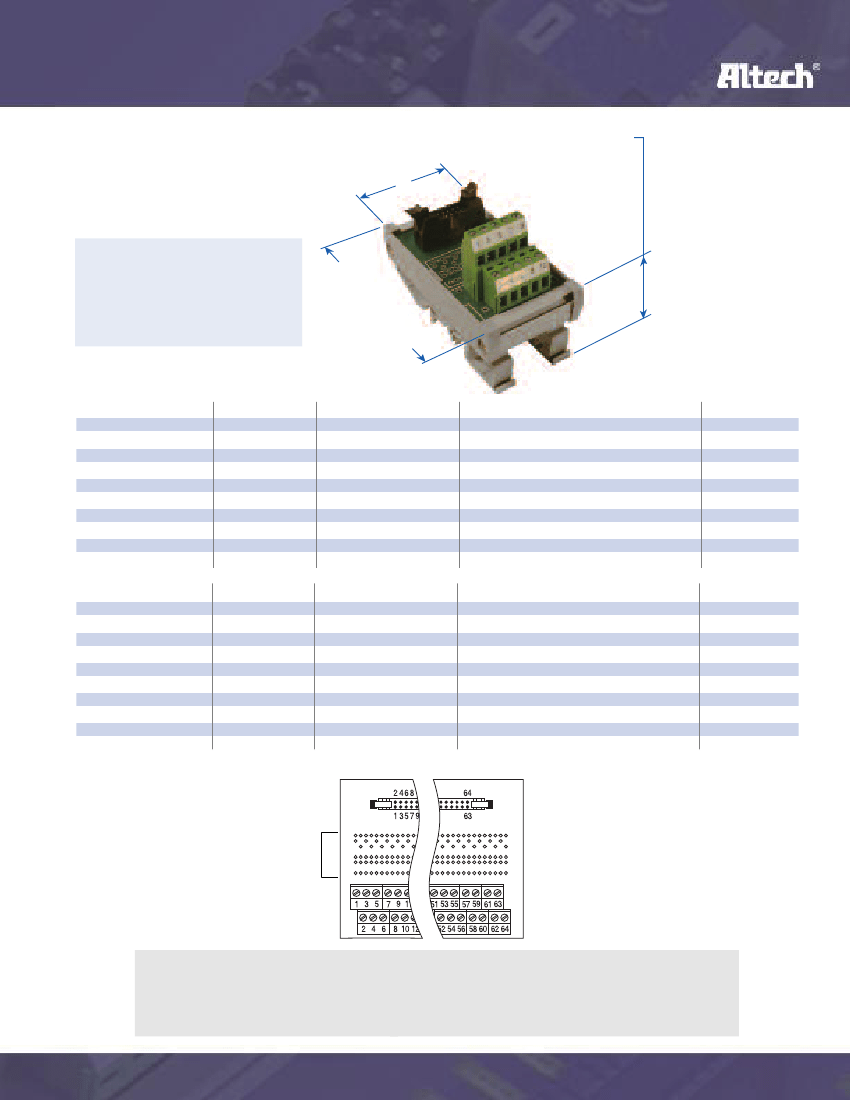

Interface Modules

Connector to terminal block modules

INTERFACES CONNECTOR-TO-WIRE

Ribbon Cable Module

35 or 32mm DIN Rail Mount

FBK

Technical Information

Current ..................3 A

Voltage ..................250V AC

Wire Range ...........0.5-4 mm

/ 22-12 AWG

Torque ...................0.5-4 Nm / 4 lbs-in.

Stripping Length ...8 mm

TS35x7.5 70mm (2.75 in.)

TS32x15 75mm (2.95 in.)

SCREW CLAMP

Part Number

5720.2

5721.2

5722.2

5723.2

5724.2

5725.2

5726.2

5727.2

5728.2

5729.2

Type

FBK10

FBK14

FBK16

FBK20

FBK26

FBK34

FBK40

FBK50

FBK60

FBK64

No. of Poles

Module Length (L) in mm(in.)

46 (1.81)

68 (2.68)

80 (3.15)

93 (3.66)

114 (4.49)

139 (5.47)

180 (7.09)

Std. Pk.

SPRING CLAMP

Part Number

5720.2/S

5721.2/S

5722.2/S

5723.2/S

5724.2/S

5725.2/S

5726.2/S

5727.2/S

5728.2/S

5729.2/S

Type

FBK10

FBK14

FBK16

FBK20

FBK26

FBK34

FBK40

FBK50

FBK60

FBK64

No. of Poles

Module Length (L) in mm(in.)

46 (1.81)

68 (2.68)

80 (3.15)

93 (3.66)

114 (4.49)

139 (5.47)

180 (7.09)

Std. Pk.

PTH holes for convenient component

insertion and easy soldering.

Female Connector SD-F37

37 Pin Socket Female Connector

Shown with component counting holes

Other models available; please contact Altech.

Suffix ...................Description

none ....................Screw Terminal; DIN Rail Mount

/S ......................Spring Terminal; DIN Rail Mount

/P ......................Screw Terminal; Panel Mount

Suffix ...................Description

/L ......................Screw Terminal; Long Latch Connector; DIN Rail Mount

/SL .....................Spring Terminal; Long Latch Connector; DIN Rail Mount

/SP .....................Spring Terminal; Panel Mount

Example: Part Number 5727.2/L for Long Latch model.

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE

57282 Related Products

	57282	57212
Description	DIN Rail Terminal Blocks Interface Module, FBK60 Ribbon Cable, 60p, screw term.	DIN Rail Terminal Blocks Interface Module, FBK14 Ribbon Cable, 14p, screw term.
Product Category	DIN Rail Terminal Blocks	DIN Rail Terminal Blocks
Manufacturer	Altech	Altech
Type	Interface Modules	Interface Modules
Current Rating	3 A	3 A
Voltage Rating	250 VAC	250 VAC
Wire Gauge Range	22 AWG to 12 AWG	22 AWG to 12 AWG
Length	180 mm	46 mm
Factory Pack Quantity	1	1
