54F219LL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 54F219LL

54F219LL: DescriptionStandard SRAM, 16X4, 32ns, TTL, CQCC20, CERAMIC, LCC-20; Categorystorage storage; File Size134KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F219LL Overview

Standard SRAM, 16X4, 32ns, TTL, CQCC20, CERAMIC, LCC-20

54F219LL Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	32 ns
JESD-30 code	S-CQCC-N20
length	8.89 mm
memory density	64 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	20
word count	16 words
character code	16
Operating mode	ASYNCHRONOUS
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
organize	16X4
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	OTHER
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

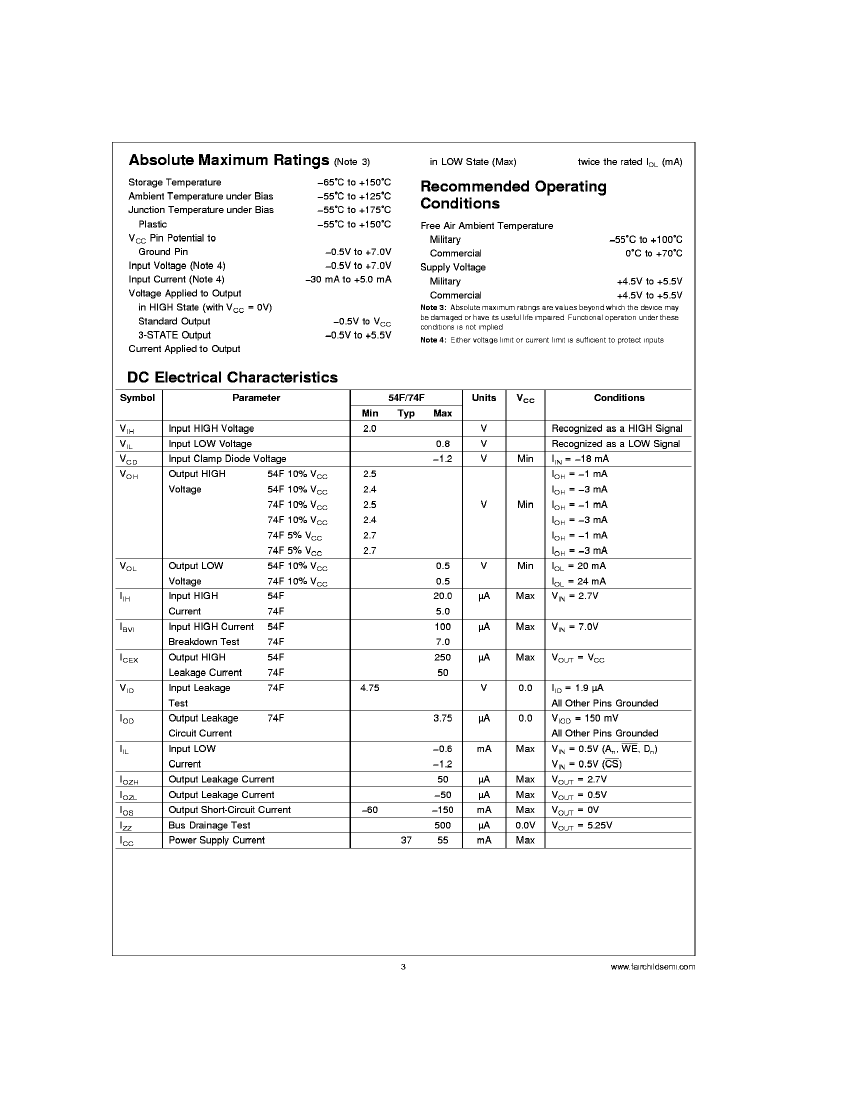

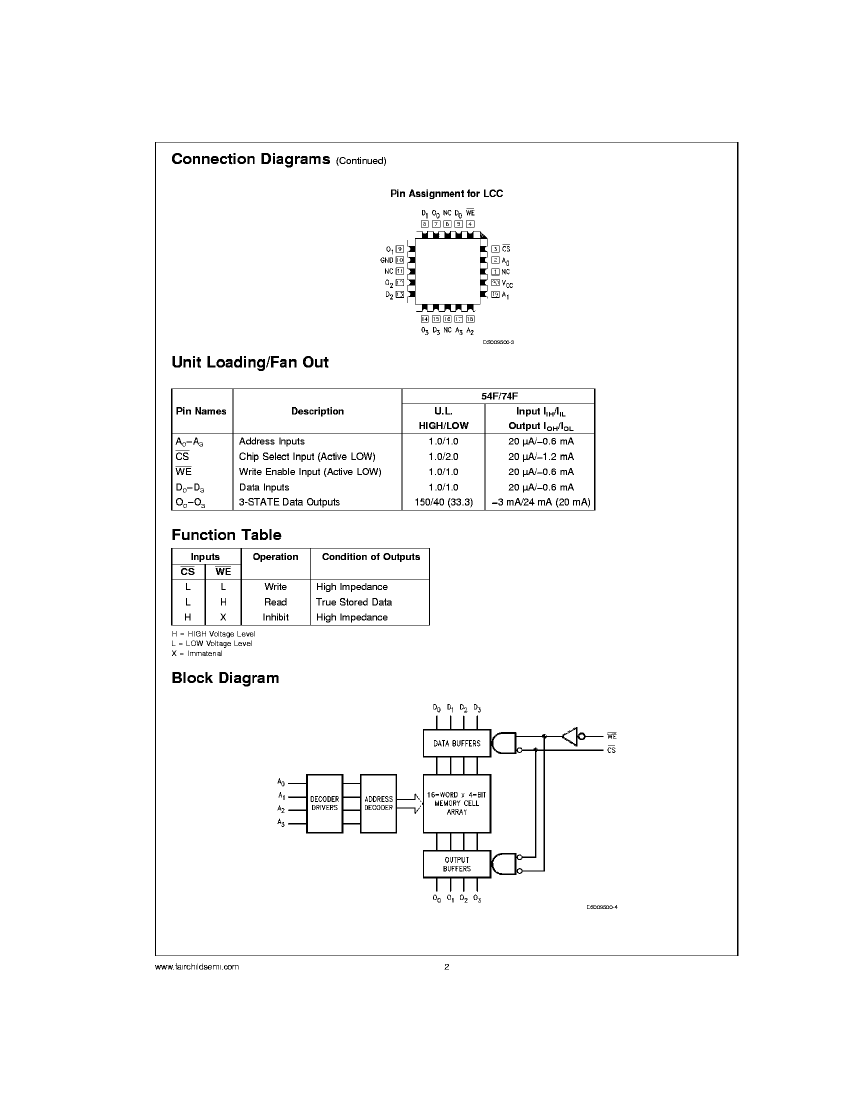

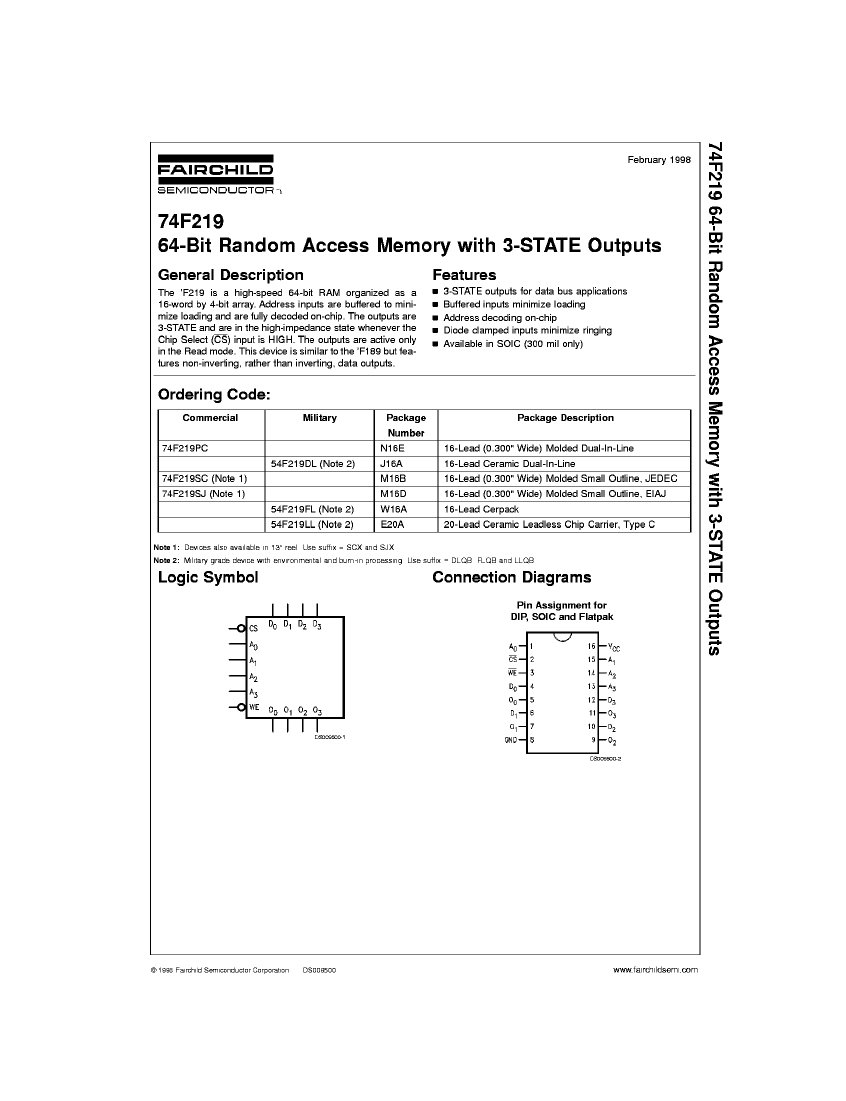

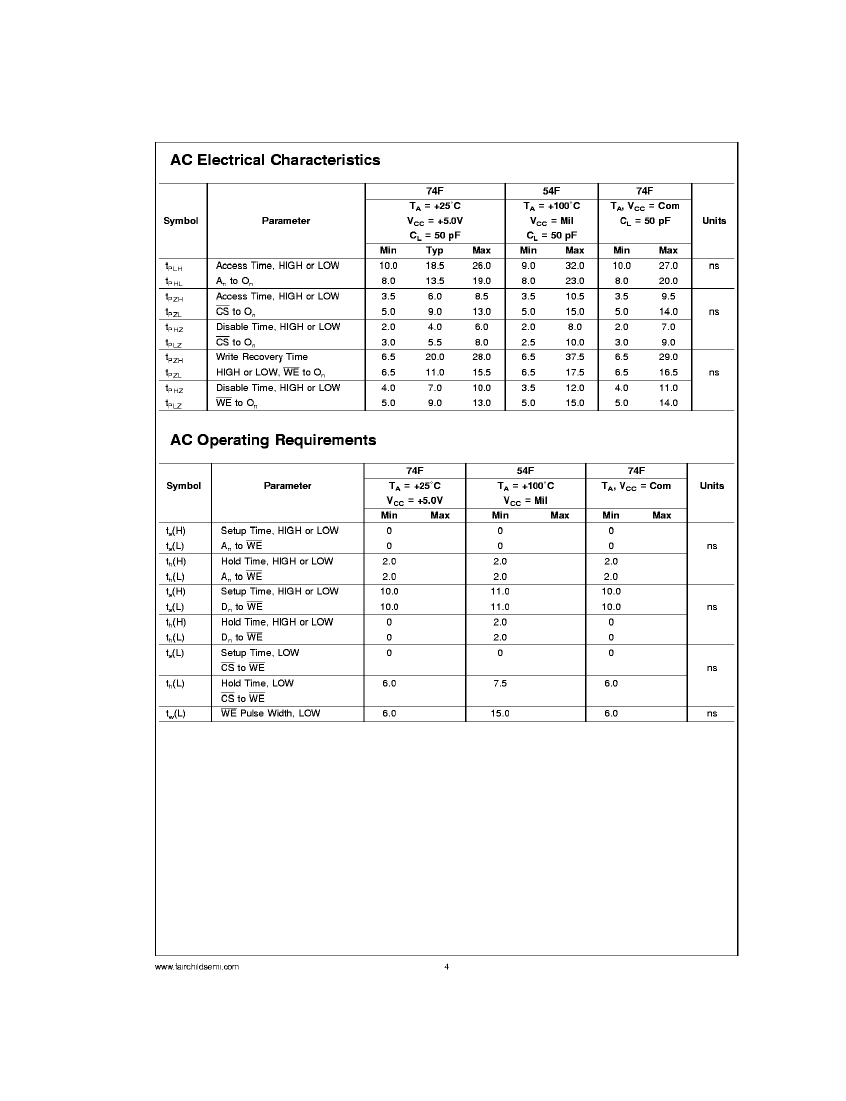

Preview

Download Datasheet

View All

54F219LL Related Products

	54F219LL	54F219DLQB	54F219FL	54F219FLQB	54F219DL	54F219LLQB
Description	Standard SRAM, 16X4, 32ns, TTL, CQCC20, CERAMIC, LCC-20	Standard SRAM, 16X4, 32ns, TTL, CDIP16, CERAMIC, DIP-16	Standard SRAM, 16X4, 32ns, TTL, CDFP16, CERPACK-16	Standard SRAM, 16X4, 32ns, TTL, CDFP16, CERPACK-16	Standard SRAM, 16X4, 32ns, TTL, CDIP16, CERAMIC, DIP-16	Standard SRAM, 16X4, 32ns, TTL, CQCC20, CERAMIC, LCC-20
Parts packaging code	QLCC	DIP	DFP	DFP	DIP	QLCC
package instruction	QCCN,	DIP,	DFP,	DFP,	DIP,	QCCN,
Contacts	20	16	16	16	16	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	32 ns	32 ns	32 ns	32 ns	32 ns	32 ns
JESD-30 code	S-CQCC-N20	R-GDIP-T16	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	S-CQCC-N20
length	8.89 mm	19.43 mm	9.6645 mm	9.6645 mm	19.43 mm	8.89 mm
memory density	64 bit	64 bit	64 bit	64 bit	64 bit	64 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	20	16	16	16	16	20
word count	16 words	16 words	16 words	16 words	16 words	16 words
character code	16	16	16	16	16	16
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	16X4	16X4	16X4	16X4	16X4	16X4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DFP	DFP	DIP	QCCN
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	FLATPACK	FLATPACK	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	5.08 mm	2.032 mm	2.032 mm	5.08 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	NO LEAD	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD
width	8.89 mm	7.62 mm	6.604 mm	6.604 mm	7.62 mm	8.89 mm
Base Number Matches	1	1	1	1	1	1
