2mm Hard Metric Connector
PCN21 Series
sFeatures

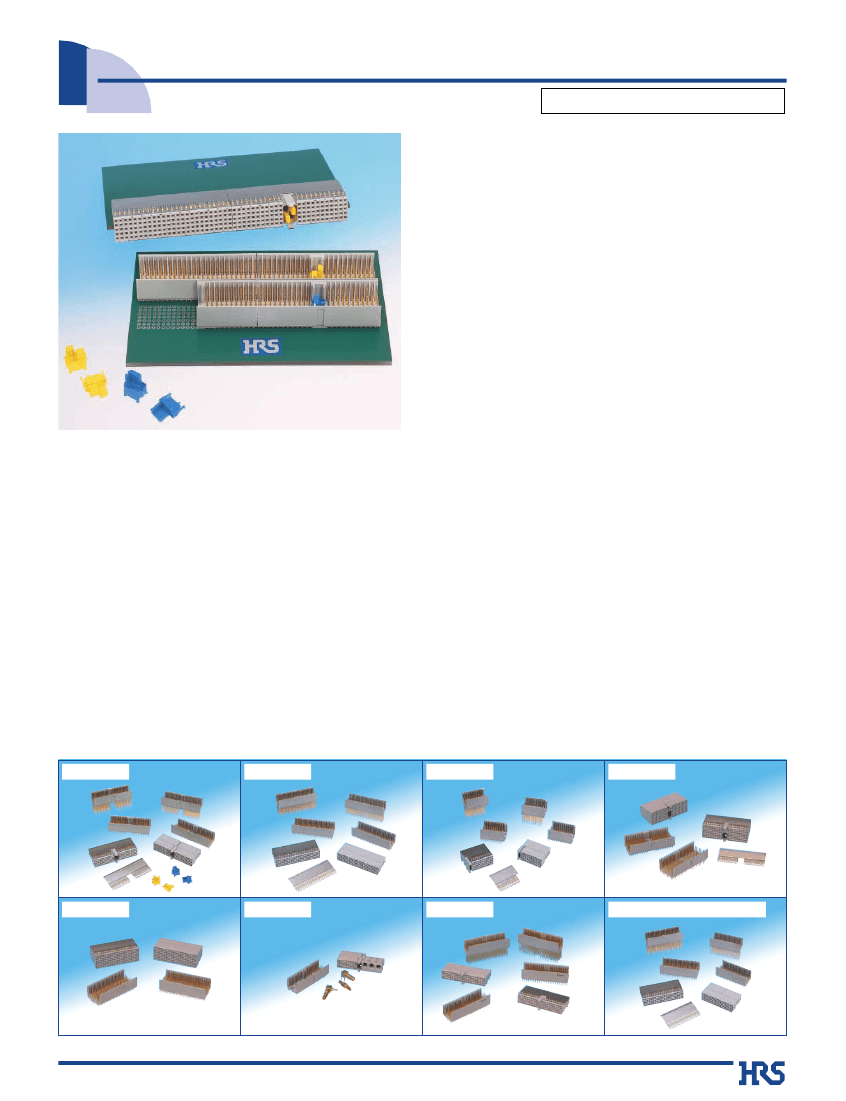

1. Variety of styles
IEC Styles: A (110 contacts, 5 row ), B (125 contacts, 5
row), C (55 contacts, 5 row ), D (176 contacts, 8 row), E
(200 contacts, 8 row) and M (5 row + 3 coaxial or power
Headers and receptacles with the compliant press-fit
terminations can be easily installed on PCB with readily
available tools.
3. High reliability socket contacts
Two-point contacts assure good electrical and
mechanical connection.
4. Ground connection
sApplications
Switchboards, transmission systems, Celluler base
stations, industrial computer boards, measuring
instruments, control equipment
Ground connection contact rows can be added (except
M Style).
5. 3-stage sequential contacts
Header can be supplied with different lengths of
contacts (mating side) to assure ground-signal-power
mating sequence.
6. Coding keys
Style A, D and M will accept coding keys to prevent
mating of incorrect connectors.
7. Different platings are available
Gold plating and tin plating are available for the
termination side. (Except 8 rows type)
8. Coding key
UL listed (File E52653)
Style A
Style B
Style C
Style D
Style E
Style M
Type AB
Compact PCI P2/J2, P3/J3 equivalent
2005.1
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

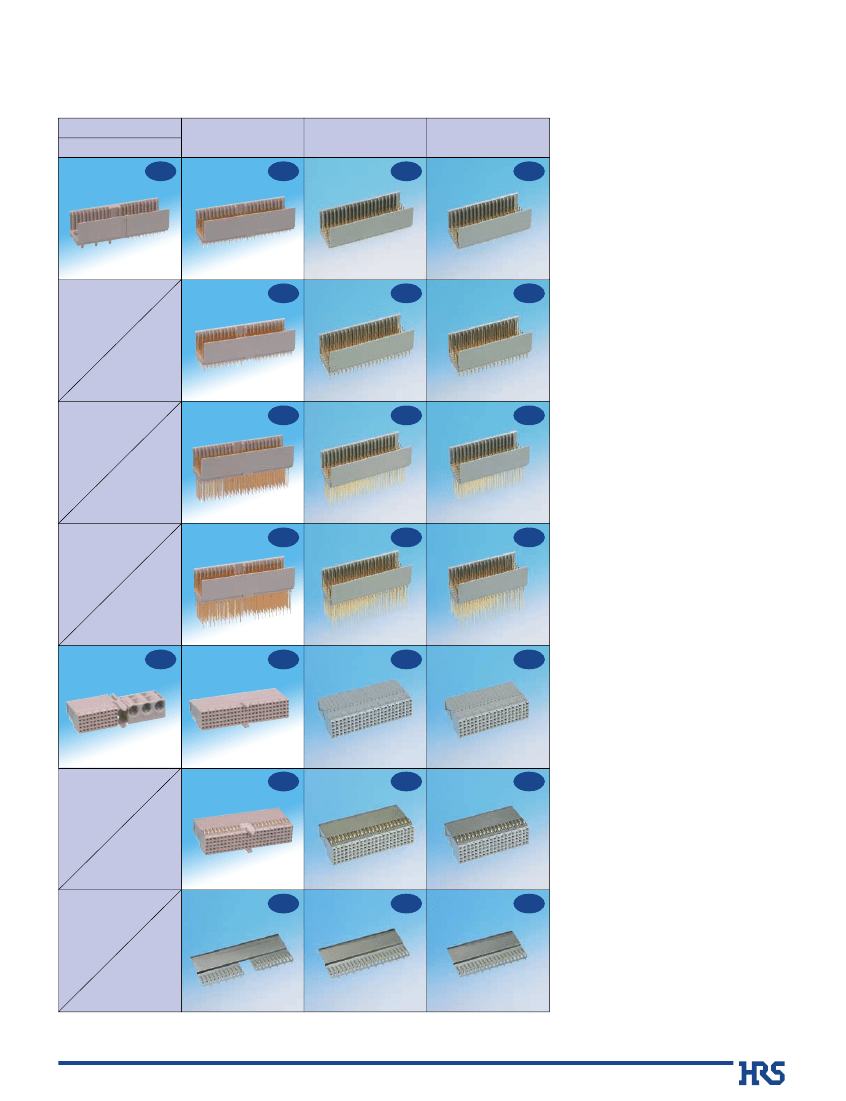

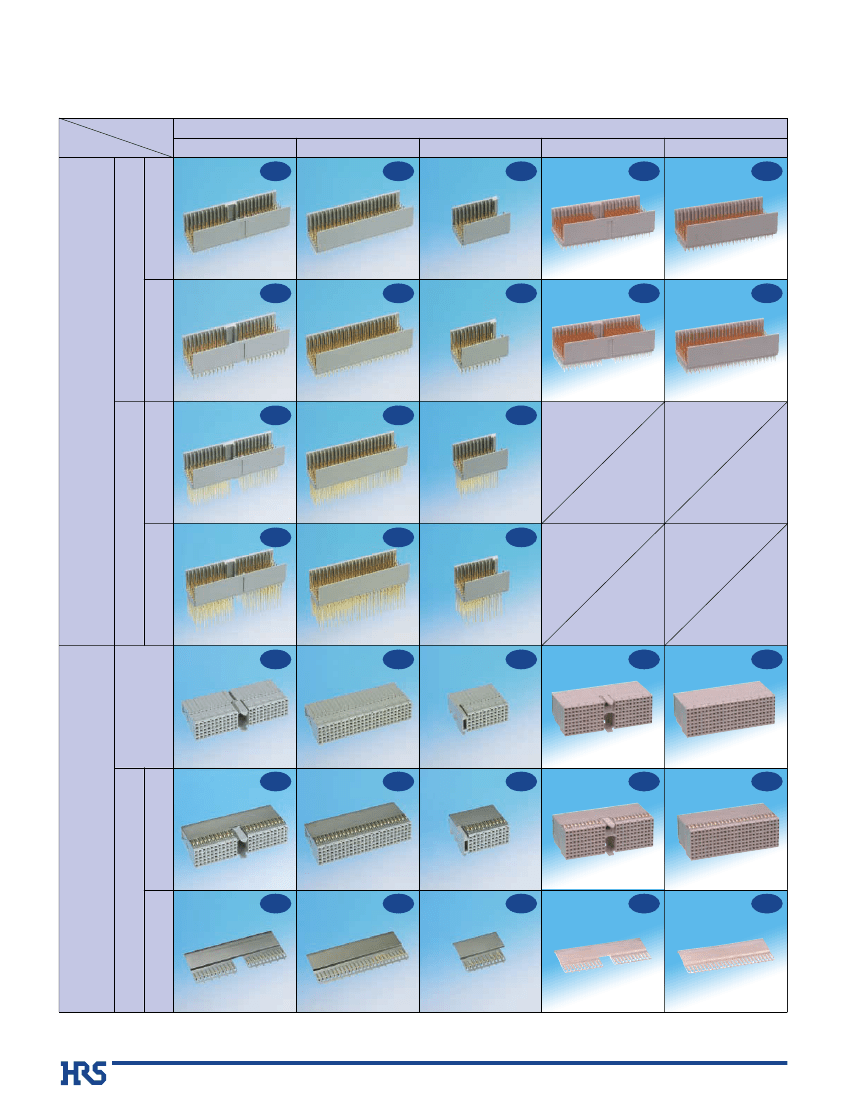

sPCN21
Series Seletion Chart
Standards
Item
Without ground
terminal
Style A
Style B
IEC 61076-4-101 compliant
Style C
Style D
Style E
P6
P7
P8
P9
P10
Header connector (Back Wiring Board side (BWB) male connector)
Note: …A: PCB leads gold plated (top ground plate is tin-lead or tin plated, bottom ground plate is tin-lead plated). B…PCB leads tin plated
Mid-plane (Shroud): Page 22 to 23, Coding key: Page 24, High power contact or coaxial connector: Page 25
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sOrdering
information
Connector
PCN 2 1
*
-
*
P A
*
- 2 PF - G (01)
1
1
Series name
2
A···PCB leads
3
B···PCB leads
2
: PCN 21
: Gold plated
: Tin plated
3
4
5
6
7
8
9
10
6
Positioning post (Applicable to receptacle styles A and C only)
Blank : With
A
: Without
7
Contact pitch: 2 mm
8
Terminal length
PF : Press-fit short pin
W
: Press-fit long pin
9
Ground
Blank : Without ground terminal
G
: With ground terminal
10
Contact area gold plating thickness
Blank : 0.8
µm
(01)
: 0.2
µm
3
No. of contacts : 55, 95, 110, 125,176,200
4
Connector classification
P: Pin header
S: Receptacle
5
IEC type
A : IEC 61076-4-101 Style A
B : IEC 61076-4-101 Style B
C : IEC 61076-4-101 Style C
D : IEC 61076-4-101 Style D
E : IEC 61076-4-101 Style E
M : IEC 61076-4-101 Style M
AB : Compact PCI AB type equivalent
(
For Compact PCI P2/J2, P5/J5 equivalent,
the IEC type should be style B.
)
5
4
Applicable connector
A : for PCN21*-110SA-2PF-G
B : for PCN21*-125SB-2PF-G
C : for PCN21*-55SC-2PF-G
D : for PCN21B-176SD-2PF-G
E : for PCN21B-200SE-2PF-G
B1: for PCN21*-110SB-2PF-G
B2: for PCN21*-095SB-2PF-G
Bottom ground plate for receptacle
PCN 2 1
*
- S A - G
1
2
3
4
1
Series name: PCN21
2
A···PCB leads : Gold plated
B···PCB leads : Tin plated
3
Connector classification
S : For receptacle
5
Ground
B
Product construction (5 row)
qHeader
3.7
BWB
qReceptacle
Row f: Top ground plate
Row
f
e
d
c
b
a
z
PKG
Row z: Bottom ground plate
PCN21*-S*-G
Row
a b c d e f
13
14.5
16
3
5.3
6.8
8.3
A ground plate is joined with the f row.
Rows f and z are ground terminals.
PCN21*-*P*-2PF (W) has no ground terminal
PCN21*-*P*-2PF (W)-G has ground terminal
PCN21*-*S*-2PF has no top ground plate
PCN21*-*S*-2PF-G has top ground plate
PCN21*-S*-G has bottom ground plate only
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Current rating 1.5A
Rating
Operating temperature –55ç to +85ç(Note
1)
Storage temperature
95% RH max.
(No condensation)
Item
Requirements
1.Insulation resistance 10
4
Mø
2.Withstanding voltage No flashover or breakdown
3.Contact resistance 30 mø max.
4.Vibration
5.Damp heat
6.Rapid change of
temperature
7.Heat resistance
8.Operation life
No electrical discontinuity for 1µs min.
Contact resistance: 40 mø max.
Insulation resistance: 10
3
Mø min.
Contact resistance:40 mø max.
Insulation resistance: 10
3
Mø min.
No damage, cracks or parts dislocation
Contact resistance:40 mø max.
Insulation resistance: 10
3
Mø min.
Contact resistance:40 m ohms max.
Test Conditions
100 V DC
750 V rms AC / 1 min
0.1 A
Frequency 10 to 500 Hz, single amplitude of 0.35 mm,
acceleration of 50m/s
2
, 10 cycles in each of the 3 axis.
96 hours at temperature of 40ç
±
2ç
and RH of 90% to 95%
Temperature :
–55ç
➝
+15ç
to
+30ç
➝
+125ç
➝
+15ç
to
+30ç
Duration
:
–30
➝
+5max.
➝
+30
➝
+5max.(Minutes)
5 cycles
16 hours at temperature of 125ç
500 cycles
Storage humidity
–10ç to +60ç(Note
2)
40% to 70% RH
(Note 2)
Voltage rating AC 300V Operating humidity
Note 1: Includes temperature rise caused by the current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating temperature range
and humidity range covers non-conducting condition of installed connectors in storage, shipment or during transportation.
