87715-9303

CategoryThe connector    The connector
File Size35KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87715-9303 Online Shopping

Suppliers Part Number Price MOQ In stock
87715-9303 - - View Buy Now

87715-9303 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresPANEL MOUNTABLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD (2)
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSOLDER
Total number of contacts164
UL Flammability Code94V-0

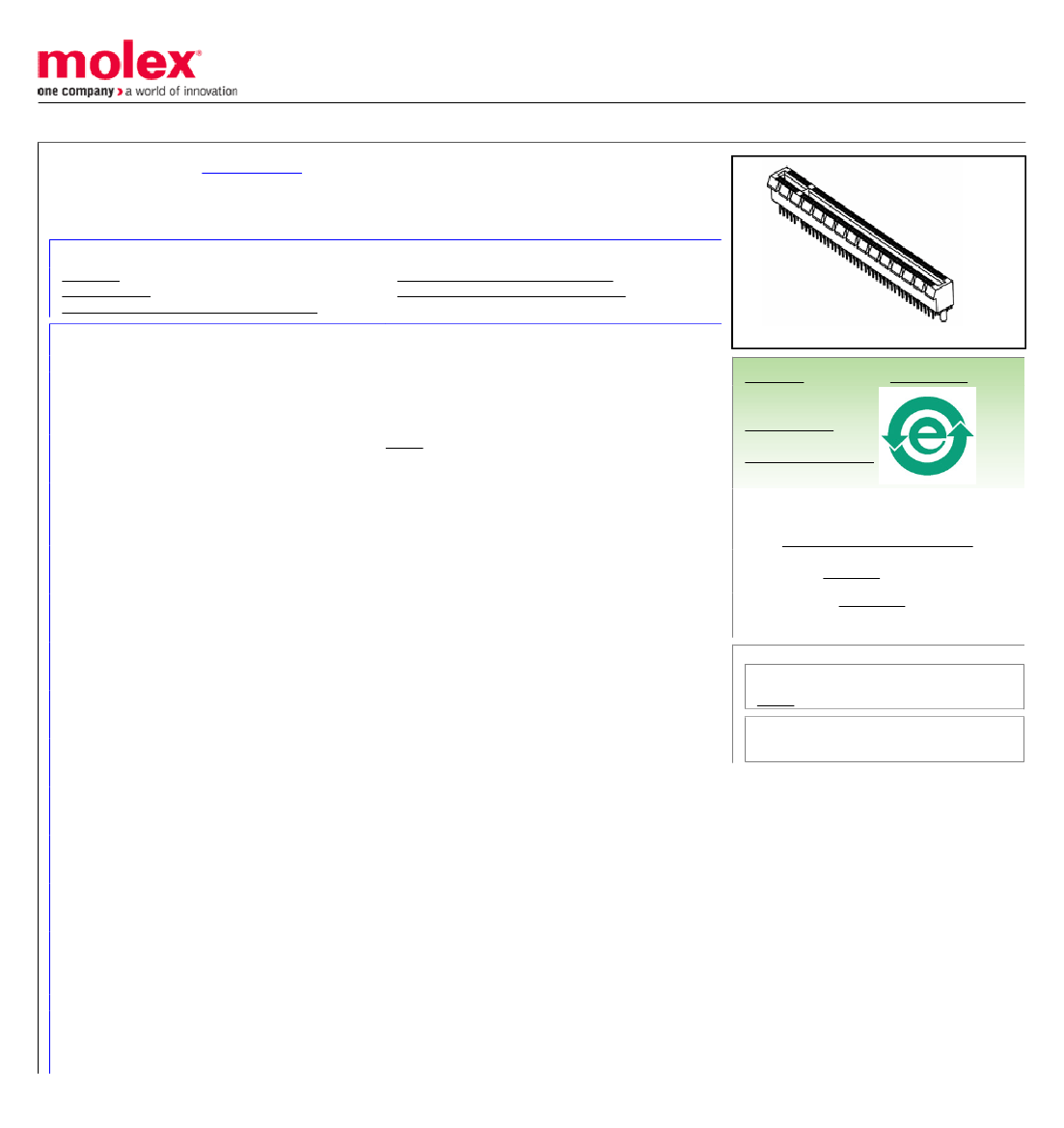

This document was generated on 09/19/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
87715-9303
Active
1.00mm Pitch, PCI Express* Connector, 164 Circuits, Nylon 4/6 Glass-filled, Black
Housing, Phosphor Bronze, Gold Soldertail, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87715-200 (PDF)
Test Summary TS-87715-207 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Comments
Component Type
Product Name
UPC
Edge Card Connectors
87715
PCI 16 lanes
Edgecard to PCB
PCI Express*
822348683413
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
164s - 0p
164
164
Black
50
Vertical (Top Entry)
94V-0
Yes
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
8.698/g
3.00mm
Yes
Yes
2.40mm
Tray
1.00mm
1.00mm
0.051µm
2.540µm
Yes
-55°C to +85°C
Through Hole
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Solder Process Data
Lead-free Process Capability
Process Temperature max. C
Wave Capable (TH only)
245
