tional amplifier suitable for driving a wide variety of
high power loads. High performance FET op amp
circuitry and high power output stage are combined on
a single monolithic chip.
The OPA544 is protected by internal current limit and
thermal shutdown circuits.
The OPA544 is available in industry-standard
5-lead TO-220 and 5-lead surface-mount power pack-
ages. Its copper tab allows easy mounting to a heat
sink for excellent thermal performance. It is specified
for operation over the extended industrial temperature
range, –40°C to +85°C.
APPLICATIONS
q
MOTOR DRIVER
q
PROGRAMMABLE POWER SUPPLY
q
SERVO AMPLIFIER
q
VALVES, ACTUATOR DRIVER
q
MAGNETIC DEFLECTION COIL DRIVER
q
AUDIO AMPLIFIER

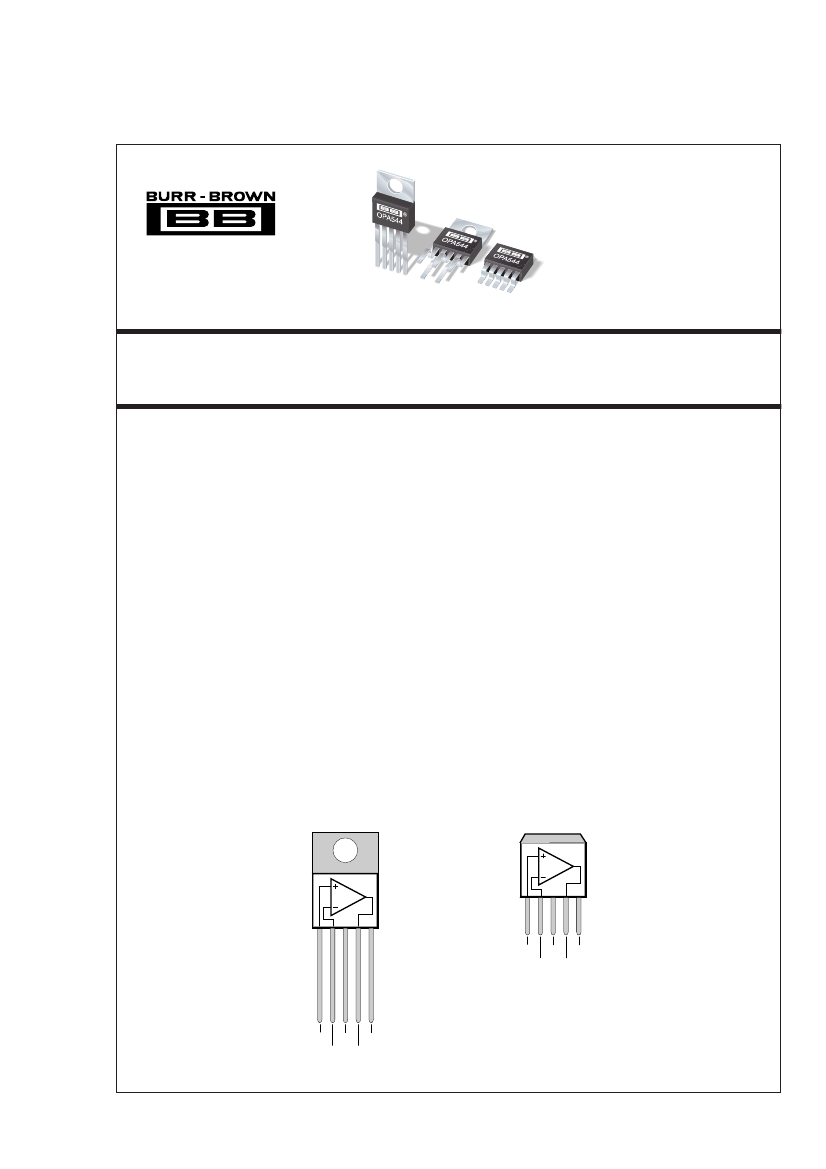

Tab is connected
to V– supply.
5-Lead TO-220
and
Stagger-Formed
TO-220
Tab is connected
to V– supply.
5-Lead
Surface Mount
1 2 3 4 5
1 2 3 4 5
+
V
IN
V–
V+
–
V
IN
V
O
+
V
IN
V–
V+
–
V
IN
V
O
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
®
OPA544
2
CONNECTION DIAGRAMS
Top View
PACKAGE/ORDERING INFORMATION
Tab is connected
to V– supply.
5-Lead
Surface Mount
Tab is connected
to V– supply.
5-Lead TO-220
and
Stagger-Formed
TO-220
PRODUCT
OPA544T
PACKAGE
5-Lead TO-220
PACKAGE DRAWING
NUMBER
(1)
315
323
325
OPA544T-1 5-Lead Stagger-Formed TO-220
OPA544F
5-Lead Surface-Mount
1 2 3 4 5
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix C of Burr-Brown IC Data Book.
1 2 3 4 5
+
V
IN
V–
V+
–
V
IN
V
O
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degrada-
tion to complete device failure. Precision integrated circuits
may be more susceptible to damage because very small
parametric changes could cause the device not to meet its
published specifications.
+
V
IN
V–
V+
–
V
IN
V
O
ABSOLUTE MAXIMUM RATINGS
Supply Voltage, V+ to V– ................................................................... 70V
Output Current ................................................................. See SOA Curve
Input Voltage .................................................... (V–) –0.7V to (V+) +0.7V
Operating Temperature ................................................. –40°C to +125°C
Storage Temperature ..................................................... –40°C to +125°C
Junction Temperature ...................................................................... 150°C
