SERIES 23
MIL-DTL-38999
Backshells and accessories
319-180 Composite Swing-Arm™ strain relief
COMPOSITE BACKSHELL WITH SHIELD SOCK AND SELF-LOCKING ROTATABLE COUPLING NUT
How To Order 319-180
Sample Part Number
Product Series
Connector Designator
Basic Number
Finish
Dash Number
Optional Braid Material
Split Ring/Band Option
Custom Braid Length
319
EMI/RFI shield sock assembly
H
= MIL-DTL-38999 Series III
180
XB
= No plating, black
XM
= Electroless Nickel
XD
= No Plating, Desert Tan
XMT
= Nickel-PTFE
1000 Hour Gray
XW
= Cadmium O/D over Electroless Nickel
See Dimensions Table
A
= 100% AmberStrand®
B
= 75%/25% AmberStrand® blend
L
= 100% ArmorLite™
T
= Tin/Copper 34AWG (Omit for standard Nickel/Copper 34AWG)
R
= Supplied with Split Ring (687-207) and Band (600-052). Omit for none.
Specify in inches. Omit for standard 12" length.
H
180
XB
15
B
R
14
Crimp Ring
Typ
E

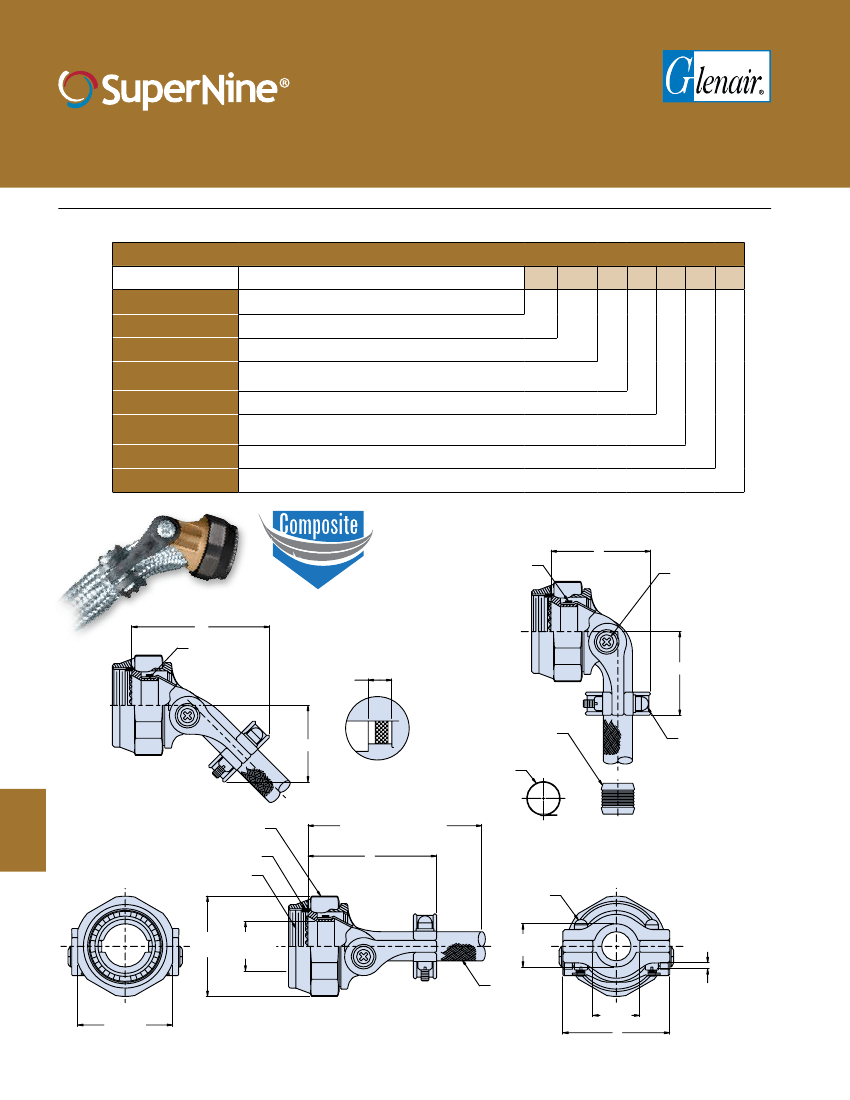

Captive position screw
locks Swing Arm in 45°
increments (see notes)
G
Detail B
Typ
45°
Position
Shown
Termination Area
Free Of Cadmium
90°
Position
Shown
F
H
Detail B
Finish XN
Split Ring
Glenair Part
Number 687-207
Band
Glenair Part
Number 600-052
Screw Head Same
Side - Typ
H
Anti-rotation
Device - Typ
EMI Shroud Typ
A Thread
Typ
12.000 (304.80) Min
(Standard Braid Length)
D
Self-locking
Hardware
Typ
L Typ
Closed
Shield
.062 (1.57) Min
.250 ( 6.35) Max
Screw Protrusion Typ
B
Typ
M
Typ
C Flats
Typ
Straight
Position
K Typ
J
H-12
© 2014 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 23® SuperNine Catalog
SERIES 23
MIL-DTL-38999
Connector Designator H
Shell
Dash
A Thread
Size
No.
ISO Metric
Ref
09
11
13
15
17
19
21
23
25
A
B
C
D
E
F
G
H
J
M12 X 1.0-6H
M15 X 1.0-6H
M18 X 1.0-6H
M22 X 1.0-6H
M25 X 1.0-6H
M28 X 1.0-6H
M31 X 1.0-6H
M34 X 1.0-6H
M37 X 1.0-6H
Backshells and accessories
319-180 Composite Swing-Arm™ strain relief
Dimensions
B
Max
Dia
.812
(20.62)
.938
(23.83)
1.125
(28.58)
1.250
(31.75)
1.375
(34.93)
1.500
(38.10)
1.625
(41.28)
1.750
(44.45)
1.875
(47.63)
C
Flats
Max
Min
.750
(19.05)
.875
(22.23)
1.000
(25.40)
1.125
(28.58)
1.250
(31.75)
1.375
(34.93)
1.500
(38.10)
1.625
(41.28)
1.750
(44.45)
.736
(18.69)
.860
(21.84)
.980
(24.89)
1.100
(27.94)
1.224
(31.09)
1.348
(34.24)
1.469
(37.31)
1.581
(40.16)
1.690
(42.93)
D
Max
1.500
(38.10)
1.540
(39.12)
1.620
(41.15)
1.630
(41.40)
1.730
(43.94)
1.730
(43.94)
1.880
(47.75)
1.910
(48.51)
1.940
(49.28)
E
Max
.950
(24.13)
.990
(25.15)
1.140
(28.96)
1.240
(31.50)
1.360
(34.54)
1.460
(37.08)
1.550
(39.37)
1.630
(41.40)
1.700
(43.18)
F
Max
.840
(21.34)
.900
(22.86)
1.000
(25.40)
1.070
(27.18)
1.130
(28.70)
1.200
(30.48)
1.260
(32.00)
1.330
(33.78)
1.400
(35.56)
G
Max
1.430
(36.32)
1.490
(37.85)
1.640
(41.66)
1.730
(43.94)
1.860
(47.24)
1.930
(49.02)
2.080
(30.68)
2.150
(54.61)
2.230
(56.64)
H
Max
.760
(19.30)
.820
(20.83)
.920
(23.37)
.980
(24.89)
1.080
(27.43)
1.120
(28.45)
1.210
(30.73)
1.270
(32.26)
1.330
(33.78)
J
Max
.980
(24.89)
1.050
(26.67)
1.200
(30.48)
1.300
(33.02)
1.440
(36.58)
1.560
(39.62)
1.690
(42.93)
1.770
(44.96)
1.890
(48.01)
K
Min
.220
(5.59)
.270
(6.86)
.350
(8.89)
.470
(11.94)
.550
(13.97)
.620
(15.75)
.700
(17.78)
.780
(19.81)
.850
(21.59)
L
Max
.265
(6.73)
.310
(7.87)
.390
(9.91)
.506
(12.85)
.591
(15.01)
.661
(16.79)
.744
(18.90)
.826
(20.98)
.896
(22.76)
M
Min
.264
(6.71)
.390
(9.91)
.504
(12.80)
.630
(16.00)
.756
(19.20)
.843
(21.41)
.969
(24.61)
1.091
(27.71)
1.217
(30.91)
NOTES
• Glenair Series 600 Assembly Tools are recommended for assembly and installation.
• Swing arm locks in 45° increments, shell size 09 through 25. Additional positioning
increments are manufacturer’s option.
• Screw is captive to the arm when disengaged. When tightened, the screw will not
protrude into the inside surfaces.
• Add MOD Code -475 to end of part number for use with Series II connector. Backshell to
be supplied less shroud.
• Metric dimensions (mm) indicated in parentheses.
MATERIAL/FINISH:
Clamp body, coupling nut, saddles - High grade thermoplastic/See Table III.
Clamp hardware - CRES/Passivate
Crimp ring - Copper/Tin plated.
H
H-13
