502430-0820

Description
Multilayer Ceramic Capacitors MLCC - SMD/SMT 100uF 16V X5R +/-20% 1210 HiCV
CategoryThe connector    The connector
File Size67KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

502430-0820 Online Shopping

Suppliers Part Number Price MOQ In stock
502430-0820 - - View Buy Now

502430-0820 Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 100uF 16V X5R +/-20% 1210 HiCV

502430-0820 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionBoard to Board & Mezzanine Connectors 0.4 B/B PLUG 8P
Board mount optionsFITTING NAIL
body width0.061 inch
subject depth0.032 inch
body length0.152 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance80 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage350VAC V
Durability30 Cycles
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee4
Plug contact pitch0.016 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
PCB contact patternRECTANGULAR
PCB contact row spacing.7874 mm
Plating thickness4u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.4064 mm
Termination typeSURFACE MOUNT
Total number of contacts8

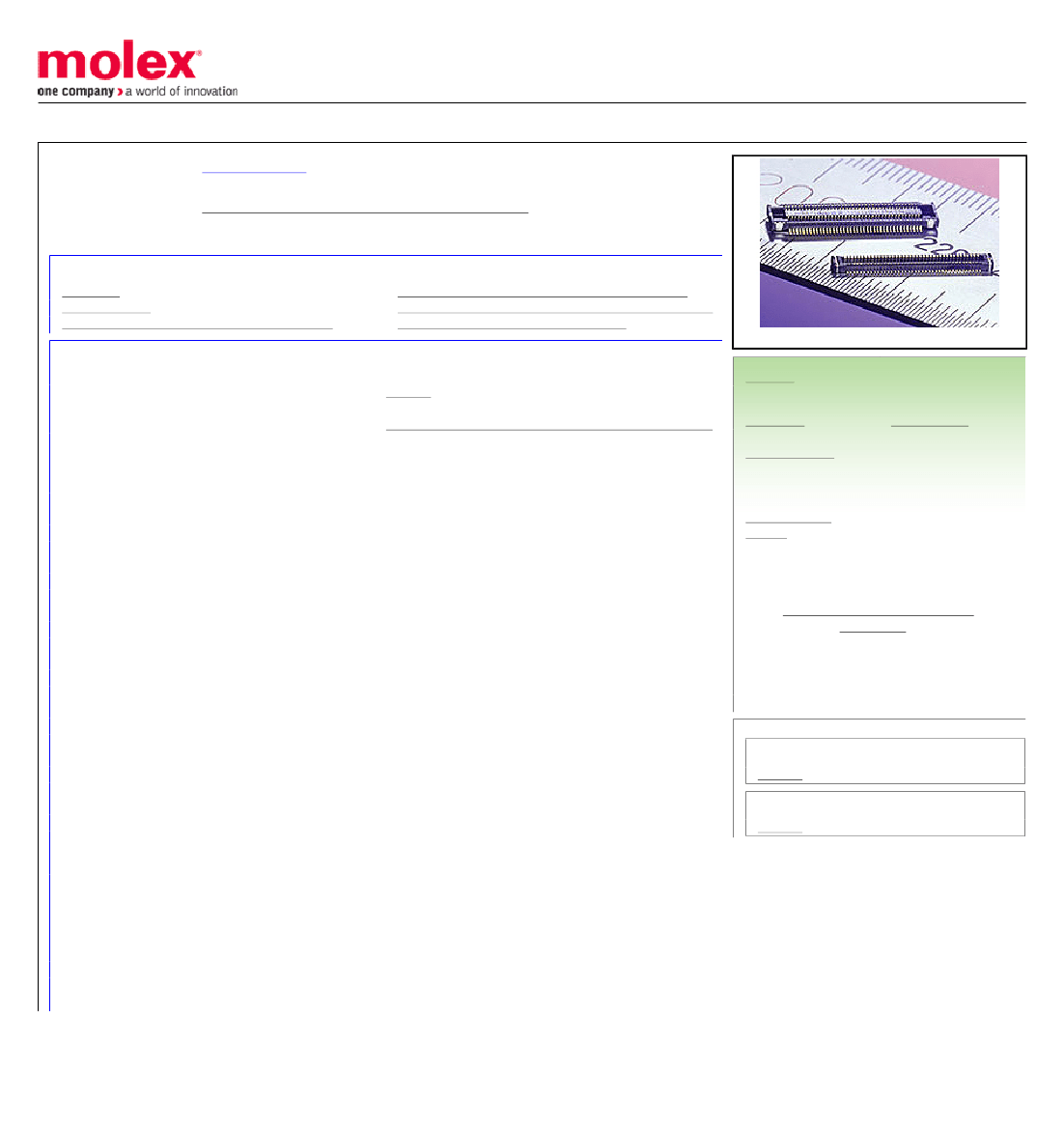

This document was generated on 10/20/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5024300820
Active
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
0.40mm Pitch SlimStack™ Board-to-Board, Plug, Surface Mount, Dual Row, Vertical
Stacking, 1.00mm Stacking Height, with Solder Tabs, 8 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification 5024260004-000 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Product Specification PS-502426-005-001 (PDF)
Packaging Specification SPK-502430-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
PCB Headers
502430
Board-to-Board, Signal
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
SlimStack
884982294981
No
8
8
Black
30
No
1.00mm
Phosphor Bronze
Gold
Gold
7.689/mg
2
Vertical
No
Yes
Embossed Tape on Reel
0.40mm
No
No
No
-20°C to +85°C
Surface Mount
0.3A
50V AC (RMS)/DC
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
502430 Series
Mates With
502426 PCB Receptacle
SPK-502430-001-001
5024260004-000, PS-502426-005-001
SD-502430-009, SD-502430-010
This document was generated on 10/20/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
