Printed Circuit Board Connectors
High Performance
– These connectors feature gold-plated
TwistPin contacts for best performance. PC tails are .020 inch
diameter. Specify nickel-plated shells or cadmium plated
shells for best availability.
Solder-Dipped
– Terminals are coated with Sn60/Pb40
tin-lead solder for best solderability. Optional gold-plated
terminals are available for RoHS compliance.
Rear Mountable
– Can be installed through panels up to .125
inch thick. Specify rear panel mount jackposts.

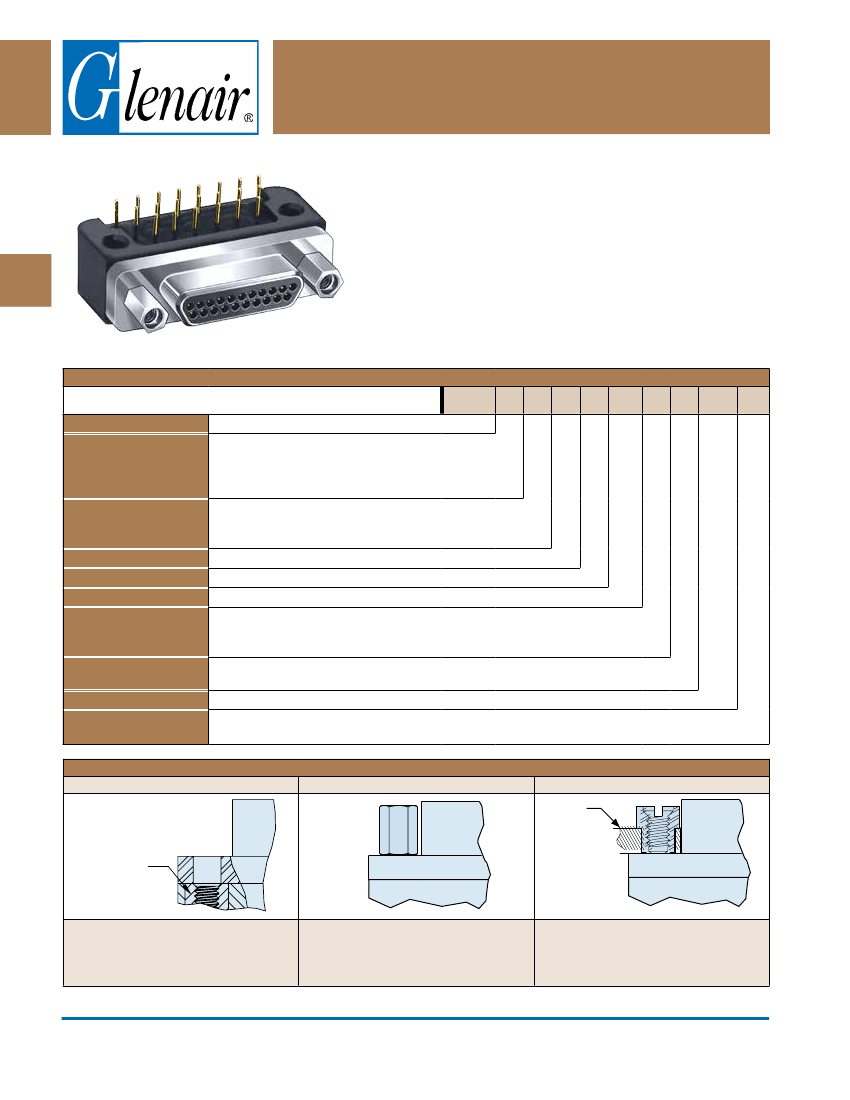

How To Order CBR Style PCB Micro-D Connectors
Sample Part Number
Series
Shell Material
and Finish
MWDM
Glenair Micro-D
Aluminum Shell
1
- Cadmium
2
- Nickel
4
- Black Anodize
5
- Gold
6
- Chem Film
Stainless Steel Shell
3
- Passivated
Micro-D MWDM-CBR
Right Angle Thru-Hole
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
THREADED
INSERT
Micro-D PCB
Insulator Material
Contact Layout
Contact Type
Termination Type
Jackpost Option
(See Table I)
Threaded
Insert Option
Terminal Lentgth in Inches
Gold-Plated
Terminal Mod Code
P
– Pin
S
– Socket
CBR -
Condensed Board Right Angle
(Omit for None)
P
– Jackpost
No Designator
Thru-Hole
For use with Glenair jackposts only. Order
hardware separately. Install with threadlocking
compound.
© 2013 Glenair, Inc.
MWDM
2
L
-15
P
CBR
R3
T
-.110 513
L
- LCP or PPS
LCP - 30% Glass-filled liquid crystal polymer
PPS - 40% Glass-filled polyphenylene sulfide
9, 15, 21, 25, 31, 37, 51, 69, 75, 100, 130
(See Table II)
Jackposts for Rear Panel Mounting
R1
– .032” Panel
R2
– .047” Panel
R3
– .062” Panel
R4
– .093” Panel
R5
– .125” Panel
R6
– .080" Panel
T
- Threaded Insert In Board Mount Hole
Omit
for Thru-Hole
.080, .110, .125, .140, .150, .172, .190, .250
Length in Inches ± .015 (0.38)
These connectors are solder-dipped in 60/40 tin-lead solder.
To delete the solder dip and change to gold-plated terminals, add code
513
Table I: Jackpost Options
P
Panel
R1 Thru R6
Standard Jackpost
Factory installed, not intended for removal.
Jackpost for Rear Panel Mounting
Shipped loosely installed. Install with permanent
threadlocking compound.
Printed in U.S.A.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-14
E-Mail: sales@glenair.com
Printed Circuit Board Connectors

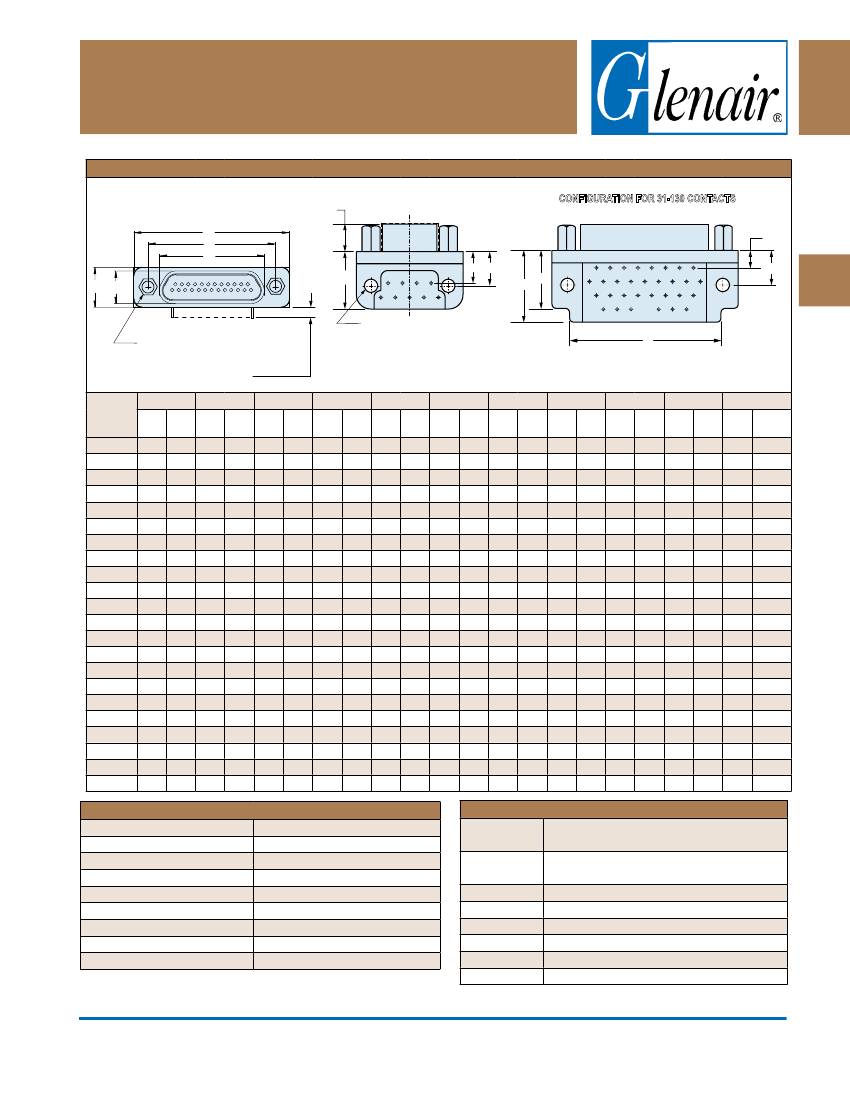

Table II: Dimensions

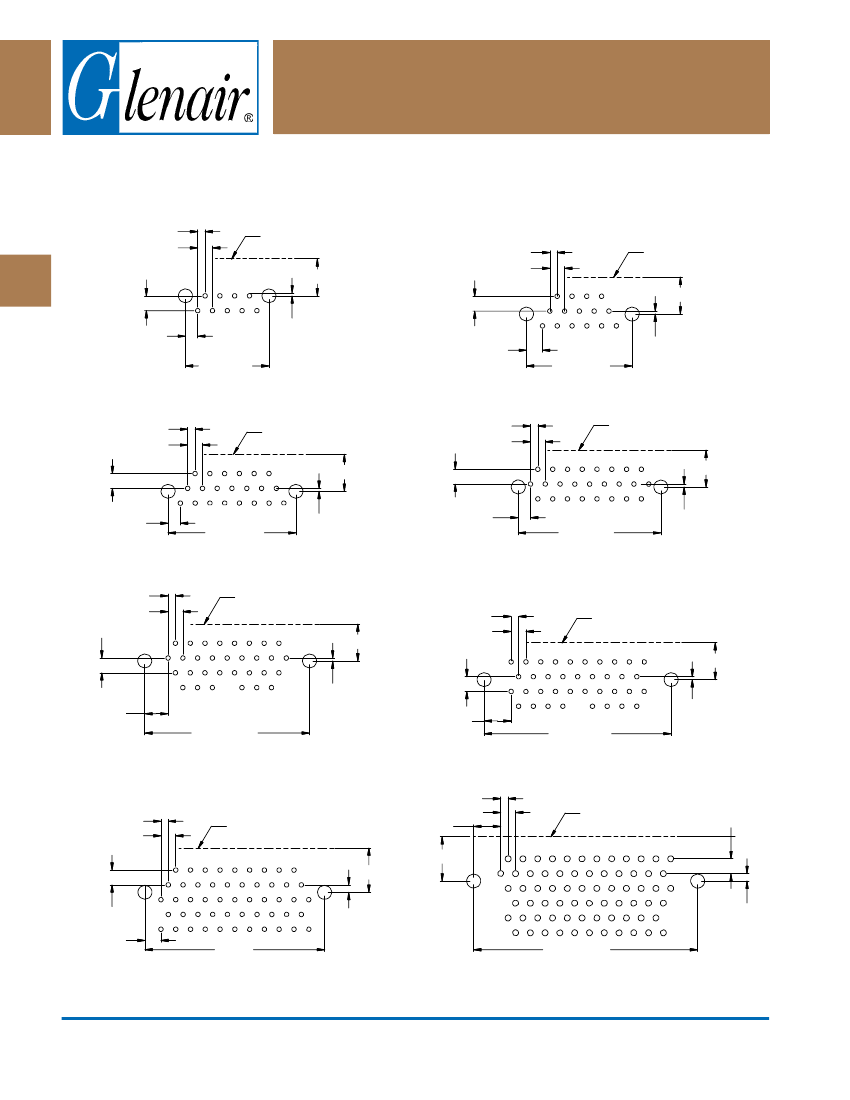

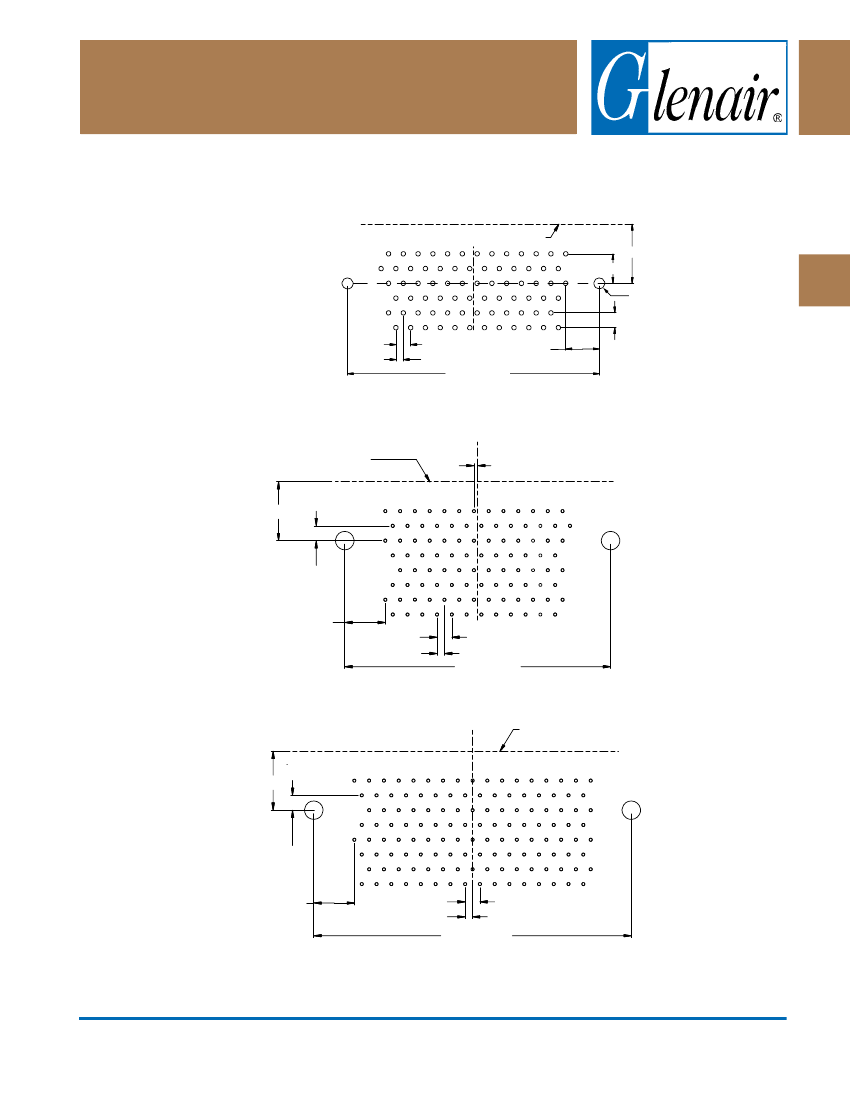

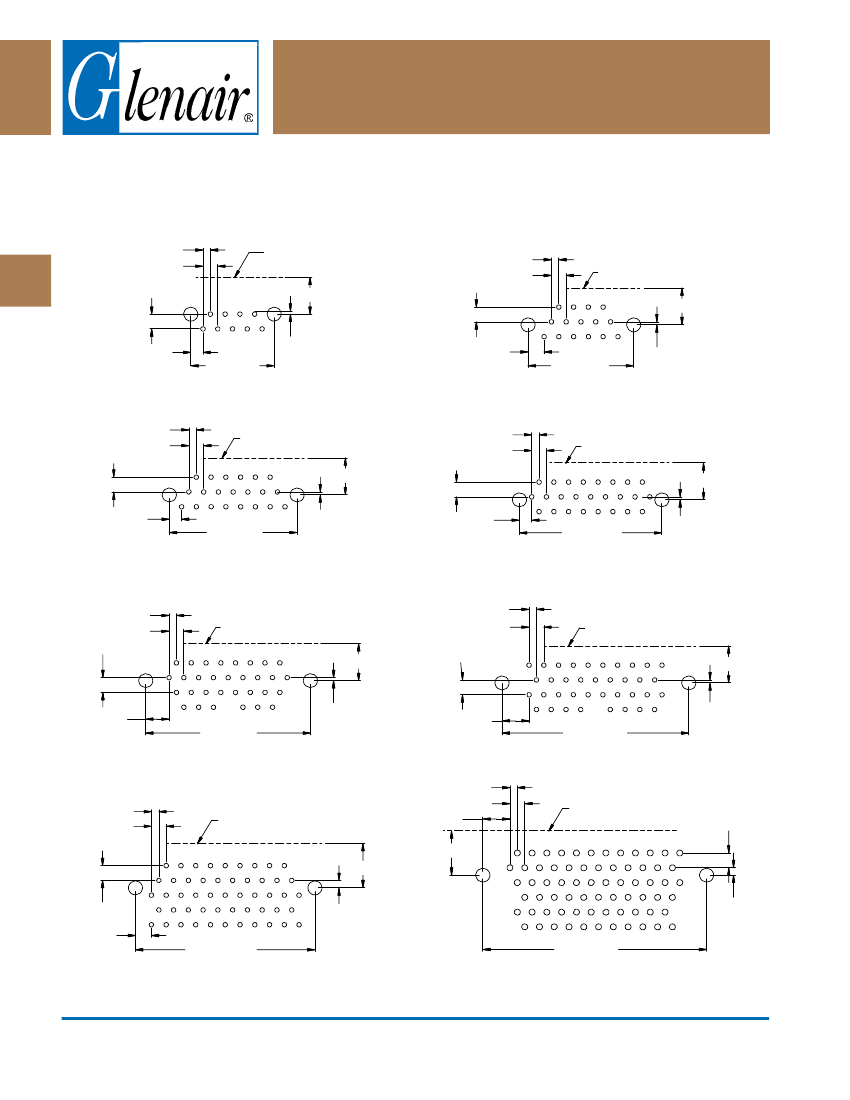

CONFIGURATION FOR 9-25 CONTACTS
F
A
B
C
E
D
CONFIGURATION FOR 31-130 CONTACTS
A
H
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
G
H J
G
K
J
9-51 CONTACTS
½
2-56 UNC-2B THREADS
#
100 CONTACTS
#4-40 UNC-2B THREADS
½
Tail Length ± .015
A Max.
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
69P
69S
75P
75S
100P
100S
130P
130S
In.
mm.
B
C Max.
2X MOUNTING HOLES
PCB MOUNTING HOLES
9-51 CONTACTS
.096 DIA. ± .003 (2.44 ± 0.08)
100 CONTACTS
.125 DIA. ± .003 (3.18± 0.08)
75-130
.125 DIA ± .003 (3.18± 0.08)
L
D Max.
In.
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.228
.296
.228
.296
.228
.296
.270
.333
.270
.333
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
5.79
7.52
5.79
7.52
5.79
7.52
6.86
8.46
6.86
8.46
E Max.
In.
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.351
.351
.351
.351
.351
.351
.394
.394
.394
.394
mm.
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
8.92
8.92
8.92
8.92
8.92
8.92
10.01
10.01
10.01
10.01
F
G Max.
mm.
H
J
K Max.
In.
––
––
––
––
––
––
––
––
.450
.450
.450
.450
.450
.450
.450
.450
.590
.590
.590
.590
.620
.620
mm.
L Max.
In.
mm.
––
––
––
––
––
––
––
––
27.56
27.56
30.10
30.10
31.12
31.12
38.86
38.86
41.91
41.91
46.23
46.23
54.86
54.86
In. mm.
In. mm.
±.003 ± 0.08
.787 19.94 .565 14.35 .333 8.46
.787 19.94 .565 14.35 .400 10.16
.937 23.75 .715 18.16 .483 12.27
.937 23.75 .715 18.16 .551 14.00
1.087 27.56 .865 21.97 .633 16.08
1.087 27.56 .865 21.97 .701 17.81
1.187 30.01 .965 24.51 .733 18.62
1.187 30.01 .965 24.51 .801 20.35
1.337 33.91 1.115 28.32 .883 22.43
1.337 33.91 1.115 28.32 .951 24.16
1.487 37.72 1.265 32.13 1.033 26.24
1.487 37.72 1.265 32.13 1.101 27.96
1.435 36.45 1.215 30.86 .983 24.97
1.435 36.45 1.215 30.86 1.051 26.70
1.740 44.20 1.515 38.48 1.283 32.59
1.740 44.20 1.515 38.48 1.351 34.32
2.080 52.83 1.705 43.31 1.384 35.15
2.080 52.83 1.705 43.31 1.450 36.83
2.175 55.12 1.800 45.72 1.383 35.13
2.175 55.12 1.800 45.72 1.451 36.86
2.520 64.01 2.150 54.61 1.735 44.07
2.520 64.01 2.150 54.61 1.735 44.07
In. mm.
In.
±.003 ± 0.08
.183 4.65 .425
.195 4.95 .425
.183 4.65 .425
.195 4.95 .425
.183 4.65 .425
.195 4.95 .425
.183 4.65 .425
.195 4.95 .425
.183 4.65 .525
.195 4.95 .525
.183 4.65 .525
.195 4.95 .525
.183 4.65 .660
.195 4.95 .660
.183 4.65 .750
.195 4.95 .750
.183 4.65 .800
.195 4.95 .800
.183 4.65 1.010
.195 4.95 1.010
.183 4.65 1.010
.195 4.95 1.010
In. mm. In. mm.
±.010 ±0.25 ±.010 ±0.25
10.80 .230 5.84 .250 6.35
10.80 .230 5.84 .250 6.35
10.80 .130 3.30 .250 6.35
10.80 .130 3.30 .250 6.35
10.80 .130 3.30 .250 6.35
10.80 .130 3.30 .250 6.35
10.80 .130 3.30 .250 6.35
10.80 .130 3.30 .250 6.35
13.34 .130 3.30 .250 6.35
13.34 .130 3.30 .250 6.35
13.34 .130 3.30 .250 6.35
13.34 .130 3.30 .250 6.35
16.76 .150 3.81 .300 7.62
16.76 .150 3.81 .300 7.62
19.05 .150 3.81 .300 7.62
19.05 .150 3.81 .300 7.62
20.32 .200 5.08 .400 10.16
20.32 .200 5.08 .400 10.16
25.65 .200 5.08 .400 10.16
25.65 .200 5.08 .400 10.16
25.65 .200 5.08 .400 10.16
25.65 .200 5.08 .400 10.16
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
11.43 1.085
11.43 1.085
11.43 1.185
11.43 1.185
11.43 1.225
11.43 1.225
11.43 1.530
11.43 1.530
14.99 1.650
14.99 1.650
14.99 1.820
14.99 1.820
15.75 2.160
15.75 2.160
Performance Specifications
Current Rating
DWV
Insulation Resistance
Contact Resistance
Low Level Contact Resist.
Magnetic Permeability
Operating Temperature
Shock, Vibration
Mating Force
3 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
32 Milliohms Maximum
2
µ
Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
Connector Shell
Insulator, Tray
Interfacial Seal
Pin Contact
Socket Contact
PCB Terminals
Hardware
Encapsulant
Materials and Finishes
Aluminum Alloy 6061 or Stainless Steel, 300 Series,
passivated. See Ordering Info for Plating Options
Liquid Crystal Polymer (LCP)/
Polyphenylene Sulfide (PPS)
Fluorosilicone Rubber, Blue
Copper Alloy, Gold over Nickel Plating
Copper Alloy, Gold Over Nickel Plating
Gold Plated Copper Alloy, Solder Dipped
300 Series Stainless Steel
Epoxy Resin Hysol EE4215
U.S. CAGE Code 06324
Printed in U.S.A.
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-15
E-Mail: sales@glenair.com
Micro-D PCB
Micro-D MWDM-CBR
Right Angle Thru-Hole
