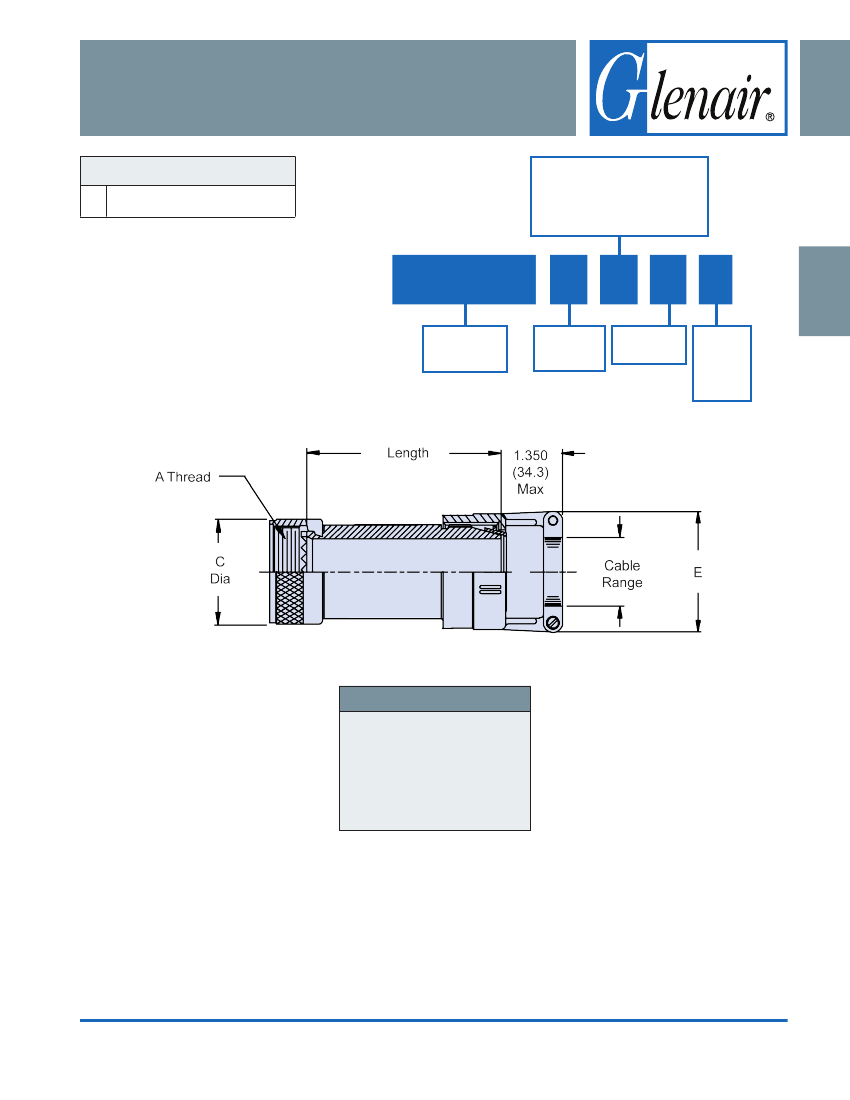

AS85049/19
Straight EMI/RFI Non-Environmental Backshell
CONNECTOR DESIGNATOR:
H
MIL-DTL-38999 Series III and IV
EN3645
Finish
N
= Electroless Nickel
W
= Cadmium, Olive Drab
X
= Nickel Fluorocarbon Polymer
Z
= Zinc Nickel
M85049/19
Basic
Part Number
11
Shell Size
(Table I)
W
03
A
Length
Code
(Omit for
Standard)
(Table III)
B
Clamp Size
(Table II)
Table III
APPLICATION NOTES
1.
2.
3.
For complete dimensions see the
applicable Military Specification.
Metric dimensions (mm) are in
parentheses.
Cable Range is defined as the
accommodation range for the wire
bundle or cable. Dimensions shown
are not intended for inspection
criteria.
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-39
E-Mail: sales@glenair.com
AS85049
AS85049/19
Straight EMI/RFI Non-Environmental Backshell
TABLE I: Shell Size and Clamp Size
B
AS85049
© 2013 Glenair, Inc.
Shell
Size
9
11
13
15
17
19
21
23
25
Clamp Size
Min Max
01
02
01
03
02
04
02
05
02
06
03
07
03
08
03
09
04
10
A Thread
Class 6H
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
C Dia
Max
.750
.850
1.000
1.100
1.250
1.400
1.500
1.650
1.700
(19.1)
(21.6)
(25.4)
(27.9)
(31.8)
(35.6)
(38.1)
(41.9)
(43.2)
TABLE II: Cable Range and Dimensions
Clamp
Size
01
02
03
04
05
06
07
08
09
10
.062
.125
.250
.312
.437
.562
.687
.812
.937
1.062
Cable Range
Min Max
(1.6)
.125
(3.2)
.250
(6.4)
.375
(7.9)
.500
(11.1)
.625
(14.3)
.750
(17.4)
.875
(20.6) 1.000
(23.8) 1.125
(27.0) 1.250
E
Max
(3.2)
(6.4)
(9.5)
(12.7)
(15.9)
(19.1)
(22.2)
(25.4)
(28.6)
(31.8)
.800
1.000
1.100
1.200
1.250
1.400
1.500
1.650
1.750
1.900
(20.3)
(25.4)
(27.9)
(30.5)
(31.8)
(35.6)
(38.1)
(41.9)
(44.5)
(48.3)
TABLE III: Length Code
Length
Code
Std.
A
B
C
Available
Shell Sizes
9 - 25
9 - 25
15 - 25
21 - 25
Length
1.500 (38.1)
2.500 (63.5)
3.500 (88.9)
4.500 (114.3)
