15-24-6182 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 15-24-6182

15-24-6182: DescriptionFuse Holder FPG4 SLOTTED IP40; CategoryThe connector The connector; File Size40KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

15-24-6182 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15-24-6182	-	-	View	Buy Now

15-24-6182 Overview

Fuse Holder FPG4 SLOTTED IP40

15-24-6182 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	MINI-FIT BMI, POSITIVE LOCK
Board mount options	COMPLIANT BOARDLOCK
body width	0.591 inch
subject depth	0.555 inch
body length	1.843 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (100) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

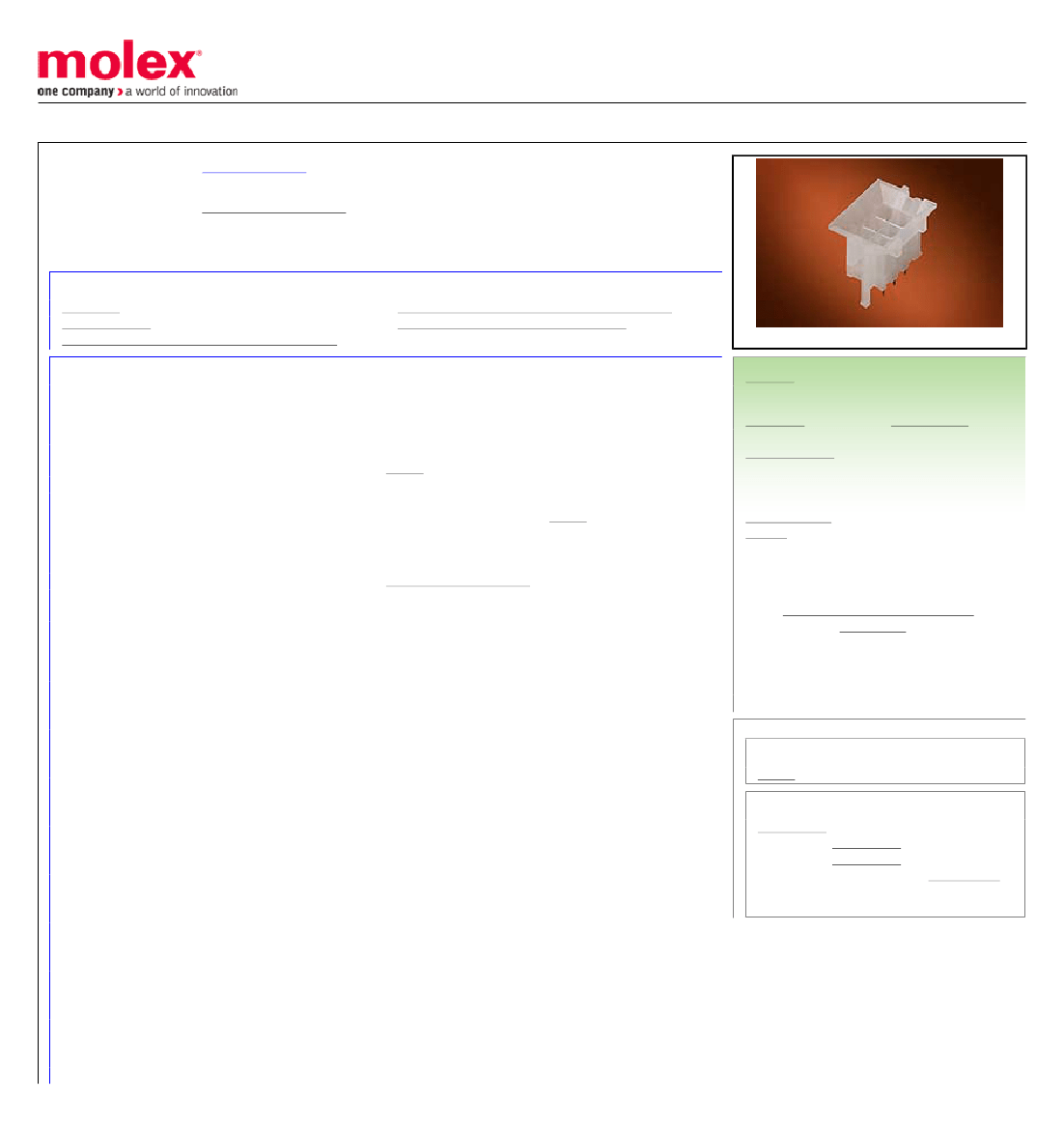

Preview

Download Datasheet

View All

This document was generated on 10/31/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015246182

Active

Mini-Fit BMI Connectors

Mini-Fit BMI Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-in Plastic Peg PCB

Lock, 18 Circuits, PA Polyamide Nylon 6/6, UL 94V-0, Tin (Sn) Plating, without Drain

Holes

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5556-002-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

42440

Board-to-Board, Power, Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit® Plus HCS

Crimp Terminal Crimped to 16 AWG wire., See Molex

product specification PS-45750-001 for additional

current de-rating information.

Mini-Fit BMI Connectors

Mini-Fit BMI

800754208543

Natural (White)

94V-0

Yes

Brass

Tin

Nylon

4.239/g

Vertical

3.56mm

Yes

1.80mm

Tray

4.20mm

2.540µm

Yes

Partial

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Search Parts in this Series

42440 Series

Mates With

15-06-0181 Mini-Fit BMI Panel Mount

Receptacle, 39-01-2185 Mini-Fit Jr.

Receptacle, 15-24-7181 Mini-Fit BMI

Vertical Receptacle Header, 44516-0009

Mini-Fit BMI Slide-and-Lock Panel Mount

Receptacle
