OPA1013CN8

Description
DUAL OP-AMP, 450 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDIP8
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size138KB,9 Pages
ManufacturerBurr-Brown
Websitehttp://www.burr-brown.com/
Download Datasheet Parametric Compare View All

OPA1013CN8 Online Shopping

Suppliers Part Number Price MOQ In stock
OPA1013CN8 - - View Buy Now

OPA1013CN8 Overview

DUAL OP-AMP, 450 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDIP8

OPA1013CN8 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerBurr-Brown
package instructionPLASTIC, DIP-8
Reach Compliance Codeunknow
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)0.05 µA
Maximum bias current (IIB) at 25C0.05 µA
Minimum Common Mode Rejection Ratio97 dB
Nominal Common Mode Rejection Ratio114 dB
frequency compensationYES
Maximum input offset voltage450 µV
JESD-30 codeR-PDIP-T8
JESD-609 codee0
low-dissonanceYES
micropowerYES
Negative supply voltage upper limit-22 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions2
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5/+-15 V
Certification statusNot Qualified
minimum slew rate0.2 V/us
Nominal slew rate0.35 V/us
Maximum slew rate1.2 mA
Supply voltage upper limit22 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyBIPOLAR
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Nominal Uniform Gain Bandwidth800 kHz
Minimum voltage gain500000
®
OPA1013
Precision, Single-Supply
DUAL OPERATIONAL AMPLIFIER
FEATURES
q
q
q
q
q
SINGLE POWER SUPPLY OPERATION
INPUT VOLTAGE RANGE TO GROUND
OUTPUT SWINGS NEAR GROUND
LOW QUIESCENT CURRENT: 550
µ
A max
LOW V
OS
: 300
µ
V max
APPLICATIONS
q
q
q
q
q
PRECISION INSTRUMENTATION
BATTERY-POWERED EQUIPMENT
BRIDGE AMPLIFIERS
4-20mA CURRENT TRANSMITTERS
VOLTAGE COMPARATOR
q
LOW DRIFT: 2.5
µ
V/
°
C max
q
LOW I
OS
: 1.5nA max
q
LOW NOISE: 0.55
µ
Vp-p, 0.1Hz to 10Hz
DESCRIPTION

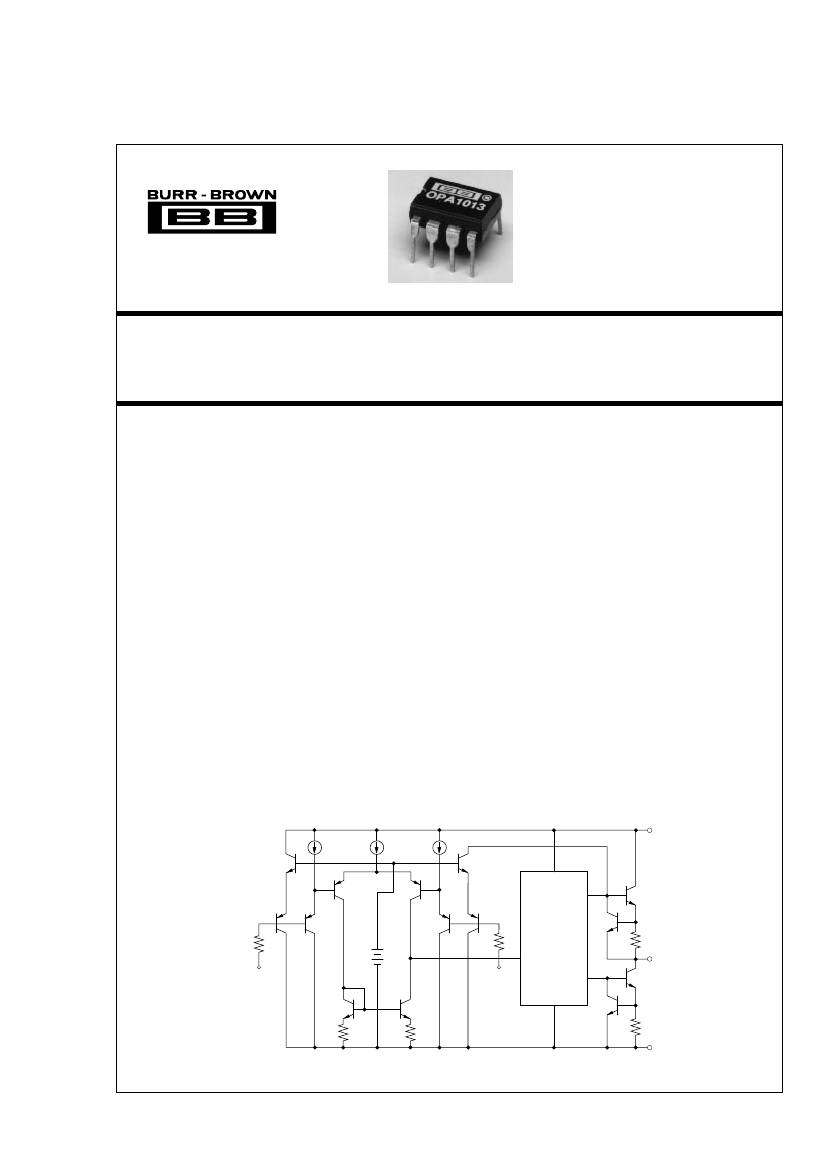

The OPA1013 dual operational amplifier provides
precision performance in single power supply and low
power applications. It is laser trimmed for low offset
voltage and drift, greatly reducing the large errors
common with LM324-type op amps. Input offset
current is also trimmed to reduce errors in high im-
pedance applications.
The OPA1013 is characterized for operation at both
+5V (single supply) and
±15V
power supplies. When
operated from a single supply, the input common-mode
range includes ground and the output can swing to
within 15mV of ground. Completely independent bias-
ing networks eliminate interaction between the two
amplifiers—even when one is used as a comparator.
The OPA1013 is available in an 8-pin plastic DIP
specified for the 0°C to +70°C temperature range.
3.3µA
Simplified Circuit
(Half of Dual)
3.3µA
7.5µA
V+
8
400Ω
0.9V
400Ω
2nd
Gain
Stage
22Ω
Out
1, 7
In –
2, 6
In +
3, 5
22Ω
V–
4
International Airport Industrial Park • Mailing Address: PO Box 11400
Tel: (520) 746-1111 • Twx: 910-952-1111 • Cable: BBRCORP •
• Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd. • Tucson, AZ 85706
Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
© 1990 Burr-Brown Corporation
PDS-1059F
Printed in U.S.A. December, 1994

OPA1013CN8 Related Products

OPA1013CN8 OPA1013 OPA1013DN8
Description DUAL OP-AMP, 450 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDIP8 Precision, Single-Supply DUAL OPERATIONAL AMPLIFIER DUAL OP-AMP, 950 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDIP8
Is it Rohs certified? incompatible - incompatible
Maker Burr-Brown - Burr-Brown
package instruction PLASTIC, DIP-8 - DIP, DIP8,.3
Reach Compliance Code unknow - unknow
Amplifier type OPERATIONAL AMPLIFIER - OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK - VOLTAGE-FEEDBACK
Maximum average bias current (IIB) 0.05 µA - 0.05 µA
Maximum bias current (IIB) at 25C 0.05 µA - 0.05 µA
Minimum Common Mode Rejection Ratio 97 dB - 97 dB
Nominal Common Mode Rejection Ratio 114 dB - 114 dB
frequency compensation YES - YES
Maximum input offset voltage 450 µV - 950 µV
JESD-30 code R-PDIP-T8 - R-PDIP-T8
JESD-609 code e0 - e0
low-dissonance YES - NO
micropower YES - YES
Negative supply voltage upper limit -22 V - -22 V
Nominal Negative Supply Voltage (Vsup) -15 V - -15 V
Number of functions 2 - 2
Number of terminals 8 - 8
Maximum operating temperature 70 °C - 70 °C
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY
encapsulated code DIP - DIP
Encapsulate equivalent code DIP8,.3 - DIP8,.3
Package shape RECTANGULAR - RECTANGULAR
Package form IN-LINE - IN-LINE
power supply 5/+-15 V - 5/+-15 V
Certification status Not Qualified - Not Qualified
minimum slew rate 0.2 V/us - 0.2 V/us
Nominal slew rate 0.35 V/us - 0.35 V/us
Maximum slew rate 1.2 mA - 1.2 mA
Supply voltage upper limit 22 V - 22 V
Nominal supply voltage (Vsup) 5 V - 5 V
surface mount NO - NO
technology BIPOLAR - BIPOLAR
Temperature level COMMERCIAL - COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE - THROUGH-HOLE
Terminal pitch 2.54 mm - 2.54 mm
Terminal location DUAL - DUAL
Nominal Uniform Gain Bandwidth 800 kHz - 800 kHz
Minimum voltage gain 500000 - 500000
