CS325S-53125000ABJT datasheet, PDF

Datasheet> All Categories > Passive components> CS325S-53125000ABJT

CS325S-53125000ABJT: DescriptionCrystals 53.125MHz -10C +60C 18pF 50ppm; CategoryPassive components; File Size57KB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric View All

CS325S-53125000ABJT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CS325S-53125000ABJT	-	-	View	Buy Now

CS325S-53125000ABJT Overview

Crystals 53.125MHz -10C +60C 18pF 50ppm

CS325S-53125000ABJT Parametric

Parameter Name	Attribute value
Product Category	Crystals
Manufacturer	CITIZEN
RoHS	Details
Package / Case	3.2 mm x 2.5 mm
Length	3.2 mm
Width	2.5 mm
Packaging	Reel
Factory Pack Quantity	3000
Unit Weight	0.000564 oz

Preview

Download Datasheet

View All

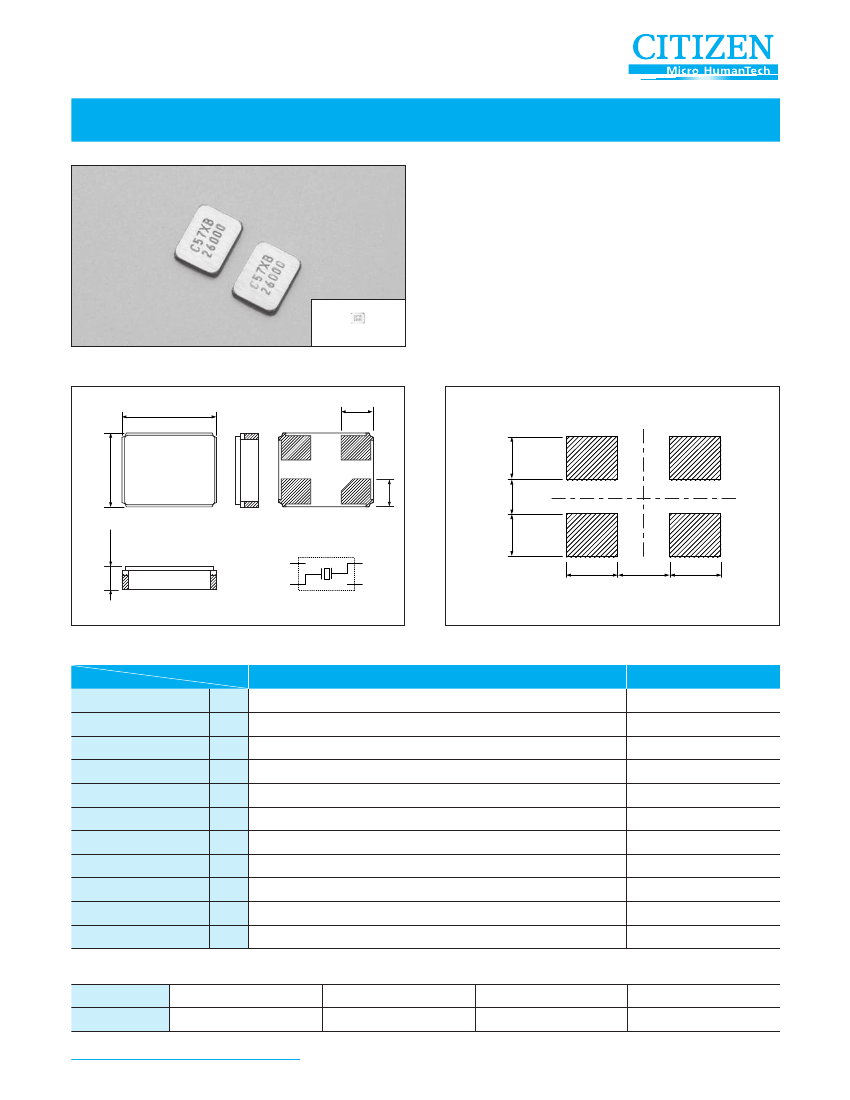

AT-CUT CRYSTAL UNIT

(SMD • Ceramic Package)

CS325

■

FEATURES

7High-density

SMD type.

3000pcs/reel

7Reliable

ceramic package and excellent

environmental characteristics.

7Suitable

for various applications such as

communication devices, AV devices and other

equipment.

Life-size

7Complete

Pb free product.

■

DIMENSION [mm]

3.2±0.1

＃4

＃3

4−1.0

＃4

■

SOLDER PAD LAYOUT [mm]

2.5±0.1

4−0.9

＃1

0.55±0.05

＃2

＃1

Internal connection

(Top View)

＃4

＃1

＃3

＃2

1.15

0.45

1.15

1.4

0.8

1.4

■

STANDARD SPECIFICATIONS

Item

Nominal Frequency

Frequency Tolerance

Frequency Tolerance over

Operating Temperature Range

Storage Temperature Range

Motional (series) resistance

Load capacitance

Shunt capacitance

Level of drive

Insulation Resistance

Aging (first year)

Model

CS325

12.0MHz∼54.0MHz Fundamental）

（

±30ppm

−

40℃∼

＋

85℃

−

55℃∼

＋

125℃

Conditions

Need to contact us for the available frequency

△

f/f

△

f/f

at 25˚C

−

10℃∼

＋

60℃

OPR

STR

△

f/f

Refer to the following table

16.0pF, 18.0pF

5.0pF Max.

10μW

（100μW Max.）

500MΩMin.

±5ppm Max.

at 25˚C

Need to specify your requirement

DC100V±15V

25℃±3℃

■

MOTIONAL (SERIES) RESISTANCE (R

)

Frequency Range

ESR

12.0MHz≦f

＜16.0MHz

150ΩMax.

16.0MHz≦f

＜20.0MHz

120ΩMax.

20.0MHz≦f

＜30.0MHz

80ΩMax.

30.0MHz≦f

＜54.0MHz

50ΩMax.

http://cfm.citizen.co.jp/english/product/pr02.html
