LFXTAL056140Cutt

Description
Crystals 24.0MHz AEC-Q200 3.2 x 2.5 x 0.8mm
CategoryPassive components
File Size137KB,1 Pages
ManufacturerIQD
Download Datasheet Parametric View All

LFXTAL056140Cutt Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL056140Cutt - - View Buy Now

LFXTAL056140Cutt Overview

Crystals 24.0MHz AEC-Q200 3.2 x 2.5 x 0.8mm

LFXTAL056140Cutt Parametric

Parameter NameAttribute value
Product CategoryCrystals
ManufacturerIQD
RoHSDetails
Termination StyleSMD/SMT
Package / Case3.2 mm x 2.5 mm
Load Capacitance8 pF
Frequency24 MHz
Tolerance50 PPM
Frequency Stability100 PPM
Drive Level50 uW
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Length3.2 mm
Width2.5 mm
Height0.8 mm
PackagingCut Tape
ESR50 Ohms
Mounting StyleSMD/SMT
ProductCrystals
QualificationAEC-Q200
Factory Pack Quantity100
TypeQuartz Crystal
Unit Weight0.000564 oz

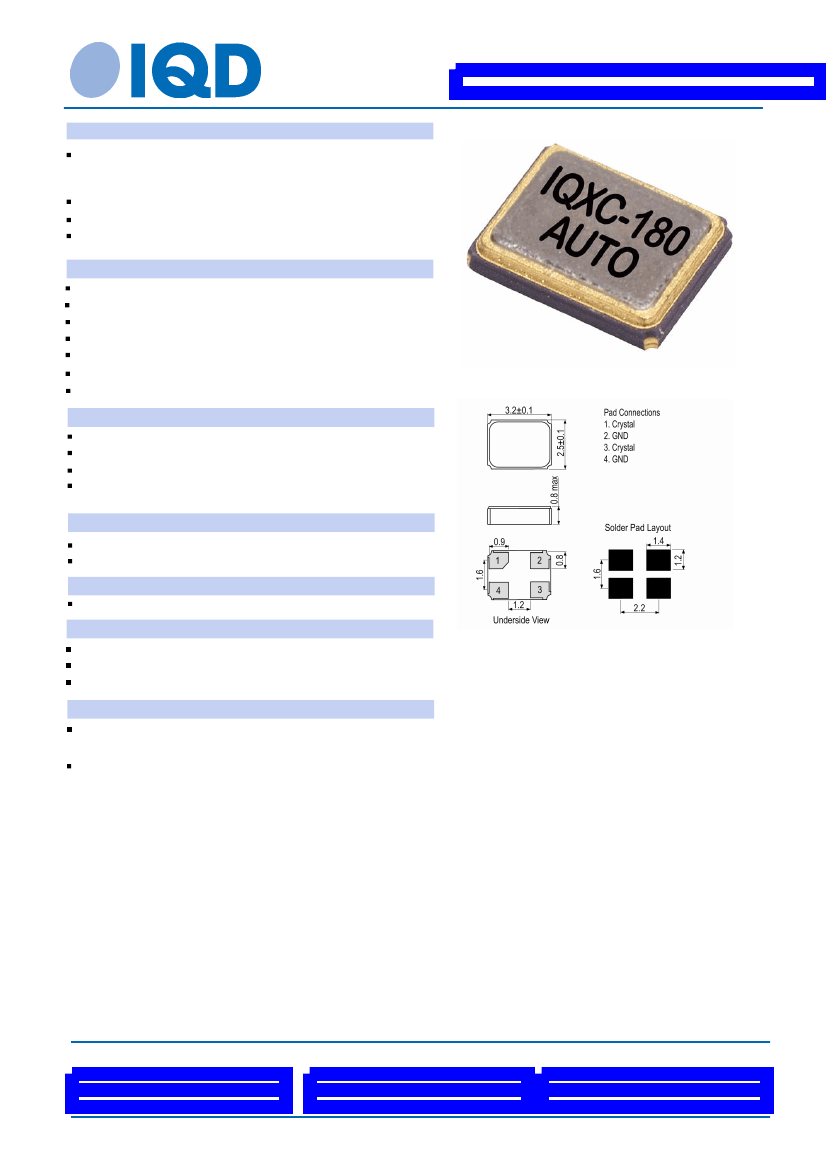

Crystal Specification
Part No. + Packaging:
LFXTAL056140Cutt
Description
Ceramic package with a hermetically seam sealed metal lid
suitable for automotive applications. Qualified to AEC-Q200 and
available with TS16949 release.
4 pad
Model
Model Issue number
Frequency Parameters
IQXC-180 AUTO
2
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
24.0MHz
±50.00ppm
@25°C ±2°C
±100.00ppm
-40.00 to 125.00°C
Fundamental
±5ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
8.00pF
7pF max
50µW standard, 200µW max
50.00Ω max
Storage Temperature Range: –45°C to +130°C
Qualified to AEC-Q200
Manufacturing Details
Maximum Process Temperature: 260°C (10secs max)
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Cutt
Pack Size: 100
Cut tape
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
