LPV1620-500KL

Description
Fixed Inductors 50uH 10% 10Amp Radial
CategoryPassive components    inductor
File Size439KB，1 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric Compare View All

LPV1620-500KL Online Shopping

Suppliers Part Number Price MOQ In stock
LPV1620-500KL - - View Buy Now

LPV1620-500KL Overview

Fixed Inductors 50uH 10% 10Amp Radial

LPV1620-500KL Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerBourns
Reach Compliance Codecompliant
ECCN codeEAR99
structureCylindrical
core materialFERRITE
DC Resistance0.06 Ω
Nominal inductance(L)50 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Lead diameter1 mm
Lead length15 mm
lead spacing8 mm
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package diameter16 mm
Package length20 mm
Package formRadial
Maximum rated current3 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal surfaceTin (Sn)
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.001 MHz
Tolerance10%

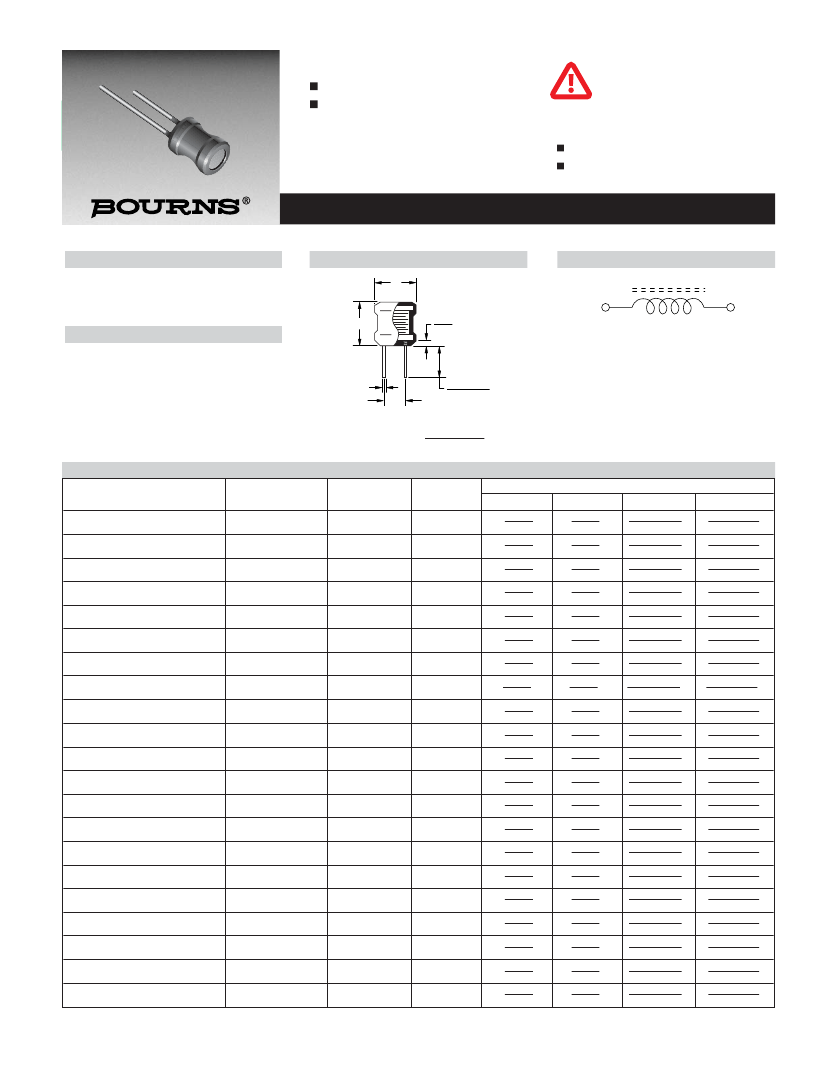

Preview

Download Datasheet
CO
M
PL
IA
Features
High current up to 10 A
RoHS compliant*
NT
*R
oH
S
This series is currently available but
not recommended for new designs.
Applications
DC/DC converters
Power supplies
LPV Series Radial Power Inductors
General Specifications
Temperature Rise
..................45 ˚C max. at rated current
Operating Temperature..-40 °C to +85 °C
Storage Temperature ..-40 °C to +105 °C
Materials
Core Material ..................Ferrite DR core
Wire ....................Enameled copper wire
Terminal ........................................Cu/Sn
Tube........Shrinkable tube 125 °C, 600 V
Product Dimensions
A
DIA.
3.0
MAX.
(.118)
Electrical Schematic
B
W DIA.
F
15.0
±
5.0
(.591
±
.197)
DIMENSIONS ARE:
MM
(INCHES)
Electrical Characteristics and Product Dimensions
BOURNS Part No.
LPV1620-100ML
LPV1620-250KL
LPV1620-500KL
LPV1620-101KL
LPV1620--251KL
LPV1620-501KL
LPV1620-102KL
LPV1823-100ML
LPV1823-250KL
LPV1823-500KL
LPV1823-101KL
LPV1823-251KL
LPV1823-501KL
LPV1823-102KL
LPV2023-100ML
LPV2023-500KL
LPV2023-101KL
LPV2023-251KL
LPV2023-501KL
LPV2023-102KL
LPV2023-202KL
Inductance
(μH) 1KHz
10 ± 20 %
25 ± 10 %
50 ± 10 %
100 ± 10 %
250 ± 10 %
500 ± 10 %
1000 ± 10 %
10 ± 20 %
25 ± 10 %
50 ± 10 %
100 ± 10 %
250 ± 10 %
500 ± 10 %
1000 ± 10 %
10 ± 20 %
50 ± 10 %
100 ± 10 %
250 ± 10 %
500 ± 10 %
1000 ± 10 %
2000 ± 10 %
RDC
(Ω) max.
0.024
0.040
0.060
0.090
0.180
0.400
0.800
0.009
0.022
0.036
0.090
0.150
0.300
0.600
0.008
0.032
0.060
0.140
0.280
0.550
1.200
IDC
(A) max.
5.0
4.0
3.0
2.0
1.5
1.0
0.7
8.0
6.0
4.0
3.0
2.0
1.2
1.0
10.0
5.0
4.0
2.5
1.5
1.2
0.8
A max.
16.0
(.630)
16.0
(.630)
16.0
(.630)
16.0
(.630)
16.0
(.630)
16.0
(.630)
16.0
(.630)
18.0
(.709)
18.0
(.709)
18.0
(.709)
18.0
(.709)
18.0
(.709)
18.0
(.709)
18.0
(.709)
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
Dimensions
B max.
F
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
20.0
(.787)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
23.0
(.906)
8.0 ± 1.5
(.315 ± .059)
8.0 ± 1.5
(.315 ± .059)
8.0 ± 1.5
(.315 ± .059)
8.0 ± 1.5
(.315 ± .059)
8.0 ± 1.5
(.315 ± .059)
8.0 ± 1.5
(.315 ± .059)
8.0 ± 1.5
(.315 ± .059)
14.0 ± 1.5
(.551 ± .059)
14.0 ± 1.5
(.551 ± .059)
14.0 ± 1.5
(.551 ± .059)
9.0 ± 1.5
(.354 ± .059)
9.0 ± 1.5
(.354 ± .059)
9.0 ± 1.5
(.354 ± .059)
9.0 ± 1.5
(.354 ± .059)
15.5 ± 1.5
(.610 ± .059)
15.5 ± 1.5
(.610 ± .059)
15.5 ± 1.5
(.610 ± .059)
12.5 ± 1.5
(.492 ± .059)
12.5 ± 1.5
(.492 ± .059)
12.5 ± 1.5
(.492 ± .059)
12.5 ± 1.5
(.492 ± .059)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.2 ± 0.1
(.047 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.3 ± 0.1
(.051 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
1.0 ± 0.1
(.039 ± .004)
W dia.
REV. 02/16
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.

LPV1620-500KL Related Products

LPV1620-500KL LPV1620-250KL LPV1823-500KL LPV1823-101KL LPV1823-250KL LPV1620-102KL LPV2023-102KL
Description Fixed Inductors 50uH 10% 10Amp Radial Fixed Inductors 50uH 10% 10Amp Radial Fixed Inductors 100uH 10% 10Amp Radial Fixed Inductors 25uH 10% 10Amp Radial Fixed Inductors 1K 10% 10Amp Radial Ceramic Disc Capacitors .05uF 500volts +80/-20% Z5U
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
structure Cylindrical Shrink Tube Shrink Tube Shrink Tube Cylindrical Shrink Tube Shrink Tube
core material FERRITE FERRITE FERRITE FERRITE FERRITE FERRITE FERRITE
DC Resistance 0.06 Ω 0.04 Ω 0.036 Ω 0.09 Ω 0.022 Ω 0.8 Ω 0.55 Ω
Nominal inductance(L) 50 µH 25 µH 50 µH 100 µH 25 µH 1000 µH 1000 µH
Inductor Applications POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
JESD-609 code e3 e3 e3 e3 e3 e3 e3
Lead diameter 1 mm 1 mm 1 mm 1 mm 1 mm 1 mm 1 mm
Lead length 15 mm 15 mm 15 mm 15 mm 15 mm 15 mm 15 mm
lead spacing 8 mm 8 mm 14 mm 9 mm 14 mm 8 mm 12.5 mm
Number of functions 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2
Maximum operating temperature 85 °C 80 °C 80 °C 80 °C 85 °C 80 °C 80 °C
Minimum operating temperature -40 °C -20 °C -20 °C -20 °C -40 °C -20 °C -20 °C
Package diameter 16 mm 16 mm 18 mm 18 mm 18 mm 16 mm 20 mm
Package length 20 mm 20 mm 23 mm 23 mm 23 mm 20 mm 23 mm
Package form Radial Radial Radial Radial Radial Radial Radial
Maximum rated current 3 A 4 A 4 A 3 A 6 A 0.7 A 1.2 A
Shape/Size Description CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE
shield NO NO NO NO NO NO NO
surface mount NO NO NO NO NO NO NO
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn)
Terminal location RADIAL RADIAL RADIAL RADIAL RADIAL RADIAL RADIAL
Terminal shape WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Test frequency 0.001 MHz 0.001 MHz 0.001 MHz 0.001 MHz 0.001 MHz 0.001 MHz 0.001 MHz
Tolerance 10% 10% 10% 10% 10% 10% 10%
Maker Bourns - Bourns Bourns Bourns - -
Base Number Matches - 1 1 1 - 1 1
