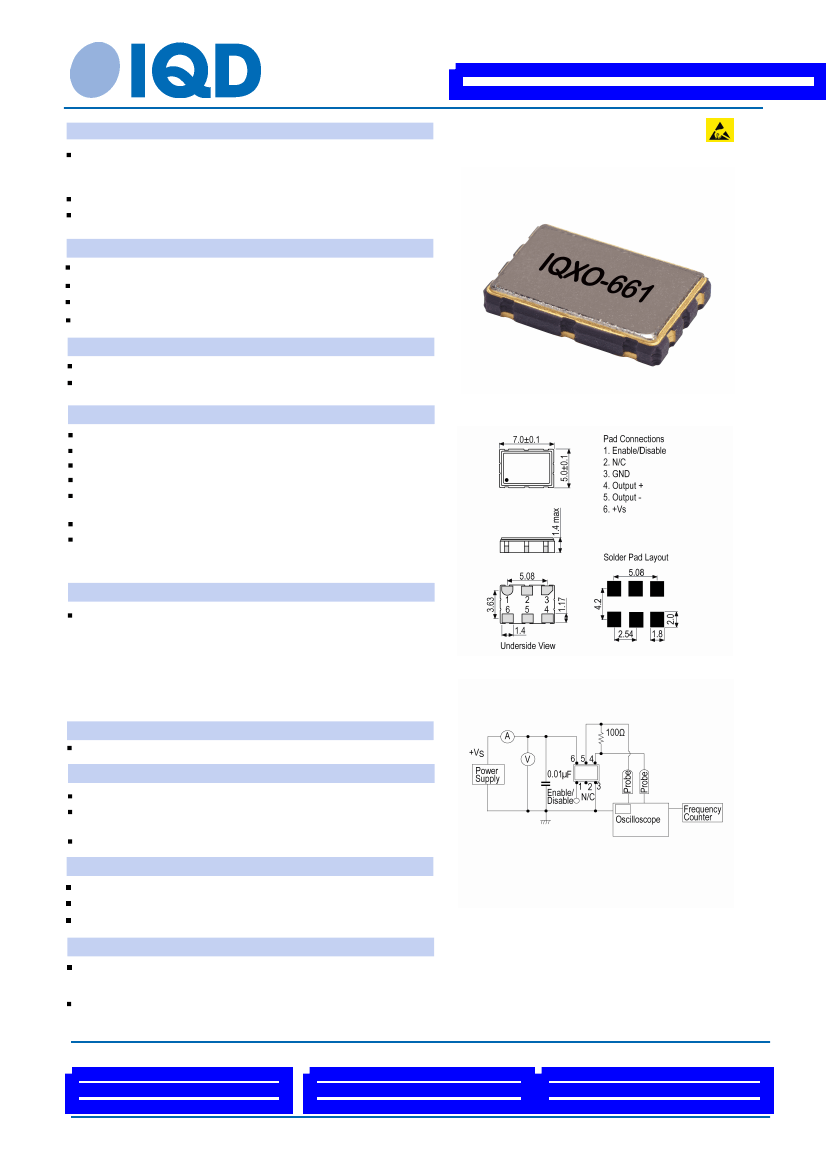

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO057662Reel

Description

LVDS output crystal oscillator using a high frequency

fundamental crystal to give very low jitter. Hermetically sealed

ceramic package with a seam sealed metal lid.

Model

IQXO-661

Model Issue number

2

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

125.0MHz

±50.00ppm

-10.00 to 70.00°C

±3ppm max per year at 25°C

Supply Voltage

Current Draw

Output Details

2.5V ±5%

50.00mA

Outline (mm)

LVDS

Output Compatability

Drive Capability

100Ω

Rise & Fall Time (20 - 80%)

0.5ns max

45/55%

Duty Cycle

Differential Output Voltage (VoD): 0.247V min, 0.330V typ,

0.454V max.

Offset Voltage (VOS): 1.125V min, 1.250V typ, 1.375V max.

Output Voltage Levels:

Output Low (VoL): 0.9V min

Output High (VoH): 1.6V max

Output Control

Enable/Disable:

Logic ‘1’ (≥70% Vs) to pad 1 enables oscillator output.

Logic ‘0’ (≤30% Vs) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance

state.

No connection to pad 1 enables oscillator output.

Standby Current: 10µA max

Noise Parameters

Test Circuit

Phase Jitter (12kHz to 20MHz): 1ps rms max

Environmental Parameters

Storage Temperature Range: -55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E: 1000G,

0.5ms, half sine wave.

Vibration: MIL-STD-883, Method 2007, Condition A: 20G

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
