LFSPXO060791Cutt

Description
Standard Clock Oscillators 48MHz 2.5V 100ppm -40C +85C
CategoryPassive components
File Size225KB,2 Pages
ManufacturerIQD
Download Datasheet Parametric View All

LFSPXO060791Cutt Online Shopping

Suppliers Part Number Price MOQ In stock
LFSPXO060791Cutt - - View Buy Now

LFSPXO060791Cutt Overview

Standard Clock Oscillators 48MHz 2.5V 100ppm -40C +85C

LFSPXO060791Cutt Parametric

Parameter NameAttribute value
Product CategoryStandard Clock Oscillators
ManufacturerIQD
RoHSDetails
ProductStandard Clock Oscillators
Frequency48 MHz
Frequency Stability100 PPM
Load Capacitance15 pF
Operating Supply Voltage2.5 V
Output FormatCMOS
Termination StyleSMD/SMT
Package / Case3.2 mm x 2.5 mm
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Length3.4 mm
Width2.7 mm
Height1.2 mm
PackagingCut Tape
Duty Cycle - Max60 %
Factory Pack Quantity500
TypeCeramic Surface Mount Crystal Oscillator

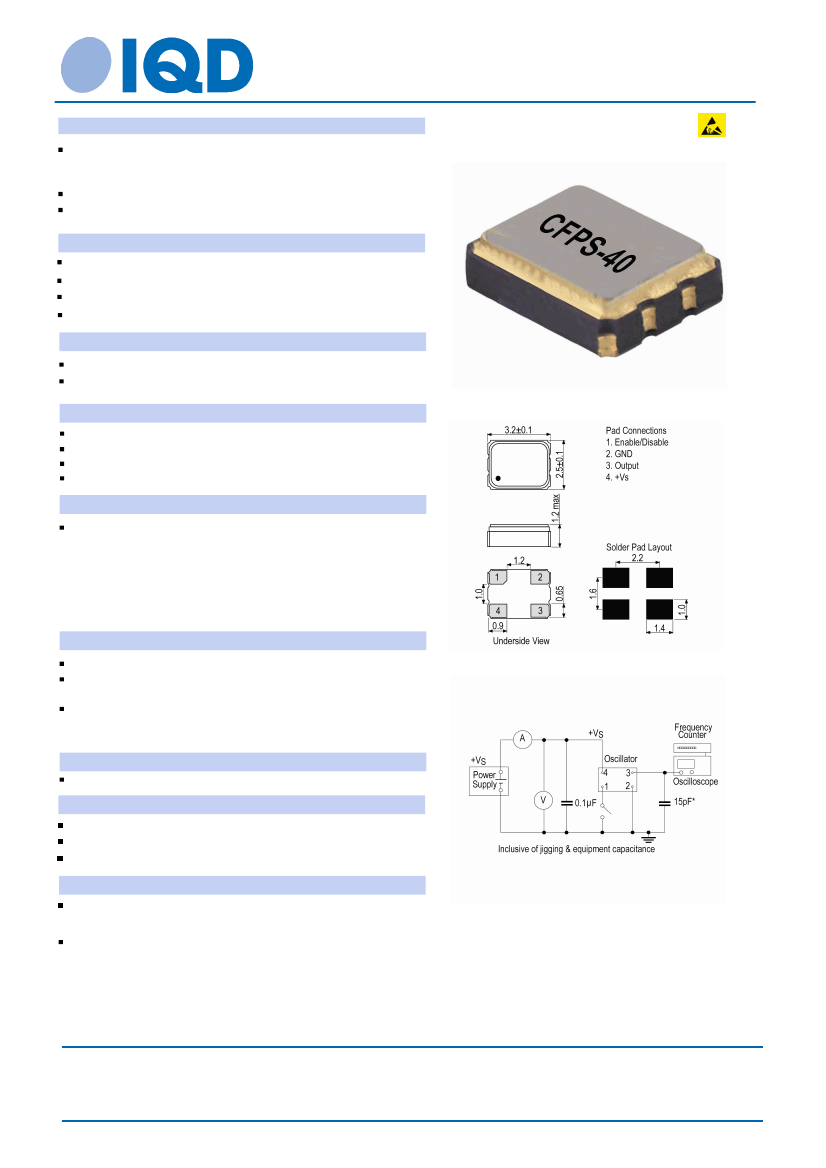

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO060791Bulk
Description
Standard 3.2 x 2.5mm crystal oscillator
Ceramic package with a seam sealed metal lid, hermetically
sealed
Model
CFPS-40
Model Issue number
5
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
48.0MHz
±
100.00ppm
-40.00 to 85.00°C
±3ppm max per year @ 25°C
Supply Voltage
Current Draw
Output Details
2.5V ±5%
20.000mA
Outline (mm)
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
5.0ns max
40/60%
Standby Operation:
Logic ‘1’ (>70% VS) to pad 1 enables oscillator output
Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Standby Current: 10μA max
Start-Up Time: 10ms max
Environmental Parameters
Storage Temperature Range: –55 to 125°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Manufacturing Details
Test Circuit
Maximum Process Temperature: 260°C (10secs max)
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
Printed on 30 May 17 14:12 using Part Data Sheet V1.00014
