MILP1812-392K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MILP1812-392K

MILP1812-392K: DescriptionFixed Inductors Surface Mount, MIL-PRF-27/368 T-Level Qualified Power Inductors, 3.9 uH , +/- 10%; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

MILP1812-392K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MILP1812-392K	-	-	View	Buy Now

MILP1812-392K Overview

Fixed Inductors Surface Mount, MIL-PRF-27/368 T-Level Qualified Power Inductors, 3.9 uH , +/- 10%

MILP1812-392K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	1812
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1812
structure	Unshielded
core material	FERRITE
DC Resistance	0.347 Ω
Nominal inductance(L)	3.9 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	MILP1812
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Package height	3.2 mm
Package length	4.525 mm
Package form	SMT
Package width	3.2 mm
method of packing	TR, 7/13 Inch
Maximum rated current	0.7 A
series	MILP1812
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	REFERENCE STANDARD: MIL-PRF-27/368
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES

MILP1812

EN C)

EM A D

CR m

IN NT (

TI )

RA C

T D

EN (mA

RR M

AN )

ST S

SI HM

RE M (O

(µ

CE kHz

AN 1

CT @

DU 0%

IN ±1

ROVE

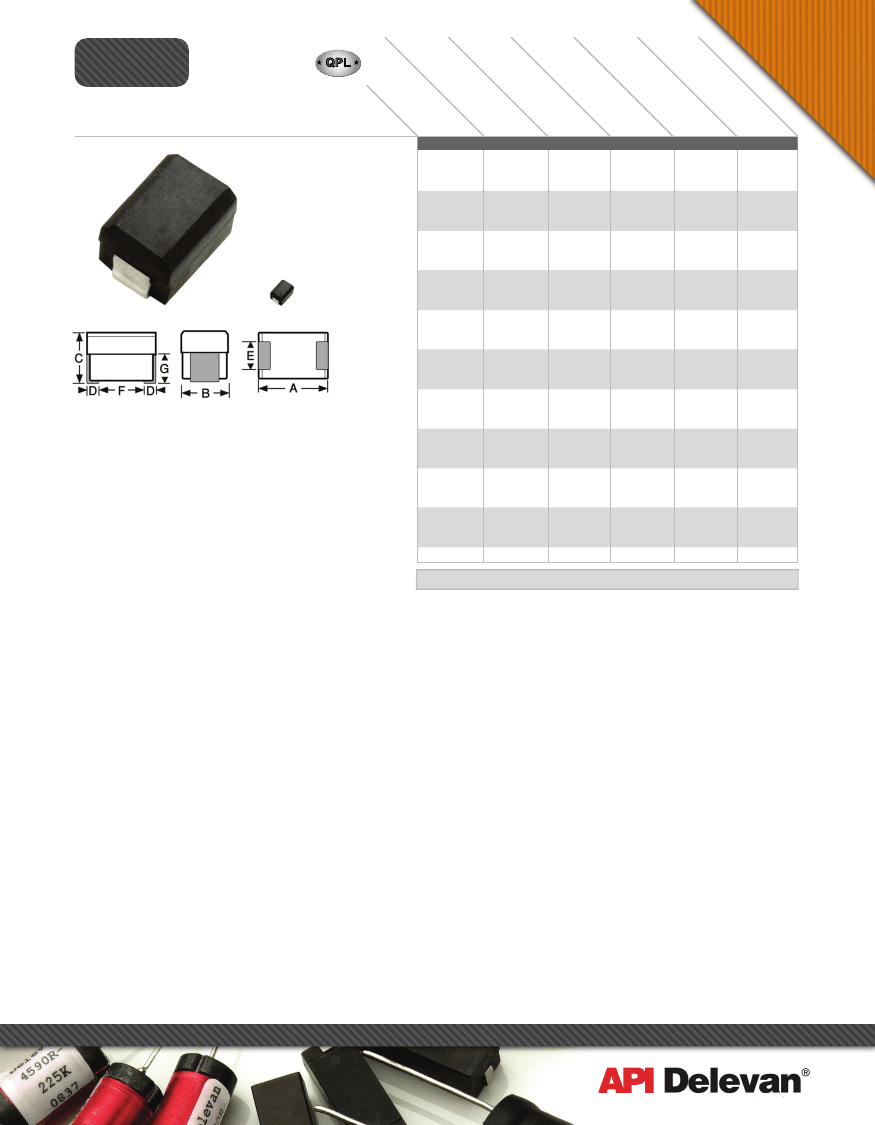

MIL-PRF-27/368, T Level Qualiﬁed

Surface Mount Power Inductors

Actual Size

Physical Parameters

Inches

Millimeters

0.166 to 0.190

4.22 to 4.83

0.118 to 0.134

3.00 to 3.40

0.118 to 0.134

3.00 to 3.40

0.015 Min.

0.38 Min.

0.054 to 0.078

1.37 to 1.98

0.118 (Ref. only)

3.00 (Ref. only)

0.066 (Ref. only)

1.68 (Ref. only)

Dimensions “A” and “C” are over terminals

Military QPL Approval

M27/368 T Level, Grade 5, encapsulted

Level T Magnetics are 100% Tested per MIL-PRF-27

Group A Subgroup I which includes:

1) Thermal Shock, 25 cycles

2) Burn In, 96 hours

3) Radiographic (X-Ray) Inspection

Operating Temperature Range

–55°C to +130°C

Current Rating at 90°C Ambient

40°C Rise

Maximum Power Dissipation at 90°C

0.278 W

Inductance

Measured at 1VAC with no DC current

Incremental Current

The current at which the

inductance will decrease by a maximum of 5% from

its inductance at zero DC current.

Lead Finish

Sn63 Pb37 (Tin-Lead)

Hot Solder Dipped

Weight

0.1 grams MAX

M27/368 - SERIES

-01T

-102KT

-02T

-122KT

-03T

-152KT

-04T

-182KT

-05T

-222KT

-06T

-272KT

-07T

-332KT

-08T

-392KT

-09T

-472KT

-10T

-562KT

-11T

-682KT

-12T

-822KT

-13T

-103KT

-14T

-123KT

-15T

-153KT

-16T

-183KT

-17T

-223KT

-18T

-273KT

-19T

-333KT

-20T

-393KT

-21T

-473KT

-22T

-563KT

-23T

-683KT

-24T

-823KT

-25T

-104KT

-26T

-124KT

-27T

-154KT

-28T

-184KT

-29T

-224KT

-30T

-274KT

-31T

-334KT

MILP1812 T LEVEL FERRITE CORE

1.0

0.113

1050

1.2

0.199

1000

1.5

0.222

950

1.8

0.240

900

2.2

0.268

850

2.7

0.288

800

3.3

0.323

750

3.9

0.347

700

4.7

0.401

650

5.6

0.437

650

6.8

0.472

600

8.2

0.548

600

0.608

550

0.670

550

0.780

450

0.875

400

1.200

370

1.404

330

1.578

300

1.848

280

2.064

260

2.268

240

3.408

220

3.648

200

100

4.320

180

120

6.000

160

150

6.432

140

180

8.400

120

220

9.680

120

270

12.720

100

330

15.240

2400

2158

1980

1828

1697

1513

1397

1250

1131

1060

990

871

772

752

693

614

515

465

425

376

366

336

297

267

238

208

183

158

143

129

118

*Complete part # must include series # PLUS the dash #

Mechanical Conﬁguration

Inductors are encapsulated in a Surface Mount

package, using an epoxy molded case. Leads are pretinned. A high resistivity

ferrite core allows for high inductance with low DC resistance.

DMV

200 Vrms at Sea Level

80 Vrms at 70,000 feet altitude

1000 Mohms MIN at 100 Vdc

Vibration

MIL-STD-202, Method 204, Test Condition D

Moisture Resistance

MIL-STD-202, Method 106

Bond Strength

Force 2 lbs.

Marking

Military PIN (Part or Identifying Number)

API Delevan Part Number Sufﬁx

API Delevan Cage Code Date/Lot Code (YYWWL)

Marking Example

M27/368-05T

222KT

99800 1345A

Packaging

Tape & reel (12mm): 7" reel, 650 pieces max.;

13" reel, 2500 pieces max.

Made In the U.S.A.

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

11/2013
