EXB-A10P104J

CategoryPassive components
File Size114KB,3 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

EXB-A10P104J Online Shopping

Suppliers Part Number Price MOQ In stock
EXB-A10P104J - - View Buy Now

EXB-A10P104J Parametric

Parameter NameAttribute value
Product CategoryResistor Networks & Arrays
ManufacturerPanasonic
RoHSDetails
ProductNetworks
Termination StyleSMD/SMT
Resistor Values100 kOhms
Tolerance5 %
Circuit TypeBussed
Number of Resistors8
Temperature Coefficient200 PPM / C
Operating Temperature Range- 55 C to + 125 C
Package / Case2512 (6332 metric)
Length6.4 mm
Width3.1 mm
Height1.1 mm
QualificationAEC-Q200
PackagingReel
Power per Element0.063 W
Factory Pack Quantity4000
Unit Weight0.001429 oz

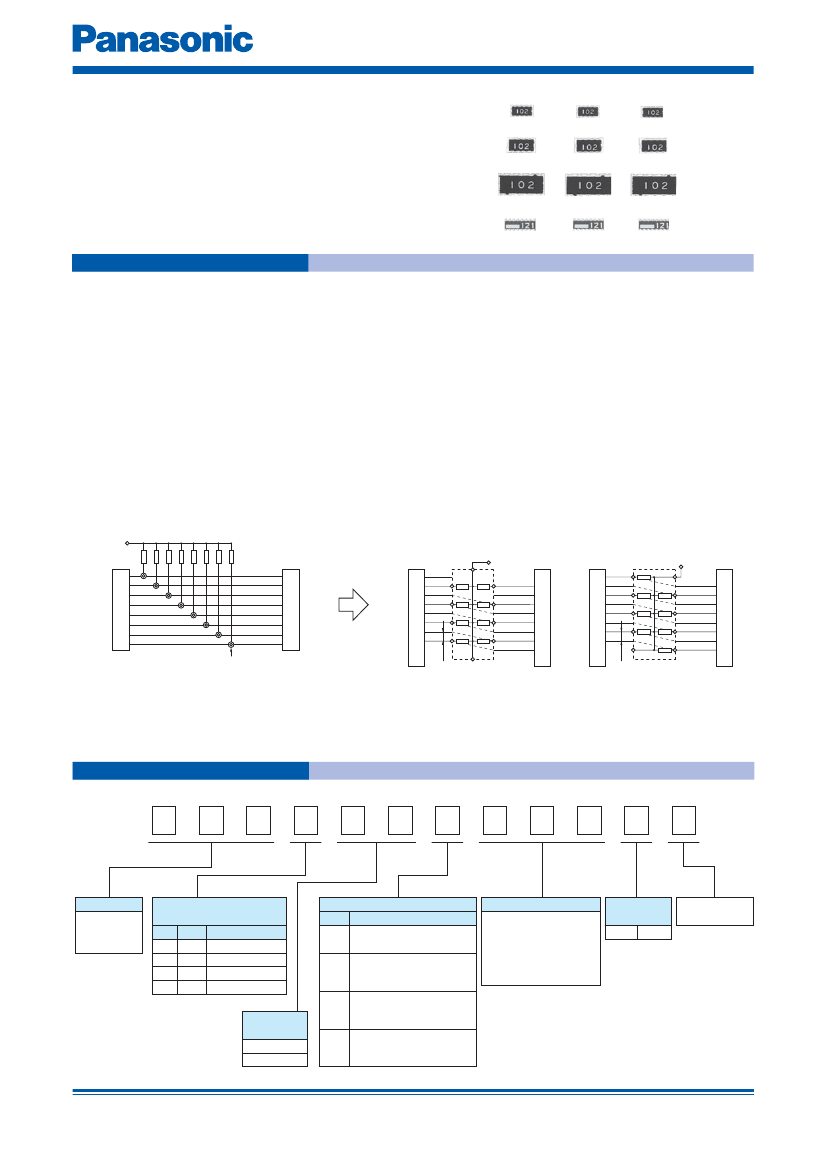

Chip Resistor Networks
Chip Resistor Networks
Type:
EXBD
EXBE
EXBA
EXBQ
Features
High density placing for digital signal circuits
· Bussed 8 or 15 resistors for pull up/down circuits
EXBD: 3.2 mm
×
1.6 mm
×
0.55 mm, 0.635 mm pitch
EXBE: 4.0 mm
×
2.1 mm
×
0.55 mm, 0.8 mm pitch
EXBA: 6.4 mm
×
3.1 mm
×
0.55 mm, 1.27 mm pitch
EXBQ: 3.8 mm
×
1.6 mm
×
0.45 mm, 0.5 mm pitch
· Available direct placing on the bus line by means of half pitch spacing without through-holes on PWB
(“High density placing” is shown below)
High speed mounting using conventional placing machine
Reference Standard…IEC 60115-9, JIS C 5201-9, EIAJ RC-2130
RoHS compliant
[High density placing]
Pull up resistors
V
CC
EXBE10C
V
CC
Direct placement on the bus line
EXBA10P
V
CC
IC
IC
No through hole
IC
IC
IC
IC
Through holes
0.4 mm pitch
0.635 mm pitch
As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,
Please see Data Files
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
X
B
E
1
0
C
1
0
3
J
Product Code
Thick Film
Resistor
Network
Dimension Code of
Chip Resistor Network
Code
D
E
A
Q
Inch
1206
1608
2512
1506
Dimensions
3.2 mm×1.6 mm
4.0 mm×2.1 mm
6.4 mm×3.1 mm
3.8 mm×1.6 mm
Number of
Terminals
10(EXBD,E,A)
16(EXBQ)
Circuit Configuration
Code
C
P
Common Terminal Position
Center common circuit
(EXBD, EXBE)
Diagonal common circuit
(Terminal 5 and Terminal 10)
(EXBA)
One side common circuit
(Terminal 16)
(EXBQ)
Diagonal common circuit
(Terminal 1 and Terminal 6)
(EXBA)
Resistance Value
The first two digits are
significant figures of
resistance value and
the third one denotes
the number of zeros
following.
Resistance
Tolerance
±5 %
J
Suffix for Special
Requirements
P
E
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Sep. 2014
