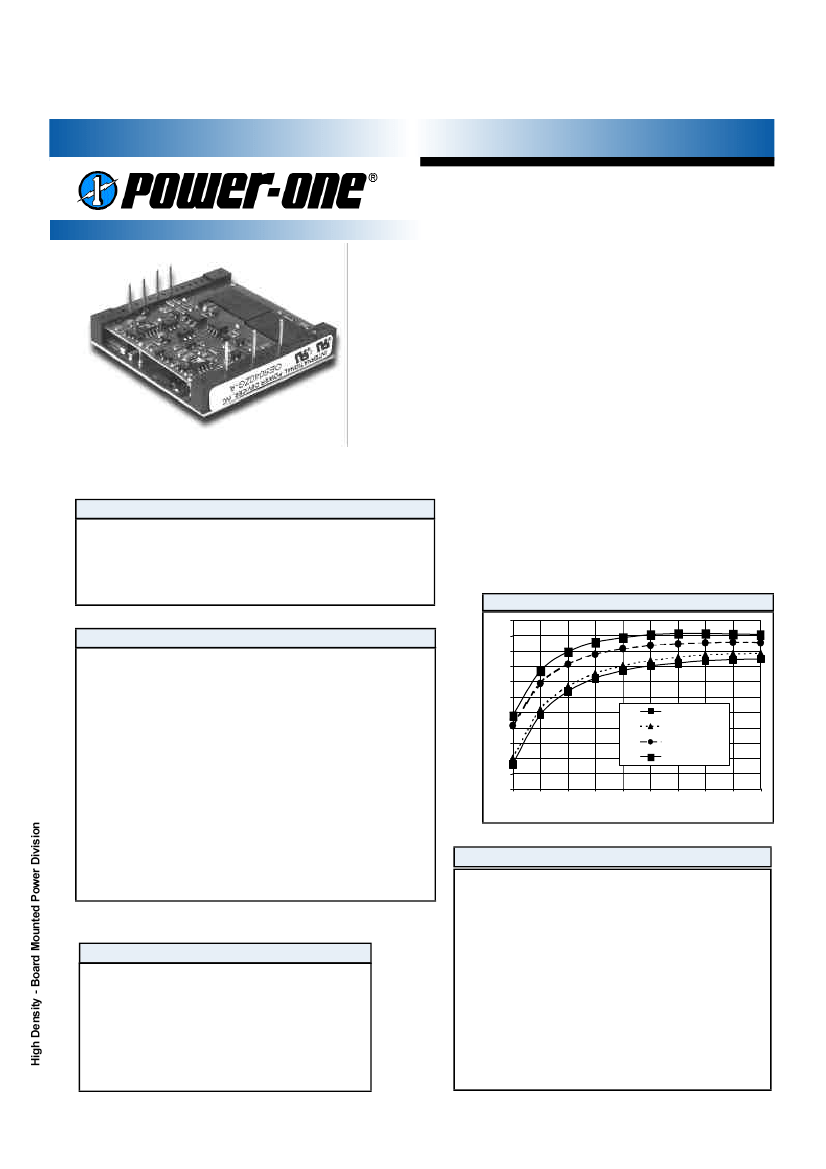

Powering Communications and Technology
DESCRIPTION
OES SERIES
40 WATT
OES DC/DC converters are ultra-dense, 40
Watt, single output converters produced for the
telecom and networking markets. Making use of
open-frame packaging, planar magnetics, high
efficiency topologies, and surface-mount design,
the OES has superior thermal performance.
The OES features 1500 VDC isolation and
overvoltage protection, as well as input
undervoltage lockout.
FEATURES
TECHNICAL SPECIFICATIONS
Input
Voltage Range
48 VDC Nominal
Input Under Voltage Lockout
Input Undervoltage Hysteresis
Reflected Ripple
Input Reverse Voltage Protection
36 - 72 VDC
<34V
1V Nominal
50 mA Pk-Pk
Shunt Diode
• Ultra-Dense 40W
converter
• Industry standard
package
• 100 °C baseplate
operation
• Open-Frame packaging
• 5, 3.3, 2.5, and
2.1V Outputs
• Remote Enable
Pin
• 1500V Isolation
• Input Pi Filter
Efficiency vs. Load (48V Input)
95
90
Output
Setpoint Accuracy
3.3/5.0 V Line Regulation V
in
Min. - V
in
Max., I
out
Rated
2.5/2.1 V Line Regulation V
in
Min. - V
in
Max., I
out
Rated
Load Regulation I
out
Min. - I
out
Max., V
in
Nom.
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of I
out
Rated
OVP Trip Range
Remote Shutdown Reference
±1%
0.2% V
out
0.4% V
out
0.5% V
out
10%, I
out
Rated
25% I
out
6% V
out
500
µs
±10%
Shutdown / Hiccup
110 - 140%
120 - 140% V
out
Nom.
V
in
Negative
85
80
EFFICIENCY %
75
70
65
60
55
50
45
40
1
2
3
4
5
6
7
8
9
10
X10 = LOAD %
OES021ZC-A
OES025ZD-A
OES033ZE-A
OES040ZG-A
General
Turn-On Time
Remote Shutdown
Switching Frequency, 3.3V Output
Switching Frequency, 5.0, 2.5, 2.1V Outputs
Isolation
Input - Output
Input - Case
Output - Case
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Thermal Shutdown Range
Vibration, 3 Axes, 5 Min Each
MTBF† (Bellcore TR-NWT-000332)
Safety
Weight (Approx.)
10 ms
Positive Logic
400 kHz
300 kHz
1500 VDC
1050 VDC
500 VDC
±0.03%/°C
-40 To +100°C
-40 To +125°C
105 To 115°C
5 g, 10 - 55 Hz
2.5 X 106 hrs
UL, cUL, TUV
1.4 oz
Notes
† MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
1
Powering Communications and Technology
MODELS - (See the last page of Section for options.)
Vin
(Volts)
48
48
48
48
Vin Range
(Volts)
36 - 72
36 - 72
36 - 72
36 - 72
Iin Max.*
(Amps)
0.77
0.87
1.12
1.31
Vout
(Volts)
2.1
2.5
3.3
5
Iout Rated
(Amps)
10.00
10.00
10.00
8.00
OES SERIES
40 WATT
Ripple & Noise
Pk-Pk (mV)
50
50
75
75
Efficiency
Typ. **
84%
81%
85%
89%
Model
OES021ZC-A
OES025ZD-A
OES033ZE-A
OES040ZG-A
* Maximum input current at minimum input voltage, maximum rated output power.
** At nominal Vin, rated output.

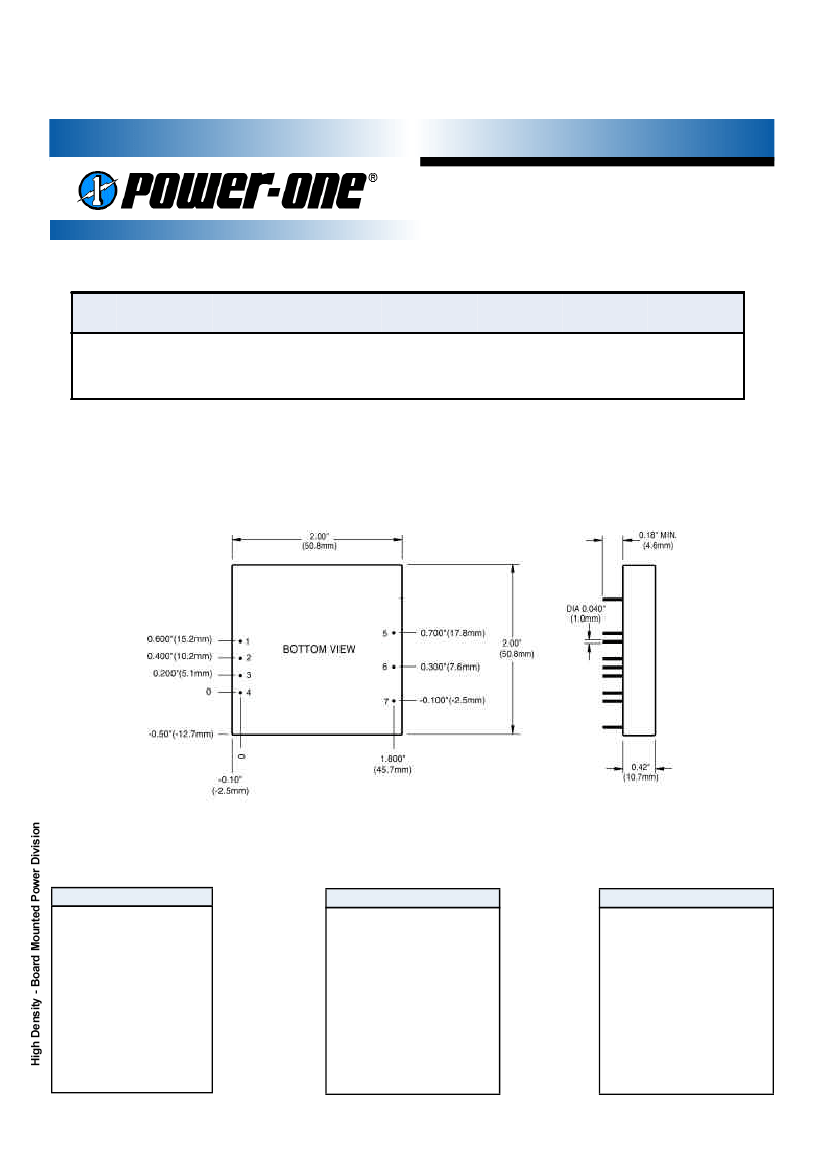

MECHANICAL DRAWING
Thermal Impedance
Natural Convection
100 LFM
200 LFM
300 LFM
400 LFM
11.3 C/W
8.9 C/W
6.2 C/W
4.4 C/W
3.4 C/W
Pin
1
2
3
4
5
6
7
Function
+V
in
-V
in
No Conn.
Enable
+V
out
-V
out
Trim
Tolerances
Inches:
.XX ± 0.020
.XXX ± 0.010
Pin:
± 0.002
(Millimeters)
.X ± 0.5
.XX ± 0.25
± 0.05
Note:
Thermal impedance data is dependent on
many environmental factors. The exact
thermal performance should be validated
for specific application.
(Dimensions as listed unless otherwise specified.)
2
OPTIONS
Powering Communications and Technology
When ordering equipment options, use the following suffix information. Select the option(s) that you
prefer and add them to the model number. Example ordering options are located below the options
table.
OPTIONS
Negative Logic
Lucent Compatible Trim
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
PIN LENGTH AND HEATSINK
OPTIONS
0.110" (2.8mm) Pin Length
0.150" (3.8mm) Pin Length
0.24" (6.1mm) Horizontal Heatsink
0.24" (6.1mm) Vertical Heatsink
0.45" (11.4mm) Horizontal
Heatsink
0.45" (11.4mm) Vertical Heatsink
0.95" (24.1mm) Horizontal
Heatsink
0.95" (24.1mmVertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Units (Except SMS)
All Units (Except SMS)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
SUFFIX
N
T
TS
1
2
3
4
Y
APPLICATIONS SERIES
HAS, HBD, HBS, HES, LES, QBS,
QES, TES, TQD
HAS, HBD, HBS, HES, QBS, QES
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
Standard Pin Length is 0.180"
(4.6mm)
REMARKS
TTL "Low" Turns Module ON
TTL "High" Turns Module OFF
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and 0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS -
Power-One are not authorized for use as critical components in life support systems, equipment used in hazardous envi-
ronments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS -
The appearance of products, including safety agency certifications pictured on labels, may change diepending on the date manufactured.
Specificationsare subject to change without notice.
3
