OCVCXO-120A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > OCVCXO-120A

Preview

OCVCXO-120A: DescriptionOven Controlled Crystal Oscillator; File Size160KB，1 Pages; ManufacturerKSS Kinseki; Websitehttp://www.kinseki.co.jp/eng/

Download Datasheet View All

OCVCXO-120A Overview

Oven Controlled Crystal Oscillator

Preview

Download Datasheet

View All

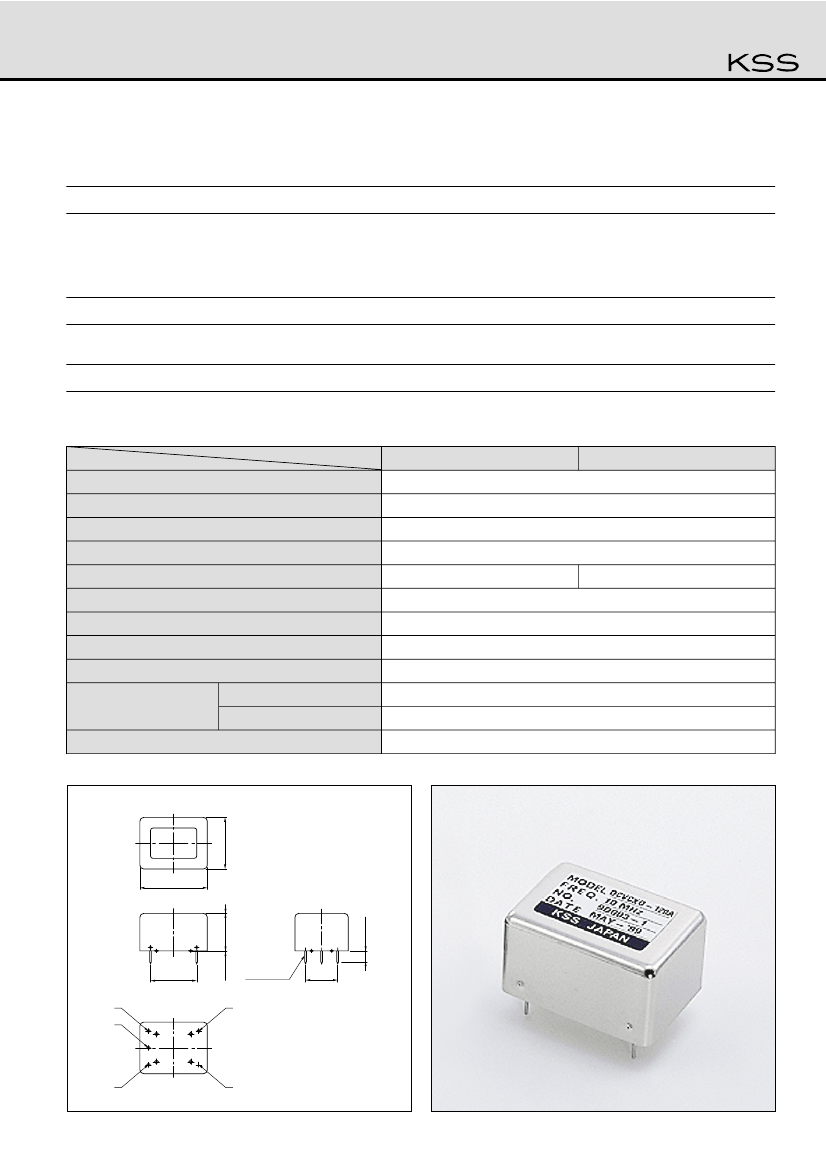

OCVCXO-120A

Oven Controlled Crystal Oscillator

Features

¡Compact

OCVCXO (36.1×27.2×20.2mm).

¡High

stability.

¡Solder

sealing type.

Typical Applications

¡Standard

Oscillator.

Standard Frequencies

¡10MHz.

Plese do not clean using any kind of liquid cleansing method.

Specifications

Item

Frequency

Operating Temperature Range

Storage Temperature Range

Frequency Temperature Characteristics

Frequency Aging

Supply Voltage Change

Frequency deviation

Power Supply Voltage

Power Supply Current

Level

Output

Load

Output Harmonics/Subharmonics

50Ω

-20db MIN.

Type

OCVCXO-120A

10MHz

-10:~+60:

-20~+80:

±3×10

–8

MAX./-10:~+60:

±5×10

–10

MAX./day

±5×10

–8

MAX./year

±2×10

-9

MAX./+12.0V±5%

±5×10

–7

MIN./ 0V~+6V (positive)

+12.0V±5%

450mA MAX.

+3dBm MIN.

±1×10

–9

MAX./day

±1×10

–7

MAX./year

OCVCXO-120A1

Outline

OCVCXO-120A

27.2MAX.

19.5MAX.

N.P.

36.1MAX.

0.7MAX.

25.4±0.25

5-φ0.8±0.1

17.8±0.25

Pin Connection

1:VC

2:Ref. Voltage

3:+DC

4:OUTPUT

5:GND

Dimensions(mm)

6.2±0.5

Recommended Resources

Ramp generator circuit diagram

Walkie-talkie fast charger circuit

Square wave - trapezoidal wave waveform conversion circuit

2255 multi-function emergency light circuit diagram

Hemisphere HE-D500 to 1500HA electronic temperature regulating electric furnace circuit diagram

Active negative intercept circuit

Current control circuit: Current control circuitIf a DAC+op amp controlled current circuit is added to the load output end1.Output load current ≤ 90mA, voltage amplitude 45V, then what is the appropriate sampling resistor? Op...; QWE4562009 Analog electronics

Impedance Measurement Handbook 2nd Edition: Impedance Measurement Handbook 2nd Edition...; wangwei20060608 RF/Wirelessly

I saw this on the internet, what do you think about it?: I saw a company selling GSM positioning products online. What do you think of GSM positioning? http://auction1.paipai.com/BC2E583400000000003C38EF057F5640#nolink...; linyis Embedded System

A good product about virtual sound card: I've been looking for good test products, but most of them are expensive! This one is pretty good...:)...; wuyongming Test/Measurement

Could battery technology make traveling to Mars easier?: I recently watched the movie "The Martian". As an engineer working for a large engineering firm, I was able to relate to Mark Watney’s adventures across the desert surface of Mars (and perhaps other e...; maylove Analogue and Mixed Signal

Questions about f28027ADC sampling program: [b]In the example "F2802x ADC Start-Of-Conversion (SOC) Example Program.", if the length of the uint16_t Voltage1[50] array is greater than 50, an error will be reported when compiling. Why is this? P...; 1500231580 Microcontroller MCU
