9250A-825-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 9250A-825-RC

9250A-825-RC: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT .100UF 16.0V; CategoryPassive components inductor; File Size233KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

9250A-825-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9250A-825-RC	-	-	View	Buy Now

9250A-825-RC Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT .100UF 16.0V

9250A-825-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
structure	Tubular
core material	Ferrite
DC Resistance	119 Ω
Nominal inductance(L)	8200 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.635 mm
Lead length	25.4 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	4.11 mm
Package length	10.41 mm
Package form	Axial
method of packing	Bulk
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.026 A
self resonant frequency	0.54 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	YES
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal location	AXIAL
Terminal shape	WIRE
Tolerance	10%

Preview

Download Datasheet

View All

Features

Formerly model

Shielded

High Q value

Inductance range: 0.1 μH to 8200 μH

RoHS compliant*

Applications

Filters

Output chokes

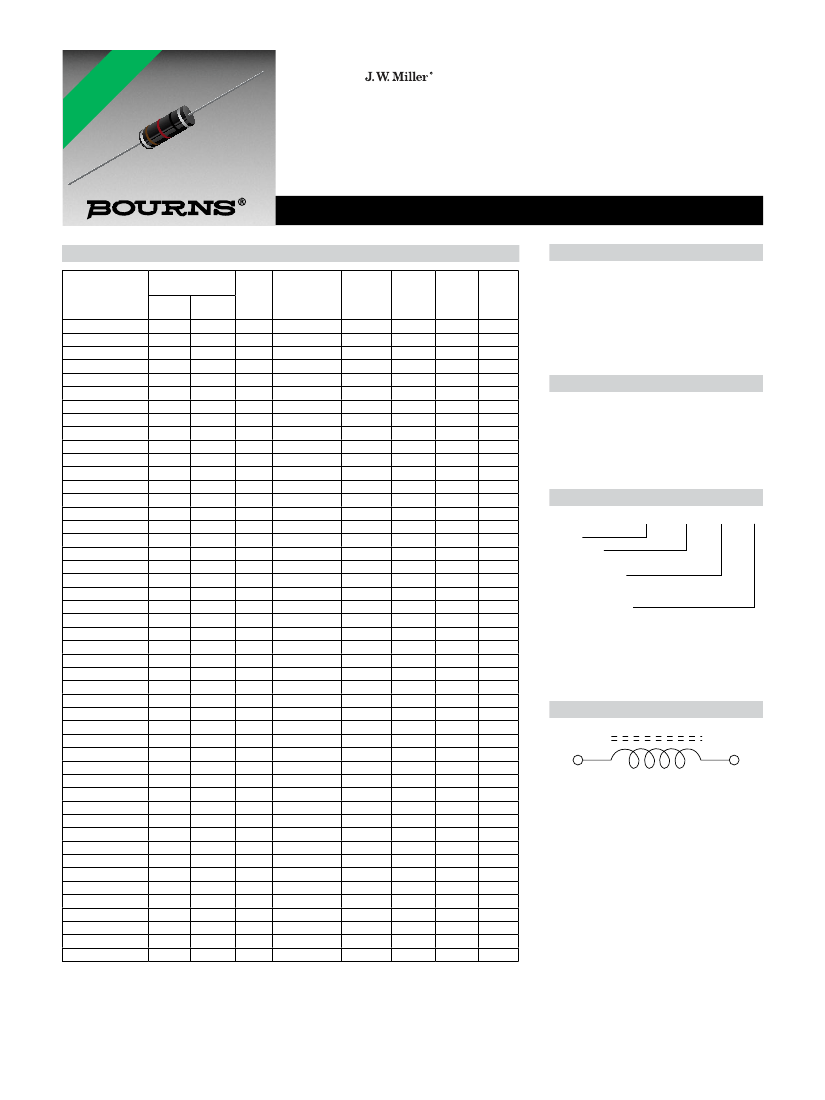

9250A Series Molded Axial Inductor

General Specifications

Temperature Rise ................ 35 °C at Idc

Rated Current

..... Inductance drop 5 % typical at Isat

Operating Temperature

................................ -55 °C to +125 °C

Storage Temperature ..............................

................................ -55 °C to +125 °C

Dielectric Strength ................. 1000 Vrms

Materials

Core .............................................. Ferrite

Wire ............................ Enameled copper

Terminal Coating................................. Sn

Packaging

Standard..................1000 pcs. per bag

Optional ......2500 pcs. per 12-inch reel

How to Order

Electrical Specifications

Inductance

Bourns Part No.

9250A-101-RC

9250A-121-RC

9250A-151-RC

9250A-181-RC

9250A-221-RC

9250A-271-RC

9250A-331-RC

9250A-391-RC

9250A-471-RC

9250A-561-RC

9250A-681-RC

9250A-821-RC

9250A-102-RC

9250A-122-RC

9250A-152-RC

9250A-182-RC

9250A-222-RC

9250A-272-RC

9250A-332-RC

9250A-392-RC

9250A-472-RC

9250A-562-RC

9250A-682-RC

9250A-822-RC

9250A-103-RC

9250A-123-RC

9250A-153-RC

9250A-183-RC

9250A-223-RC

9250A-273-RC

9250A-333-RC

9250A-393-RC

9250A-473-RC

9250A-563-RC

9250A-683-RC

9250A-823-RC

9250A-104-RC

9250A-124-RC

9250A-154-RC

9250A-184-RC

9250A-224-RC

9250A-274-RC

9250A-334-RC

9250A-394-RC

9250A-474-RC

9250A-564-RC

9250A-684-RC

9250A-824-RC

(μH)

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

Tol. (%)

±10

Min.

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

Test

Frequency

(MHz)

7.9

2.5

0.79

SRF

(MHz)

Min.

250

235

210

190

180

140

130

115

105

100

10.5

9.7

8.5

8.0

7.5

7.0

6.5

6.2

5.7

4.7

4.5

4.2

DCR

(Ω)

Max.

0.025

0.034

0.037

0.047

0.067

0.11

0.13

0.18

0.25

0.33

0.45

0.59

0.07

0.10

0.12

0.14

0.19

0.28

0.35

0.40

0.55

0.72

1.02

1.32

1.62

2.00

0.80

0.89

0.96

1.19

1.37

1.93

2.11

2.23

2.70

2.44

3.12

3.6

4.1

4.4

5.0

5.8

6.4

7.4

9.5

10.5

11.8

13.0

Idc

(mA)

1790

1530

1470

1300

1100

855

780

670

565

490

420

370

1070

895

815

775

650

535

480

450

380

335

280

250

220

200

315

300

290

260

240

205

195

190

170

180

160

150

140

135

125

115

110

105

Isat

(mA)

1790

1530

1470

1300

1100

855

780

670

565

490

420

370

1070

895

815

775

650

535

480

450

380

335

280

250

220

200

250

235

220

200

190

180

175

160

150

140

120

9250A - 102 - __ - RC

Model

Value Code

(See table)

Packaging Code

Blank = 1000 pcs./bag

TR = 2500 pcs./12-inch reel

Compliance Code

RC = RoHS compliant*

Examples:

• 9250A-151-RC = 0.15 μH packaged

1000 pcs./bag.

• 9250A-681-TR-RC = 0.68 μH packaged

2500 pcs./12-inch reel.

Electrical Schematic

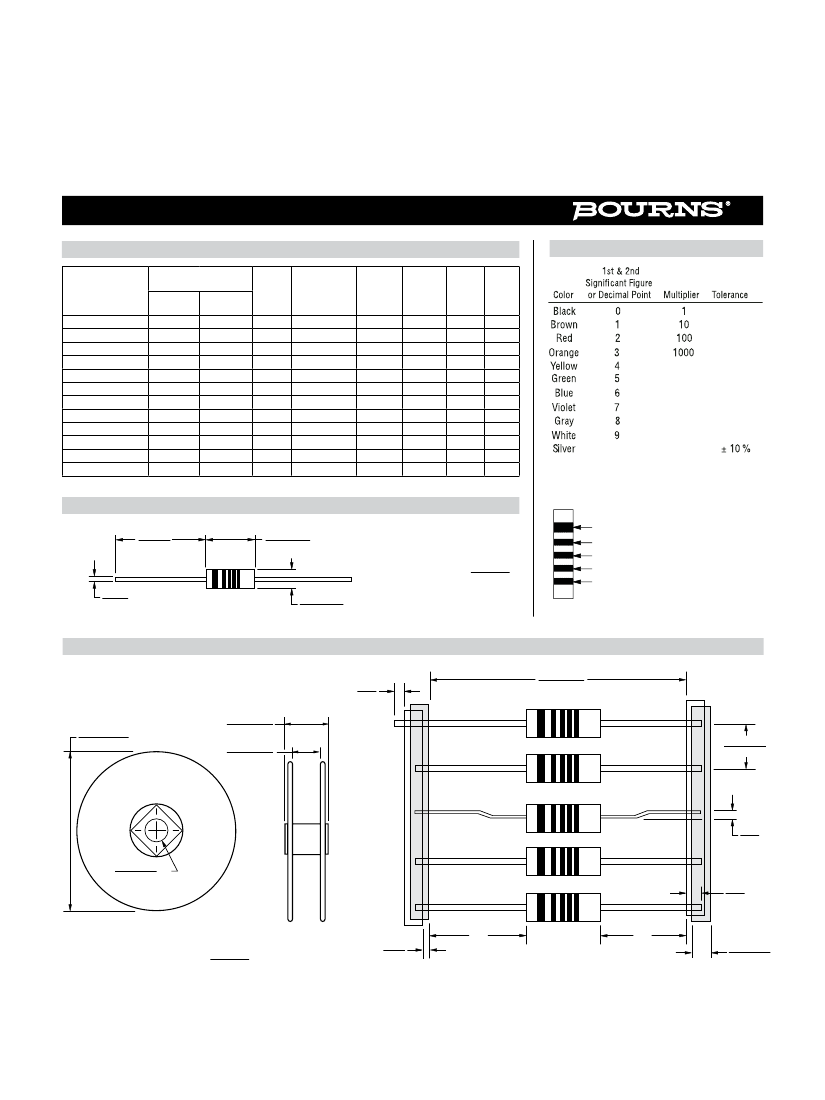

Electrical specifications continued on page 2.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.
