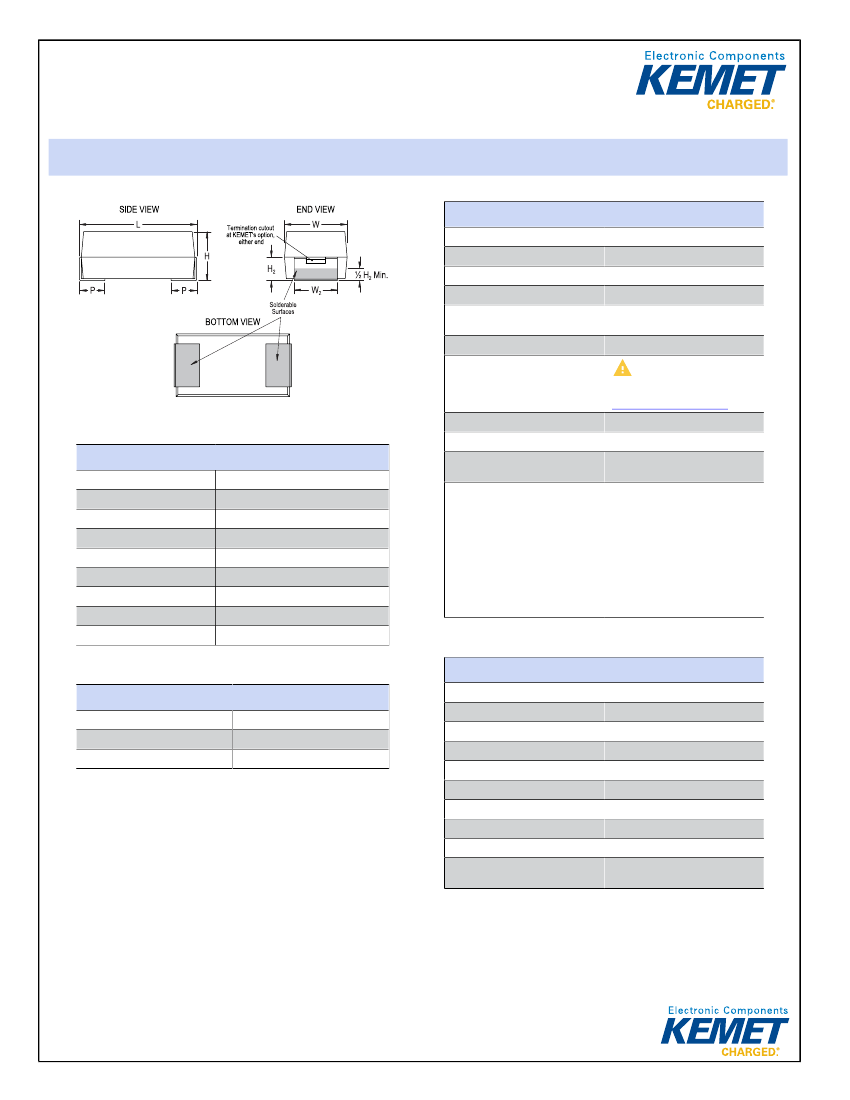

KEMET Part Number: CWR29FC157KCXC
(T429X157K010CC4252)
T429_CWR29, Tantalum, MnO2 Tantalum, Military/High Reliability, 150 uF, 10%, 10 VDC, SMD, MnO2, Molded, Military Equivalent,
Low ESR, C (0.01%/1000 Hrs), 65 mOhms, 6954, Height Max = 3.12mm
General Information
Supplier:
Series:
Dielectric:
Style:
Description:
RoHS:
Prop 65:
REACH:
KEMET
T429_CWR29
MnO2 Tantalum
SMD Chip
SMD, MnO2, Molded, Military
Equivalent, Low ESR
No
WARNING:
Cancer
and reproductive harm -
www.p65warnings.ca.gov.
SVHC (Pb – CAS 7439-92-1)
Hot Solder Dipped
MIL-PRF-55365/11, CWR29
Style
Note: When Option C Is Selected
For Lead Material, Add An
Additional 0.38mm To The
Tolerances For "L", "W", "H",
"K" ,"F" And "S". P And R
Dimensions Represents The
Minimum Solderable Area Of
The Termination Surface Entirely
Below Cutout (If One Is Present)
Dimensions
Footprint
L
W
H
S
F
A
K
P
6954
6.93mm +/-0.38mm
5.41mm +/-0.38mm
2.74mm +/-0.38mm
1.19mm +0.025/-0.13mm
3.05mm +/-0.13mm
4.55mm NOM
1.22mm MIN
0.61mm MIN
Termination:
Qualifications:
Notes:
Specifications
Packaging Specifications
Weight:
Packaging:
Packaging Quantity:
590.44 mg
T&R, 178mm
500
Capacitance:
Capacitance Tolerance:
Voltage DC:
Temperature Range:
Rated Temperature:
Dissipation Factor:
Failure Rate:
Resistance:
Leakage Current:
Testing and Reliability:
150 uF
10%
10 VDC (85C), 6.7 VDC (125C)
-55/+125C
85C
10.00%
C (0.01%/1000 Hrs)
0.065 Ohms (100kHz)
15 uA (20C)
Surge Testing At -55C And +85C
Before Weibull
Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and
we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the
requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us
with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.
Generated 10/09/2018 - 88aa783a-4520-435c-8e50-d4d77d29b6d5
© 2006 - 2018 KEMET
