7X-40000MBE-T: DescriptionStandard Clock Oscillators 40.000MHz 3.3V 50ppm -40C +85C; CategoryPassive components; File Size269KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/

Download Datasheet Parametric View All

7X-40000MBE-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7X-40000MBE-T	-	-	View	Buy Now

7X-40000MBE-T Overview

Standard Clock Oscillators 40.000MHz 3.3V 50ppm -40C +85C

7X-40000MBE-T Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	TXC Corporation
RoHS	Details
Product	Standard Clock Oscillators
Frequency	40 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	3.3 V
Output Format	CMOS
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	3.2 mm
Width	2.5 mm
Height	1 mm
Packaging	Reel
Factory Pack Quantity	3000
Type	SMD CMOS CXO

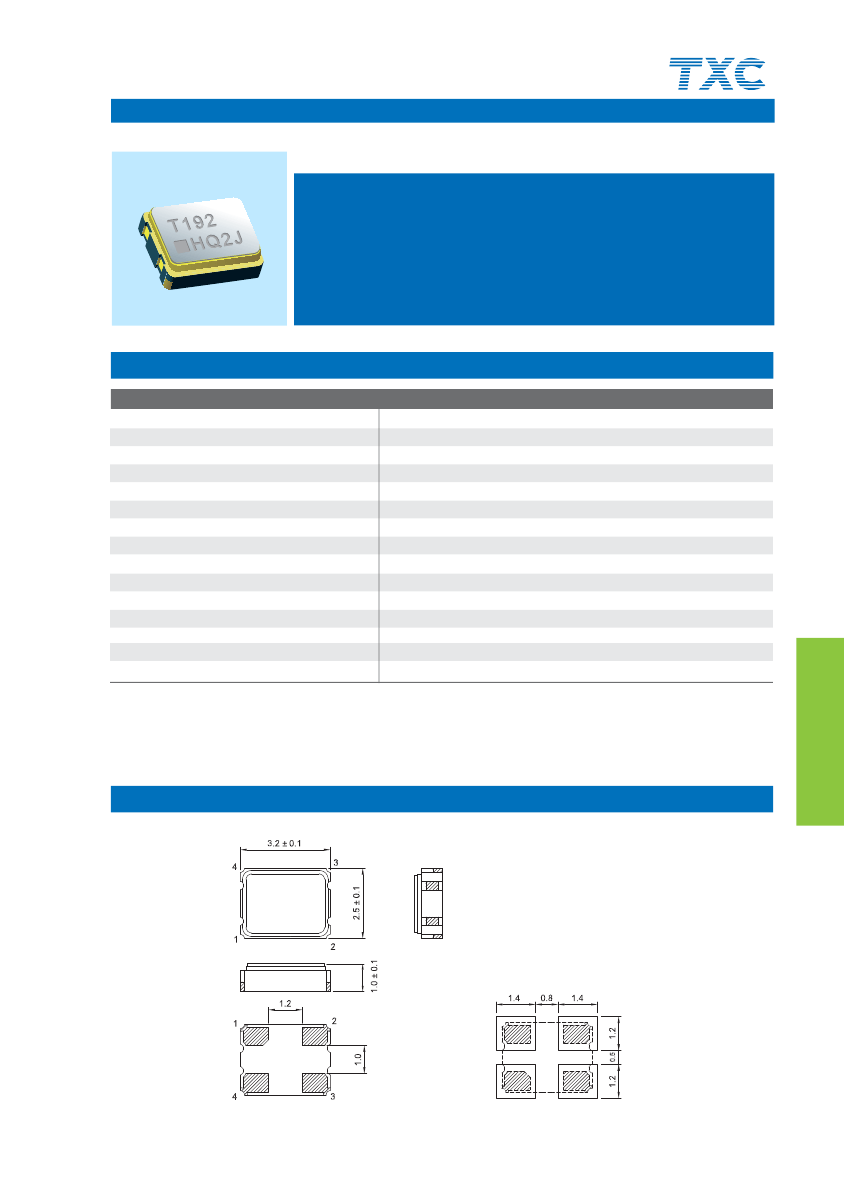

Preview

Download Datasheet

View All

Oscillators

3.2 x 2.5 mm SMD CMOS CXO

7X SERIES

Features

Ultra Small SMD seam sealed clock crystal oscillator units.

For applications in WLAN, Bluetooth, DSC, DSL and other IT product.

Tri-state function available.

RoHS Compliant / Pb Free

Electrical Specifications

Item / Type

Output Type

Output Load

Oscillation Mode

Supply Voltage

Frequency Range

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Voltage Vol (Max.) / Voh (Min.)

Rise (Tr) / Fall (Tf) Time

Supply Current

Symmetry

Start-up Time

Phase Jitter (12 KHz ~ 20 MHz)

Aging (at 25 ºC)

CMOS

15 pF

Fundamental / 3rd Overtone

3.3V (1.8V, 2.5V available)

1 ~ 106.25 MHz

± 50 ppm (-10 ~ + 70 ºC), or specify

- 40 ~ + 85 ºC

- 55 ~ + 125 ºC

0.1 VDD / 0.9 VDD

10 ns Max.

20 mA Max.

45 ~ 55 %

10 ms Max.

1 ps Max.

± 3 ppm / year Max.

Oscillators

Dimensions

PAD FUNCTION:

1:ENABLE CONTROL

2:GND

3:OUT

4:VDD

Suggested Layout

Units:mm

Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
