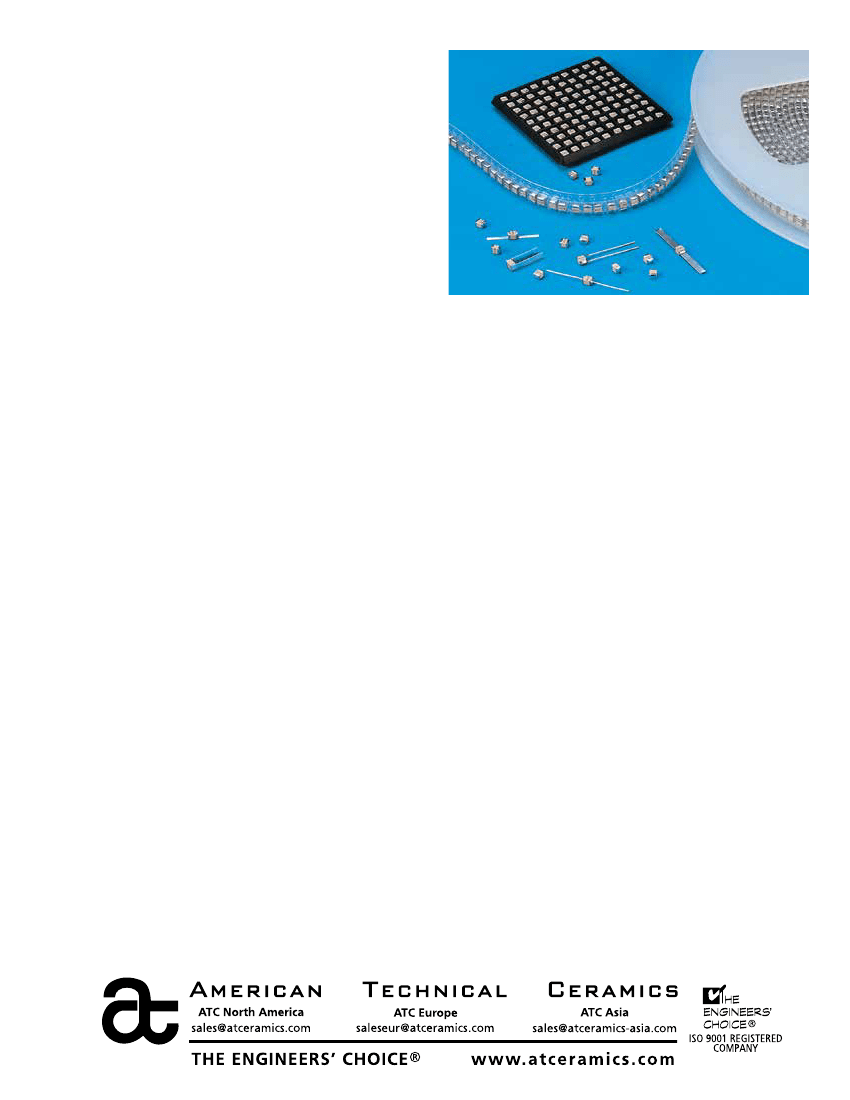

ATC 100 B Series
Porcelain Superchip
®
Multilayer Capacitors
• Case B Size
(.110” x .110”)
• High Q
• Low ESR/ESL
• Low Noise
• Capacitance Range
0.1 pF to 1000 pF
• Ultra-Stable Performance
• High Self-Resonance
• Established Reliability (QPL)
• Extended WVDC up to 1500 VDC
ATC, the industry leader, offers new improved ESR/ESL perfor-
mance for the 100 B Series RF/Microwave Capacitors. This Series
is now available with extended operating temperatures up to 175°C.
High Density porcelain construction provides a rugged, hermetic
package.
Typical functional applications: Bypass, Coupling, Tuning, Feedback,
Impedance Matching and DC Blocking.
Typical circuit applications: UHF/Microwave RF Power Amplifiers,
Mixers, Oscillators, Low Noise Amplifiers, Filter Networks, Timing
Circuits and Delay Lines.
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
greater than 10,000 at 1 MHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
+90 ±20 PPM/°C (-55°C to +125°C)
+90 ±30 PPM/°C (+125°C to +175°C)
INSULATION RESISTANCE (IR):
0.1 pF to 470 pF:
10
6
Megohms min. @ +25°C at rated WVDC.
10
5
Megohms min. @ +125°C at rated WVDC.
510 pF to 1000 pF:
10
5
Megohms min. @ +25°C at rated WVDC.
10
4
Megohms min. @ +125°C at rated WVDC.
IR above +125°C is derated by one order of magnitude.
ENVIRONMENTAL TESTS
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
250% of WVDC for capacitors rated at 500 volts DC or less for 5 seconds.
150% of WVDC for capacitors rated at 1250 volts DC or less for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds.
ATC 100 B Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681
and MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC ap-
plied while subjected to an environment of 85°C with 85% relative
humidity for
240 hours min.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
(No capacitance variation with voltage or pressure).
PIEZOELECTRIC EFFECTS:
None
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater.
OPERATING TEMPERATURE RANGE:
0.1 to 330 pF: from -55°C to +175°C
360 to 1000 pF: from -55°C to +125°C
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage Applied:
200% of WVDC for capacitors rated at 500 volts DC or less.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC.
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
TERMINAL STRENGTH:
Terminations for chips and pellets with-
stand a pull of 5 lbs. min., 15 lbs. typical, for 5 seconds in direction
perpendicular to the termination surface of the capacitor. Test per MIL-
STD-202, method 211.
ATC # 001-807 Rev. S; 8/18
ATC 100 B Capacitance Values
CAP. CAP.
RATED WVDC CAP. CAP.
RATED WVDC CAP. CAP.
RATED WVDC CAP. CAP.
RATED WVDC
TOL.
TOL.
TOL.
TOL.
CODE (pF)
STD.
EXT. CODE (pF)
STD.
EXT. CODE (pF)
STD.
EXT. CODE (pF)
STD.
EXT.
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
VOLT
B
EXTENDED VOLTAGE
B, C
500
1500
EXTENDED VOLTAGE
1500
EXTENDED VOLTAGE
EXTENDED
B, C,
D
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
2.4
2.7
3.0
3.3
3.6
3.9 B, C,
D
4.3
4.7
5.1
5.6
6.2
500
6.8
7.5 B, C, J,
8.2 K, M
9.1
10
11
12
13 F, G, J,
K, M
15
16
18
121
131
1000
VRMS = 0.707 X WVDC
• SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
NOTE: EXTENDED WVDC DOES NOT APPLY TO CDR PRODUCTS.
ATC PART NUMBER CODE
ATC100 B 91 0 J W 500 X
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
T
Packaging
T - Tape and Reel, 1000 pc. qty.*
TV - Vertical Orientation of Product,
Tape and Reel, 1000 pc. qty.*
I - Special Packaging. Consult Factory.
*
Consult ATC for other quantities
ATC Cap-Pac
®
packaging (100 pc. qty. std.) is also
available.
For this option, leave last field blank.
CAPACITANCE TOLERANCE
Code
B
C
D
F
G
J
K
M
Laser Marking
WVDC
Termination Code
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10% ±20%
The above part number refers to a 100 B Series (case size B) 91 pF capacitor,
J tolerance (±5%), 500 WVDC, with W termination (Tin /Lead, Solder Plated over Nickel Barrier), laser marking and Tape and Reel packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
2
w w w.a t c e r am ic s .c o m
EXT
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
20
22
24
27
30
33
36
39
43
500
47
51
F, G, J,
56
K, M
62
68
75
82
91
100
110
300
120
130
EXTENDED VOLTAGE
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
VOLTAGE
150
160
180
200
220
240
270
300
330
360
390
F, G, J,
430
K, M
470
510
560
620
680
750
820
910
1000
300
1000
EXT
100
VOLT
50
300
EXT
1500
200
600
VOLT

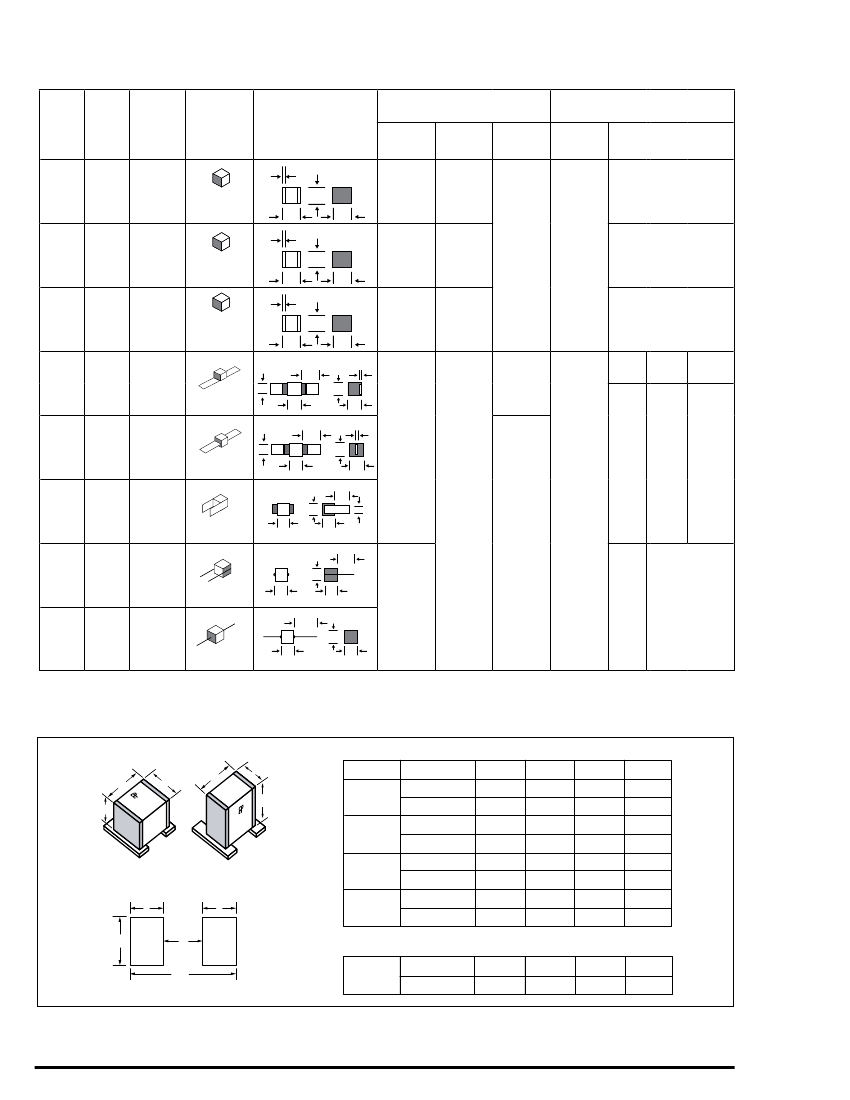

ATC 100 B Capacitors: Mechanical Configurations
