Tantalum Surface Mount Capacitors – High Temperature
T502 MnO
2
230°C
Overview
The KEMET T502 is a high temperature product that offers
optimum performance characteristics in applications
with operating temperatures up to 230°C. The T502 is
classified as moisture sensitivity level (MSL) 1 under J
STD 020: unlimited floor life time at ≤ 30°C/85% RH.
*Due to the potential use of high melting point solders, KEMET has taken
the initiative to package this series in moisture barrier bags with desiccant
and a humidity indicator card.
Benefits
• F-Tech and 100% SBDS (KEMET's patented Simulated
Breakdown Voltage Screening)
• 3 Sigma Screening for iL, DF and ESR
• Qualified at 1,000 hours of life test at 230°C at 0.33 Vr
• Voltage derating of 67% at 230°C
• Unique high temperature material set
• Meets or exceeds EIA standard 535BAAC
• Standard gold-plated terminations
• RoHS compliant
• Operating temperature range of −55ºC to +230ºC
• Voltage derating applies
• Taped and reeled per EIA 481
• Meets MSL 1 requirements for Pb-free assembly according
to JEDEC J–STD–020
• Packaged in moisture barrier bags with desiccant and a
humidity indicator card
• Surge current options available

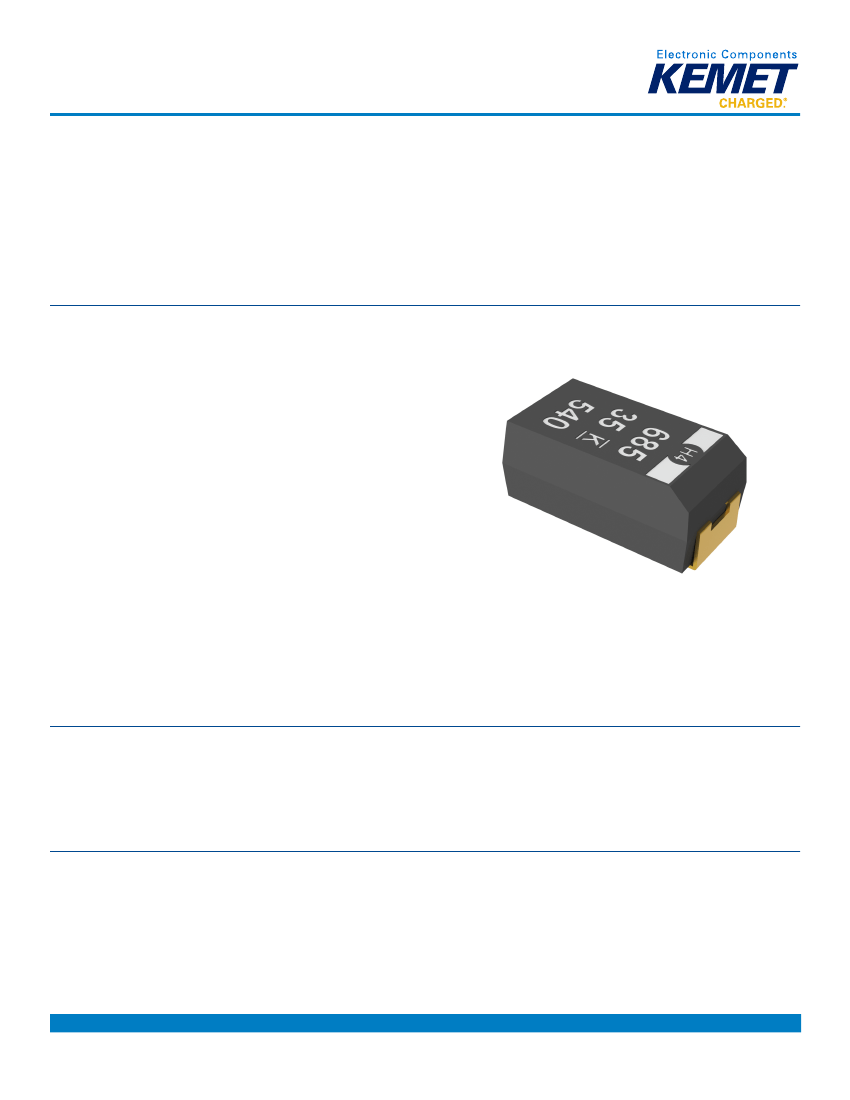

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering for very high temperature environments such as measurement-while-
drilling (MWD) in down-hole applications.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2075_T502 • 9/21/2018
1
Tantalum Surface Mount Capacitors – High Temperature
T502 MnO
2
230°C
Ordering Information
T
Capacitor
Class
T=
Tantalum
502
Series
High
temperature
230°C
D
685
M
035
Rated
Voltage
(VDC)
016 = 16
025 = 25
035 = 35
A
Failure Rate/
Design
A = N/A
G
Termination
Finish
G = Gold-plated
61
Performance
61 = Surge none
62 = Surge at 25°C
63 = Surge −55°C and
+85°C
10
ESR
10 =
Standard
ESR
Case Capacitance Code Capacitance
Size
(pF)
Tolerance
B
C
D
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
K = ±10%
M = ±20%
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 230°C
4.7 – 10 µF at 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
16 – 35 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2075_T502 • 9/21/2018
2
Tantalum Surface Mount Capacitors – High Temperature
T502 MnO
2
230°C
Qualification
Test
Endurance
Condition
Δ C/C
230°C at 1/3 rated voltage, 1,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
Humidity
85°C, 85% RH, 0 V, 500 hours
DF
DCL
ESR
+25°C
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +150°C, +25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within 1.5 x initial limits
1 mAmp maximum
Within 2.0 x initial limits
Within ±10% of initial value
Within 1.5 x initial limits
1 mAmp maximum
Within 2.0 x initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Within initial limits
−55°C
±10%
IL
N/A
+85°C
±10%
1.5 x IL
10 x IL
+150°C
±20%
1.5 x IL
12 x IL
Storage Life
230°C at 0 volts, 1,000 hours
Temperature Stability
Mechanical Shock/
Vibration
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, 10 Hz to 2,000 Hz, 5G's for
20 minutes, 12 cycles each of 3 orientations
Within ±10 of initial value
Within initial limits
Within initial limits
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2075_T502 • 9/21/2018
3
Tantalum Surface Mount Capacitors – High Temperature
T502 MnO
2
230°C
Electrical Characteristics
Impedance & ESR vs. Frequency
1,000
502D685K035_IMP
502D685K035_ESR
502B106K016_IMP
502B106K016_ESR
100
Impedance, ESR (Ohms)
10
1
0.1
100
1,000
10,000
100,000
1,000,000
10,000,000
Frequency (Hz)
The measurements were taken at room temperature (25°C)
Capacitance vs. Frequency
100
502D685K035_CAP(µF)
502B106K016_CAP(µF)
10
Capacitance (µF)
1
0.1
100
1,000
10,000
100,000
1,000,000
10,000,000
Frequency (Hz)
The measurements were taken at room temperature (25°C)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2075_T502 • 9/21/2018
4
Tantalum Surface Mount Capacitors – High Temperature
T502 MnO
2
230°C
Dimensions – Millimeters
CATHODE (-) END VIEW
W
H
X
T
S
G
S
Termination cutout
at KEMET's option,
either end
SIDE VIEW
B
B
ANODE (+) END VIEW
BOTTOM VIEW
A
E
P
R
L
F
Case Size
KEMET
B
C
D
EIA
L
W
H
F
Component
S
B (Ref)
X (Ref)
0.10±0.10
(0.004±0.004)
Typical
Weight
P
(Ref)
0.5
(0.020)
0.9
(0.035)
0.9
(0.035)
R
A (Min)
(Ref)
1.0
(0.039)
1.0
(0.039)
1.0
(0.039)
1.9
(0.075)
2.9
(0.114)
3.8
(0.150)
(mg)
63
-
292
3.5 ±0.2
2.8 ±0.2
1.9
2.2 ±0.1
0.80+0.1/−0.3
0.4±0.15
3528-21 (0.138 ±0.008) (0.110 ±0.008) (0.075 ±0.2
±0.008) (0.087 ±0.004)
(0.032+0.004/−0.011)
(0.016±0.006)
6.0
3.2 ±0.3
2.5 ±0.3
2.2 ±0.1
6032-28 (0.236 ±0.3
±0.012) (0.126 ±0.012) (0.098 ±0.012) (0.087 ±0.004)
7.3
4.3 ±0.3
2.8 ±0.3
2.4±0.1
7343-31 (0.287 ±0.3
±0.012) (0.169 ±0.012) (0.110 ±0.012) (0.094±0.004)
1.3 ±0.3
(0.051 ±0.012)
1.3±0.3
(0.051 ±0.012)
0.5 ±0.15
0.10 ±0.10
(0.020±0.006) (0.004 ±0.004)
0.5±0.15
(0.020±0.006)
0.10±0.10
(0.004±0.004)
Notes: (Ref) – Dimensions provided for reference only.
These weights are provided as reference. If exact weights are needed, please contact your KEMET Sales Representative
Table 1 – Ratings & Part Number Reference
Rated
Voltage
VDC at 85°C
16
25
25
35
35
Rated
Cap
µF
10
10
10
4.7
6.8
Case Code/
Case Size
KEMET/EIA
B/3528-21
C/6032-28
D/7343-31
C/6032-28
D/7343-31
KEMET Part Number
(See below for part options)
T502B106(1)016AG(2)10
T502C106(1)025AG(2)10
T502D106(1)025AG(2)10
T502C475(1)035AG(2)10
T502D685(1)035AG(2)10
DC
Leakage
µA at 25°C Max/
5 Minutes
1.6
2.5
2.5
1.7
2.4
DF
% at 25°C
120 Hz Max
6
6
6
6
6
ESR
Ω at 25°C
100 kHz Max
2.8
1.5
1.8
2.0
1.8
Maximum
Allowable
Ripple Current
mA at +45°C 100 kHz
174
271
289
235
289
Maximum
Operating
Temp
°C
230
230
230
230
230
(1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance.
(2) To complete KEMET part number, insert 61 = None, 62 = 10 cycles +25°C, 63 = 10 cycles −55°C +85°C Designates surge current option.
Refer to Ordering Information for additional detail.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2075_T502 • 9/21/2018
5
