MVE25VC221MH10TP

Description
Aluminum Electrolytic Capacitors - SMD 220UF 25V
CategoryPassive components
File Size57KB,3 Pages
ManufacturerUnited Chemi-Con
Websitehttp://www.chemi-con.com/
Download Datasheet Parametric View All

MVE25VC221MH10TP Online Shopping

Suppliers Part Number Price MOQ In stock
MVE25VC221MH10TP - - View Buy Now

MVE25VC221MH10TP Overview

Aluminum Electrolytic Capacitors - SMD 220UF 25V

MVE25VC221MH10TP Parametric

Parameter NameAttribute value
Product CategoryAluminum Electrolytic Capacitors - SMD
ManufacturerUnited Chemi-Con
RoHSNo
Capacitance220 uF
Voltage Rating DC25 VDC
Tolerance20 %
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 105 C
Diameter8 mm
Length10 mm
ProductAluminum Electrolytic Capacitors
Termination StyleSMD/SMT

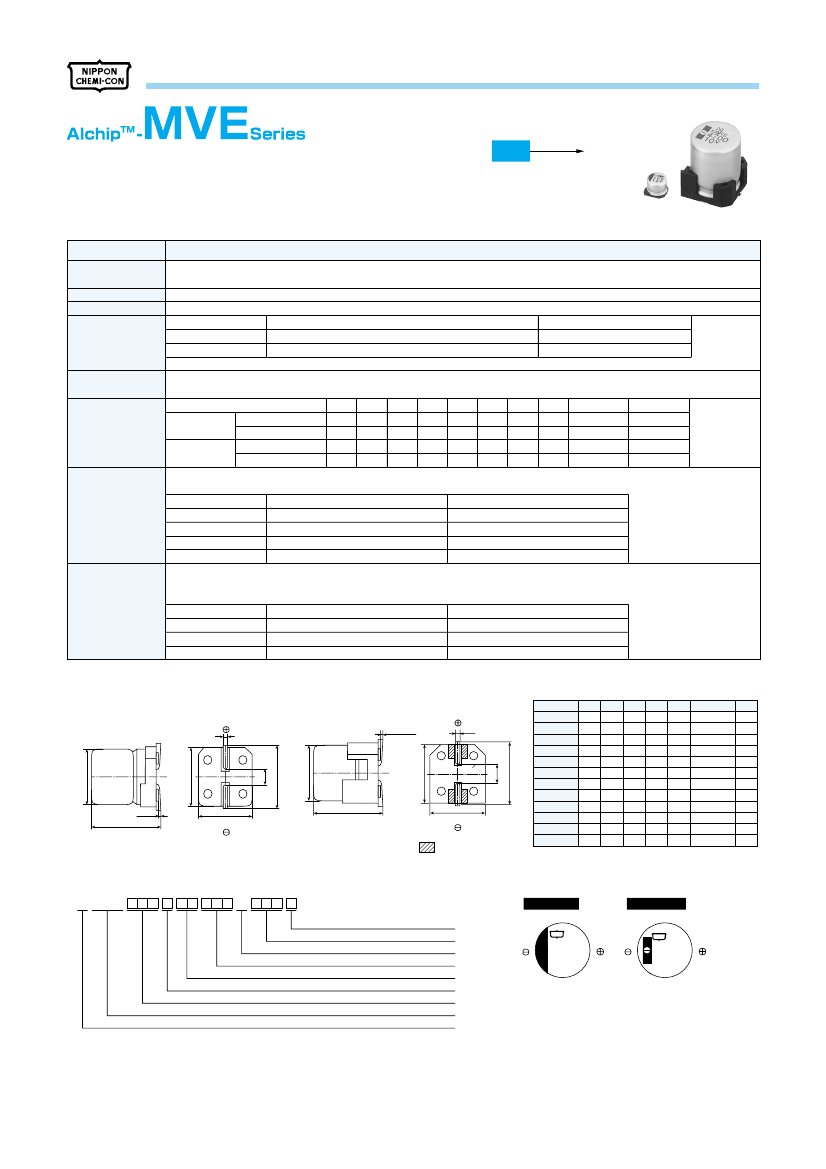

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
Downsized, 105C
@Rated
voltage range : 6.3 to 450V, capacitance range : 1.0 to 6,800MF
MVE
@Endurance
: 1,000 to 2,000 hours at 105C
@Case
size range :
F4B5.2L
to
F18B21.5L
@Solvent
resistant type except 100 to 450V
dc
(see PRECAUTIONS AND GUIDELINES)
@RoHS
Compliant
Longer life
MVL
MVJ
?SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
-40 to +105C
6.3 to 450V
dc
P20%(M)
Rated voltage(V
dc
)
6.3 to 100V
160 to 450V
D55 to JA0
I=0.01CV or 3MA, whichever is greater (2 minutes)
-
KE0 to MN0
I=0.03CV or 4MA, whichever is greater (1 minute)
I=0.04CV+100MA (1minute)
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
See STANDARD RATINGS
Characteristics
(20C, 120Hz)
(20C)
(20C, 120Hz)
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 to 450V
Z(-25C)/Z(+20C)
2
2
2
2
2
3
4
3
-
-
D55 to JA0
Z(-40C)/Z(+20C)
3
3
3
4
6
8
12
4
-
-
Z(-25C)/Z(+20C)
2
2
2
2
3
4
5
2
3
6
KE0 to MN0
Z(-40C)/Z(+20C)
(120Hz)
3
3
3
4
6
8
10
3
6
10
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the specified
period of time at 105C.
Size code
D55 to F80
HA0 to MN0
2,000 hours
Time
1,000 hours
[P20%
of the initial value
Capacitance change
[P30%
of the initial value
[200%
of the initial specified value
D.F. (tanE)
[300%
of the initial specified value
[The
initial specified value
Leakage current
[The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours (500 hours
for B55 to F80 size) at 105C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage
according to Item 4.1 of JIS C 5101-4.
HA0 to MN0
Size code
D55 to F80
Capacitance change
[P25%
of the initial value
[P20%
of the initial value
D.F. (tanE)
[200%
of the initial specified value
[200%
of the initial specified value
Leakage current
[The
initial specified value
[The
initial specified value
?DIMENSIONS
[mm]
@Terminal
Code : A
@Size
code : D55 to MN0
W
FDP0.5
FDP0.5
P
CP0.2
BP0.2
BP0.2
P
CP0.2
@Terminal
Code : G
@Size
code : LH0 to MN0
0.3max.
W
0.3max.
LP0.3 (Note)
Note : LP0.5 for HA0 to MN0
AP0.2
LP0.5
AP0.2
: Dummy terminals
C
B
A
L
Size code D
5.2 4.3 4.3 5.1
4
D55
5.2 5.3 5.3 5.9
5
E55
6.3 5.2 6.6 6.6 7.2
F55
6.3 7.7 6.6 6.6 7.2
F80
8 10.0 8.3 8.3 9.0
HA0
10 10.0 10.3 10.3 11.0
JA0
12.5 13.5 13.0 13.0 13.7
KE0
12.5 16.0 13.0 13.0 13.7
KG5
16 16.5 17.0 17.0 18.0
LH0
16 21.5 17.0 17.0 18.0
LN0
18 16.5 19.0 19.0 20.0
MH0
18 21.5 19.0 19.0 20.0
MN0
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
P
1.0
1.4
1.9
1.9
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
?PART
NUMBERING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
?MARKING
D55 to JA0
Ex)16V22MF
7hE
E MV E
AAA A AA AAA
M
AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 4.7MF:4R7,100MF:101)
Taping·Tray code
Terminal code (A, G)
Voltage code (ex. 6.3V:6R3,100V:101,450V:451)
Series code
Category
KE0 to MN0
Ex)25V1,000MF
0V
MVE
22
16V
1000
25V
Please refer to "Product code guide (surface mount type)"
(1/2)
CAT. No. E1001K
