PERFORMANCE SPECIFICATION
Lower Frequency:
Upper Frequency:
Tuning Voltage:
Supply Voltage:
Output Power:
Supply Current:
Harmonic Suppression (2 Harmonic)
Pushing:
Pulling, all Phases:
Tuning Sensitivity:
Phase Noise @ 10kHz offset:
Phase Noise @ 100kHz offset:
Load Impedance:
Input Capacitance:
Operating Temperature Range:
Storage Temperature Range:
-40
-45
nd
Red
Box
MIN
421
1.5
4.75
-4.0
5.0
0
16
-15
0.5
0.5
18
-110
-132
50
120
+85
+90
pF
°C
°C
-105
-127
3.5
5.25
+4.0
25
-10
2.0
2.0
TYP
MAX
403
UNITS
MHz
MHz
VDC
VDC
dBm
mA
dBc
MHz/V
MHz pk-pk
MHz/V
dBc/Hz
dBc/Hz
FRONT
0.625
(15.88)
SMA
×3
RF
BACK
Ø 0.118 Thru 2×
(3.00)
SIDE
0.250
(6.35)
0.625
(15.88)
CRYSTEK
MICROWAVE
Vcc
CRBV55CL
Vt
0403-0421 MHz
VCO
1.000
(25.40)
0.625
(15.88)
0.590
(14.99)
1.250
(31.75)
1.250
(31.75)
1.000
(25.40)
Ø 0.118 Thru 2x
(3.00)
Unless otherwise specified, Dimensions are in: IN
(mm)
Product Control:
Crystek Part Number:
Revision Level:
CRBV55CL-0403-0421
B
Release Date:
Responsible:
25-Feb-2015
C. Vales
Page 1 of 2
CRYSTEK
CORPORATION
12730 Commonwealth Drive • Fort Myers, Florida 33913
Phone: 239-561-3311 • 800-237-3061
Fax: 239-561-1025 • www.crystek.com
M I C
of Crystek Corporation
ROWAVE
A Division
Red
Box

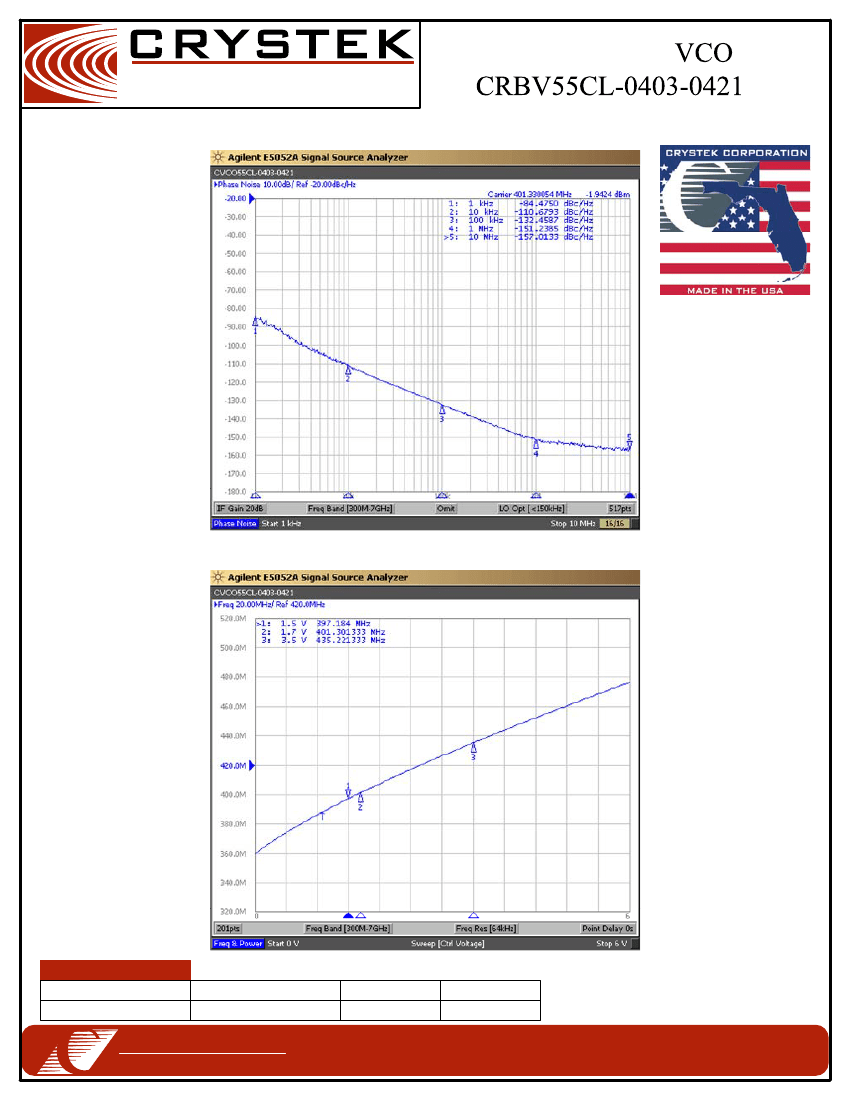

Phase Noise (1 Hz BW, Typical)
Tuning Curve (Typical)
Product Control:
Crystek Part Number:
Revision Level:
CRBV55CL-0403-0421
B
Release Date:
Responsible:
25-Feb-2015
C. Vales
Specification is subject to change without notice
Page 2 of 2
CRYSTEK
CORPORATION
12730 Commonwealth Drive • Fort Myers, Florida 33913
Phone: 239-561-3311 • 800-237-3061
Fax: 239-561-1025 • www.crystek.com
