46152C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> 46152C

Preview

46152C: CategoryPassive components inductor; File Size140KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

46152C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	46152C	-	-	View	Buy Now

46152C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	2929
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2929
structure	Shielded
DC Resistance	0.015 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	4600
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	4.55 mm
Package length	7.3 mm
Package form	SMT
Package width	7.3 mm
method of packing	TR
Maximum rated current	6.3 A
series	4600
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.01 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

www.murata-ps.com

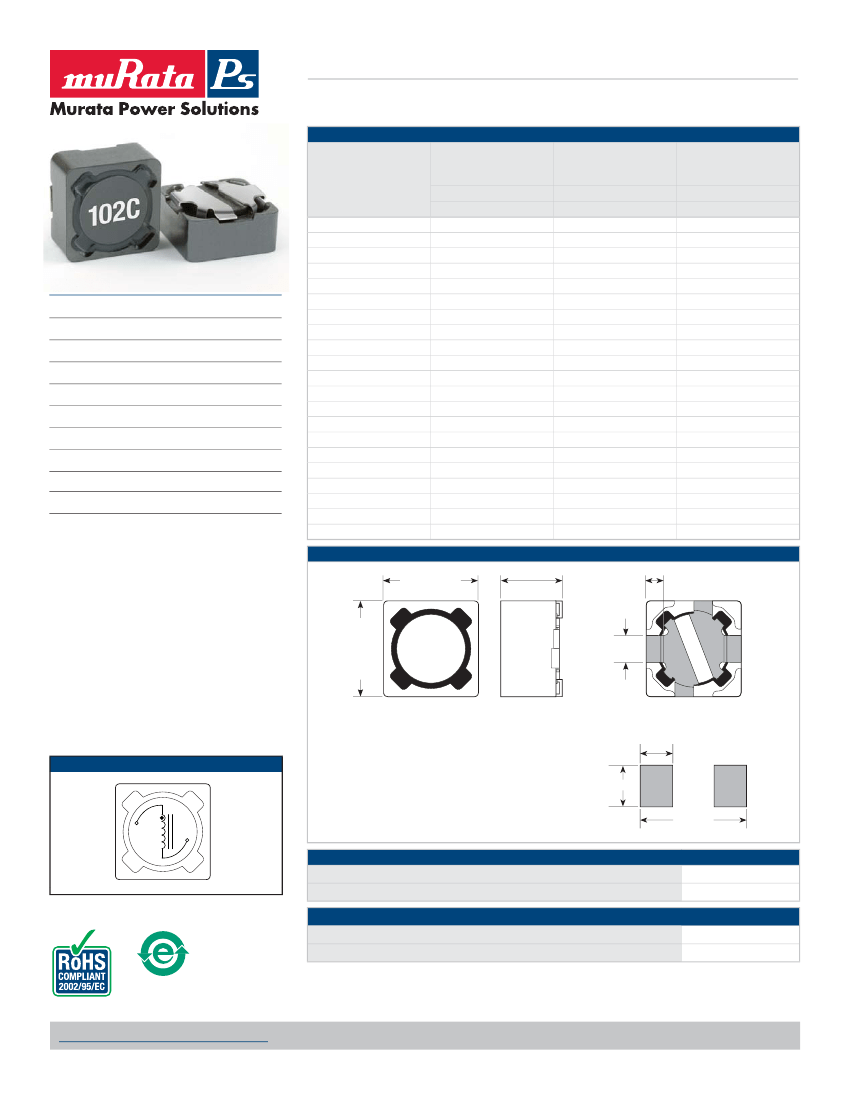

SELECTION GUIDE

Inductance

(10kHz, 0.1V

AC

)

Order Code

±20%

4600 Series

Shielded Surface Mount Power Inductors

DC Current

1

Max.

A

8.7

7.7

6.8

6.3

5.0

4.3

3.7

3.1

2.4

2.2

1.8

1.45

1.25

1.05

0.86

0.72

0.57

0.46

0.39

0.32

0.27

DC Resistance

Max.

mΩ

8

10

13

15

21

29

37

52

66

94

120

190

260

360

500

720

1050

1850

2800

3900

4900

Nom.

μH

46281C

46541C

46102C

46152C

46222C

46332C

46472C

46682C

46103C

46153C

46223C

46333C

46473C

46683C

46104C

46154C

46224C

46334C

46474C

46684C

46105C

0.28 (±30%)

0.54 (±30%)

1.0 (±30%)

1.5 (±30%)

2.2 (±30%)

3.3 (±30%)

4.7 (±30%)

6.8 (±30%)

10

15

22

33

47

68

100

150

220

330

470

680

1000

FEATURES

RoHS compliant

0.28μH to 1.0mH

Up to 8.7A I

DC

Bobbin format

Surface mount

Integral EMI shield

Compact size

Tape and reel packaging

UL 94V-0 materials

J-STD-020-C reﬂow

DESCRIPTION

The 4600 series is a range of bobbin-wound,

shielded inductors suitable for power-line ﬁltering

found in consumer electronics such as desktop

computers, LED applications and GPS systems,

as well as in a vast range of industrial and

telecom applications including network hubs,

bridges & routers, and high frequency wireless

communication devices.

These surface mount inductors are extremely

compact and have an integral shield, making them

useful in EMI sensitive applications.

PIN CONNECTIONS

(TOP VIEW)

MECHANICAL DIMENSIONS

7.3±0.2

(0.287±0.008)

4.55 (0.18) Max.

1.1±0.25 (0.043±0.01)

7.3±0.2

(0.287±0.008)

281C

2.0±0.15

(0.079±0.006)

Recommended Footprint Details*

2.5 (0.098)

3.25 (0.128)

*Distance between the outside ends of the terminations is 7.1±0.1 (0.28±0.004)

Unless otherwise stated, all dimensions in mm (inches) ± 0.25 (0.010).

Package weight: 0.8g Typ.

8.5 (0.335)

ABSOLUTE MAXIMUM RATINGS

Operating temperature range

Storage temperature range

-40ºC to 125ºC

-40ºC to 150ºC

SOLDERING INFORMATION

2

Peak reﬂow solder temperature

Pin ﬁnish

For full details go to

www.murata-ps.com/rohs

250˚C

Tin

Speciﬁcations typical at T

A

= 25°C

1 Maximum DC current occurs when either the inductance falls to 75% of its

nominal value or when its temperature rise reaches 40°C, whichever is sooner.

2 For further information, please visit www.murata-ps.com/rohs

www.murata-ps.com/support

KMP_4600C_B03

Page 1 of 3

46152C Related Products

	46152C	BLU0201P-8981-CT15	46334C	45474C	46684C	46472C	46333C	46682C	46281C
Description		Fixed Resistor, Thin Film, 0.05W, 8980ohm, 15V, 0.25% +/-Tol, 15ppm/Cel, 0201,	EEPROM 512KB I2C SER EEPROM	Board Mount Humidity Sensors LP Digital Humidity Sensor	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 1uF 10volts X5R 10%	Fixed Inductors 4.7uH 3.7A SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 0.1uF 50volts X7R 10%	RF Cable Assemblies SMA(F) JK-IPEX MHF U.FL 1.13 100MM	Fixed Inductors 0.28uH 8.7A SMT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	155 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Tolerance	30%	0.25%	20%	20%	20%	30%	20%	30%	30%
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Murata	-	Murata	-	-	Murata	Murata	-	Murata
package instruction	2929	-	2929	-	2929	2929	2929	2929	2929
uppercase and lowercase codes	2929	-	2929	-	2929	2929	2929	2929	2929
structure	Shielded	Chip	Shielded	-	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance	0.015 Ω	-	1.85 Ω	3.25 Ω	3.9 Ω	0.037 Ω	0.19 Ω	0.052 Ω	0.008 Ω
Nominal inductance(L)	1.5 µH	-	330 µH	470 µH	680 µH	4.7 µH	33 µH	6.8 µH	0.28 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	-	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	4600	-	4600	4500	4600	4600	-	4600	4600
Number of functions	1	-	1	1	1	1	1	1	1
Package height	4.55 mm	0.35 mm	4.55 mm	-	4.55 mm	4.55 mm	4.55 mm	4.55 mm	4.55 mm
Package length	7.3 mm	0.5 mm	7.3 mm	-	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm
Package form	SMT	SMT	SMT	-	SMT	SMT	SMT	SMT	SMT
Package width	7.3 mm	0.25 mm	7.3 mm	-	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm
method of packing	TR	TR	TR	-	TR	TR	TR	TR	TR
Maximum rated current	6.3 A	-	0.46 A	-	0.32 A	3.7 A	1.45 A	3.1 A	8.7 A
series	4600	BLU	4600	-	4600	4600	-	4600	4600
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	-	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	-	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn)	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	-	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.01 MHz	-	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz
Base Number Matches	1	-	1	1	1	1	1	1	1
