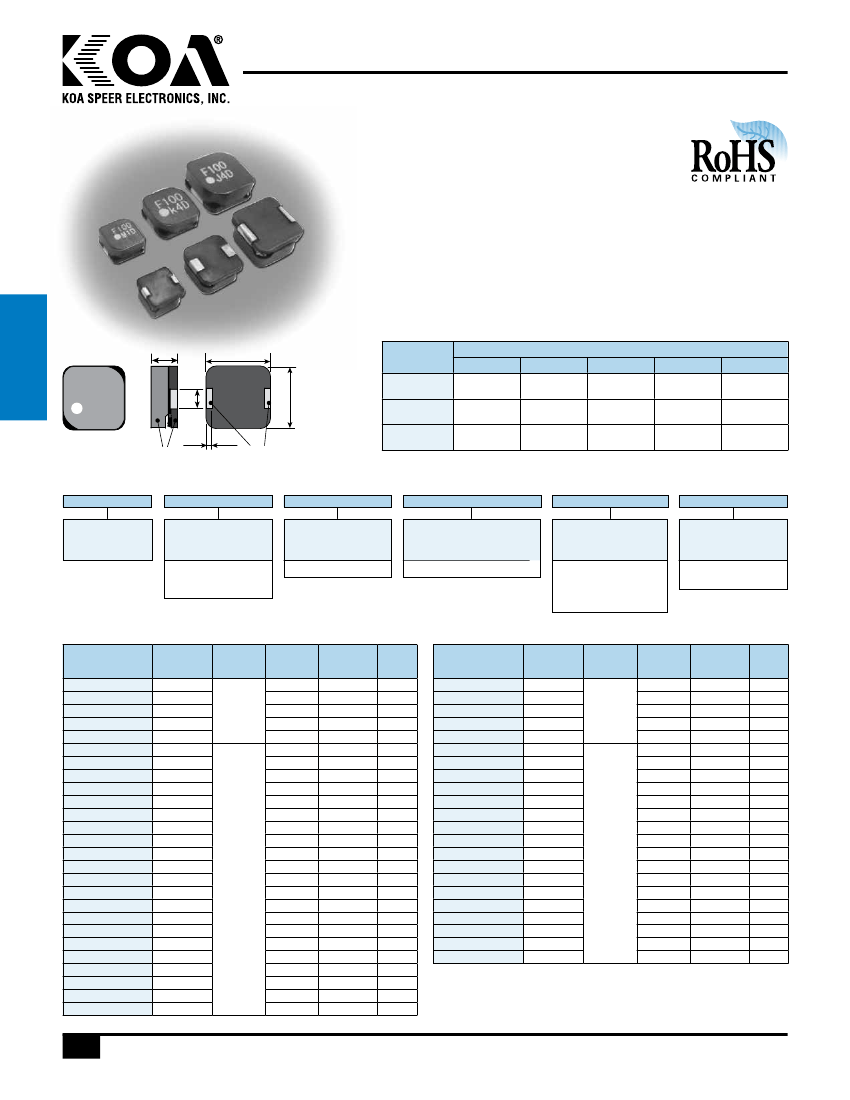

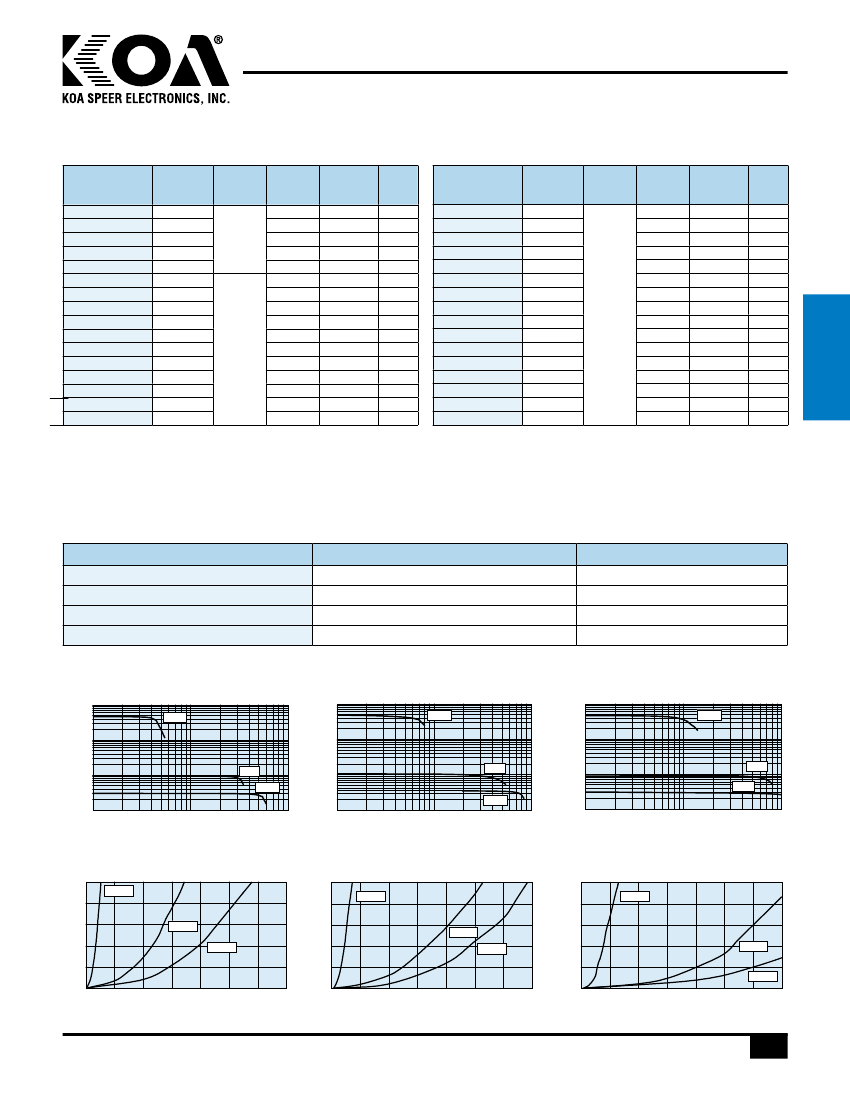

LKS
power chip inductors shielded type
features
•
Magnetic shielded power chip inductors
with a little leakage magnetic flux
•
Small size and low-profile
•
Low DC Resistance and larger Rated Current
•
Suitable for reflow soldering
•
Products meet EU RoHS requirements
EU
J4D
D
Ferrite
Core
Electrode
E
A
inductors
dimensions
C
B
and construction
Type
LKS0745
LKS1045
LKS1260
F100
A
.295±.020
(7.5±0.5)
.398±.012
(10.1±0.3)
.492±.012
(12.5±0.3)
Dimensions
inches
(mm)
B
C Max.
D
.295±.020
.177
.039±.012
(7.5±0.5)
(4.5)
(1.0±0.3)
.398±.012
.177
.079±.012
(10.1±0.3)
(4.5)
(2.0±0.3)
.492±.012
.236
.059±.012
(12.5±0.3)
(6.0)
(1.5±0.3)
E
.079±.008
(2.0±0.2)
.118±.008
(3.0±0.2)
.197±.008
(5.0±0.2)
ordering information
LKS
Product
Code
0745
Style (mm)
0745
1045
1260
T
Terminal Surface
Material
TEG
Packaging
100
Nominal
Inductance
3 digits
3R3: 3.3μH
100: 10μH
101: 100μH
M
Tolerance
M: ±20%
N: ±30%
TEG: embossed plastic
T: Sn
For further information on packaging, please refer to
Appendix A.
applications and ratings
LKS0745
Type
LKS0745 TTEG 3R3N
LKS0745 TTEG 4R7N
LKS0745 TTEG 5R6N
LKS0745 TTEG 6R8N
LKS0745 TTEG 8R2N
LKS0745 TTEG 100M
LKS0745 TTEG 120M
LKS0745 TTEG 150M
LKS0745 TTEG 180M
LKS0745 TTEG 220M
LKS0745 TTEG 330M
LKS0745 TTEG 470M
LKS0745 TTEG 560M
LKS0745 TTEG 680M
LKS0745 TTEG 820M
LKS0745 TTEG 101M
LKS0745 TTEG 121M
LKS0745 TTEG 151M
LKS0745 TTEG 181M
LKS0745 TTEG 221M
LKS0745 TTEG 331M
LKS0745 TTEG 471M
LKS0745 TTEG 561M
LKS0745 TTEG 681M
LKS0745 TTEG 821M
LKS0745 TTEG 102M
Nominal
Inductance
(μH)
3.3
4.7
5.6
6.8
8.2
10
12
15
18
22
33
47
56
68
82
100
120
150
180
220
330
470
560
680
820
1000
M: ±20%
N: ±30%
Inductance
Tolerance
DC
Resistance
(Ω)Max.
0.022
0.031
0.035
0.038
0.050
0.057
0.067
0.100
0.113
0.127
0.199
0.253
0.288
0.437
0.483
0.598
0.644
0.817
0.897
1.104
2.093
2.576
4.200
4.680
6.360
6.600
Allowable
DC Current
(A) Max.*1
4.5
3.8
3.6
3.4
2.8
2.6
2.4
2.1
2.0
1.9
1.5
1.3
1.3
1.0
1.0
0.9
0.8
0.7
0.7
0.6
0.5
0.4
0.31
0.27
0.24
0.23
SRF
(MHz)
Typ.
41
34
31
28
25
24
22
19
17
16
13
11
10
9
8
7
6
6
5
5
4
3
3
3
2
2
LKS1045
Type
LKS1045 TTEG 3R3N
LKS1045 TTEG 4R7N
LKS1045 TTEG 5R6N
LKS1045 TTEG 6R8N
LKS1045 TTEG 8R2N
LKS1045 TTEG 100M
LKS1045 TTEG 120M
LKS1045 TTEG 150M
LKS1045 TTEG 180M
LKS1045 TTEG 220M
LKS1045 TTEG 330M
LKS1045 TTEG 470M
LKS1045 TTEG 560M
LKS1045 TTEG 680M
LKS1045 TTEG 820M
LKS1045 TTEG 101M
LKS1045 TTEG 121M
LKS1045 TTEG 151M
LKS1045 TTEG 181M
LKS1045 TTEG 221M
LKS1045 TTEG 331M
LKS1045 TTEG 471M
Nominal
Inductance
(μH)
3.3
4.7
5.6
6.8
8.2
10
12
15
18
22
33
47
56
68
82
100
120
150
180
220
330
470
M: ±20%
N: ±30%
Inductance
Tolerance
DC
Resistance
(Ω)Max.
0.017
0.022
0.024
0.027
0.032
0.042
0.043
0.065
0.066
0.089
0.159
0.196
0.215
0.242
0.265
0.414
0.472
0.575
0.633
0.874
1.300
1.716
Allowable
DC Current
(A) Max.*1
5.8
5.1
4.9
4.6
4.0
3.6
3.4
3.0
2.9
2.5
1.9
1.7
1.5
1.4
1.3
1.2
1.0
0.9
0.8
0.7
0.6
0.5
SRF
(MHz)
Typ.
37
31
28
25
23
21
19
17
15
14
11
9
8
8
7
6
6
5
4
4
3
3
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
12/07/16
280
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
LKS
power chip inductors shielded type
ratings
(continued)
LKS1260
Type
LKS1260 TTEG 3R3N
LKS1260 TTEG 4R7N
LKS1260 TTEG 5R6N
LKS1260 TTEG 6R8N
LKS1260 TTEG 8R2N
LKS1260 TTEG 100M
LKS1260 TTEG 120M
LKS1260 TTEG 150M
LKS1260 TTEG 180M
LKS1260 TTEG 220M
LKS1260 TTEG 330M
LKS1260 TTEG 470M
LKS1260 TTEG 560M
LKS1260 TTEG 680M
Nominal
Inductance
(μH)
3.3
4.7
5.6
6.8
8.2
10
12
15
18
22
33
47
56
68
82
100
M: ±20%
N: ±30%
Inductance
Tolerance
DC
Resistance
(Ω)Max.
0.011
0.012
0.014
0.015
0.019
0.021
0.023
0.026
0.034
0.040
0.058
0.083
0.093
0.127
0.140
0.157
Allowable
DC Current
(A) Max.*1
6.6
6.3
5.8
5.6
5.0
4.8
4.6
4.3
3.8
3.5
2.9
2.4
2.3
1.9
1.8
1.7
SRF
(MHz)
Typ.
34
28
25
23
21
19
18
16
14
13
10
8
8
7
6
6
Type
LKS1260 TTEG 121M
LKS1260 TTEG 151M
LKS1260 TTEG 181M
LKS1260 TTEG 221M
LKS1260 TTEG 331M
LKS1260 TTEG 471M
LKS1260 TTEG 561M
LKS1260 TTEG 681M
LKS1260 TTEG 821M
LKS1260 TTEG 102M
LKS1260 TTEG 152M
LKS1260 TTEG 222M
LKS1260 TTEG 332M
LKS1260 TTEG 472M
LKS1260 TTEG 682M
LKS1260 TTEG 103M
Nominal
Inductance
(μH)
120
150
180
220
330
470
560
680
820
1000
1500
2200
3300
4700
6800
10000
M: ±20%
Inductance
Tolerance
DC
Resistance
(Ω)Max.
0.181
0.247
0.301
0.355
0.566
0.853
1.210
1.370
1.810
1.950
2.950
4.270
5.900
9.560
16.400
26.000
Allowable
DC Current
(A) Max.*1
1.5
1.2
1.1
1.0
0.8
0.7
0.68
0.66
0.57
0.55
0.45
0.37
0.31
0.25
0.19
0.15
SRF
(MHz)
Typ.
5
5
4
4
3
2
1.9
1.8
1.5
1.2
0.9
0.8
0.6
0.5
0.4
1.7
NEW
LKS1260 TTEG 820M
LKS1260 TTEG 101M
*1 Allowable DC Current: DC Current value when coil temperature
rise is within
∆T=
35°C or when inductance change ratio is within
∆L/L=
−30%, whichever is lower.
For complete environmental specifications, please refer to www.koaspeer.com
Operating Temperature Range: −40°C – +120°C
The operating temperature range of the coil (ambient temperature + self heating)
must remain at +120°C or less
environmental applications
Performance Characteristics
Test Items
Heat Shock
Low Temperature Exposure
High Temperature Exposure
Moisture Endurance
Test Methods
−40°C(30min.)/+120°C(30min.) 100 cycles
−40°C, 1,000h
+120°C, 1,000h
+85°C, 85%RH, 1,000h
Limit
∆L/L:
±10%
∆L/L:
±10%
∆L/L:
±10%
∆L/L:
±10%
DC Bias Characteristics
LKS0745
1000
LKS0745
470µH
LKS1045
1000
LKS1045
470µH
LKS1260
1000
LKS1260
470µH
Inductance（µH）
Inductance（µH）
100
100
Inductance（µH）
100
10
10µH
3.3µH
10µH
10µH
10
3.3µH
10
3.3µH
1
0.1
1.0
10.0
1
0.1
1.0
10.0
1
0.1
1.0
10.0
DC Bias (A)
DC Bias (A)
DC Bias (A)
LKS0745
Surface Temperature Rise
LKS1045
LKS1260
LKS0745
50
40
30
20
10
0
0.0
LKS1045
50
40
30
20
10
0
0.0
LKS1260
50
470 H
Temperature Rise (°C)
Temperature Rise (°C)
Temperature Rise (°C)
470 H
40
30
20
10
0
0.0
470 H
10 H
3.3 H
10 H
3.3 H
10 H
3.3 H
1.0
2.0
3.0
4.0
5.0
6.0
7.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
DC Bias (A)
DC Bias (A)
DC Bias (A)
