C623C150ZGR5TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> C623C150ZGR5TA

C623C150ZGR5TA: CategoryPassive components capacitor; File Size3MB，21 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric Compare View All

C623C150ZGR5TA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C623C150ZGR5TA	-	-	View	Buy Now

C623C150ZGR5TA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 3225
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	0.000015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	7.11 mm
JESD-609 code	e3
length	8.13 mm
Manufacturer's serial number	C623
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	80%
Rated (DC) voltage (URdc)	2000 V
series	C(SIZE)C(HV)-GOLDMAX
size code	3225
surface mount	NO
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal pitch	5.59 mm
Terminal shape	WIRE
width	6.35 mm

Preview

Download Datasheet

View All

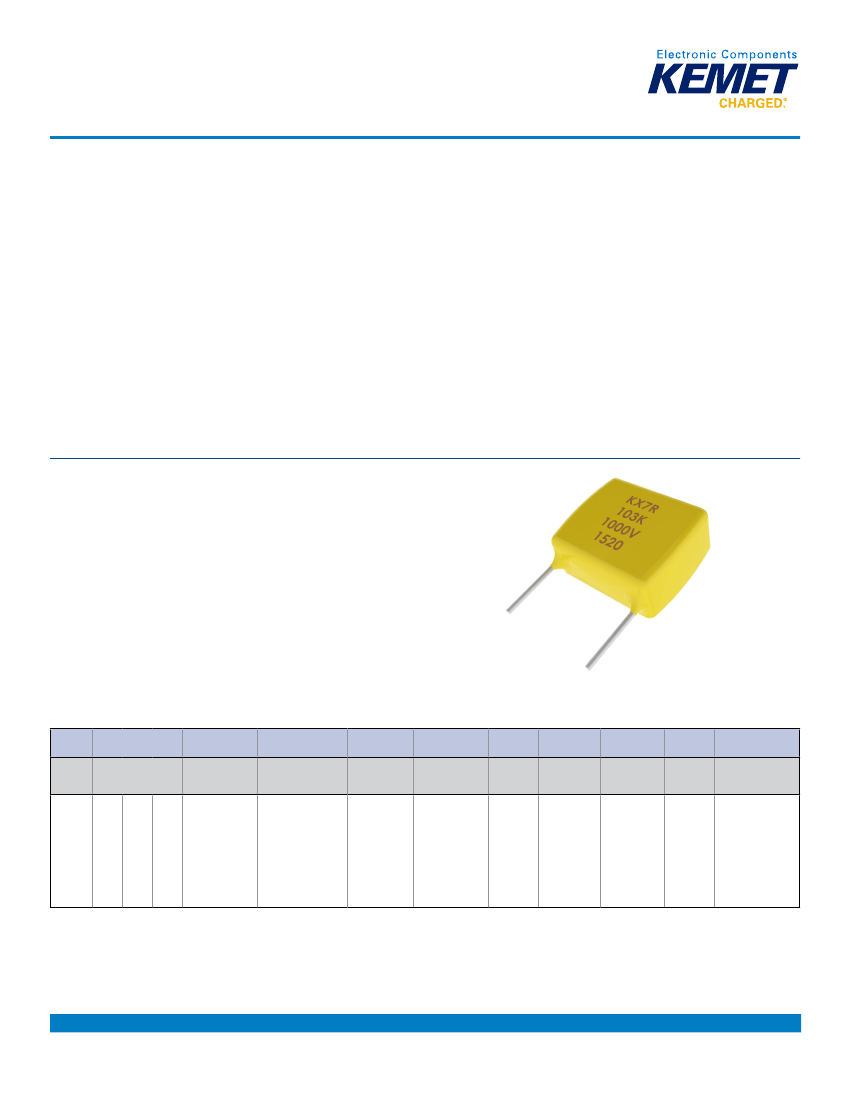

Radial Leaded Multilayer Ceramic Capacitors

High Voltage Goldmax, 600 Series, Conformally Coated,

X7R Dielectric, 500 – 3,000 VDC (Commercial Grade)

Overview

KEMET’s 600 Series High Voltage Goldmax conformally

coated radial leaded ceramic capacitors meet special

lead spacing requirements per MIL–PRF–49467. Offered

in X7R dielectric, these capacitors feature a 125°C

maximum operating temperature and are considered

“temperature stable.” The Electronics Industries Alliance

(EIA) characterizes X7R dielectric as a Class II material.

Components of this classification are fixed, ceramic

dielectric capacitors suited for bypass and decoupling

applications or for frequency discriminating circuits

where Q and stability of capacitance characteristics

are not critical. X7R exhibits a predictable change in

capacitance with respect to time and voltage and boasts

a minimal change in capacitance with reference to ambient

temperature. Capacitance change is limited to ±15% from

−55°C to +125°C.

These devices offer low leakage current, exhibit low ESR

at high frequencies and find conventional use as snubbers

or filters in applications such as switching power supplies

and in lighting ballasts. Their exceptional performance

at high frequencies has made them a preferred choice of

design engineers worldwide. In addition to their use in power

supplies, these capacitors are widely used in industries

related to telecommunications, medical, military, aerospace,

semiconductor and test/diagnostic equipment.

Benefits

• Radial leaded form factor

• Conformally coated

• Lead spacing per MIL–PRF–49467

• Operating temperature range of −55°C to +125°C

• RoHS and REACH compliant

• X7R temperature stable dielectric

• DC voltage ratings of 500 V, 1 KV, 1.5 KV, 2 KV, 2.5 KV and 3 KV

Ordering Information

Ceramic

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

627

Style/Size

617

622

623

627

628

630

631

637

638

640

641

642

643

647

648

657

658

667

668

Specification/

Series

Standard

224

Capacitance

Code (pF)

First two digits

represent

significant

figures. Third

digit specifies

number of

zeros.

Design

Multilayer

Lead Finish

T = 100%

Matte Sn

H = SnPb

(60/40)

Failure

Rate

N/A

7301

Packaging

(C-Spec)

See

“Packaging

C-Spec

Ordering

Options

Table” below

Capacitance Rated Voltage

Dielectric

Tolerance

(VDC)

K = ±10%

M = ±20%

Z = +80%,

−20%

C = 500

D = 1,000

F = 1,500

G = 2,000

Z = 2,500

H = 3,000

X7R

Additional capacitance tolerance offerings may be available. Contact KEMET for details.

Lead materials:

Standard: 100% matte tin (Sn) with nickel (Ni) underplate and steel core ( “T” designation).

Alternative 1: 60% Tin (Sn)/40% Lead (Pb) finish with copper-clad steel core ( “H” designation).

Alternative 2: 60% Tin (Sn)/40% Lead (Pb) finish with 100% copper core (available with “H” designation code with C-Spec). Contact KEMET for

C-Spec details.

One world. One KEMET

C1057_HV_GOLDMAX_600_X7R • 11/11/2016

C623C150ZGR5TA Related Products

	C623C150ZGR5TA	C648C474KDR5TA	C622C102JDG5TA	C637C103KGR5TA	C643C103MHR5TA	C647C474KDR5TA	C648C472KGR5TA
Description		Multilayer Ceramic Capacitors MLCC - Leaded 1000volts 0.47uF 10% X7R RAD	Multilayer Ceramic Capacitors MLCC - Leaded 1000PF 1000V		Multilayer Ceramic Capacitors MLCC - Leaded 3000volts .01uF 20% X7R	KEMET 1000volts 0.47uF 10% X7R RAD	Multilayer Ceramic Capacitors MLCC - Leaded 2000volts 4700pF 10% X7R
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	-	-
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	-	-
package instruction	, 3225	-	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED	RADIAL LEADED	-	-
Reach Compliance Code	not_compliant	-	compliant	compliant	compliant	-	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	-	-
capacitance	0.000015 µF	-	0.001 µF	0.01 µF	0.01 µF	-	-
Capacitor type	CERAMIC CAPACITOR	-	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	-	-
dielectric materials	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC	-	-
high	7.11 mm	-	7.11 mm	10.2 mm	14.22 mm	-	-
JESD-609 code	e3	-	e3	e3	e3	-	-
length	8.13 mm	-	8.13 mm	11.9 mm	12.7 mm	-	-
Installation features	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	-
multi-layer	Yes	-	Yes	Yes	Yes	-	-
negative tolerance	20%	-	5%	10%	20%	-	-
Number of terminals	2	-	2	2	2	-	-
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	-	-
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-
Package shape	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-
Package form	Radial	-	Radial	Radial	Radial	-	-
method of packing	BULK	-	BULK	BULK	BULK	-	-
positive tolerance	80%	-	5%	10%	20%	-	-
Rated (DC) voltage (URdc)	2000 V	-	1000 V	2000 V	3000 V	-	-
size code	3225	-	3225	4727	5020	-	-
surface mount	NO	-	NO	NO	NO	-	-
Temperature characteristic code	X7R	-	C0G	X7R	X7R	-	-
Temperature Coefficient	15% ppm/°C	-	30ppm/Cel ppm/°C	15% ppm/°C	15% ppm/°C	-	-
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-	-
Terminal pitch	5.59 mm	-	5.59 mm	9.52 mm	10.16 mm	-	-
Terminal shape	WIRE	-	WIRE	WIRE	WIRE	-	-
width	6.35 mm	-	6.35 mm	6.89 mm	5.08 mm	-	-
