MR50SC3F datasheet, PDF - EEWORLD Datasheet

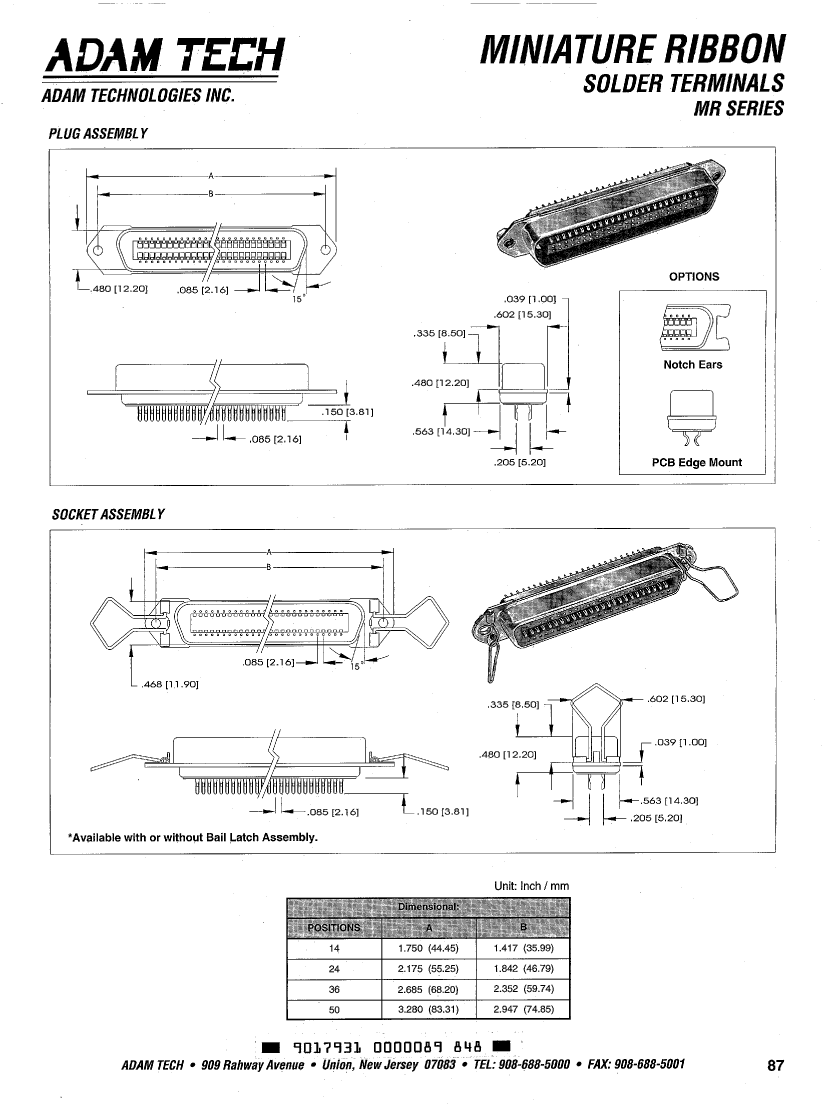

MR50SC3F: DescriptionD Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size576KB，5 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

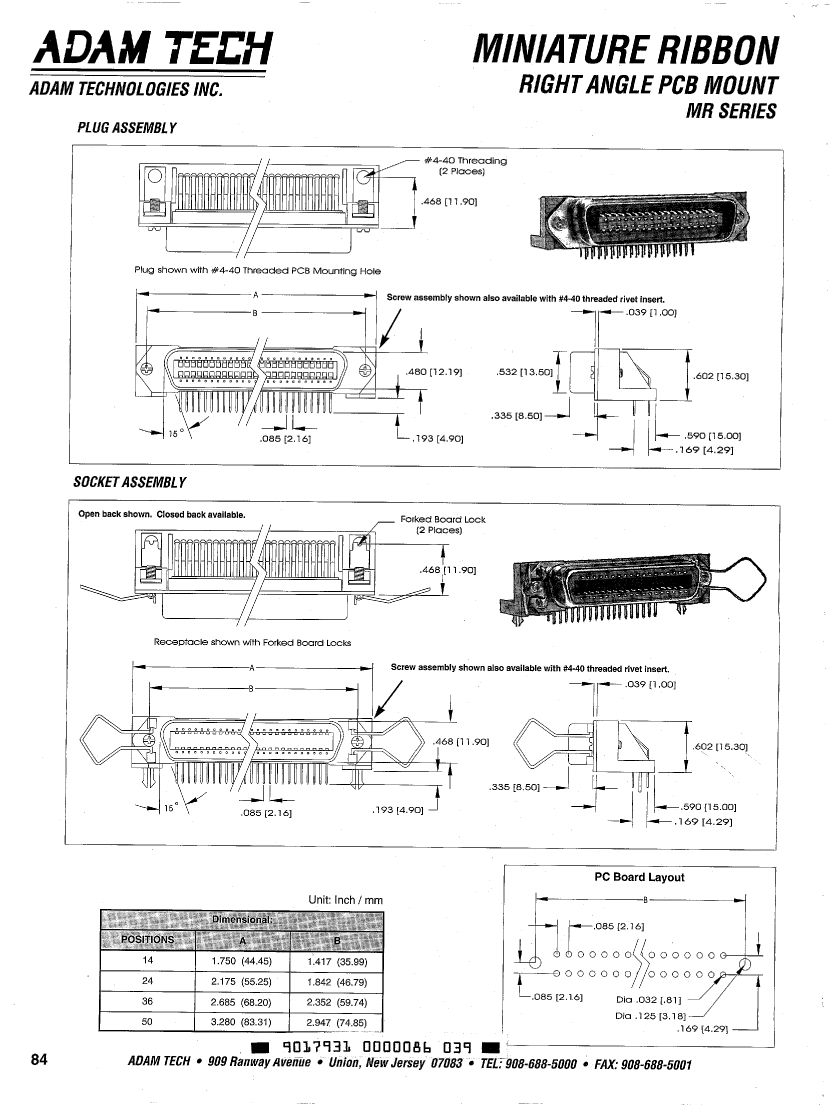

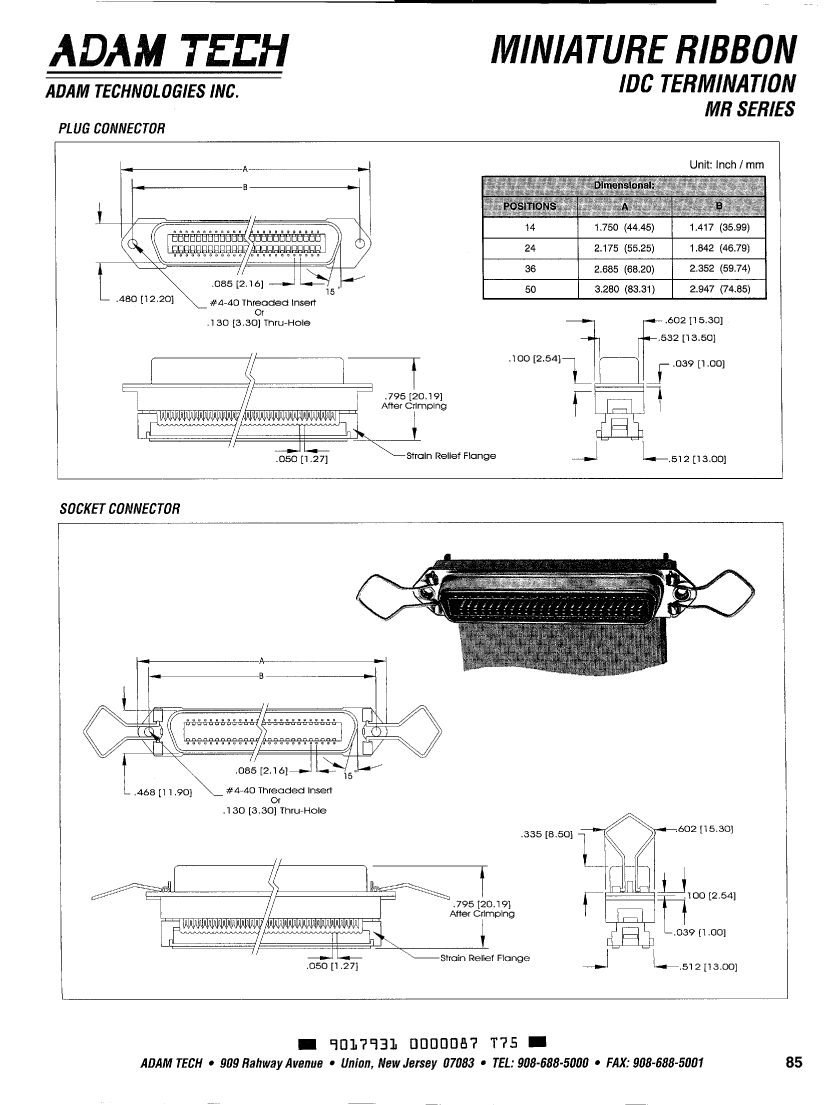

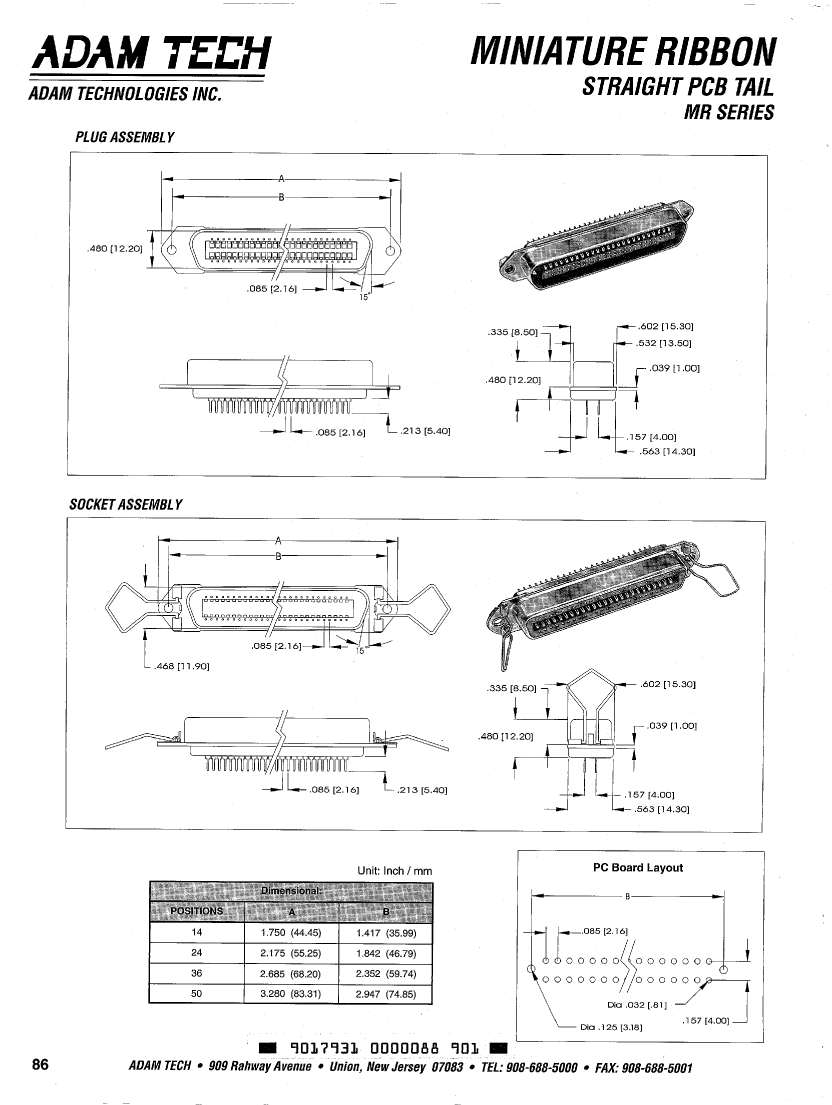

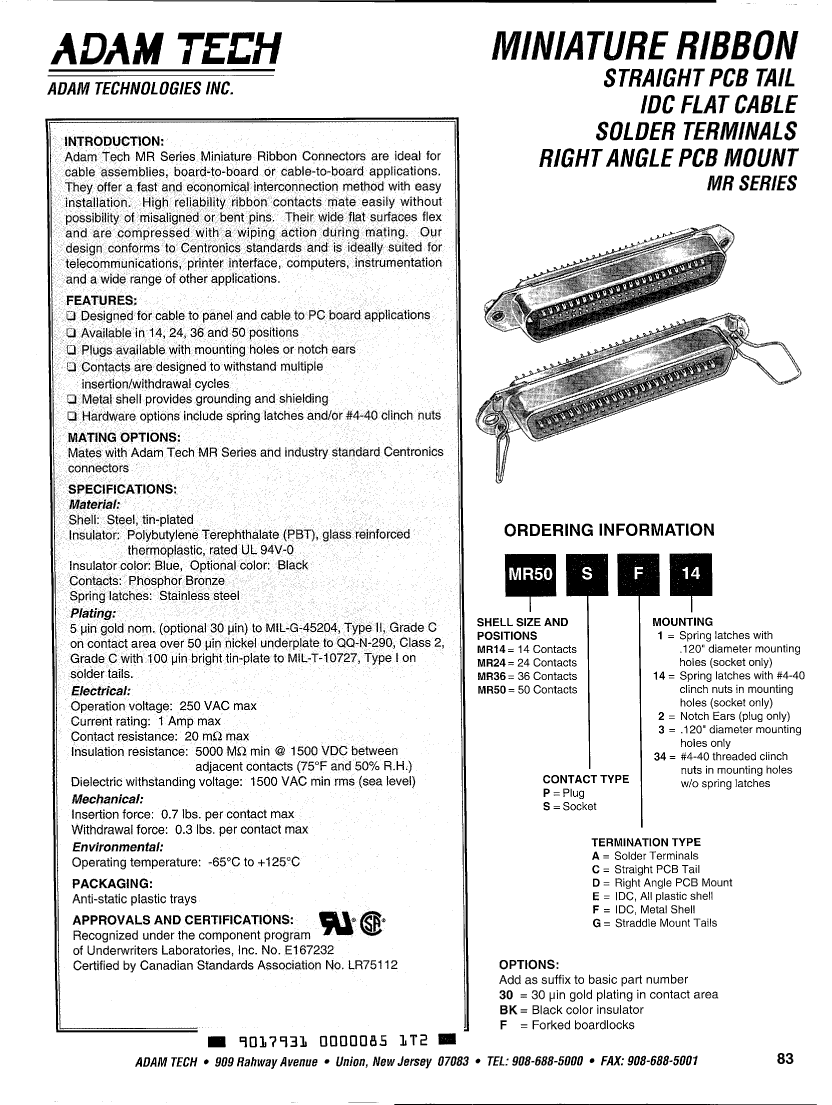

MR50SC3F Overview

D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Hole .112-.124, Plug

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.602 inch
subject depth	0.145 inch
body length	3.28 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1500VAC V
maximum insertion force	3.1136 N
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MR
Plug contact pitch	0.085 inch
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	5u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.213 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	1.3344 N
Base Number Matches	1
