STP16CPC26TTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> STP16CPC26TTR

STP16CPC26TTR: DescriptionLogic Gates; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size884KB，28 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

STP16CPC26TTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	STP16CPC26TTR	-	-	View	Buy Now

STP16CPC26TTR Overview

Logic Gates

STP16CPC26TTR Parametric

Parameter Name	Attribute value
Brand Name	STMicroelectronics
Maker	STMicroelectronics
package instruction	TSSOP, TSSOP24,.25
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Samacsys Description	STMICROELECTRONICS - STP16CPC26TTR - LED DRIVER, 16BIT, 0.09A, TSSOP-24
data entry mode	SERIAL
display mode	SEGMENT
Interface integrated circuit type	LED DISPLAY DRIVER
JESD-30 code	R-PDSO-G24
length	7.8 mm
Multiplex display function	NO
Number of functions	1
Number of segments	16
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP24,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
minfmax	30 MHz

Preview

Download Datasheet

View All

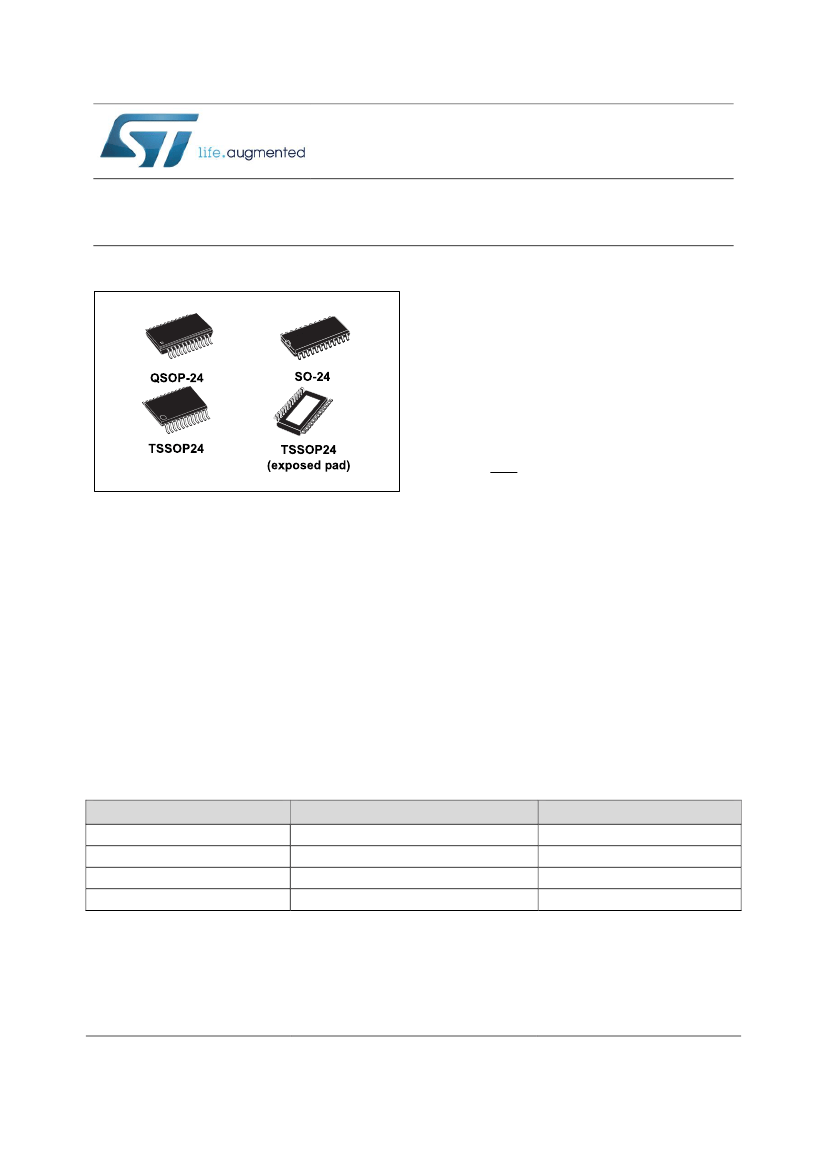

STP16CPC26

Low voltage 16-bit constant current LED sink driver

Datasheet - production data

Description

The STP16CPC26 is a monolithic, low voltage,

16-bit constant current LED sink driver. The

device contains a 16-bit shift register and data

latches, which convert serial input data into

parallel output format. In the output stage sixteen

regulated current generators provide 5 mA to

90 mA constant current to drive LEDs. The

current is externally adjusted through a resistor.

LED brightness can be adjusted from 0% to

100% via OE pin.

Features



16 constant current output channels

Adjustable output current through external

resistor

Output current: 5 mA to 90 mA

±1% typical current accuracy bit to bit

Max clock frequency: 30 MHz

20 V current generators rated voltage

3 - 5.5 V power supply

Thermal shutdown for overtemperature

protection

The STP16CPC26 guarantees a 20 V driving

capability, allowing users to connect more LEDs

in series to each current source.

The high 30 MHz clock frequency makes the

device suitable for high data rate transmission.

The thermal shutdown (170 °C with about 15 °C

hysteresis) assures protection from

overtemperature events.

The STP16CPC26 is housed in four different

packages: QSOP24, SO-24, TSSOP-24 and

HTSSOP-24 (with exposed pad).

Applications



Video display panel LED driver

Special lighting

Table 1: Device summary

Order code

STP16CPC26MTR

STP16CPC26TTR

STP16CPC26XTR

STP16CPC26PTR

Package

SO-24

TSSOP24

TSSOP24 exposed pad

QSOP-24

Packing

1000 parts per reel

2500 parts per reel

April 2017

DocID18469 Rev 6

1/28

www.st.com

This is information on a product in full production.

Contents

STP16CPC26

Contents

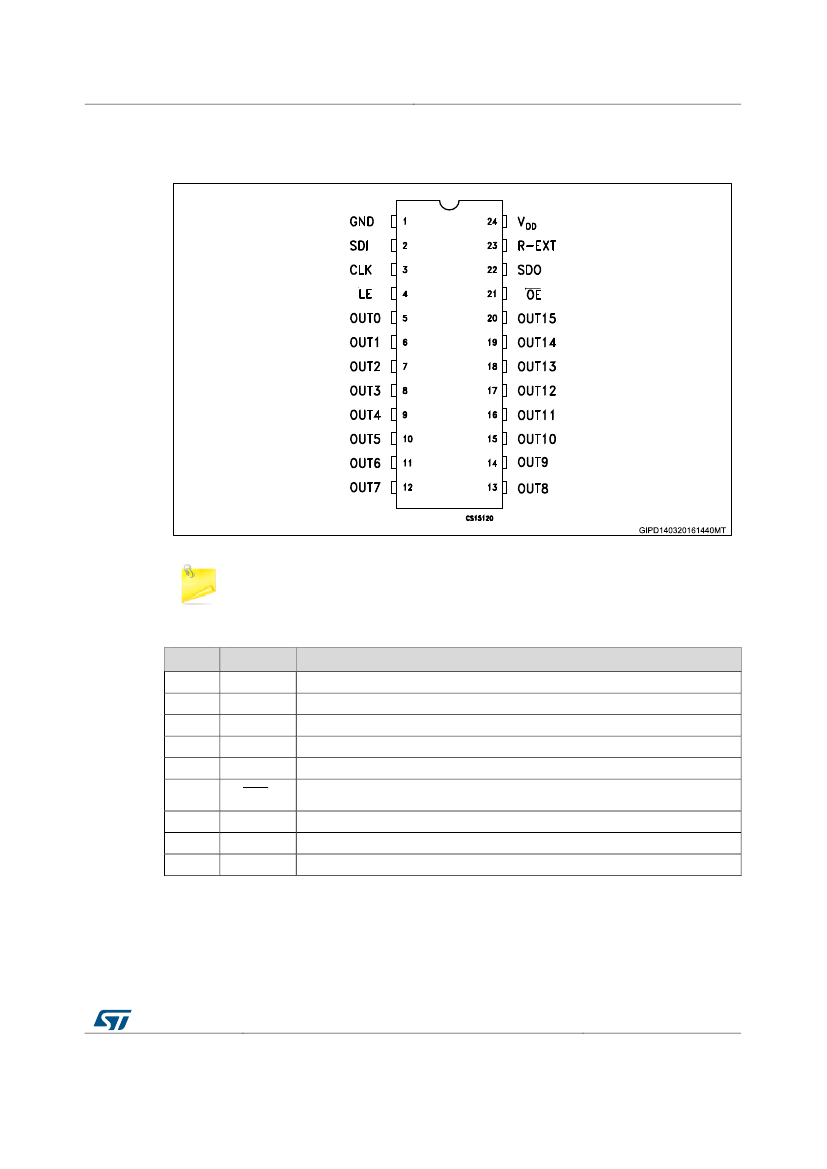

Pin description ................................................................................ 3

Electrical ratings ............................................................................. 4

2.1

2.2

Absolute maximum ratings ................................................................ 4

Thermal data ..................................................................................... 4

Electrical characteristics ................................................................ 5

Simplified internal block diagram .................................................. 8

Typical application circuit............................................................... 8

Equivalent circuit and outputs ....................................................... 9

Typical test circuits ....................................................................... 11

Timing diagrams ............................................................................ 12

Current generators characteristics .............................................. 15

9.1

9.2

9.3

Current setting................................................................................. 15

Current accuracy ............................................................................. 15

Generators voltage drop ................................................................. 16

Thermal shutdown......................................................................... 16

Package information ..................................................................... 17

11.1

11.2

11.3

11.4

11.5

QSOP-24 package information ....................................................... 18

SO-24 package information ............................................................ 20

TSSOP24 package information ....................................................... 21

TSSOP24 exposed pad package information ................................. 23

TSSOP24, TSSOP24 exposed pad and ............................................

SO-24 packing information .............................................................. 25

Revision history ............................................................................ 27

2/28

DocID18469 Rev 6

Recommended Resources
