VS-30ETH06PbF, VS-30ETH06-N3
www.vishay.com
Vishay Semiconductors
Hyperfast Rectifier, 30 A FRED Pt
®
FEATURES
Base
cathode
2
2
3
TO-220AC
1
1
Cathode
3
Anode
•
•
•
•
•
•
Reduced Q
rr
and soft recovery
175 °C T
J
maximum
For PFC CRM/CCM operation
Low forward voltage drop
Low leakage current
Designed and qualified according to
JEDEC
®
-JESD 47
Available
• Material categorization: for definitions of
compliance please see
www.vishay.com/doc?99912
PRIMARY CHARACTERISTICS
I
F(AV)
V
R
V
F
at I
F
t
rr
(typ.)
T
J
max.
Package
Circuit configuration
30 A
600 V
1.34 V
23 ns
175 °C
TO-220AC
Single
DESCRIPTION / APPLICATIONS
State of the art hyperfast recovery rectifiers designed with
optimized performance of forward voltage drop, hyperfast
recovery time and soft recovery.
The planar structure and the platinum doped life time
control guarantee the best overall performance, ruggedness
and reliability characteristics.
These devices are intended for use in PFC boost stage in the
AC/DC section of SMPS, inverters or as freewheeling
diodes.
Their extremely optimized stored charge and low recovery
current minimize the switching losses and reduce over
dissipation in the switching element and snubbers.
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Peak repetitive reverse voltage
Average rectified forward current
Non-repetitive peak surge current
Operating junction and storage temperatures
SYMBOL
V
RRM
I
F(AV)
I
FSM
T
J
, T
Stg
T
C
= 103 °C
T
J
= 25 °C
TEST CONDITIONS
VALUES
600
30
200
-65 to +175
UNITS
V
A
°C
ELECTRICAL SPECIFICATIONS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
Breakdown voltage,
blocking voltage
Forward voltage
Reverse leakage current
Junction capacitance
Series inductance
SYMBOL
V
BR
,
V
R
V
F
I
R
C
T
L
S
I
R
= 100 μA
I
F
= 30 A
I
F
= 30 A, T
J
= 150 °C
V
R
= V
R
rated
T
J
= 150 °C, V
R
= V
R
rated
V
R
= 600 V
Measured lead to lead 5 mm from package body
TEST CONDITIONS
MIN.
600
-
-
-
-
-
-
TYP.
-
2.0
1.34
0.3
60
33
8.0
MAX.
-
2.6
1.75
50
500
-
-
μA
pF
nH
V
UNITS
Revision: 27-Oct-17
Document Number: 94019
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06PbF, VS-30ETH06-N3
www.vishay.com
Vishay Semiconductors
DYNAMIC RECOVERY CHARACTERISTICS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
I
F
= 1 A, dI
F
/dt = 50 A/μs, V
R
= 30 V
Reverse recovery time
t
rr
I
F
= 1 A, dI
F
/dt = 100 A/μs, V
R
= 30 V
T
J
= 25 °C
T
J
= 125 °C
Peak recovery current
Reverse recovery charge
I
RRM
Q
rr
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
I
F
= 30 A
dI
F
/dt = 200 A/μs
V
R
= 200 V
MIN.
-
-
-
-
-
-
-
-
TYP.
28
23
31
77
3.5
7.7
65
345
MAX.
35
30
-
-
-
-
-
-
A
nC
ns
UNITS
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and
storage temperature range
Thermal resistance,
junction-to-case per leg
Thermal resistance,
junction-to-ambient per leg
Thermal resistance,
case-to-heatsink
Weight
Mounting torque
Marking device
Case style TO-220AC
SYMBOL
T
J
, T
Stg
R
thJC
R
thJA
R
thCS
Typical socket mount
Mounting surface, flat, smooth, and greased
TEST CONDITIONS
MIN.
-65
-
-
-
-
-
6.0
(5.0)
TYP.
-
0.7
-
0.2
2.0
0.07
-
MAX.
175
1.1
70
-
-
-
12
(10)
30ETH06
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
1000
1000
I
R
- Reverse Current (µA)
100
10
1
0.1
T
J
= 175 °C
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
I
F
- Instantaneous
Forward Current (A)
100
10
T
J
= 175 °C
T
J
= 150 °C
T
J
= 25 °C
T
J
= 25 °C
0.01
0.001
0.0001
1
0
0.5
1
1.5
2
2.5
3
3.5
0
100
200
300
400
500
600
V
F
- Forward Voltage Drop (V)

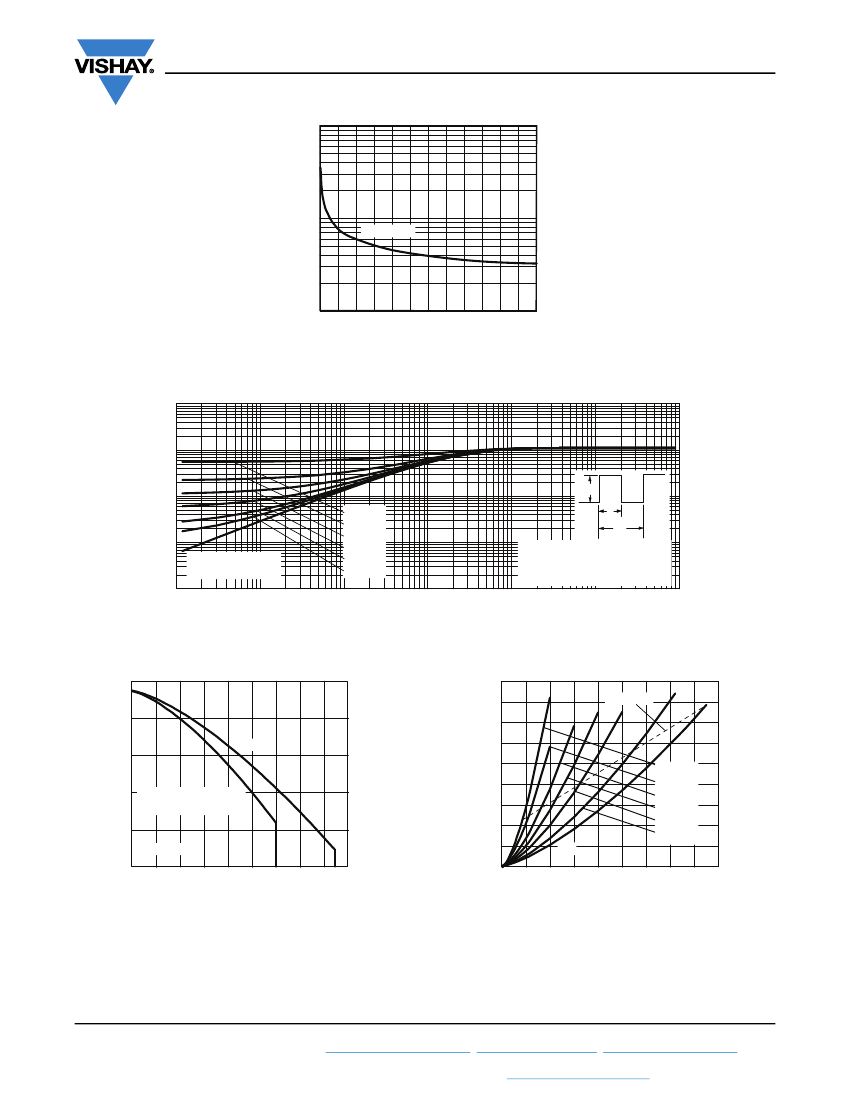

Fig. 1 - Typical Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
Revision: 27-Oct-17
Document Number: 94019
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06PbF, VS-30ETH06-N3
www.vishay.com
1000
Vishay Semiconductors
C
T
- Junction Capacitance (pF)
100
T
J
= 25 °C
10
0
100
200
300
400
500
600
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
10
1
0.1
D = 0.50
D = 0.20
D = 0.10
D = 0.05
D = 0.02
D = 0.01
0.001
0.01
0.1
P
DM
t
1
t
2
0.01
Single pulse
(thermal resistance)
0.001
0.00001
0.0001
Notes:
1. Duty factor D = t
1
/t
2
.
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
1
.
10
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
180
90
80
RMS limit
Allowable Case Temperature (°C)
160
DC
140
Average Power Loss (W)
70
60
50
40
30
20
10
0
DC
0
5
10
15
20
25
30
35
40
45
D = 0.01
D = 0.02
D = 0.05
D = 0.10
D = 0.20
D = 0.50
120
Square wave (D = 0.50)
Rated V
R
applied
100
See note (1)
80
0
5
10
15
20
25
30
35
40
45
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
Revision: 27-Oct-17
Document Number: 94019
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06PbF, VS-30ETH06-N3
www.vishay.com
90
80
70
60
50
40
30
20
10
0
100
V
R
= 200 V
T
J
= 125 °C
T
J
= 25 °C
1000
800
I
F
= 30 A
I
F
= 15 A
1200
1000
V
R
= 200 V
T
J
= 125 °C
T
J
= 25 °C
Vishay Semiconductors
Q
rr
(nC)
t
rr
(ns)
600
400
200
0
100
I
F
= 30 A
I
F
= 15 A
1000
dI
F
/dt (A/µs)
Fig. 7 - Typical Reverse Recovery Time vs. dI
F
/dt
dI
F
/dt (A/µs)
Fig. 8 - Typical Stored Charge vs. dI
F
/dt
(1)
Note
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= rated V
R
(3)
I
F
0
t
rr
t
a
t
b
Q
rr
(2)
(4)
I
RRM
0.5 I
RRM
di
(rec)M
/dt
(5)
0.75 I
RRM
(1)
di
F
/dt
(1) di
F
/dt - rate of change of current
through zero crossing
(2) I
RRM
- peak reverse recovery current
(3) t
rr
- reverse recovery time measured
from zero crossing point of negative
going I
F
to point where a line passing
through 0.75 I
RRM
and 0.50 I
RRM
extrapolated to zero current.
(4)
Q
rr
- area under curve defined by t
rr
and I
RRM
Q
rr
=
t
rr
x I
RRM
2
(5) di
(rec)M
/dt - peak rate of change of
current during t
b
portion of t
rr
Fig. 9 - Reverse Recovery Waveform and Definitions
Revision: 27-Oct-17
Document Number: 94019
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06PbF, VS-30ETH06-N3
www.vishay.com
ORDERING INFORMATION TABLE
Device code
Vishay Semiconductors
VS-
1
1
2
3
4
5
6
7
-
-
-
-
-
-
-
30
2
E
3
T
4
H
5
06
6
PbF
7
Vishay Semiconductors product
Current rating (30 = 30 A)
E = single
Package:
T = TO-220AC
H = hyperfast recovery
Voltage rating (06 = 600 V)
Environmental digit:
PbF = lead (Pb)-free and RoHS-compliant
-N3 = halogen-free, RoHS-compliant, and totally lead (Pb)-free
ORDERING INFORMATION
(Example)
PREFERRED P/N
VS-30ETH06PbF
VS-30ETH06-N3
QUANTITY PER T/R
50
50
MINIMUM ORDER QUANTITY
1000
1000
PACKAGING DESCRIPTION
Antistatic plastic tube
Antistatic plastic tube
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
SPICE model
TO-220ACPbF
TO-220AC-N3
www.vishay.com/doc?95221
www.vishay.com/doc?95224
www.vishay.com/doc?95068
www.vishay.com/doc?96439
Revision: 27-Oct-17
Document Number: 94019
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
