NTE5714: Description60 A, 1600 V, SILICON, RECTIFIER DIODE; CategoryAnalog mixed-signal IC Trigger device; File Size23KB，2 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com; Environmental Compliance

Download Datasheet Parametric Compare View All

NTE5714 Overview

60 A, 1600 V, SILICON, RECTIFIER DIODE

NTE5714 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NTE
package instruction	FLANGE MOUNT, R-XUFM-X7
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current	150 mA
JESD-30 code	R-XUFM-X7
Number of components	2
Number of terminals	7
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	102.05 A
Repeated peak reverse voltage	1600 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

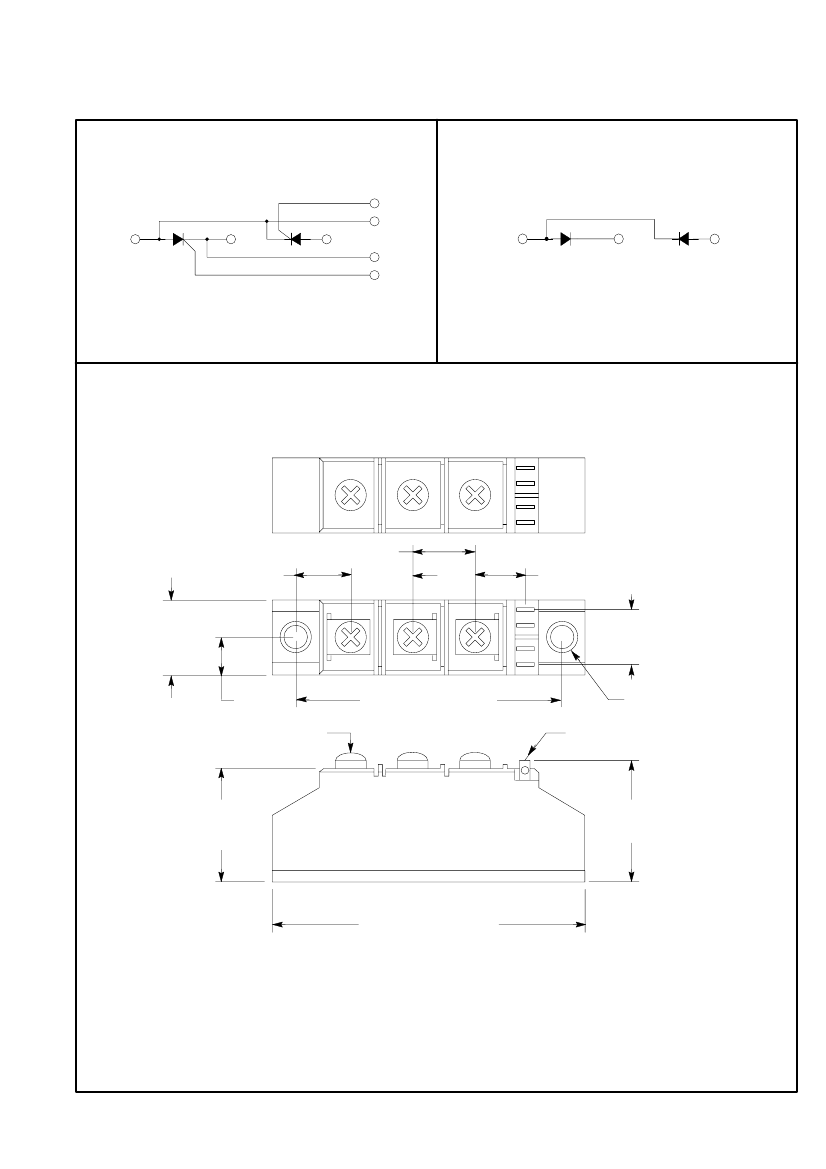

NTE5708, NTE5714, NTE5724 & NTE6222

Powerblock Modules

Description:

NTE series powerblock modules come in a convienient industry standard package with screw terminals,

offering 2 different circuits that can be used individually or in combination with other modules. All models

feature highly efficient thermal management for greatly extended cycle life.

Features:

Industry Standard Package and Circuits

Power Control Building Blocks

Highly Efficient Thermal Management

Electrical Specifications:

= +25°C unless otherwise specified)

Average Output Current Per Device (T

= +85°C, 8.3ms), I

T(AV)

NTE5708

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25A

NTE5714

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65A

NTE5724

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95A

NTE6222

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60A

Maximum Repetitive Peak Reverse Voltage (AC Line), V

RRM

. . . . . . . . . . . . . . . . . . . 1600V (600V)

Maximum Voltage Drop, V

NTE5708

= 75A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.55V

NTE5714, NTE5724

= 270A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40V

NTE6222

= 165A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40V

Critical Rate of Rise of On–State Current (T

= +125°C), di/dt . . . . . . . . . . . . . . . . . . . . . . . . 100A/µs

Critical Rate of Rise of Off–State Voltage (T

= +125°C), dv/dt . . . . . . . . . . . . . . . . . . . . . . . 500V/µs

Maximum Non–Repetitive Surge Current, I

TSM

NTE5708

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400A

NTE5714, NTE5724

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1950A

NTE6222

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500A

Maximum I

t for Fusing (t = 8.3ms), I

NTE5708

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 670A

sec

NTE5714, NTE5724

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15800A

sec

NTE6222

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9350A

sec

Maximum Required Gate Current to Trigger, I

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150mA

Maximum Required Gate Voltage to Trigger, V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.0V

Average Gate Power, P

G(AV)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW

Maximum Peak Gate Reverse Voltage (Reverse), V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –5.0V

Isolation Voltage (All Terminals to Base), V

ISOL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2500V

RMS

Operating Junction Temperature Range, T

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +125°C

Maximum Thermal Resistance (Per Module), Junction–to–Baseplate, R

thJC

NTE5708

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.40°C/W

NTE5714, NTE5724

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.14°C/W

NTE6222

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.25°C/W
