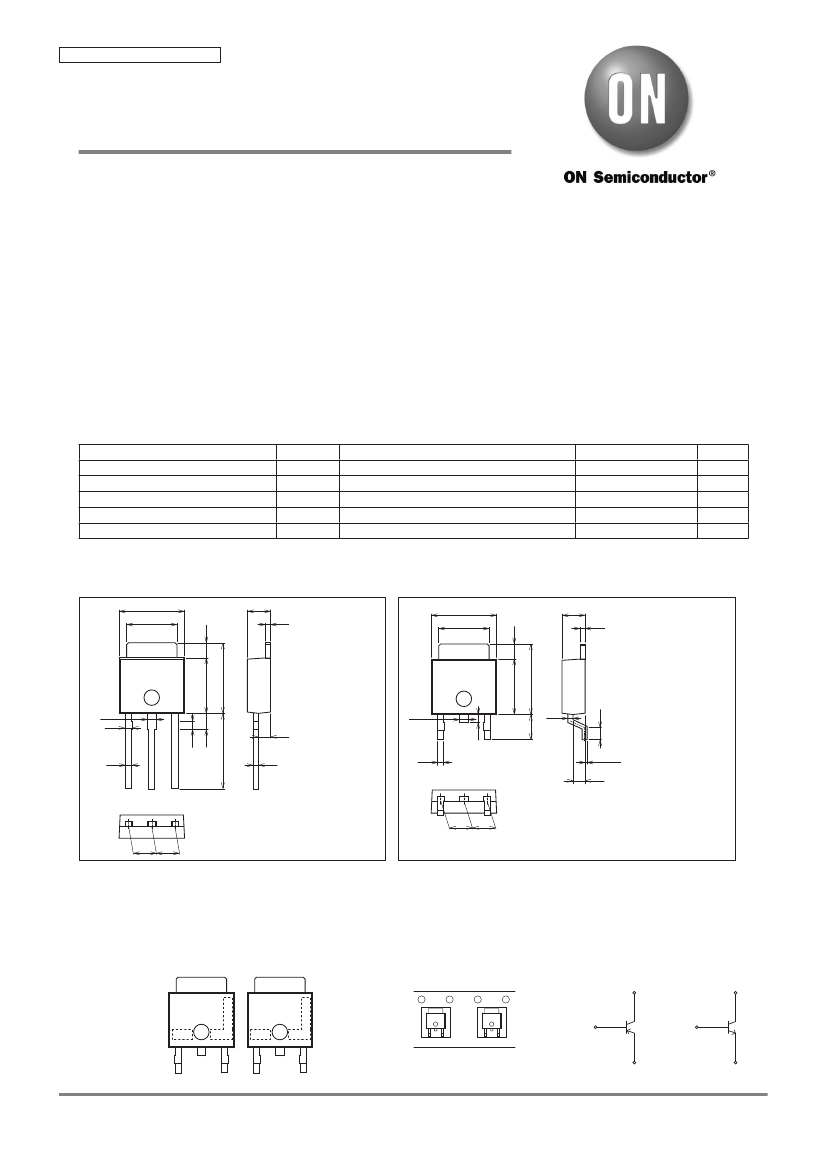

Ordering number : EN2085C
2SB1203/2SD1803
Bipolar Transistor
(–)50V, (–)5A, Low VCE(sat), (PNP)NPN Single TP/TP-FA
Applications
•
http://onsemi.com
Relay drivers, high-speed inverters, converters, and other general high-current switching applications
Features
•
•
•
•
High current and high fT
Low collector-to-emitter saturation voltage
•
Fast switching speed
Excellent linearity of hFE
Small and slim package making it easy to make 2SB1203/2SD1803-applied sets smaller
Specifications
( ): 2SB1203
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Symbol
VCBO
VCEO
VEBO
IC
ICP
Conditions
Ratings
(-
-)60
(--)50
(-
-)6
(--)5
(-
-)8
Unit
V
V
V
A
A
Continued on next page.
Package Dimensions
unit : mm (typ)
7518-003
6.5
5.0
4
2.3
1.5
0.5
Package Dimensions
unit : mm (typ)
7003-003
2SB1203S-E
2SB1203S-H
2SD1203T-E
2SD1203T-H
2SB1803S-E
2SB1803S-H
2SD1803T-E
2SD1803T-H
6.5
5.0
4
2.3
1.5
0.5
0.8
1.6
7.5
0.6
1
2
3
0.5
0.6
1
2
0.8
1.2
3
2.5
0.85
0.7
0.85
1.2
0.5
2SB1203S-TL-E
2SB1203S-Tl-H
2SB1203T-TL-E
2SB1203T-Tl-H
2SB1803S-TL-E
2SB1803S-Tl-H
2SB1803T-TL-E
2SB1803T-Tl-H
1 : Base
2 : Collector
3 : Emitter
4 : Collector
TP-FA
7.0
5.5
5.5
7.0
0 to 0.2
1.2
1 : Base
2 : Collector
3 : Emitter
4 : Collector
TP
2.3
2.3
2.3
2.3
Product & Package Information
• Package : TP
• JEITA, JEDEC : SC-64, TO-251
• Minimum Packing Quantity : 500 pcs./bag
• Package : TP-FA
• JEITA, JEDEC : SC-63, TO-252
• Minimum Packing Quantity : 700 pcs./reel
Marking
(TP, TP-FA)
B1203
RANK
LOT No.
Packing Type (TP-FA) : TL
D1803
RANK
LOT No.
Electrical Connection
2,4
2,4
1
TL
1
2SB1203
3
2SD1803
3
Semiconductor Components Industries, LLC, 2013
September, 2013
60612EA TKIM TA-4030, TA-4052/N2503TN (KT)/92098HA (KT)/8309MO/3097AT, TS No.2085-1/10
2SB1203 / 2SD1803
Continued from preceding page.
Parameter
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
PC
Tj
Tstg
Tc=25°C
Conditions
Ratings
1
20
150
-
-55 to +150
Unit
W
W
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-On Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
hFE1
hFE2
fT
Cob
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
ton
tstg
tf
Conditions
VCB=(--)40V, IE=0A
VEB=(--)4V, IC=0A
VCE=(--)2V, IC=(--)0.5A
VCE=(--)2V, IC=(--)4A
VCE=(--)5V, IC=(--)1A
VCB=(--)10V, f=1MHz
IC=(--)3A, IB=(--)0.15A
IC=(--)3A, IB=(--)0.15A
IC=(--)10μA, IE=0A
IC=(--)1mA, RBE=∞
IE=(--)10μA, IC=0A
See specified Test Circuit.
(--)60
(--)50
(--)6
(50)50
(450)500
(20)20
70*
35
(130)180
(60)40
(--280)220
(--)0.95
(--550)400
(--)1.3
MHz
pF
mV
V
V
V
V
ns
ns
ns
Ratings
min
typ
max
(-
-)1
(--)1
400*
Unit
μA
μA
*
: The 2SB1203/2SD1803 are classified by 0.5A hFE as follows :
Rank
hFE
Q
70 to 140
R
100 to 200
S
140 to 280
T
200 to 400
Switching Time Test Circuit
PW=20 s
D.C. 1%
INPUT
IB1
OUTPUT
IB2
VR
50
+
100 F
VBE= --5V
+
470 F
VCC=25V
RB
RL
IC=10IB1= --10IB2=2A
For PNP, the polarity is reversed.
Ordering Information
Device
2SB1203S-E
2SB1203S-H
2SD1203T-E
2SD1203T-H
2SB1803S-E
2SB1803S-H
2SD1803T-E
2SD1803T-H
2SB1203S-TL-E
2SB1203S-Tl-H
2SB1203T-TL-E
2SB1203T-Tl-H
2SB1803S-TL-E
2SB1803S-Tl-H
2SB1803T-TL-E
2SB1803T-Tl-H
Package
TP
TP
TP
TP
TP
TP
TP
TP
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
Shipping
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
memo
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
No.2085-2/10
2SB1203 / 2SD1803

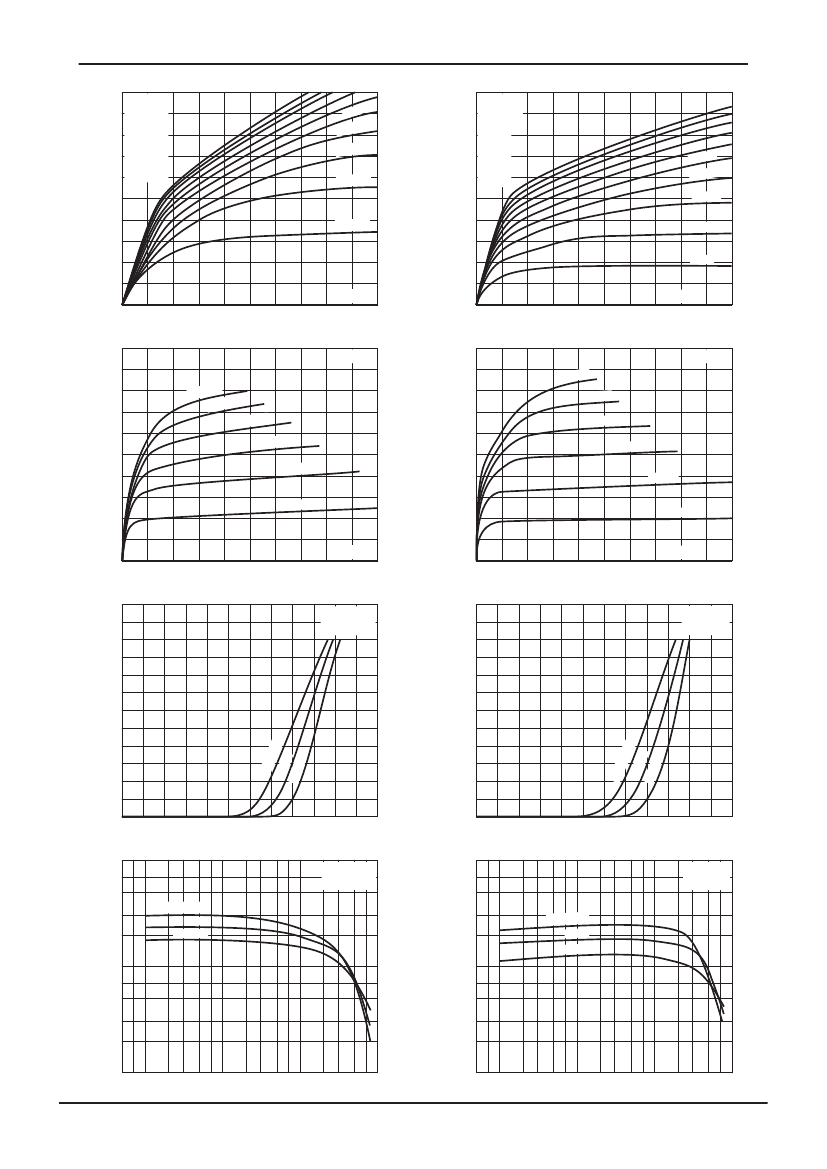

--5
IC -- VCE
2SB1203
From top
--100mA
--90mA
--80mA
--70mA
--60mA
A
--50m
--40mA
5
IC -- VCE
2SD1803
From top
50mA
45mA
40mA
35mA
30mA
Collector Current, IC -- A
--30mA
--20mA
Collector Current, IC -- A
--4
4
--3
3
25mA
20mA
15mA
2
--2
--10mA
10mA
--1
1
5mA
IB=0
0
0.4
0.8
1.2
1.6
2.0
ITR09181
0
IB=0
0
--0.4
--0.8
--1.2
--1.6
--2.0
ITR09180
0
Collector-to-Emitter Voltage, VCE -- V
--5
IC -- VCE
Collector-to-Emitter Voltage, VCE -- V
5
IC -- VCE
2SB1203
A
--30m
--25mA
2SD1803
30mA
--4
Collector Current, IC -- A
--3
--20mA
Collector Current, IC -- A
4
25mA
20mA
--15mA
--2
3
15mA
2
--10mA
--5mA
10mA
--1
1
5mA
0
IB=0
0
--2
--4
--6
--8
--10
ITR09182
0
IB=0
0
2
4
6
8
10
ITR09183
Collector-to-Emitter Voltage, VCE -- V
--6
IC -- VBE
Collector-to-Emitter Voltage, VCE -- V
6
IC -- VBE
--5
2SB1203
VCE= --2V
Collector Current, IC -- A
5
2SD1803
VCE=2V
Collector Current, IC -- A
--4
4
--3
3
Ta=
75
25
°
C
°
C
--25
°
C
--1
1
0
0
--0.2
--0.4
--0.6
--0.8
--1.0
--1.2
0
0
0.2
0.4
0.6
5
°
C
25
°
C
--25
°
C
0.8
1.0
--2
2
Ta=
7
1.2
ITR09185
Base-to-Emitter Voltage, VBE -- V

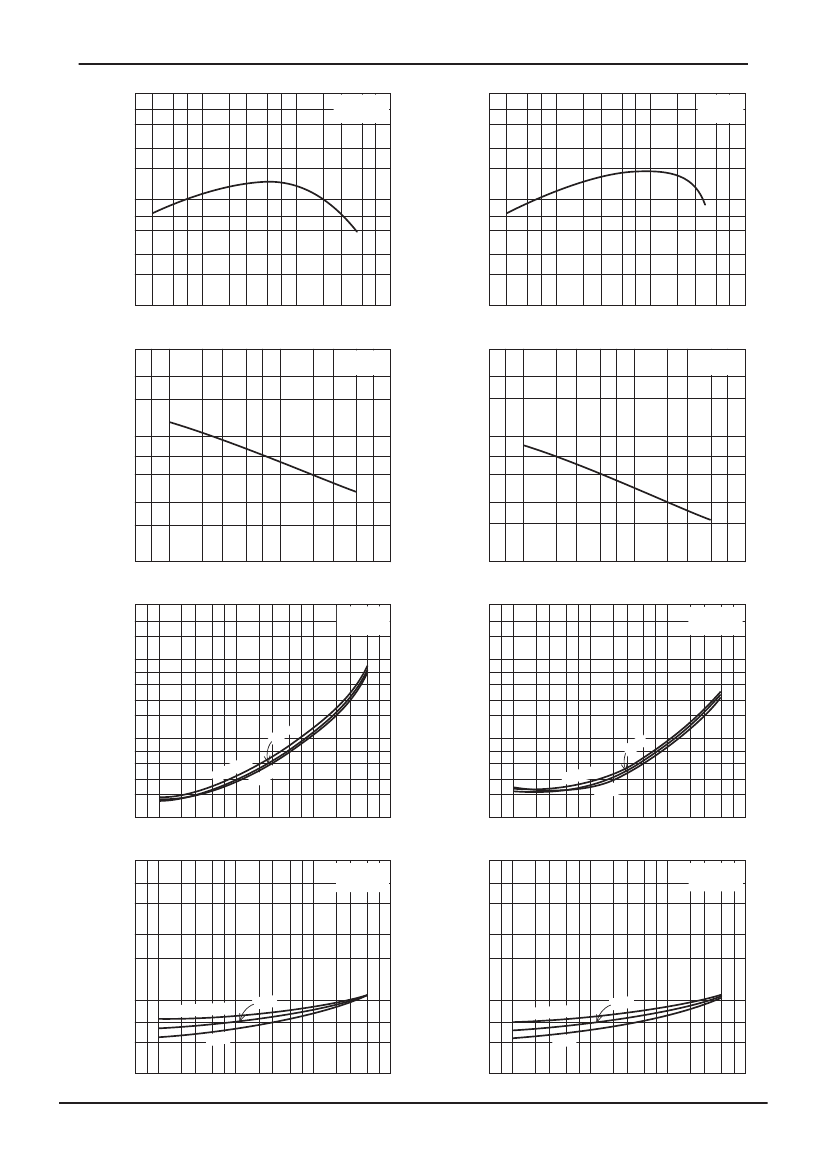

1000
7
5
hFE -- IC
ITR09184
1000
Base-to-Emitter Voltage, VBE -- V
hFE -- IC
2SB1203
VCE= --2V
DC Current Gain, hFE
7
5
3
2
2SD1803
VCE=2V
Ta=75
°
C
25
°
C
--25
°
C
DC Current Gain, hFE
3
2
Ta=75
°
C
25
°
C
--25
°
C
100
7
5
3
2
10
100
7
5
3
2
10
5 7--0.01
2
3
5 7 --0.1
2
3
5 7 --1.0
2
3
5 7 --10
ITR09186
5 7 0.01
2
3
5 7 0.1
2
3
5 7 1.0
2
3
Collector Current, IC -- A
Collector Current, IC -- A
5 7 10
ITR09187
No.2085-3/10
2SB1203 / 2SD1803
1000
7
f T -- IC
Gain-Bandwidth Product, f T -- MHz
2SB1203
VCE= --5V
1000
7
5
3
2
f T -- IC
2SD1803
VCE=5V
Gain-Bandwidth Product, f T -- MHz
5
3
2
100
7
5
3
2
10
100
7
5
3
2
10
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
Collector Current, IC -- A
5
3
Cob -- VCB
7 --10
ITR09188
5
2
3
5
7 0.1
2
3
5
7 1.0
2
3
Collector Current, IC -- A
5
3
Cob -- VCB
10
ITR09189
5
7
2SB1203
f=1MHz
Output Capacitance, Cob -- pF
2SD1803
f=1MHz
Output Capacitance, Cob -- pF
2
2
100
7
5
3
2
100
7
5
3
2
10
5
7 --1.0
2
3
5
7
--10
2
3
5
Collector-to-Base Voltage, VCB -- V
5
3
VCE(sat) -- IC
7 --100
ITR09190
10
5
7
1.0
2
3
5
7
10
2
3
5
Collector-to-Base Voltage, VCB -- V
5
100
ITR09191
7
VCE(sat) -- IC
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
2
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
2SB1203
IC / IB=20
3
2
1000
7
5
3
2
100
7
5
3
2
2SD1803
IC
/ IB=20
--1000
7
5
3
2
--100
7
5
3
2
--10
5 7--0.01
2
3
°
C
25
5
°
C
a=7
°
C
T
--25
°
C
25
°
C
Ta=75
C
--25
°
5 7 0.01
2
3
5 7 0.1
2
3
5 7 1.0
2
3
5 7 10
ITR09193
5 7 --0.1
2
3
5 7 --1.0
2
3
Collector Current, IC -- A
--10
VBE(sat) -- IC
5 7 --10
ITR09192
10
Collector Current, IC -- A
10
VBE(sat) -- IC
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
7
5
2SB1203
IC / IB=20
7
5
2SD1667
2SD1803
IC
/ IB=20
3
2
3
2
--1.0
7
5
3
Ta= --25
°
C
75
°
C
25
°
C
1.0
7
5
3
Ta= --25
°
C
25
°
C
75
°
C
5 7 0.01
2
3
5 7 0.1
2
3
5 7 1.0
2
3
5 7 10
ITR09195
5 7
--0.01
2
3
5 7 --0.1
2
3
5 7 --1.0
2
3
Collector Current, IC -- A
5 7 --10
ITR09194
Collector Current, IC -- A
No.2085-4/10
2SB1203 / 2SD1803
2
10
7
5
ASO
ICP
IC
DC
3
2
1.0
7
5
3
2
0.1
7
5
3
2
Collector Dissipation, PC -- W
100ms
Collector Current, IC -- A
2SB1203 / 2SD1803
1m
10
s
ms
DC
24
PC -- Ta
2SB1203 / 2SD1803
20
op
16
Id
era
t
ea
t
era
op
ion
lh
ea
Ta
=
12
td
25
°
C
iss
ion
5
°
C
=2
Tc
ip
ati
on
8
0.01
0.1
Tc=25
°
C
Single pulse
For PNP, the minus sign is omitted.
2
3
5
7 1.0
2
3
5
7 10
2
3
4
1
No heat sink
20
40
60
80
100
120
140
160
Collector-to-Emitter Voltage, VCE -- V
7 100
ITR09196
5
0
0
Ambient Temperature, Ta --
°
C
ITR09197
No.2085-5/10
