Jantxv2N6693

Description
Bipolar Transistors - BJT Power BJT
CategoryDiscrete semiconductor    The transistor
File Size59KB，2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

Jantxv2N6693 Online Shopping

Suppliers Part Number Price MOQ In stock
Jantxv2N6693 - - View Buy Now

Jantxv2N6693 Overview

Bipolar Transistors - BJT Power BJT

Jantxv2N6693 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeTO-63
package instructionPOST/STUD MOUNT, O-MUPM-X3
Contacts3
Reach Compliance Codecompliant
Shell connectionCOLLECTOR
Maximum collector current (IC)15 A
Collector-emitter maximum voltage400 V
ConfigurationSINGLE
Minimum DC current gain (hFE)8
JEDEC-95 codeTO-61
JESD-30 codeO-MUPM-X3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature200 °C
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Maximum power dissipation(Abs)175 W
Certification statusQualified
GuidelineMIL
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)15 MHz
Base Number Matches1

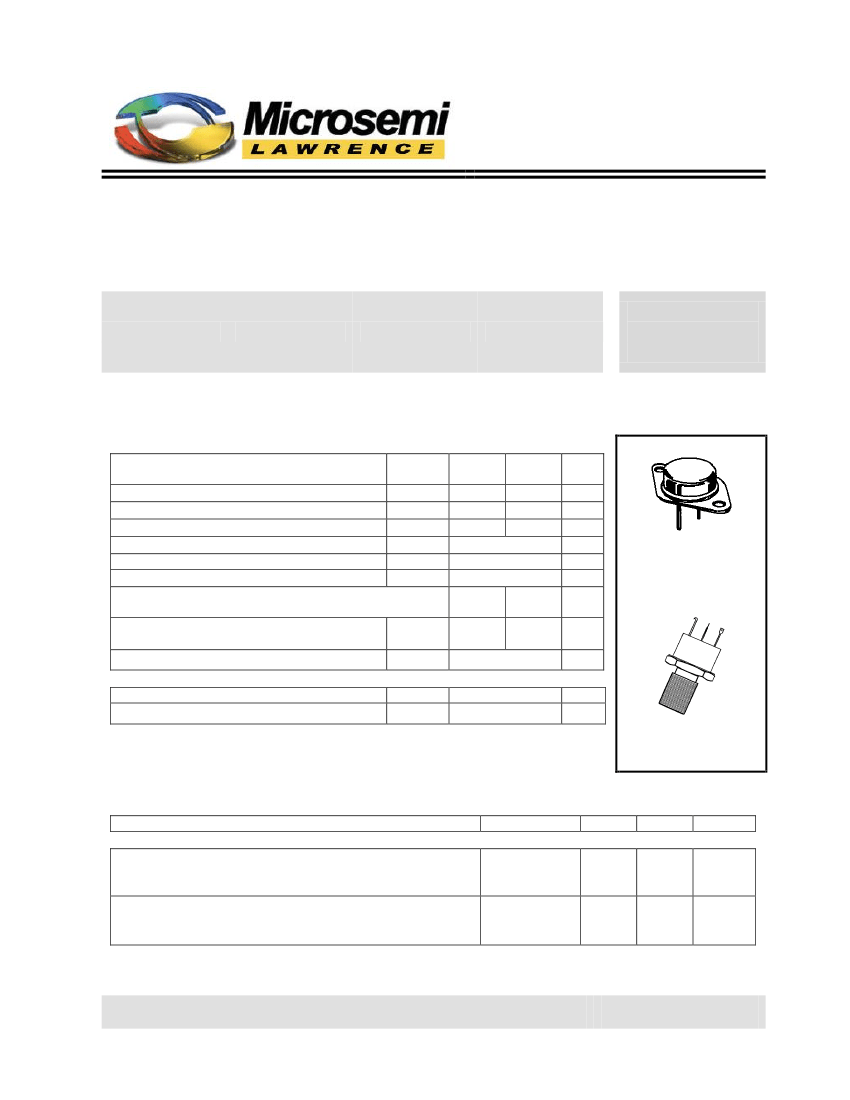

Preview

Download Datasheet
TECHNICAL DATA
NPN POWER SILICON TRANSISTOR
Qualified per MIL-PRF-19500/538
Devices
2N6676
2N6678
2N6691
2N6693
Qualified Level
JAN
JANTX
JANTXV
MAXIMUM RATINGS
Ratings
Collector-Emitter Voltage
Collector-Base Voltage
Collector-Base Voltage
Emitter-Base Voltage
Base Current
Collector Current
Symbol
V
CEO
V
CBO
V
CEX
V
EBO
I
B
I
C
2N6676 2N6678
2N6691 2N6693
300
400
450
650
450
650
8.0
5.0
15
2N6676 2N6691
2N6678 2N6693
6.0
(2)
3.0
(3)
175
175
-65 to +200
Max.
1.0
Unit
Vdc
Vdc
Vdc
Vdc
Adc
Adc
2N6676, 2N6678
TO-3 (TO-204AA)*
@ T
A
= 25
0
C
@ T
C
= 25
0
C
(1)
Operating & Storage Junction Temperature Range
Total Power Dissipation
P
T
T
op;
T
stg
Symbol
R
θ
JC
W
W
0
C
Unit
C/W
THERMAL CHARACTERISTICS
Characteristics
Thermal Resistance, Junction-to-Case
1) Derate linearly 1.0 W/
0
C for T
C
> 25
0
C
2) Derate linearly 34.2 mW/
0
C for T
A
> 25
0
C
3)
Derate linearly 17.1 mW/
0
C for T
A
> 25
0
C
0
2N6691, 2N6693
TO-61*
* See Appendix A for Package
Outline
ELECTRICAL CHARACTERISTICS (T
C
= 25
0
C unless otherwise noted)
Characteristics
Symbol
Min.
Max.
Unit
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
I
C
= 200 mAdc
Collector-Emitter Cutoff Current
V
CE
= 450 Vdc, V
BE
= 1.5 Vdc
V
CE
= 650 Vdc, V
BE
= 1.5 Vdc
2N6676, 2N6691
2N6678, 2N6693
2N6676, 2N6691
2N6678, 2N6693
V
(BR)
CEO
300
400
0.1
0.1
Vdc
I
CEX
mAdc
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803
120101
Page 1 of 2
