NTE5340 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> NTE5340

NTE5340: Description40 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size15KB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com; Environmental Compliance

Download Datasheet Parametric Compare View All

NTE5340 Overview

40 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE

NTE5340 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NTE
package instruction	S-XUFM-D4
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	QUICK CONNECT, WRAP-AROUND, SOLDER OR P.C. BOARD MOUNT OPTIONS ARE AVAILABLE
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	S-XUFM-D4
Maximum non-repetitive peak forward current	300 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	40 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

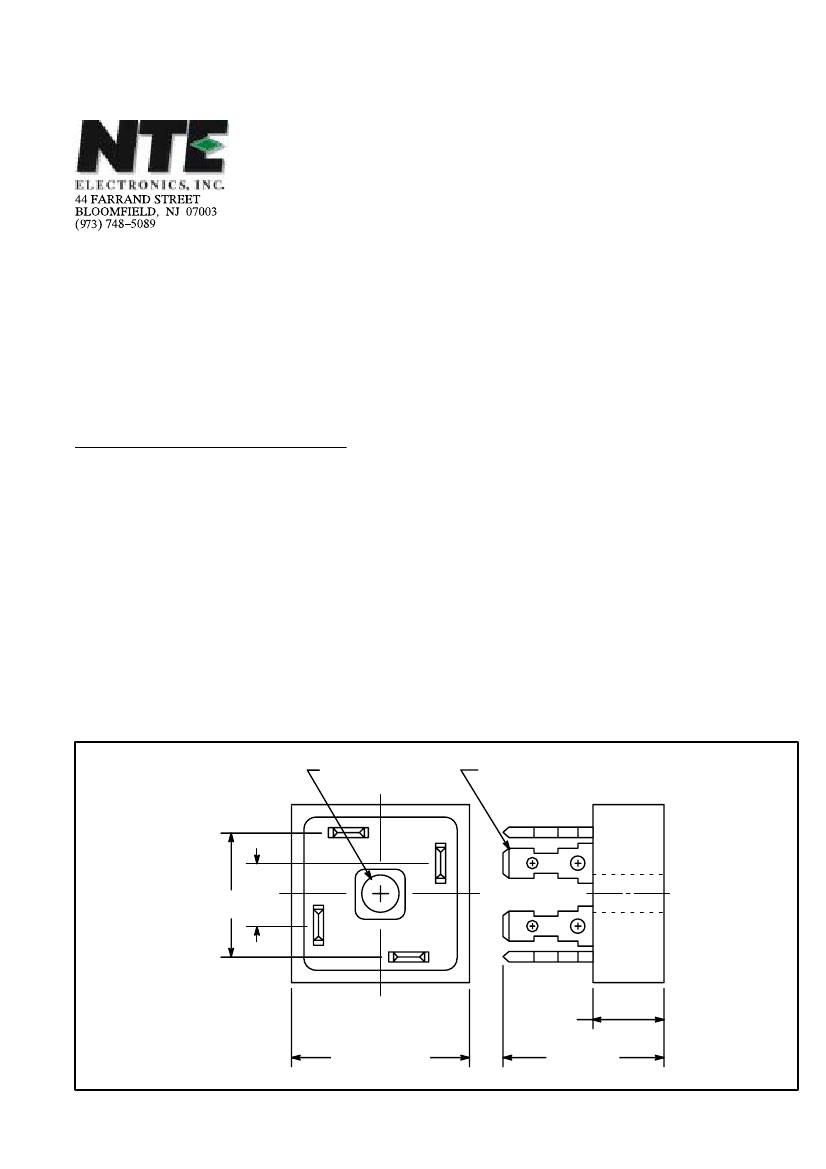

NTE5340/NTE5342/NTE5344

Silicon Bridge Rectifier

Single–Phase, 40 Amp

Electrical Characteristics Per Leg:

= +25°C, unless otherwise specified)

Peak Reverse Voltage, P

NTE5340 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V

NTE5342 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V

NTE5344 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V

Average Forward Current (T

= +55°C), I

F (AV)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40A

Maximum Peak Surge Current (8.3ms), I

FSM

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300A

Maximum Instantaneous Forward Voltage Drop (I

= 20A, Note 1), V

. . . . . . . . . . . . . . . . . . . 1.2V

Maximum DC Reverse Current @ P

, I

= +25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10µA

= +100°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100µA

Thermal Resistance (Total Bridge), R

ΘJC

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2°C/W

Maximum Operating Temperature, T

opr

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175°C

Storage Temperature Range, T

stg

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55° to +175°C

Note 1. Pulse Width < 300µs, Duty Cycle < 2.0%

.193 (4.9) Dia for

No. 8 Screw

.250 (6.35) Faston

(4 Places)

–

.370

(9.5)

.850

(21.5)

.400

(10.16)

1.125 (28.57) Sq.

1.000 (25.4)

NTE5340 Related Products

	NTE5340	NTE5342	NTE5344
Description	40 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE	40 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	40 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE
Maker	NTE	NTE	NTE
package instruction	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4
Reach Compliance Code	unknow	unknow	unknow
Other features	QUICK CONNECT, WRAP-AROUND, SOLDER OR P.C. BOARD MOUNT OPTIONS ARE AVAILABLE	QUICK CONNECT, WRAP-AROUND, SOLDER OR P.C. BOARD MOUNT OPTIONS ARE AVAILABLE	QUICK CONNECT, WRAP-AROUND, SOLDER OR P.C. BOARD MOUNT OPTIONS ARE AVAILABLE
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V
JESD-30 code	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4
Maximum non-repetitive peak forward current	300 A	300 A	300 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum output current	40 A	40 A	40 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	600 V	1000 V
surface mount	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER
Is it Rohs certified?	conform to	conform to	-
ECCN code	EAR99	EAR99	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
