88MG830B-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 88MG830B-D

88MG830B-D: DescriptionDC-DC Regulated Power Supply Module, 2 Output, Hybrid, DIP-7; CategoryPower/power management The power supply circuit; File Size889KB，42 Pages; ManufacturerMarvell; Websitehttp://www.marvell.com

Download Datasheet Parametric View All

88MG830B-D Overview

DC-DC Regulated Power Supply Module, 2 Output, Hybrid, DIP-7

88MG830B-D Parametric

Parameter Name	Attribute value
Maker	Marvell
Parts packaging code	DIP
package instruction	DIP-7
Contacts	7
Reach Compliance Code	compli
ECCN code	EAR99
Other features	3.3 LDO SECONDARY VOLTAGE AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	3 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-P7
Maximum load regulation	0.5%
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.63 V
Minimum output voltage	0.72 V
Nominal output voltage	2.5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

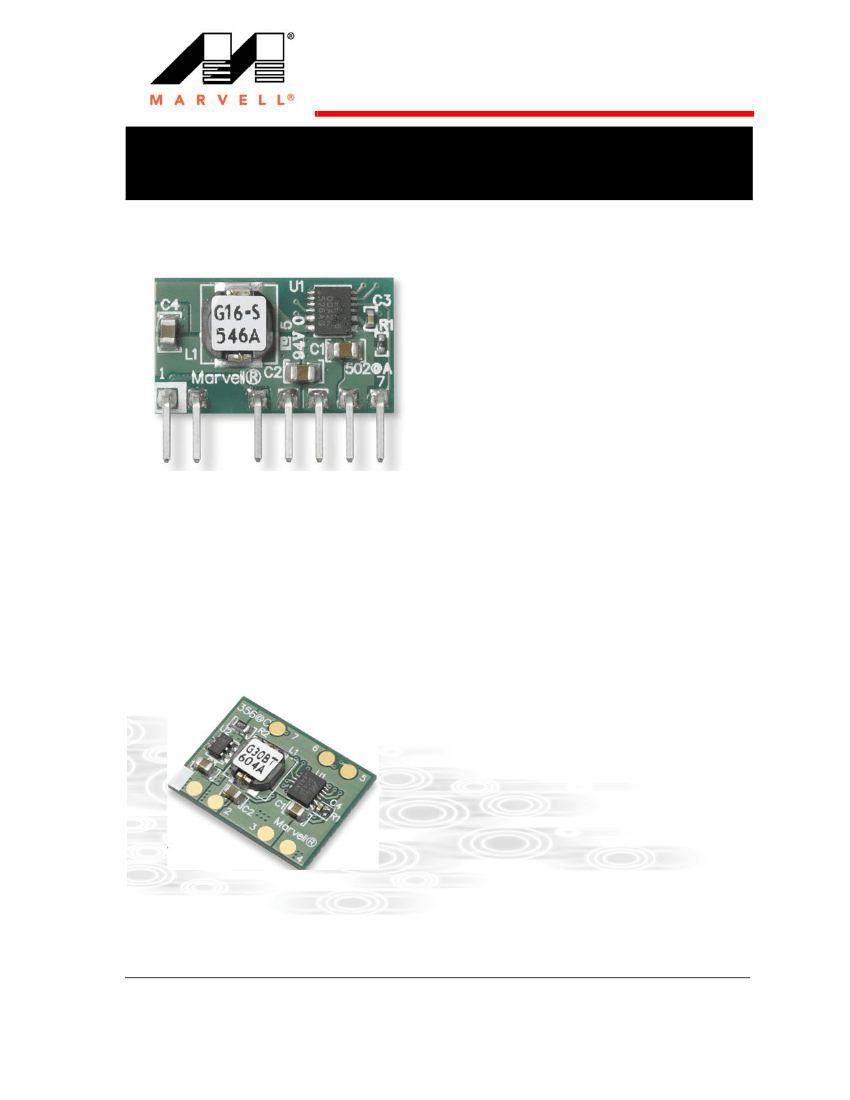

DSP Switcher™ Power Modules

88MG815/88MG816, 1A Rated Output Current

88MG830/88MG831, 2A Rated Output Current

Non Isolated, Step-Down Switching Regulator Module

with AnyVoltage™ Technology. Single and Dual Output

Voltage Versions

Preliminary Specifications, Patent Pending

Doc. No. MV-S101948-00, Rev. D

February 21, 2006

88MG815/88MG816/88MG830/88MG831

Non Isolated, Step-Down Switching Regulator Module with AnyVoltage™ Technology.

Single and Dual Output Voltage Versions

Document Status

Advance

Information

Preliminary

Information

Final

Information

Revision Code:

Preliminary

This document contains design specifications for initial product development. Specifications may change

without notice. Contact Marvell Field Application Engineers for more information.

This document contains preliminary data, and a revision of this document will be published at a later date.

Specifications may change without notice. Contact Marvell Field Application Engineers for more information.

This document contains specifications on a product that is in final release. Specifications may change without

notice. Contact Marvell Field Application Engineers for more information.

Rev. D

Technical Publication: 2.0

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express

written permission of Marvell. Marvell retains the right to make changes to this document at any time, without notice. Marvell makes no warranty of any kind, expressed or implied, with regard

to any information contained in this document, including, but not limited to, the implied warranties of merchantability or fitness for any particular purpose. Further, Marvell does not warrant the

accuracy or completeness of the information, text, graphics, or other items contained within this document.

Marvell products are not designed for use in life-support equipment or applications that would cause a life-threatening situation if any such products failed. Do not use Marvell products in these

types of equipment or applications.

With respect to the products described herein, the user or recipient, in the absence of appropriate U.S. government authorization, agrees:

1) Not to re-export or release any such information consisting of technology, software or source code controlled for national security reasons by the U.S. Export Control Regulations ("EAR"),

to a national of EAR Country Groups D:1 or E:2;

2) Not to export the direct product of such technology or such software, to EAR Country Groups D:1 or E:2, if such technology or software and direct products thereof are controlled for national

security reasons by the EAR; and,

3) In the case of technology controlled for national security reasons under the EAR where the direct product of the technology is a complete plant or component of a plant, not to export to EAR

Country Groups D:1 or E:2 the direct product of the plant or major component thereof, if such direct product is controlled for national security reasons by the EAR, or is subject to controls under

the U.S. Munitions List ("USML").

At all times hereunder, the recipient of any such information agrees that they shall be deemed to have manually signed this document in connection with their receipt of any such information.

PHYAdvantage, Prestera, Raising The Technology Bar, The Technology Within, Virtual Cable Tester, and Yukon are registered trademarks of Marvell. Ants, AnyVoltage, Discovery, DSP

Switcher, Feroceon, GalNet, GalTis, Horizon, Marvell Makes It All Possible, RADLAN, UniMAC, and VCT are trademarks of Marvell. All other trademarks are the property of their respective

owners.

Doc. No. MV-S101948-00 Rev. D

Page 2

Document Classification: Proprietary Information

February 21, 2006, Preliminary
