CY7C1423KV18/CY7C1424KV18
36-Mbit DDR II SIO SRAM Two-Word
Burst Architecture
36-Mbit DDR II SIO SRAM Two-Word Burst Architecture
Features
■
■
■
■
■
Configurations
CY7C1423KV18 – 2M × 18
CY7C1424KV18 – 1M × 36
36-Mbit density (2M × 18, 1M × 36)
333 MHz clock for high bandwidth
Two-word burst for reducing address bus frequency
Double data rate (DDR) interfaces (data transferred at
666 MHz) at 333 MHz
Two input clocks (K and K) for precise DDR timing
❐
SRAM uses rising edges only
Two input clocks for output data (C and C) to minimize clock
skew and flight time mismatches
Echo clocks (CQ and CQ) simplify data capture in high speed
systems
Synchronous internally self timed writes
DDR II operates with 1.5 cycle read latency when DOFF is
asserted HIGH
Operates similar to DDR I device with 1 cycle read latency when
DOFF is asserted LOW
1.8 V core power supply with HSTL inputs and outputs
Variable drive HSTL output buffers
Expanded HSTL output voltage (1.4 V to V
DD
)
❐
Supports both 1.5 V and 1.8 V IO supply
Available in 165-ball FBGA package (13 × 15 × 1.4 mm)
Offered in both Pb-free and non Pb-free packages
JTAG 1149.1 compatible test access port
Phase locked loop (PLL) for accurate data placement
Functional Description
The CY7C1423KV18, and CY7C1424KV18 are 1.8 V
synchronous pipelined SRAMs, equipped with DDR II SIO
(double data rate separate I/O) architecture. The DDR II SIO
consists of two separate ports: the read port and the write port to
access the memory array. The read port has data outputs to
support read operations and the write port has data inputs to
support write operations. The DDR II SIO has separate data
inputs and data outputs to completely eliminate the need to
“turnaround” the data bus required with common I/O devices.
Access to each port is accomplished through a common address
bus. Addresses for read and write are latched on alternate rising
edges of the input (K) clock. Write data is registered on the rising
edges of both K and K. Read data is driven on the rising edges
of C and C if provided, or on the rising edge of K and K if C/C are
not provided. Each address location is associated with two 18-bit
words in the case of CY7C1423KV18, and two 36-bit words in
the case of CY7C1424KV18 that burst sequentially into or out of
the device.
Asynchronous inputs include an output impedance matching
input (ZQ). Synchronous data outputs are tightly matched to the
two output echo clocks CQ/CQ, eliminating the need to capture
data separately from each individual DDR II SIO SRAM in the
system design. Output data clocks (C/C) enable maximum
system clocking and data synchronization flexibility.
All synchronous inputs pass through input registers controlled by
the K or K input clocks. All data outputs pass through output
registers controlled by the C or C (or K or K in a single clock
domain) input clocks. Writes are conducted with on-chip
synchronous self-timed write circuitry.
For a complete list of related documentation, click
here.
■
■
■
■
■
■
■
■
■
■
■
■
Selection Guide
Description
Maximum operating frequency
Maximum operating current
× 18
× 36
333 MHz
333
490
600
300 MHz
300
460
Not Offered
250 MHz
250
430
490
Unit
MHz
mA
Cypress Semiconductor Corporation
Document Number: 001-57829 Rev. *I
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised November 16, 2016
CY7C1423KV18/CY7C1424KV18

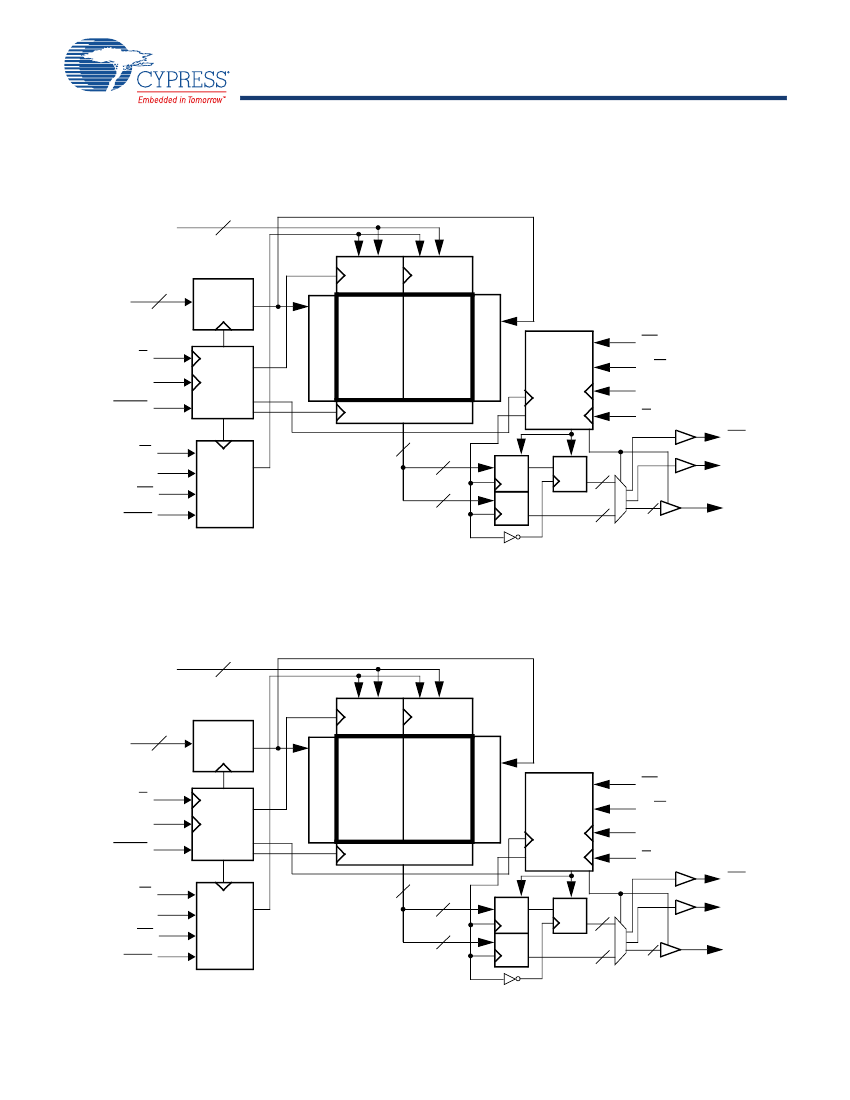

Logic Block Diagram – CY7C1423KV18
D
[17:0]
18
Write Add. Decode
Read Add. Decode
A
(19:0)
20
Address
Register
Write
Data Reg
Write
Data Reg
1M x 18 Array
1M x 18 Array
LD
Control
Logic
R/W
C
C
CQ
K
K
DOFF
R/W
V
REF
LD
BWS
[1:0]
Control
Logic
CLK
Gen.
Read Data Reg.
36
18
18
Reg.
Reg.
Reg. 18
18
CQ
18
Q
[17:0]
Logic Block Diagram – CY7C1424KV18
36
D
[35:0]
Write Add. Decode
Read Add. Decode
A
(18:0)
19
Address
Register
Write
Data Reg
Write
Data Reg
512K x 18 Array
512K x 18 Array
LD
Control
Logic
R/W
C
C
CQ
K
K
DOFF
R/W
V
REF
LD
BWS
[3:0]
Control
Logic
CLK
Gen.
Read Data Reg.
72
36
36
Reg.
Reg.
Reg. 36
36
CQ
36
Q
[35:0]
Document Number: 001-57829 Rev. *I
Page 2 of 31
CY7C1423KV18/CY7C1424KV18
Contents
Pin Configurations ........................................................... 4
Pin Definitions .................................................................. 5
Functional Overview ........................................................ 6
Read Operations ......................................................... 6
Write Operations ......................................................... 6
Byte Write Operations ................................................. 7
Single Clock Mode ...................................................... 7
DDR Operation ............................................................ 7
Depth Expansion ......................................................... 7
Programmable Impedance .......................................... 7
Echo Clocks ................................................................ 7
PLL .............................................................................. 7
Application Example ........................................................ 8
Truth Table ........................................................................ 9
Write Cycle Descriptions ................................................. 9
Write Cycle Descriptions ............................................... 10
IEEE 1149.1 Serial Boundary Scan (JTAG) .................. 11
Disabling the JTAG Feature ...................................... 11
Test Access Port ....................................................... 11
Performing a TAP Reset ........................................... 11
TAP Registers ........................................................... 11
TAP Instruction Set ................................................... 11
TAP Controller State Diagram ....................................... 13
TAP Controller Block Diagram ...................................... 14
TAP Electrical Characteristics ...................................... 14
TAP AC Switching Characteristics ............................... 15
TAP Timing and Test Conditions .................................. 16
Identification Register Definitions ................................ 17
Scan Register Sizes ....................................................... 17
Instruction Codes ........................................................... 17
Boundary Scan Order .................................................... 18
Power Up Sequence in DDR II SRAM ........................... 19
Power Up Sequence ................................................. 19
PLL Constraints ......................................................... 19
Maximum Ratings ........................................................... 20
Operating Range ............................................................. 20
Neutron Soft Error Immunity ......................................... 20
Electrical Characteristics ............................................... 20
DC Electrical Characteristics ..................................... 20
AC Electrical Characteristics ..................................... 22
Capacitance .................................................................... 22
Thermal Resistance ........................................................ 22
AC Test Loads and Waveforms ..................................... 22
Switching Characteristics .............................................. 23
Switching Waveforms .................................................... 25
Ordering Information ...................................................... 26
Ordering Code Definitions ......................................... 26
Package Diagram ............................................................ 27
Acronyms ........................................................................ 28
Document Conventions ................................................. 28
Units of Measure ....................................................... 28
Document History Page ................................................. 29
Sales, Solutions, and Legal Information ...................... 31
Worldwide Sales and Design Support ....................... 31
Products .................................................................... 31
PSoC®Solutions ....................................................... 31
Cypress Developer Community ................................. 31
Technical Support ..................................................... 31
Document Number: 001-57829 Rev. *I
Page 3 of 31
CY7C1423KV18/CY7C1424KV18
Pin Configurations
