Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8401506FEG

Preview

Z8401506FEG: DescriptionI/O Controller Interface IC 6 MHz Z80 IPC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，65 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

Z8401506FEG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z8401506FEG	-	-	View	Buy Now

Z8401506FEG Overview

I/O Controller Interface IC 6 MHz Z80 IPC

Z8401506FEG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	QFP, QFP100,.7X1.0
Contacts	100
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G100
JESD-609 code	e3
length	20 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	16
Number of serial I/Os	2
Number of terminals	100
Number of timers	1
On-chip data RAM width
On-chip program ROM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.7X1.0
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
rom(word)	0
speed	6 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

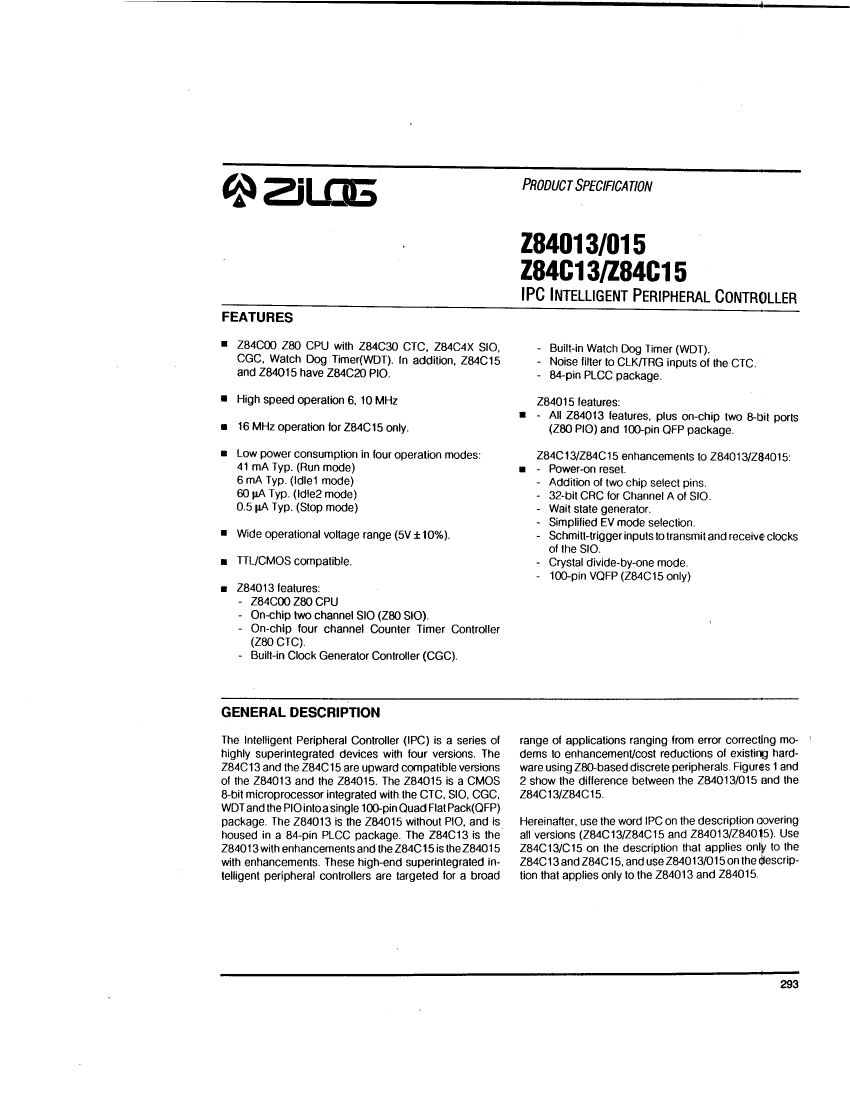

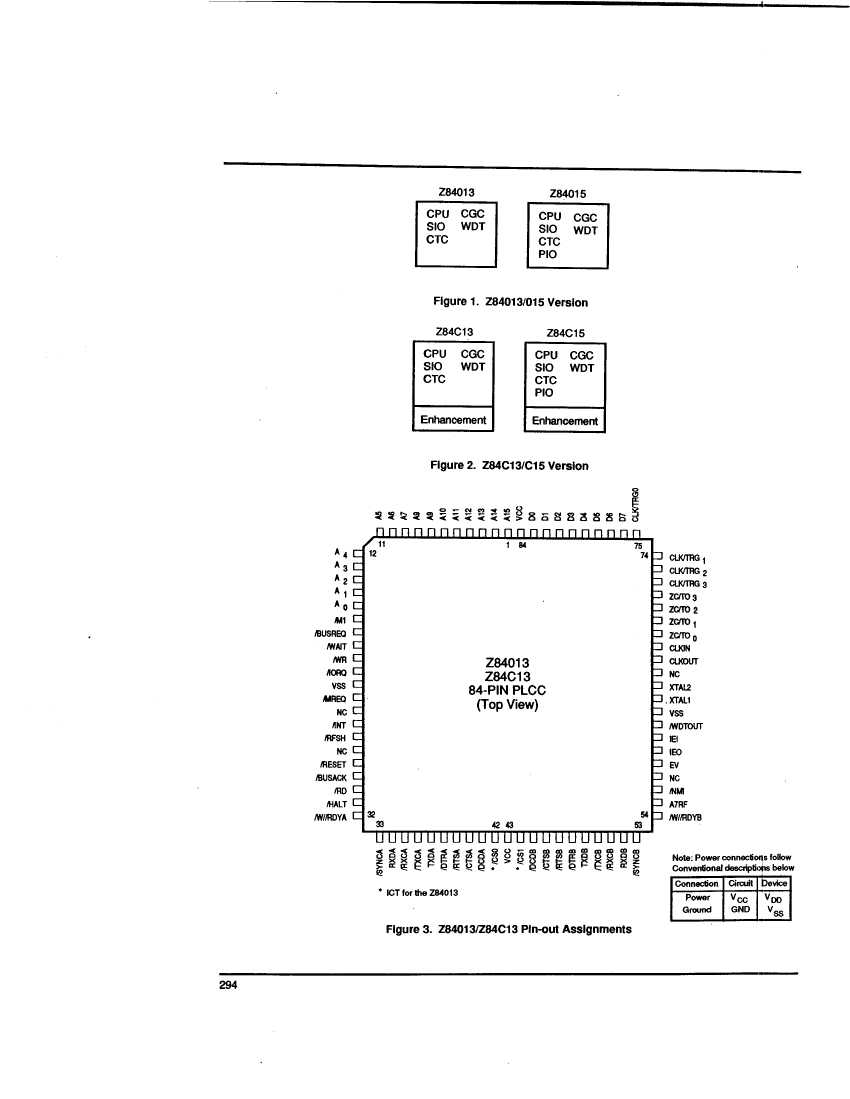

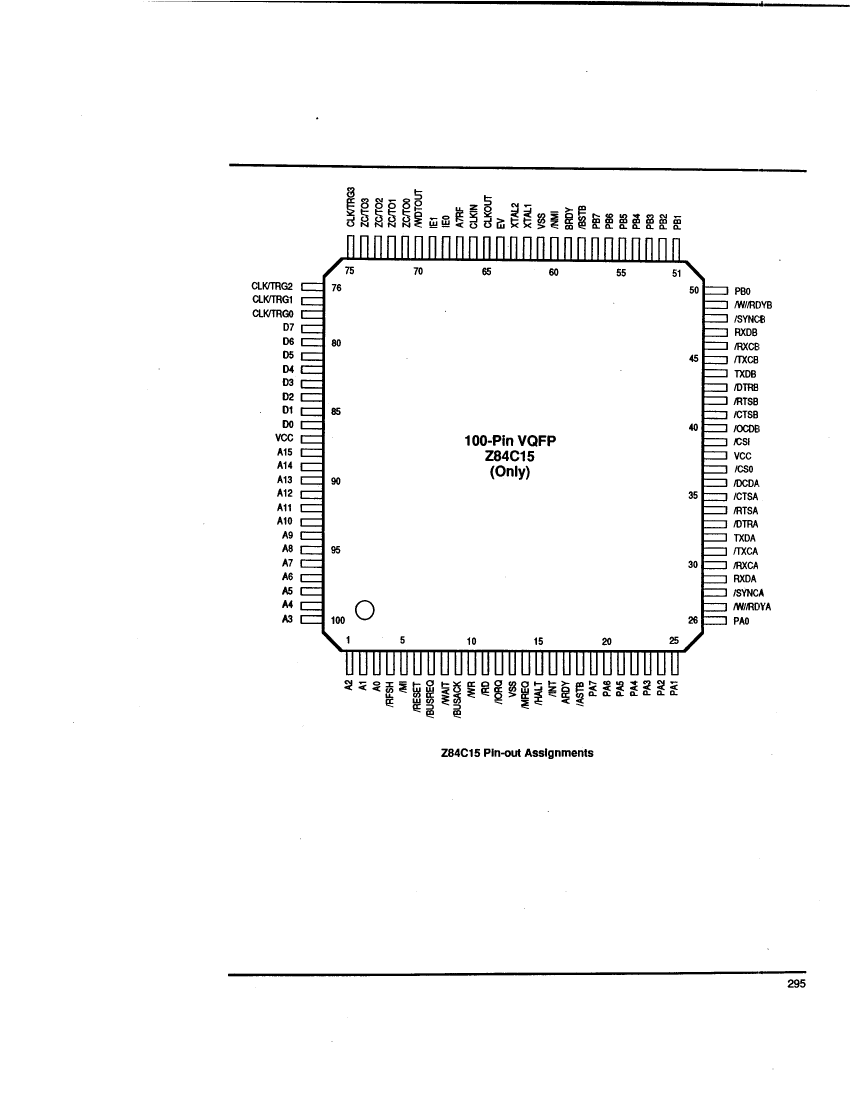

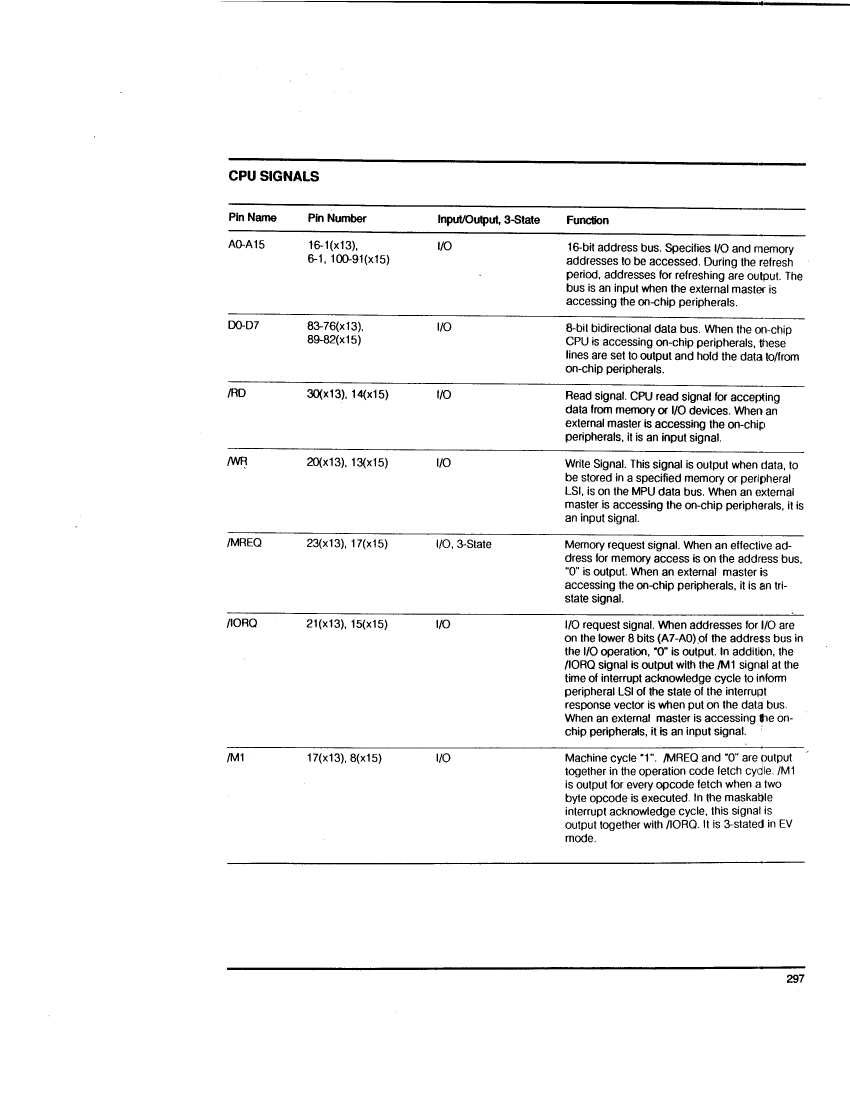

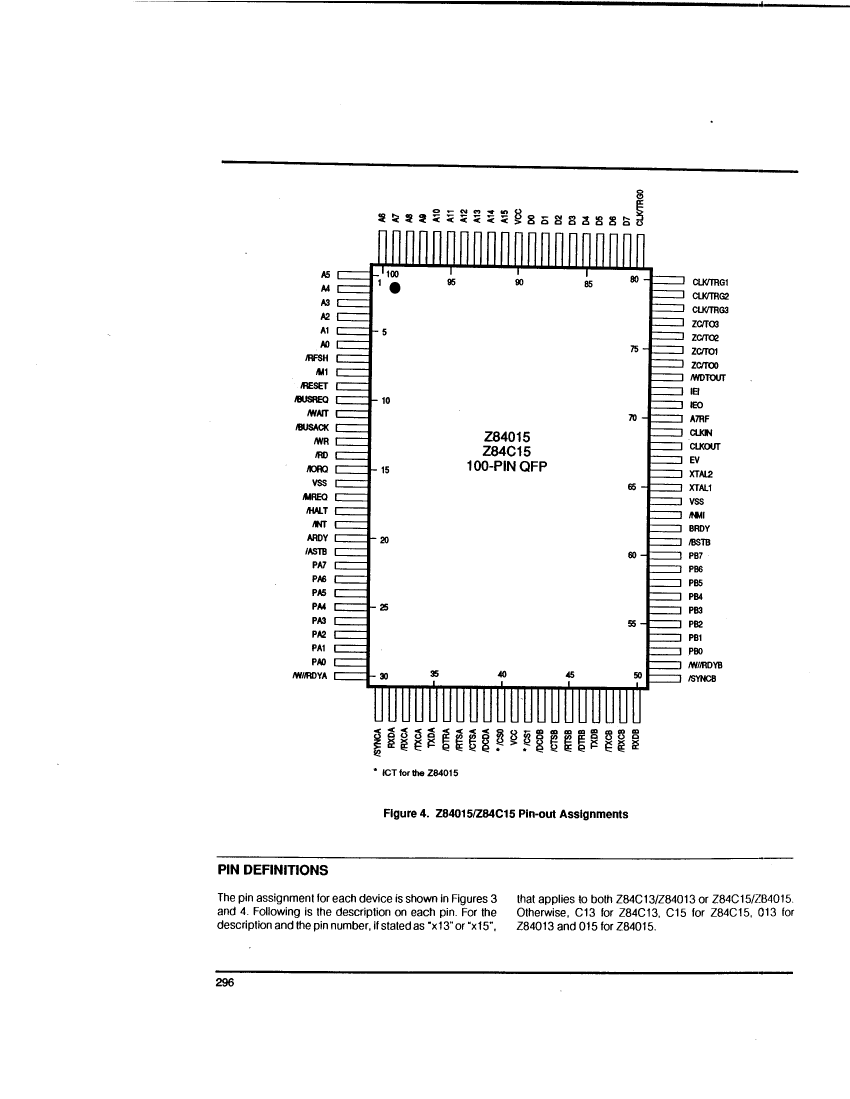

Preview

Download Datasheet

View All

PS018201-0602

Z8401506FEG Related Products

	Z8401506FEG	Z84C1506FEG	Z84C1516FSG	Z8401510FEG	Z84C1516ASG
Description	I/O Controller Interface IC 6 MHz Z80 IPC	I/O Controller Interface IC 6MHz Z80 IPC	ARM Microcontrollers - MCU ARM M4 1024 FLASH 168 Mhz 192kB SRAM	I/O Controller Interface IC 10 MHz Z80 IPC	I/O Controller Interface IC 16MHz Z80 IPC
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QFP	QFP	QFP	QFP	QFP
package instruction	QFP, QFP100,.7X1.0	QFP, QFP44,.47SQ,32	QFP, QFP100,.7X.9	QFP,	LFQFP, QFP100,.63SQ,20
Contacts	100	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16
bit size	8	8	8	8	8
maximum clock frequency	6 MHz	6 MHz	16 MHz	10 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	S-PQFP-G100
JESD-609 code	e3	e3	e3	e3	e3
length	20 mm	20 mm	20 mm	20 mm	14 mm
Number of I/O lines	16	16	16	16	16
Number of terminals	100	100	100	100	100
Maximum operating temperature	100 °C	100 °C	70 °C	100 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	LFQFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	6 MHz	6 MHz	16 MHz	10 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.65 mm	0.65 mm	0.65 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	40	40	40	40	40
width	14 mm	14 mm	14 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
boundary scan	NO	NO	-	NO	-
Format	FIXED POINT	FIXED POINT	-	FIXED POINT	-
Integrated cache	NO	NO	-	NO	-
low power mode	YES	YES	-	YES	-
Number of external interrupt devices	2	2	-	2	-
Number of serial I/Os	2	2	-	2	-
Number of timers	1	1	-	1	-
Encapsulate equivalent code	QFP100,.7X1.0	QFP44,.47SQ,32	QFP100,.7X.9	-	QFP100,.63SQ,20
power supply	5 V	5 V	5 V	-	5 V
Maximum slew rate	30 mA	30 mA	-	50 mA	-
Maximum seat height	-	3.1 mm	3.1 mm	-	1.6 mm
