2SAR543R
PNP -3.0A -50V Middle Power Transistor
Datasheet
l
Outline
Parameter
Value
TSMT3
V
CEO
I
C
-50V
-3A
SOT-346T
SC-96
l
Features
1)Suitable for Middle Power Driver
2)Complementary NPN Types:2SCR543R
3)Low saturation voltage
V
CE(sat)
=-400mV(Max.)
(I
C
/ I
B
=-2A/-100mA)
l
Inner circuit
l
Application
LOW FREQUENCY AMPLIFIER, HIGH SPEED SWITCHING
l
Packaging specifications
Part No.
2SAR543R
Package
TSMT3
Package
size
2928
Taping
code
TL
Reel size Tape width
(mm)
(mm)
180
8
Basic
ordering
unit.(pcs)
3000
Marking
MR
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/6
20150730 - Rev.002
2SAR543R
Datasheet
Unit
V
V
V
A
A
W
W
℃
℃
l
Absolute maximum ratings
(T
a
= 25°C)
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Power dissipation
Junction temperature
Range of storage temperature
l
Electrical characteristics
(T
a
= 25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP*1
P
D*2
P
D*3
T
j
T
stg
Values
-50
-50
-6
-3
-6
0.5
1.0
150
-55 to +150
Parameter
Collector-base breakdown
voltage
Collector-emitter breakdown
voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
Collector-emitter saturation voltage
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
V
CE(sat)
h
FE
f
T
C
ob
t
on
t
stg
t
f
Conditions
I
C
= -100μA
I
C
= -1mA
I
E
= -100μA
V
CB
= -50V
V
EB
= -4V
I
C
= -2A, I
B
= -100mA
V
CE
= -3V, I
C
= -100mA
V
CE
= -10V, I
E
= 300mA,
f = 100MHz
V
CB
= -10V, I
E
= 0mA,
f = 1MHz
I
C
= -2A,
I
B1
= -200mA,
I
B2
= 200mA,
V
CC
⋍
-10V,
R
L
= 4.7Ω
See test circuit
Min.
-50
-50
-6
-
-
-
180
-
-
-
-
-
Values
Typ.
-
-
-
-
-
-200
-
300
35
45
250
40
Max.
-
-
-
-1.0
-1.0
-400
450
-
-
-
-
-
Unit
V
V
V
μA
μA
mV
-
MHz
pF
ns
ns
ns
DC current gain
Transition frequency
Output capacitance
Turn-On time
Storage time
Fall time
*1 Pw=10ms, Single Pulse
*2 Mounted on a reference land
*3 Mounted on a ceramic board (40×40×0.7mm)
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
2/6
20150730 - Rev.002
2SAR543R
l
Electrical characteristic curves(T
a
= 25°C)
Datasheet

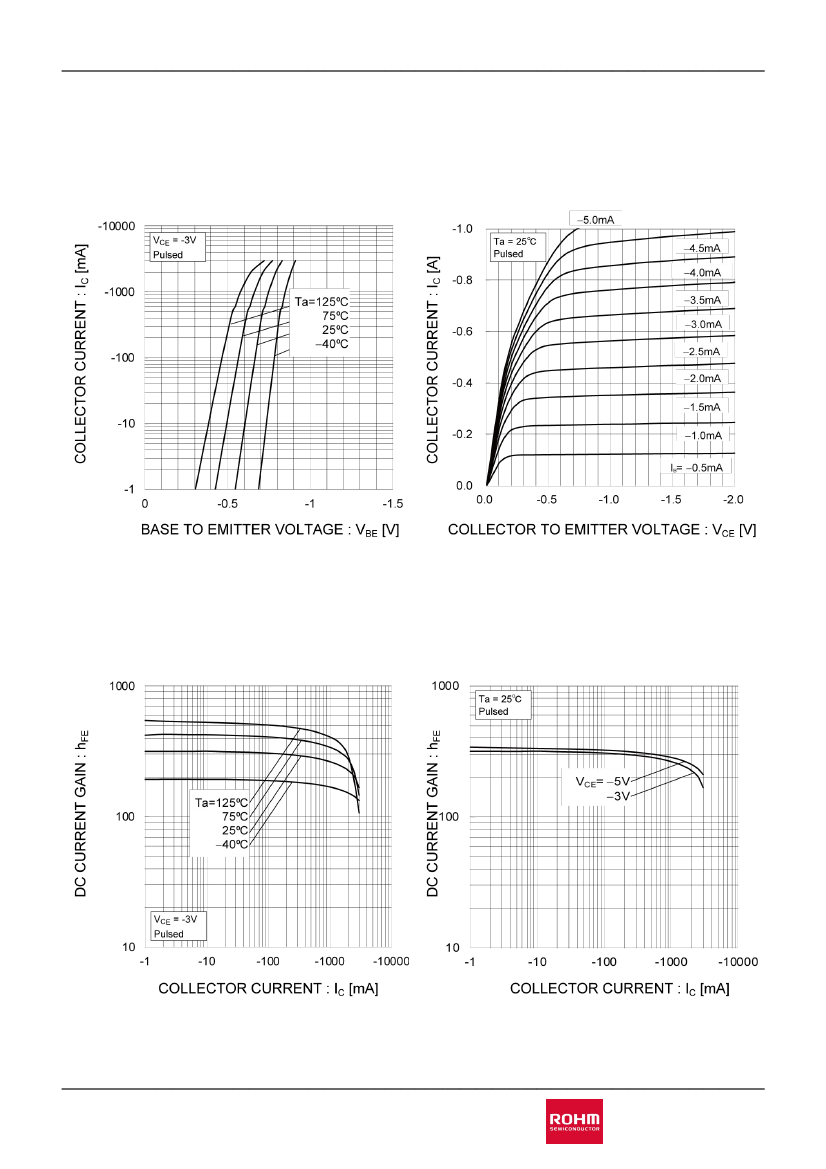

Fig.1 Ground Emitter Propagation
Characteristics
Fig.2 Typical Output Characteristics
Fig.3 DC Current Gain vs. Collector
Current (I)
Fig.4 DC Current Gain vs. Collector
Current (II)
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
3/6
20150730 - Rev.002
2SAR543R
l
Electrical characteristic curves(T
a
= 25°C)
Datasheet

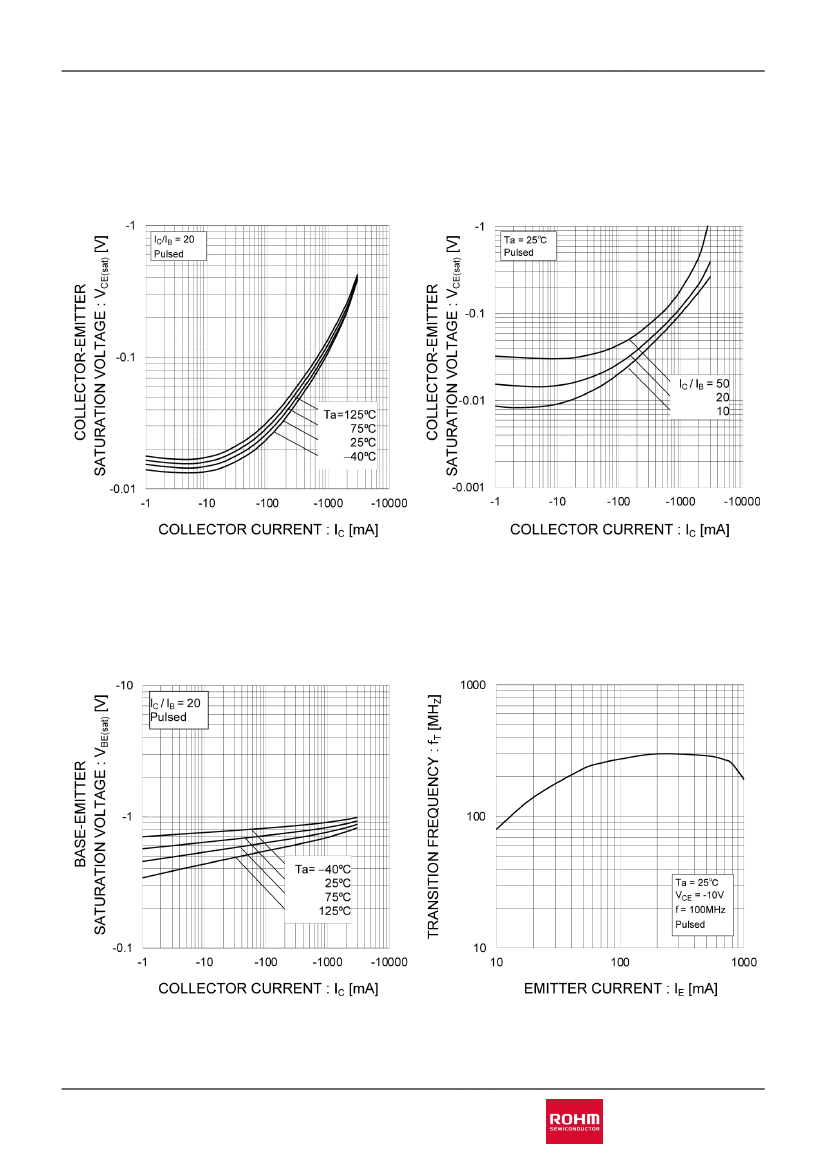

Fig.5 Collector-Emitter Saturation
Voltage vs. Collector Current (I)
Fig.6 Collector-Emitter Saturation
Voltage vs. Collector Current (II)
Fig.7 Base-Emitter Saturation Voltage
vs. Collector Current
Fig.8 Gain Bandwidth Product vs.
Emitter Current
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
4/6
20150730 - Rev.002
2SAR543R
l
Electrical characteristic curves(T
a
= 25°C)
Datasheet

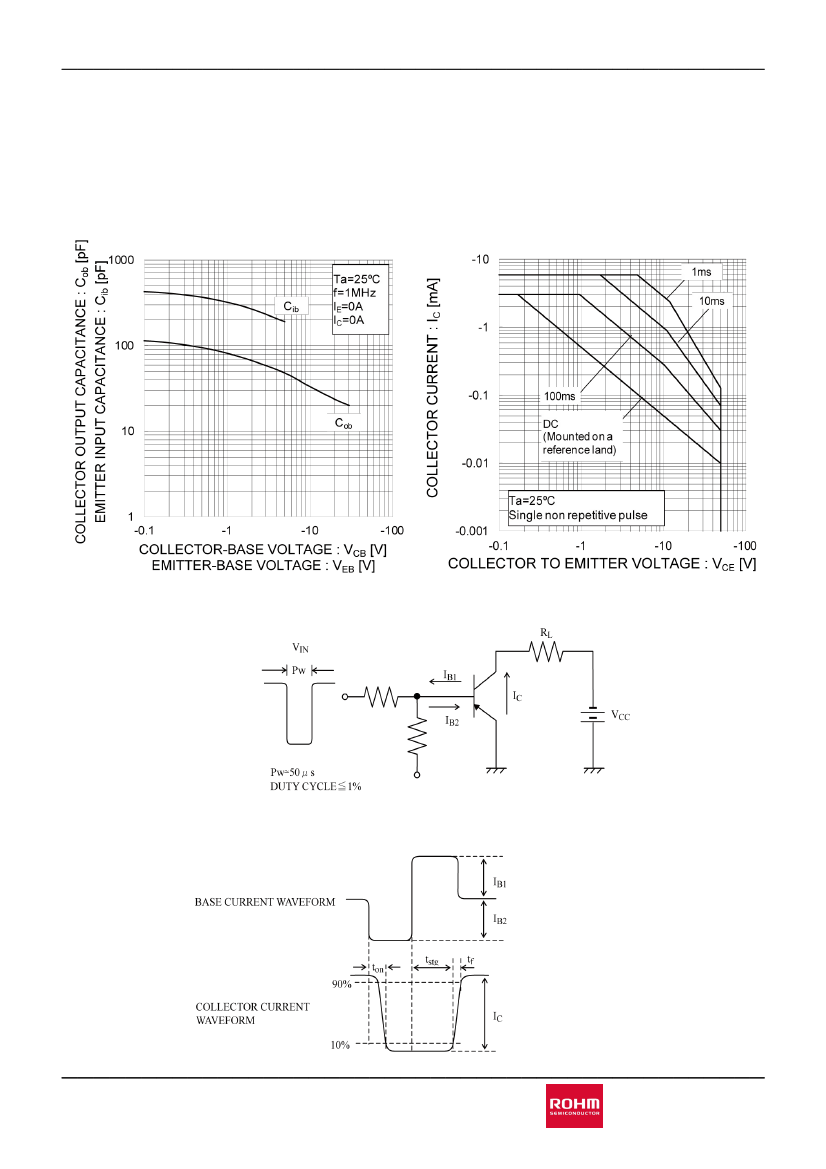

Fig.9 Emitter Input Capacitance vs.
Emitter-Base Voltage
Collector Output Capacitance vs.
Collector-Base Voltage
Fig.10 Safe Operating Area
SWITCHING TIME TEST CIRCUIT
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
5/6
20150730 - Rev.002
