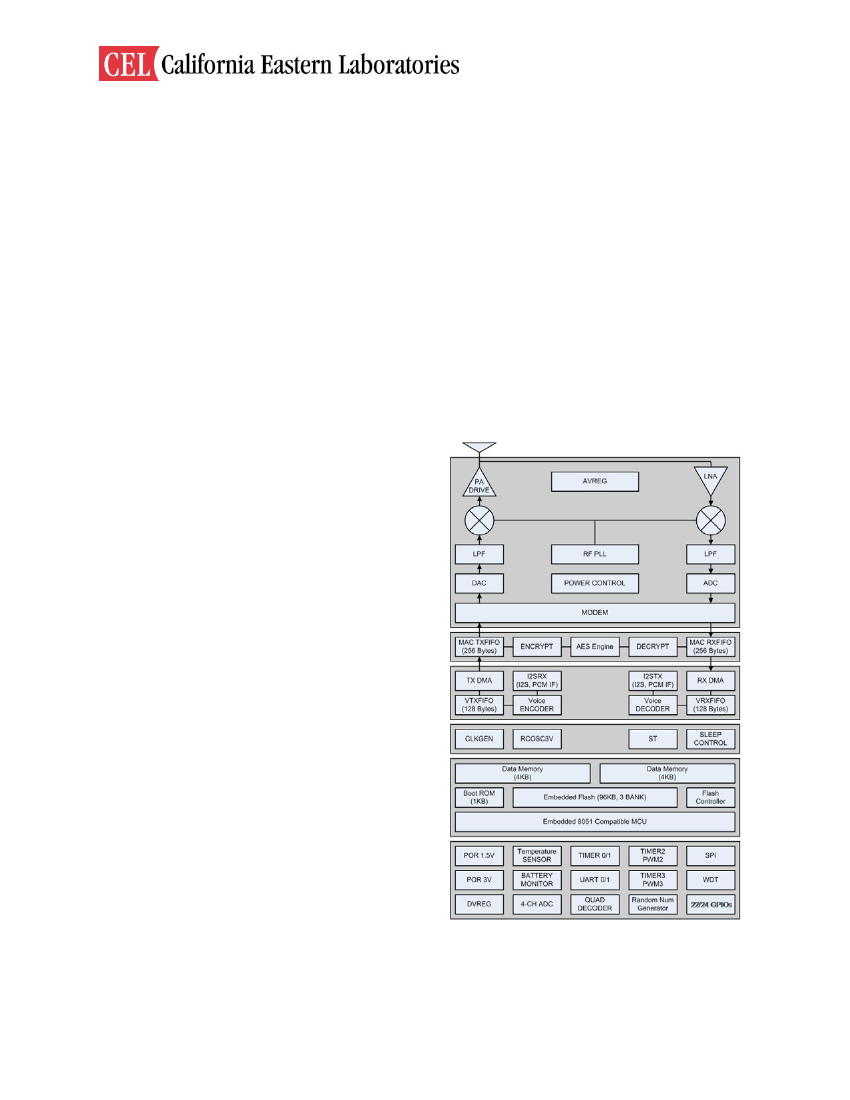

ZIC2410 Datasheet
APPLICATIONS
Home Automation and Security
Automatic Meter Reading
Factory Automation and Motor Control
Medical Patient Monitoring
Voice Applications
Replacement for legacy wired UART
Energy Management
Remote Keyless Entry w/
Acknowledgement
Toys
PC peripherals
peripheral functions such as timers and UART
and is one of the first devices to provide an
embedded Voice CODEC. This chip is ideal for
very low power applications.
The
ZIC2410
is available in two industry standard
packages: a 48-pin QFN (7x7mm) or a 72-pin
VFBGA (5x5mm) package.
CEL provides its customers with the
CEL ZigBee
Stack,
software in a compiled library, as well as all
the hardware & software tools required to develop
custom applications. User application software
can be compiled using any popular C-language
compiler such as Keil.
N
O
T
FO R
EC
R
N O
EW M
M
D EN
ES D
IG ED
N
KEY FEATURES
Embedded
8051 Compatible
Microprocessor
with 96KB Embedded
Flash Memory for Program Space plus
8KB of Data Memory
Scalable Data Rate:
250kbps for ZigBee,
500kbps and 1Mbps for custom
applications.
Voice Codec
Support:
µ-law/a-law/ADPCM
High RF
RX Sensitivity:
–98dBm @1.5V
High RF
TX Power:
+8dBm @1.5V
4 Level
Power Management
Scheme
with Deep Sleep Mode (0.3µA)
Single Voltage
operation: 1.9 to 3.3V
using an internal regulator (1.5V core)
Software
Tools and Libraries
for the
Development of Custom Applications
DESCRIPTION:
ZIC2410
is a true single-chip solution, compliant
with ZigBee specifications and IEEE802.15.4, a
complete wireless solution for all ZigBee
applications. The
ZIC2410
consists of an RF
transceiver with baseband modem, a hardwired
MAC and an embedded 8051 microcontroller with
internal flash memory.
The device provides
numerous
general-purpose
I/O
pins,
Rev A
FEATURES
RF Transceiver
Single-chip 2.4GHz RF Transceiver
Programmable Output Power up to
+8dBm@1.5V
High Sensitivity of –98dBm@1.5V
Scalable Data Rate: 250Kbps for ZigBee,
500Kbps and 1Mbps for custom application
On-chip VCO, LNA, and PA
Low Operating Voltage of 1.5V
Direct Sequence Spread Spectrum
O-QPSK Modulation
RSSI Measurement
Compliant to IEEE802.15.4
No External T/R Switch or Filter needed
4-channel 8-bit ADC
SPI Master/Slave Interface
ISP (In System Programming)
Internal Temperature Sensor
Clock Inputs
16MHz Crystal for System Clock
(optional 19.2MHz)
32.768KHz Crystal for Sleep Timer (optional)
N
O
T
FO R
EC
R
N O
EW M
M
D EN
ES D
IG ED
N
Power
Hardwired MAC
Two 256-byte circular FIFOs
FIFO management
AES Encryption/Decryption Engine (128bit)
CRC-16 Computation and Check
Internal Regulator for Single Voltage
Operation w/ a large input voltage range
(1.9~3.3V)
4-Level Power Management Scheme with
Deep Sleep Mode (0.3µA)
Separate On-chip Regulators for Analog and
Digital Circuitry.
Battery Monitoring Support
8051-Compatible Microcontroller
Included Software
8051 Compatible (single cycle execution)
96KB Embedded Flash Memory
8KB Data Memory
128-byte CPU dedicated Memory
1KB Boot ROM
Dual DPTR Support
Multi-Bank Support for 96KB Program
Memory (3Banks of 32KB)
I2S/PCM Interface with two128-byte FIFOs
µ-law/a-law/ADPCM Voice Codec
Two High-Speed UARTs with Two 16-byte
FIFOs (up to 1Mbps)
4 Timers/2 PWMs
Watchdog Timer
Sleep Timer
Quadrature Signal Decoder
24 General Purpose I/Os
Internal RC oscillator for Sleep Timer
On-chip Power-on-Reset
Application Framework
Software Tools
IEEE and ZigBee Compliant Libraries
Package Options
Lead-Free 48-pin QFN Package
(shown below)
(7mm x 7mm x 0.9mm)
Lead-Free 72-pin VFBGA Package
(5mm
×
5mm x 0.9mm)
ORDERING INFORMATION
Ordering Part Number
ZIC2410QN48R
ZIC2410FG72R
ZIC2410-EDK-1
Description
48-pin QFN Package (T/R)
72-pin VFBGA Package (T/R)
Demonstration Kit
Minimum Order Quantity (MOQ)
Tape & Reel (2500 per reel)
Tape & Reel (2500 per reel)
1
ZIC2410 Datasheet
Table of Contents
1
FUNCTIONAL DESCRIPTION ............................................... 5
1.1
1.2
FUNCTIONAL OVERVIEW ................................................................ 6
MEMORY ORGANIZATION ............................................................... 7
1.2.1
1.2.2
1.2.3
1.2.4
PROGRAM MEMORY .......................................................................... 7
DATA MEMORY .................................................................................... 8
GENERAL PURPOSE REGISTERS (GPR) ......................................... 9
SPECIAL FUNCTION REGISTERS (SFR) ......................................... 10
1.3
RESET ............................................................................................. 17
1.4
CLOCK SOURCE ............................................................................ 19
1.5
INTERRUPT SCHEMES .................................................................. 20
1.6
POWER MANAGEMENT ................................................................. 22
1.7
ON-CHIP PERIPHERALS ................................................................ 26
1.7.1 TIMER 0/1 ........................................................................................... 26
1.7.2 TIMER 2/3, PWN 2/3 .......................................................................... 29
1.7.3 WATCHDOG TIMER ........................................................................... 31
1.7.4 SLEEP TIMER .................................................................................... 32
1.7.5 INTERNAL RC OSCILLATOR............................................................. 33
1.7.6 UART0/1 ............................................................................................. 34
1.7.7 SPI MASTER/SLAVE .......................................................................... 39
1.7.8 VOICE ................................................................................................. 42
1.7.9 RANDOM NUMBER GENERATOR (RNG) ........................................ 51
1.7.10 QUAD DECODER .............................................................................. 52
1.7.11 INTERNAL VOLTAGE REGULATOR .................................................. 53
1.7.12 4-CHANNEL 8-BIT SENSOR ADC ..................................................... 54
1.7.13 ON-CHIP POWER-ON RESET ........................................................... 55
1.7.14 TEMPERATURE SENSOR ................................................................. 56
1.7.15 BATTERY MONITORING ................................................................... 57
1.8
MEDIUM ACCESS CONTROL LAYER (MAC) ................................. 58
1.8.1 RECEIVED MODE .............................................................................. 59
1.8.2 TRANSMIT MODE .............................................................................. 60
1.8.3 DATA ENCRYPTION AND DECRYPTION.......................................... 60
1.9
PHYSICAL LAYER (PHY) ................................................................ 66
1.9.1 INTERRUPT ....................................................................................... 68
1.9.2 REGISTERS ....................................................................................... 68
1.10
IN-SYSTEM PROGRAMMING (ISP)................................................ 88
1.11
ZIC2410 INSTRUCTION SET SUMMARY ....................................... 89
1.12
DIGITAL I/O...................................................................................... 92
N
O
T
FO R
EC
R
N O
EW M
M
D EN
ES D
IG ED
N
2
AC & DC CHARACTERISTICS............................................ 93
ABSOLUTE MAXIMUM RATINGS ................................................... 93
DC CHARACTERISTICS ................................................................. 93
ELECTRICAL SPECIFICATIONS .................................................... 94
2.3.1 ELECTRICAL SPECIFICATIONS with an 8MHz CLOCK ................... 94
2.3.2 ELECTRICAL SPECIFICATIONS with a 16MHz CLOCK ................... 97
2.3.3 AC CHARACTERISTICS .................................................................... 99
2.1
2.2
2.3
Rev A
Document No. 0005-05-07-00-000
Page 3 of 119
ZIC2410 Datasheet
3
PACKAGE & PIN DESCRIPTIONS.................................... 101
3.1
PIN ASSIGNMENTS ...................................................................... 101
3.1.1 QN48 Package ................................................................................. 101
3.1.2 FG72 Package .................................................................................. 104
3.2
PACKAGE INFORMATION ............................................................ 107
3.2.1 PACKAGE INFORMATION: ZIC2410QN48 (QN48pkg) .................. 107
3.2.2 PACKAGE INFORMATION: ZIC2410FG72 (FG72pkg) ................... 110
3.3
APPLICATION CIRCUITS ............................................................... 112
3.3.1 APPLICATION CIRCUITS (QN48 package) ..................................... 112
3.3.2 APPLICATION CIRCUITS (FG72 package) ..................................... 114
N
O
T
FO R
EC
R
N O
EW M
M
D EN
ES D
IG ED
N
4
REFERENCES ................................................................... 116
TABLE OF TABLES......................................................................... 116
TABLE OF FIGURES ...................................................................... 117
TABLE OF EQUATIONS ................................................................. 119
4.1
4.2
4.3
5
REVISION HISTORY .......................................................... 119
Rev A
Document No. 0005-05-07-00-000
Page 4 of 119
ZIC2410 Datasheet
1 FUNCTIONAL DESCRIPTION
Figure 1 shows the block diagram of ZIC2410. The ZIC2410 consists of a 2.4GHz RF, Modem
(PHY Layer), a MAC hardware engine, a Voice CODEC block, Clocks, Peripherals, and a
memory and Microcontroller (MCU) block.
N
O
T
FO R
EC
R
N O
EW M
M
D EN
ES D
IG ED
N

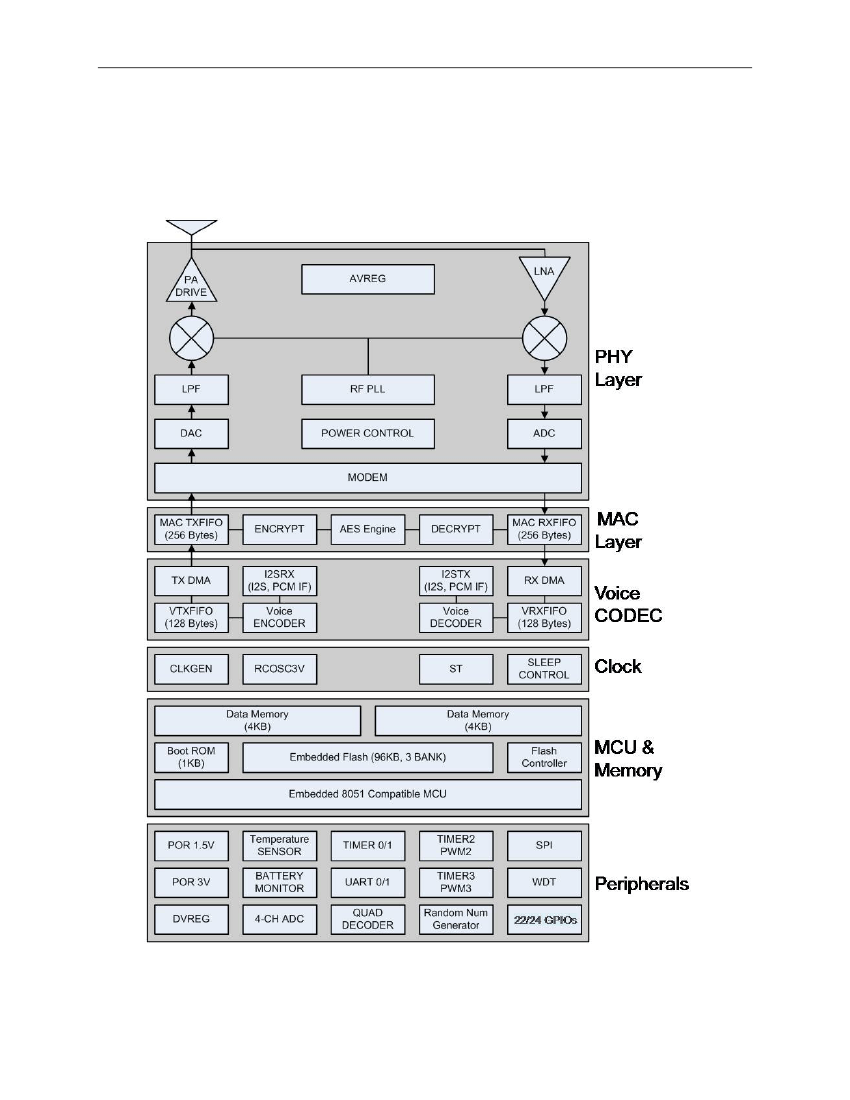

Figure 1 – Functional Block Diagram of ZIC2410
Note:
The ZIC2410QN48 has 22 GPIOs; the ZIC2410FG72 has 24.
Rev A
Document No. 0005-05-07-00-000
Page 5 of 119
