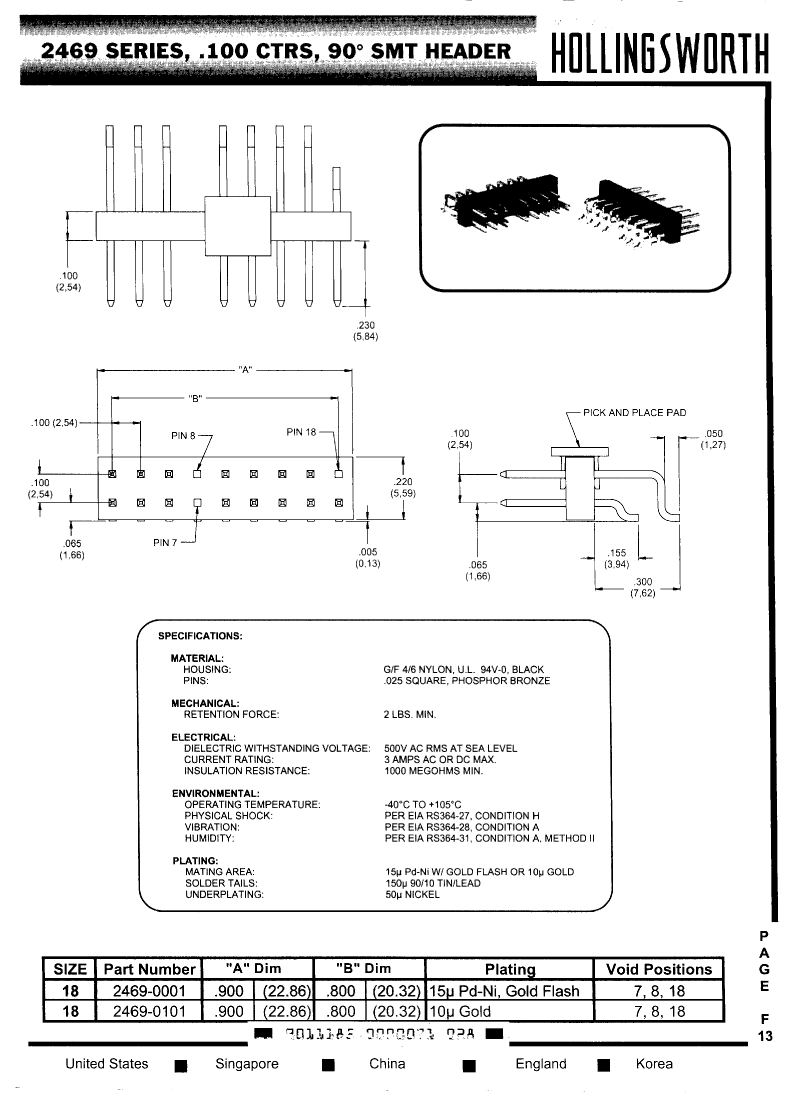

2469-0101: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Black Insulator, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerElectro-Term/Hollingsworth

Download Datasheet Parametric Compare View All

2469-0101 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Black Insulator, Receptacle

2469-0101 Parametric

Parameter Name	Attribute value
Maker	Electro-Term/Hollingsworth
Reach Compliance Code	unknown
Other features	PICK AND PLACE PAD
body width	0.22 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	2469
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

2469-0101 Related Products

	2469-0101	2469-0001
Description	Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Black Insulator, Receptacle	Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Black Insulator, Receptacle
Maker	Electro-Term/Hollingsworth	Electro-Term/Hollingsworth
Reach Compliance Code	unknown	unknown
Other features	PICK AND PLACE PAD	PICK AND PLACE PAD
body width	0.22 inch	0.22 inch
body length	0.9 inch	0.9 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU-PD-NI ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON
Manufacturer's serial number	2469	2469
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	FLASH inch
polarization key	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	3 A	3 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm
Total number of contacts	18	18
Base Number Matches	1	1
