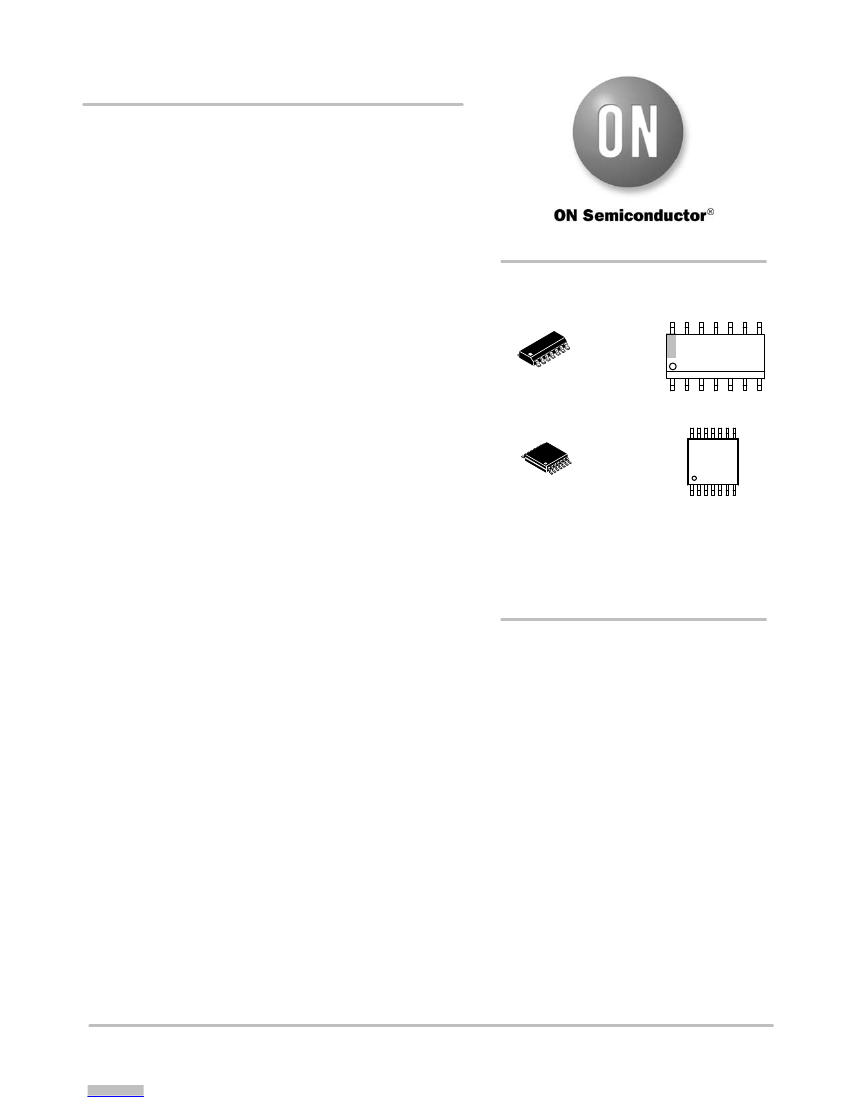

MC74LCX08
Low-Voltage CMOS Quad
2-Input AND Gate
With 5 V−Tolerant Inputs
The MC74LCX08 is a high performance, quad 2−input AND gate
operating from a 2.3 to 3.6 V supply. High impedance TTL compatible
inputs significantly reduce current loading to input drivers while TTL
compatible outputs offer improved switching noise performance. A V
I
specification of 5.5 V allows MC74LCX08 inputs to be safely driven
from 5.0 V devices.
Current drive capability is 24 mA at the outputs.
14
http://onsemi.com
MARKING
DIAGRAMS
14
SOIC−14
D SUFFIX
CASE 751A
1
LCX08G
AWLYWW
Features
•
•
•
•
•
•
1
Designed for 2.3 V to 3.6 V V
CC
Operation
5.0 V Tolerant Inputs − Interface Capability With 5.0 V TTL Logic
LVTTL Compatible
LVCMOS Compatible
24 mA Balanced Output Sink and Source Capability
14
1
TSSOP−14
DT SUFFIX
CASE 948G
14
LCX
08
ALYWG
G
Near Zero Static Supply Current (10
mA)
Substantially Reduces
System Power Requirements
•
Latchup Performance Exceeds 500 mA
1
•
ESD Performance:
Human Body Model >2000 V
Machine Model >200 V
•
NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
A
= Assembly Location
L, WL = Wafer Lot
Y
= Year
W, WW = Work Week
G or
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
