S2G_Q: DescriptionRectifiers 400V 1.5a Rectifier Glass Passivated; Categorysemiconductor Discrete semiconductor; File Size148KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

S2G_Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S2G_Q	-	-	View	Buy Now

S2G_Q Overview

Rectifiers 400V 1.5a Rectifier Glass Passivated

S2G_Q Parametric

Parameter Name	Attribute value
Product Category	Rectifiers
Manufacturer	Fairchild
RoHS	No
Mounting Style	SMD/SMT
Package / Case	SMB
Vr - Reverse Voltage	400 V
If - Forward Current	2 A
Type	Standard Recovery Rectifiers
Configuration	Single
Vf - Forward Voltage	1.15 V
Max Surge Current	50 A
Ir - Reverse Current	1 uA
Recovery Time	2000 ns
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C
Packaging	Reel
Height	2.45 mm
Length	4.75 mm
Product	Rectifiers
Factory Pack Quantity	3000
Width	3.95 mm
Unit Weight	0.006349 oz

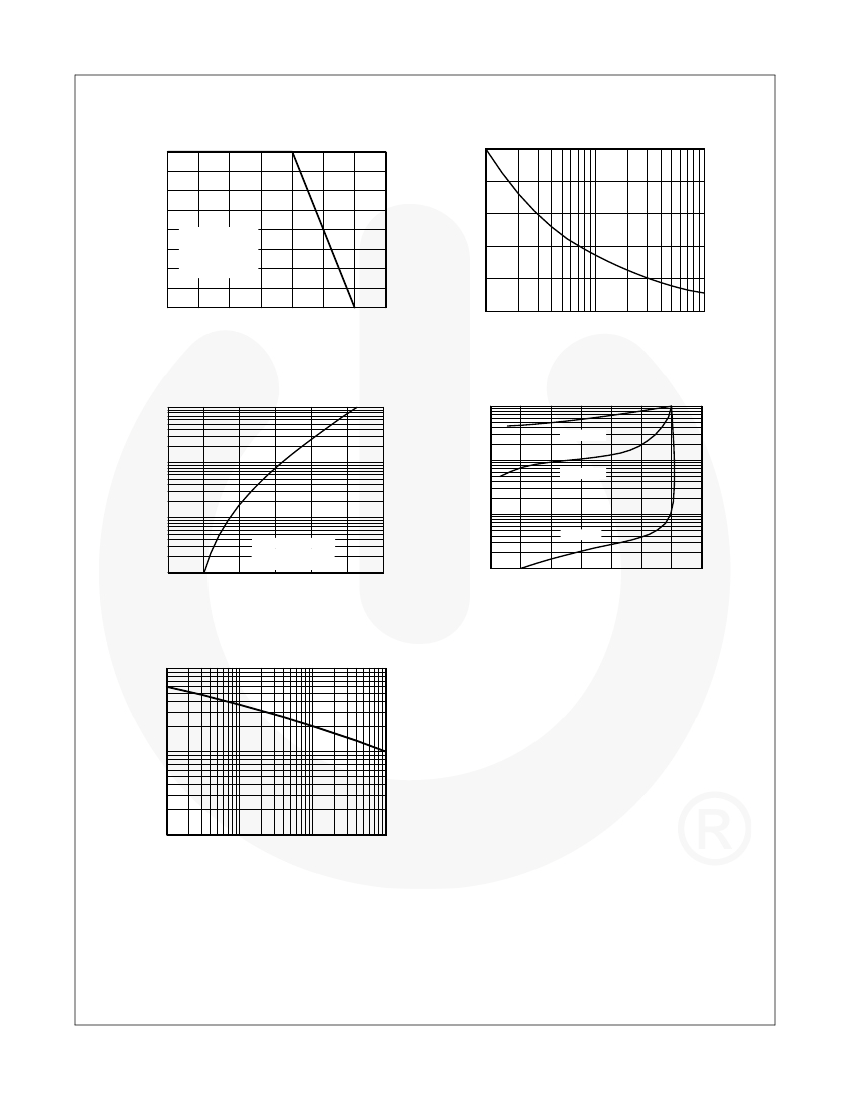

Preview

Download Datasheet

View All

S2A - S2M — General-Purpose Rectifiers (Glass Passivated)

January 2014

S2A - S2M

General-Purpose Rectifiers (Glass Passivated)

Features

• High-Current Capability, 2 A Rated

• Fast Response: 2

μs

• Low-Forward Voltage Drop, 1.15 V V

Max at 2 A

• High-Surge Current Capability, 50 A

s I

FSM

• Glass Passivated Junction

• RoHS Compliant

Description

The S2 family of devices are general-purpose 2 A rated

rectifiers with voltage ratings ranging from 50 to 1000 V.

They are implemented in traditional SMB packages and

are well known to the industry. For advanced or special

requirements, please contact a Fairchild Semiconductor

representative.

Applications

• Power Supplies

• AC to DC Rectification

• Bypass Diodes

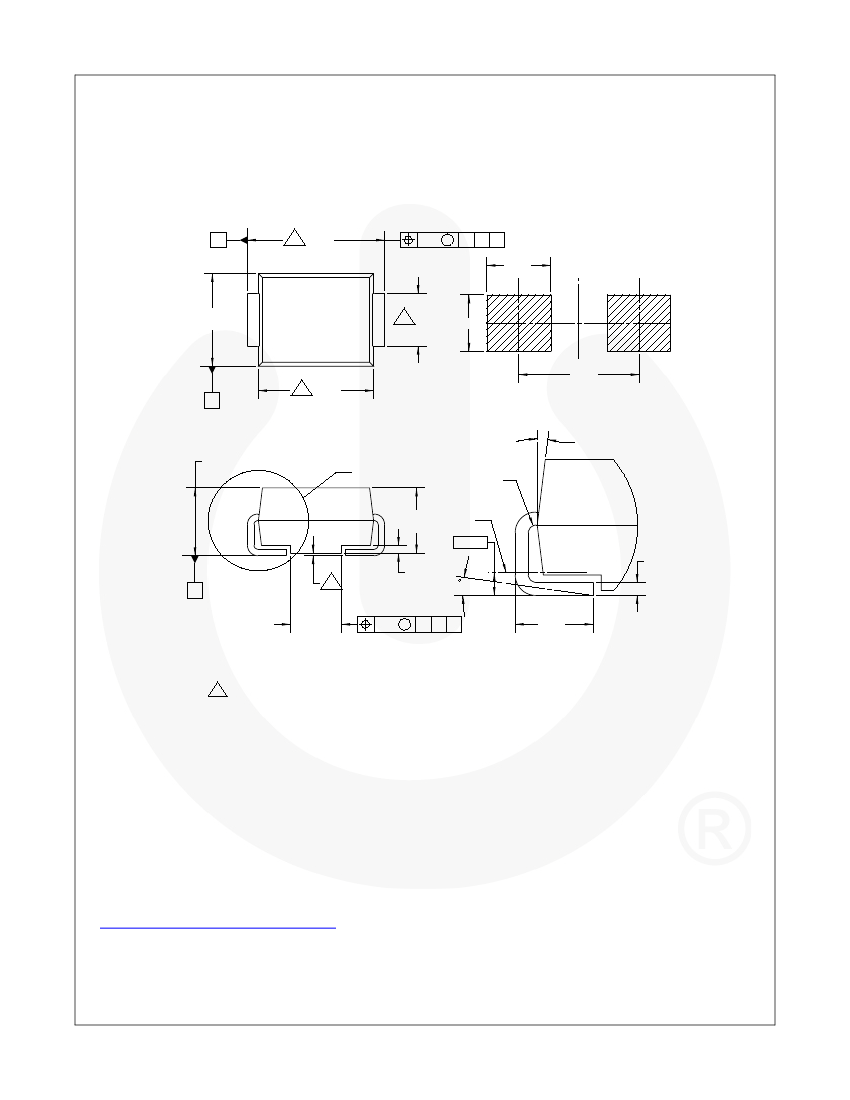

SMB/DO-214AA

COLOR BAND DENOTES CATHODE

Ordering Information

Part Number

S2A

S2B

S2D

S2G

S2J

S2K

S2M

Marking

S2A

S2B

S2D

S2G

S2J

S2K

S2M

Package

Packing Method

DO-214AA (SMB)

Tape and Reel

S2A - S2M Rev. 1.1.4

www.fairchildsemi.com

S2G_Q Related Products

	S2G_Q	S2A_Q	S2K_Q
Description	Rectifiers 400V 1.5a Rectifier Glass Passivated	Rectifiers 50V 1.5a Rectifier Glass Passivated	Rectifiers 800V 1.5a Rectifier Glass Passivated
Product Category	Rectifiers	Rectifiers	Rectifiers
Manufacturer	Fairchild	Fairchild	Fairchild
RoHS	No	No	No
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	SMB	SMB	SMB
Vr - Reverse Voltage	400 V	50 V	800 V
If - Forward Current	2 A	2 A	2 A
Type	Standard Recovery Rectifiers	Standard Recovery Rectifiers	Standard Recovery Rectifiers
Configuration	Single	Single	Single
Vf - Forward Voltage	1.15 V	1.15 V	1.15 V
Max Surge Current	50 A	50 A	50 A
Ir - Reverse Current	1 uA	1 uA	1 uA
Recovery Time	2000 ns	2000 ns	2000 ns
Minimum Operating Temperature	- 65 C	- 65 C	- 65 C
Maximum Operating Temperature	+ 150 C	+ 150 C	+ 150 C
Height	2.45 mm	2.45 mm	2.45 mm
Length	4.75 mm	4.75 mm	4.75 mm
Product	Rectifiers	Rectifiers	Rectifiers
Factory Pack Quantity	3000	3000	3000
Width	3.95 mm	3.95 mm	3.95 mm
Unit Weight	0.006349 oz	0.006349 oz	0.006349 oz
Packaging	Reel	Cut Tape	Cut Tape
